Removal Procedure

  1. Push back the rear seat back.
  2. Remove the push-pin retainer from the rear shoulder belt guide using the J 38778  .
  3. Remove the rear shoulder belt guide from the lower rear quarter trim panel.

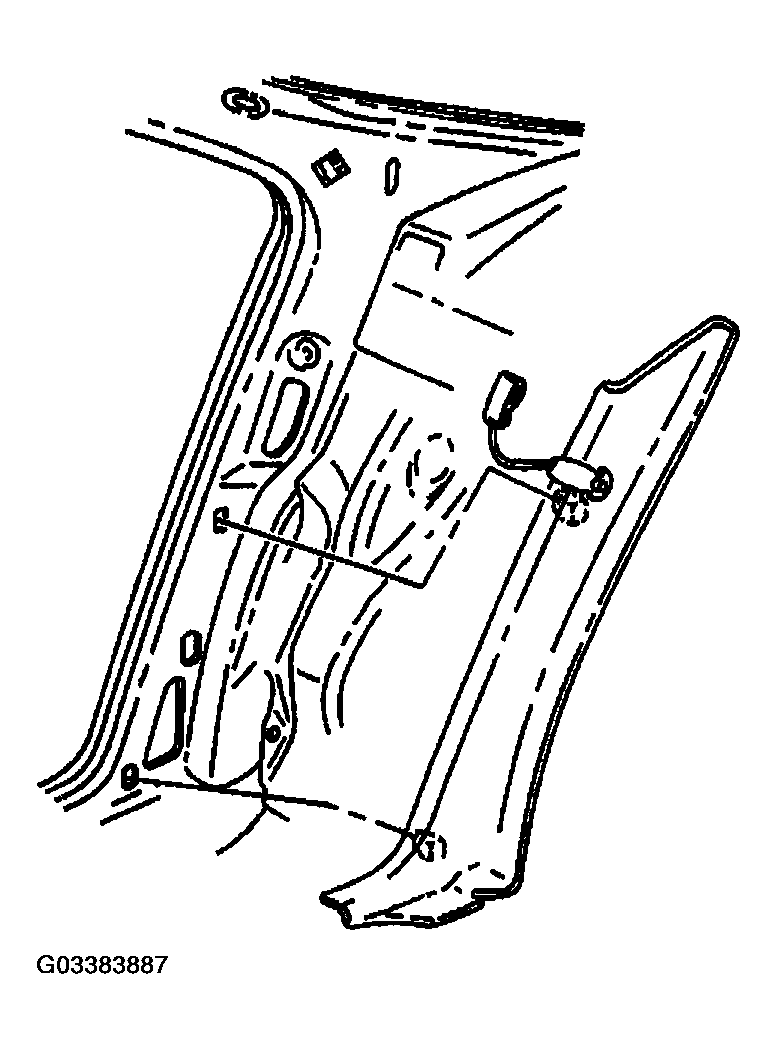

    Fig 1: Removing Child Shoulder Belt Guide Rerouter
    G03383887Courtesy of GENERAL MOTORS CORP.
