Installation Procedure

Install the seat belt retractor into the T-slot in the center pillar.
Install the retractor side seat belt bolt.
Tighten

Tighten the retractor side belt bolt to 68 N.m (50 lb ft).

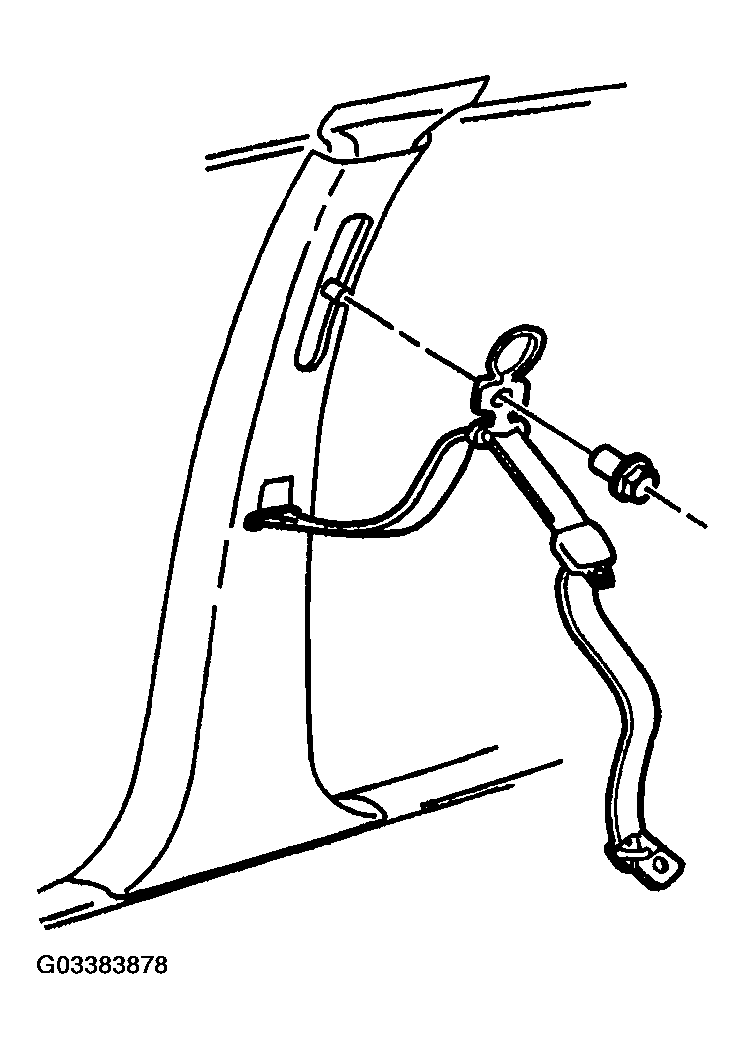

Fig 1: Installing Retractor Side Seat Belt Bolt
Courtesy of GENERAL MOTORS CORP.
Install the intermediate guide bolts.
Tighten

Tighten the intermediate guide bolts to 10 N.m(89 lb in).

Fig 2: Installing Intermediate Guide Bolts
Courtesy of GENERAL MOTORS CORP.
Position the anchor plate to the seat stud.

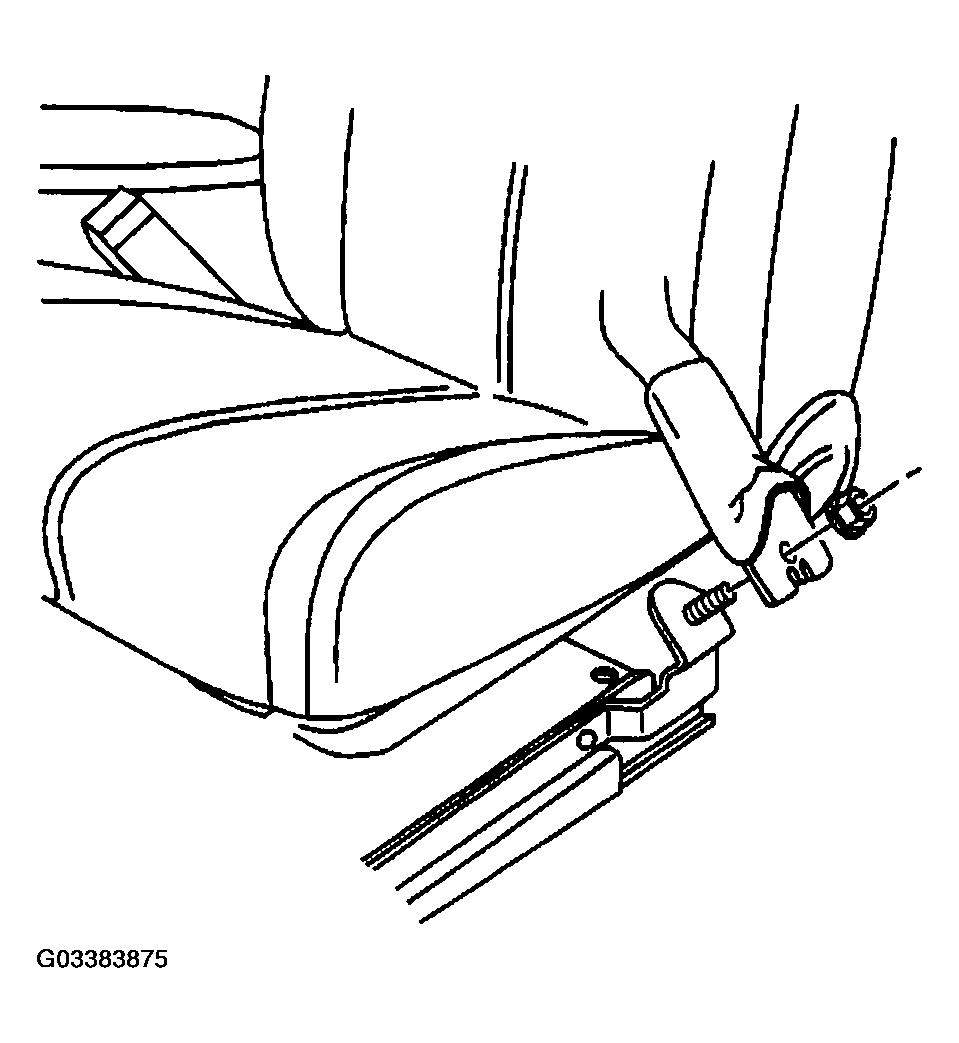

Fig 3: Positioning Anchor Plate To Seat Stud
Courtesy of GENERAL MOTORS CORP.
Install the anchor plate nut to the seat stud.
Tighten

Tighten the anchor plate nut to 42 N.m (31 lb ft).
Install the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR in Interior Trim.
Position the guide loop to the guide adjuster bracket.
Install the guide loop nut.
Tighten

Tighten the guide loop nut to 42 N.m (31 lb ft).
Close the guide loop cover.

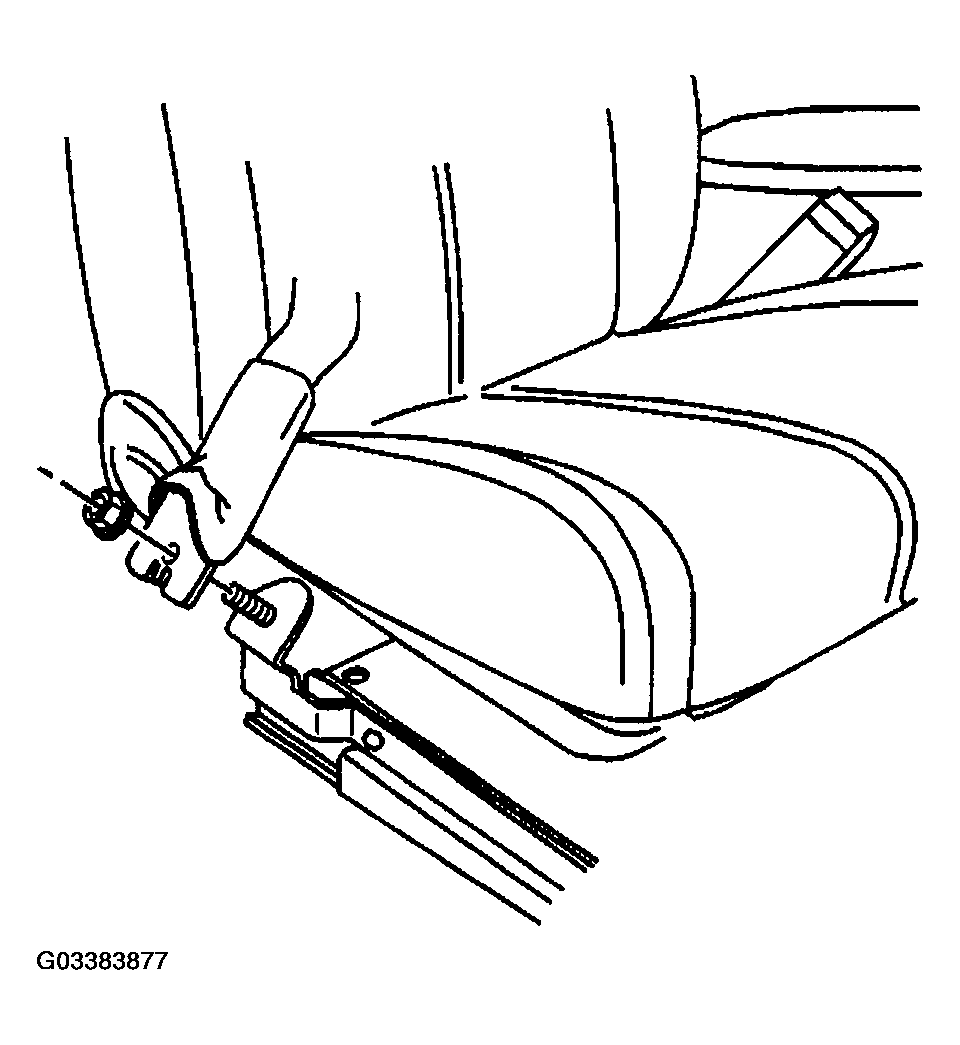

Fig 4: Installing Anchor Plate Nut To Seat Stud
Courtesy of GENERAL MOTORS CORP.
