Power Steering Gear Disassembled View (Magnasteer)
Power Steering Gear Disassembled View (Magnasteer)

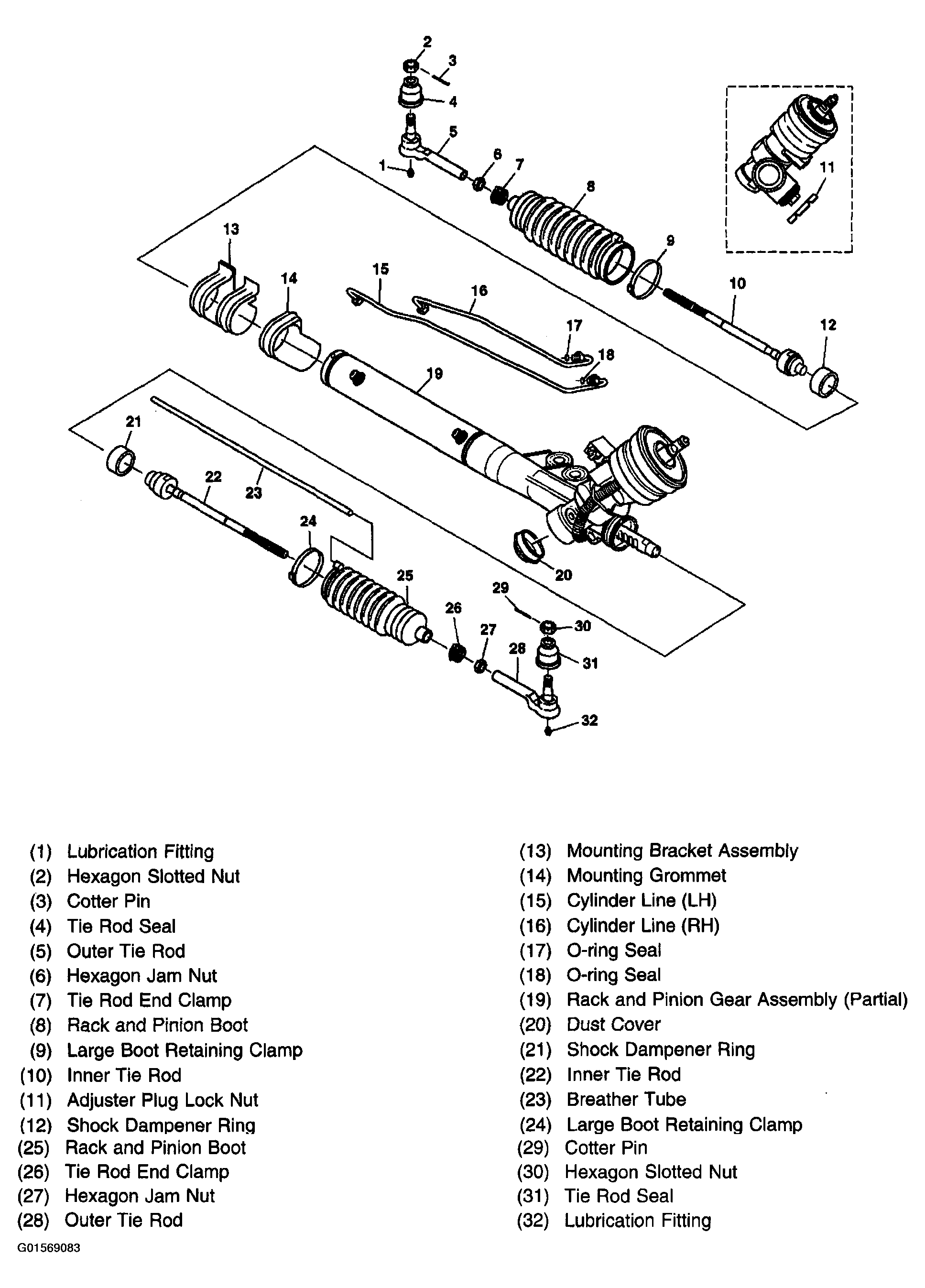

Fig 1: Exploded View Of Magnasteer Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
