Power Steering Fluid Leaks

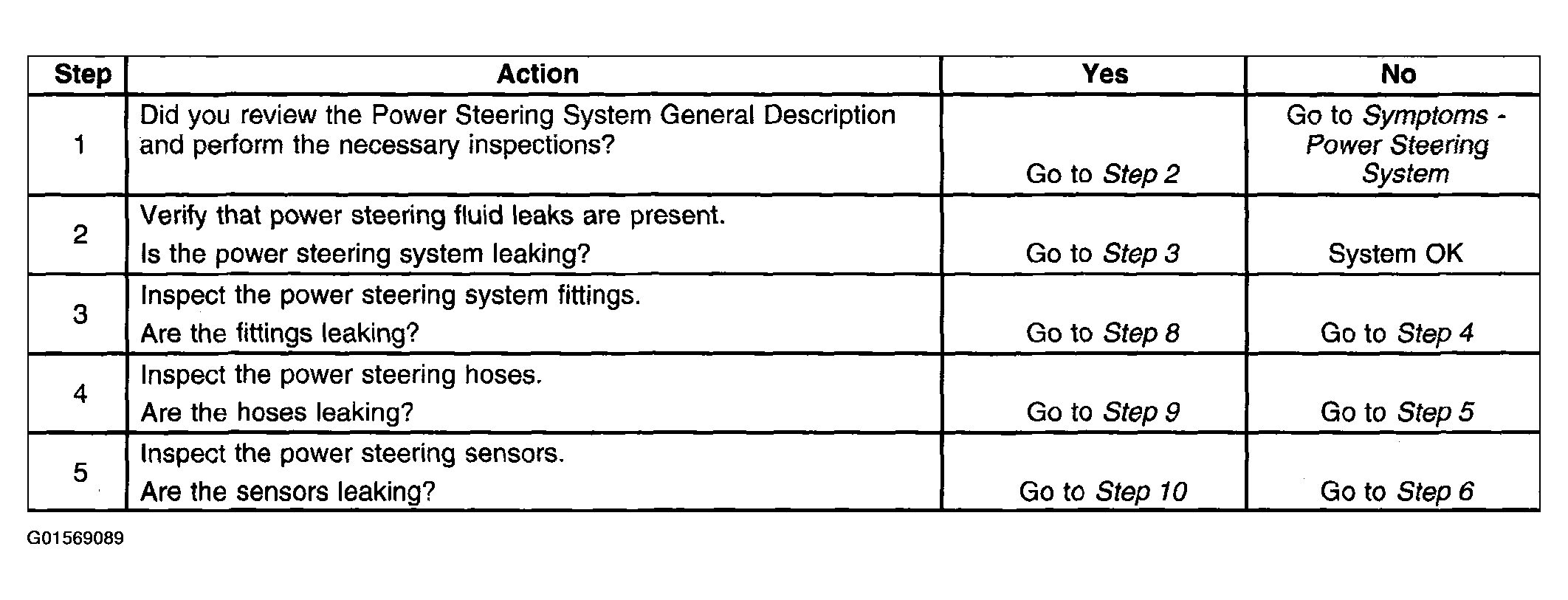

Fig 1: Power Steering Fluid Leaks (Steps 1-5)
G01569089Courtesy of GENERAL MOTORS CORP.

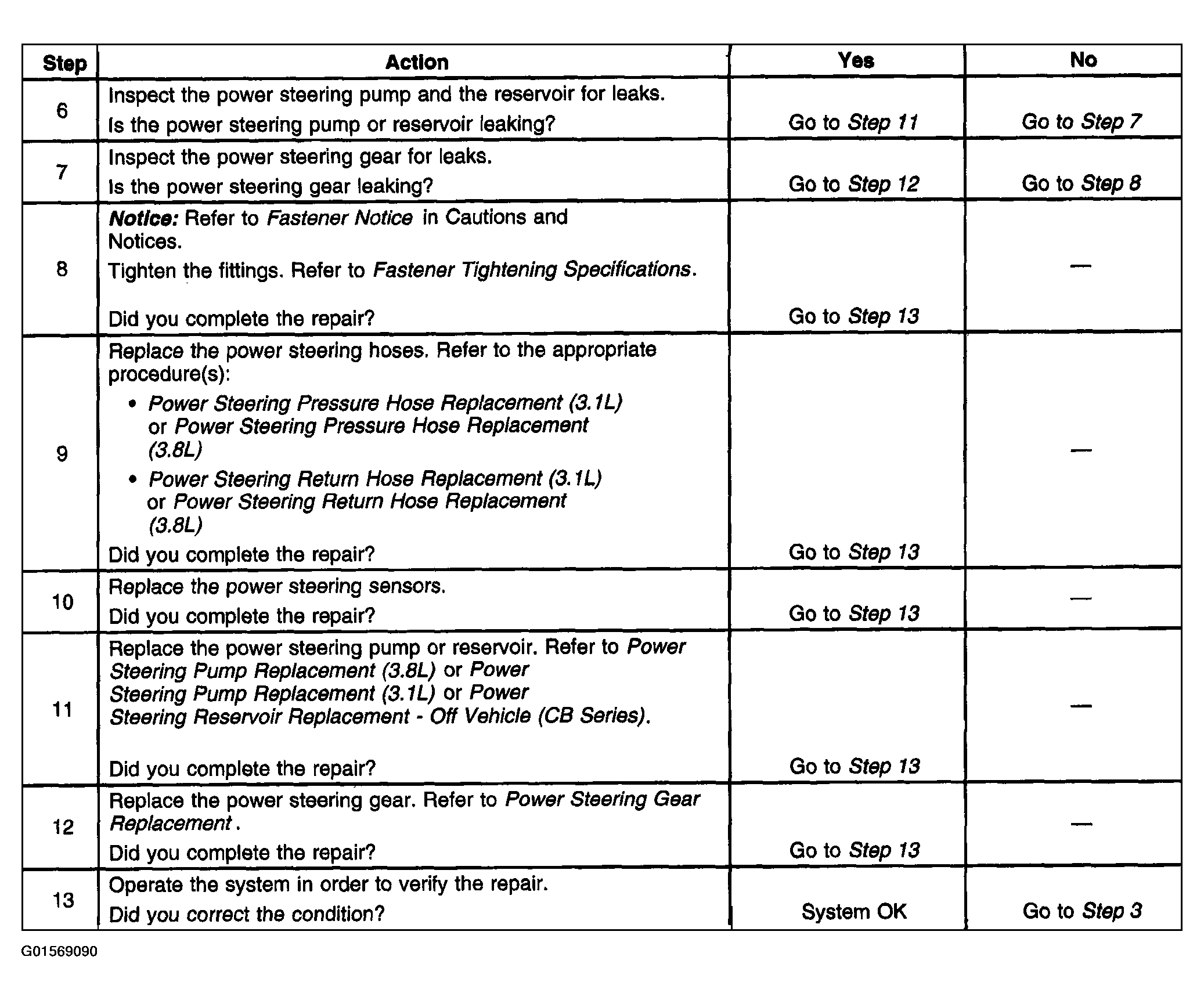

Fig 2: Power Steering Fluid Leaks (Steps 6-13)
G01569090Courtesy of GENERAL MOTORS CORP.
