Removal Procedure

  1. Remove the power steering pump from the engine for clearance. Refer to POWER STEERING PUMP REPLACEMENT (3.8L)  or POWER STEERING PUMP REPLACEMENT (3.1L)  .
  2. Using J 37609-A  remove the power steering pump pulley from the power steering pump.

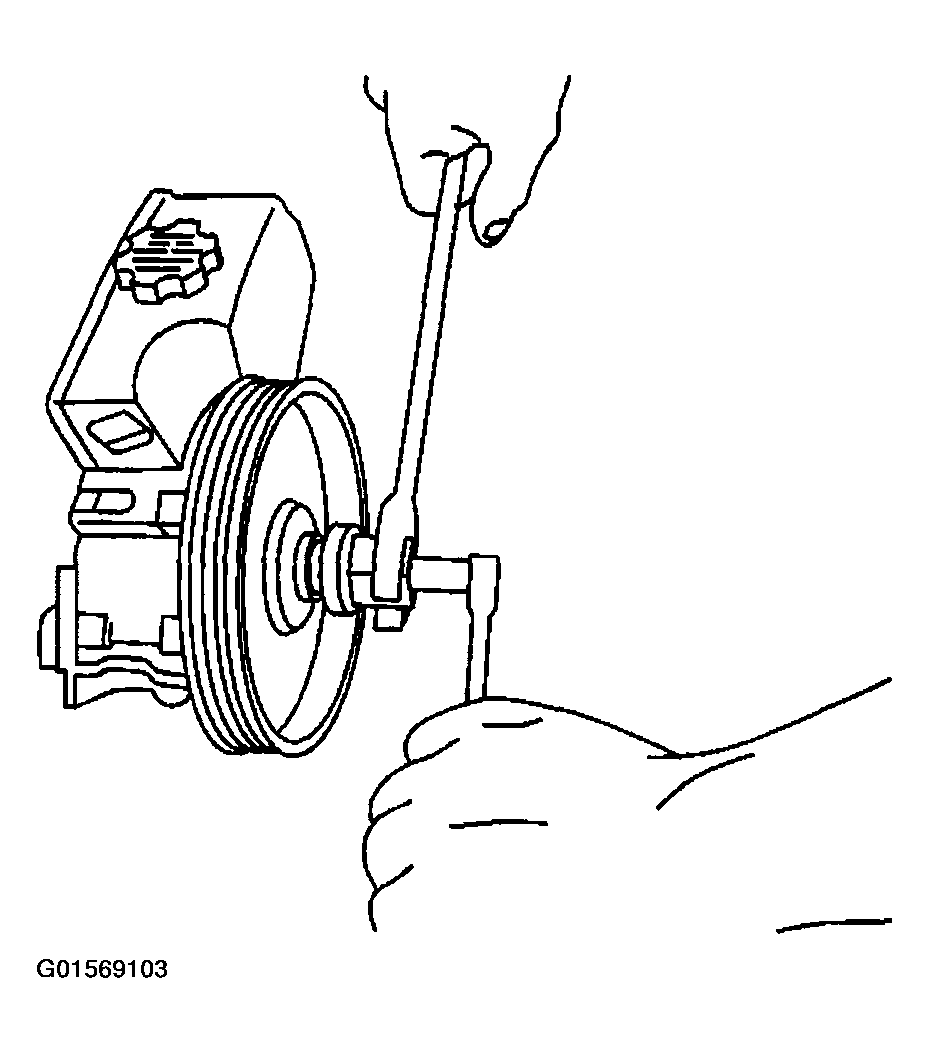

    Fig 1: Removing Power Steering Pump Pulley (3.8L)
    G01569103Courtesy of GENERAL MOTORS CORP.
