Steering Wheel and Column Component Views

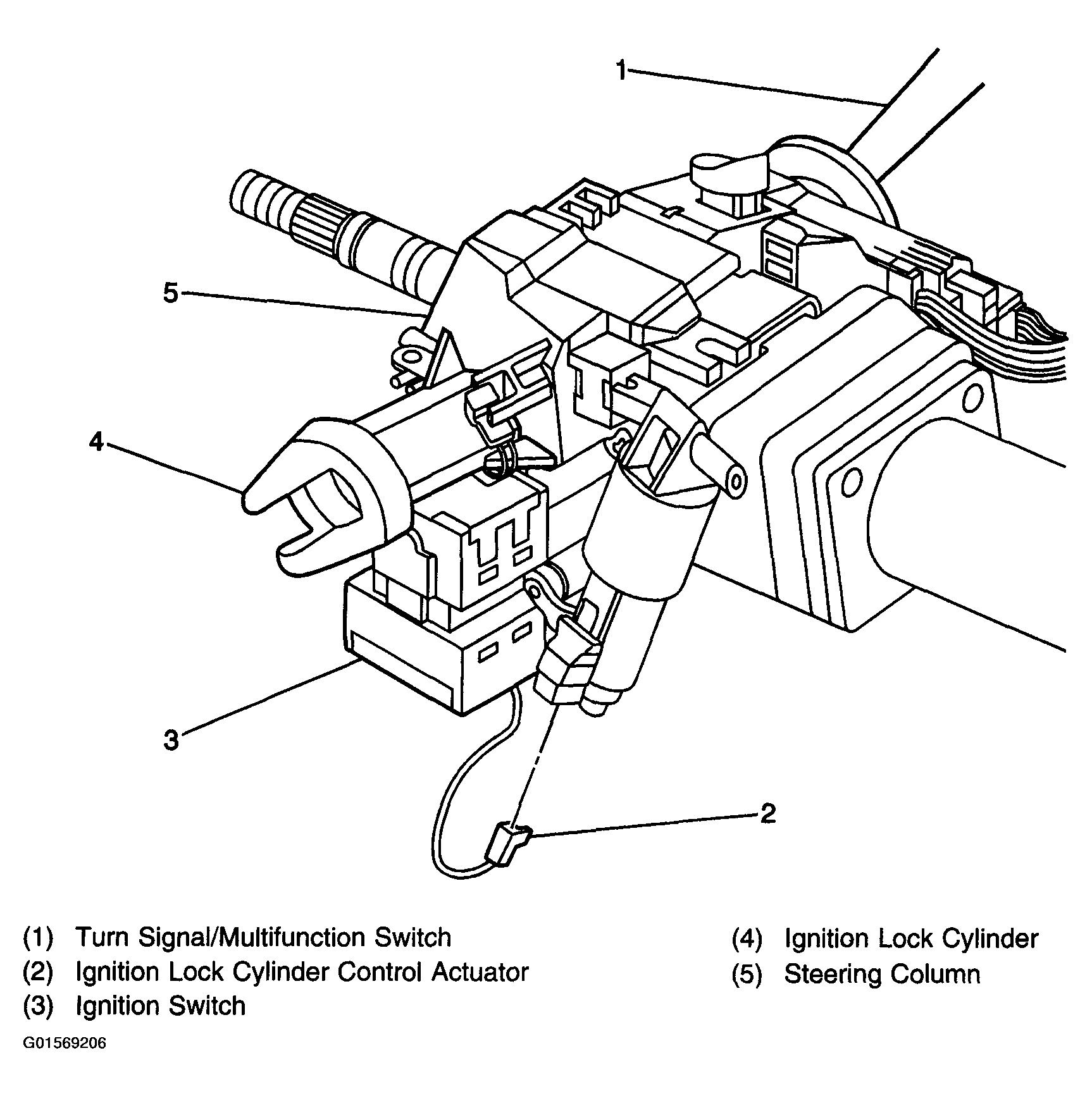

Fig 1: Steering Column Component View (Regal)

Courtesy of GENERAL MOTORS CORP.

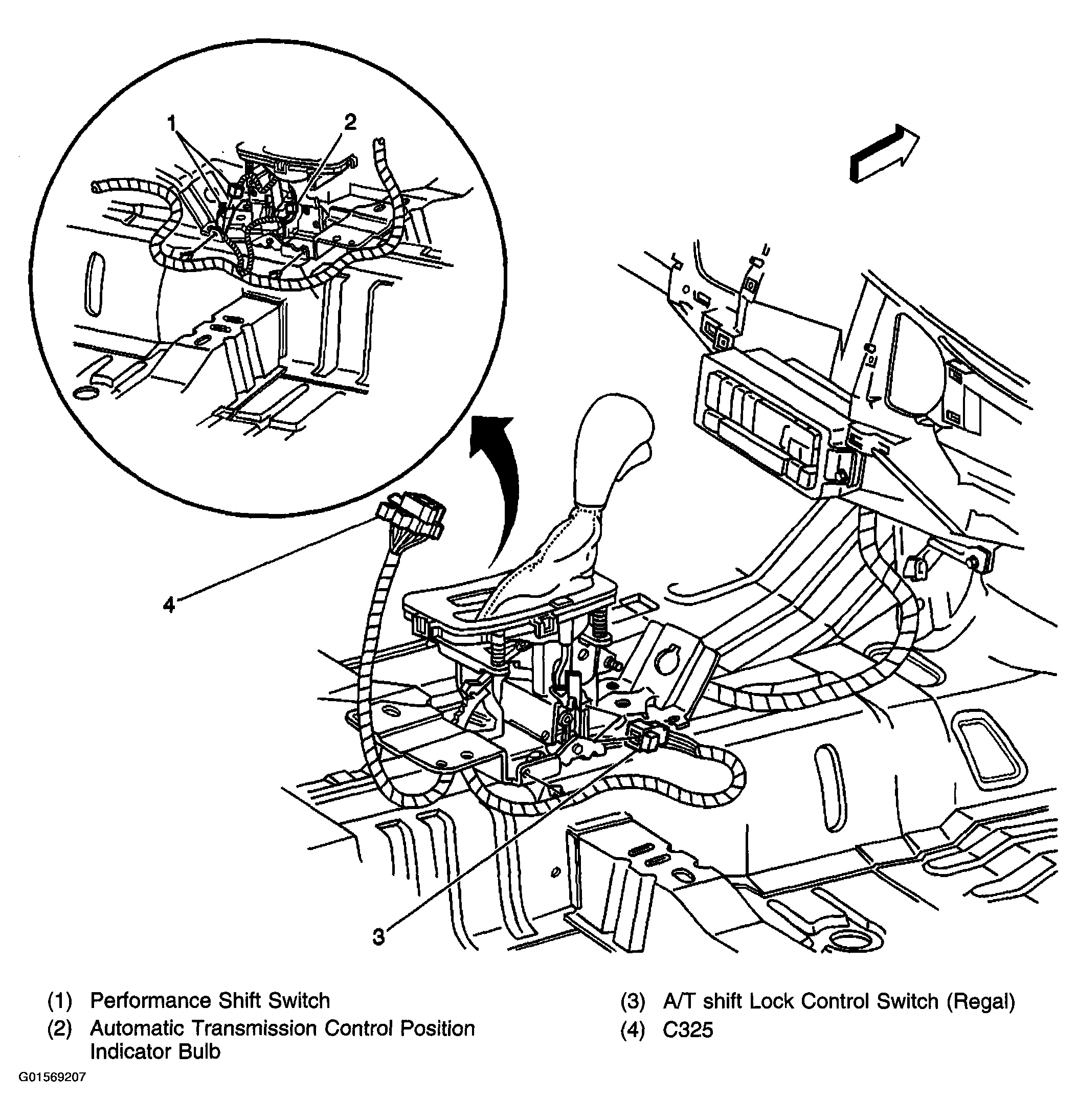

Fig 2: Center of Floor Console Component View

Courtesy of GENERAL MOTORS CORP.
