Installation Procedure

  1. If necessary, install the trim cover protector (1) to the lower trim cover (2).

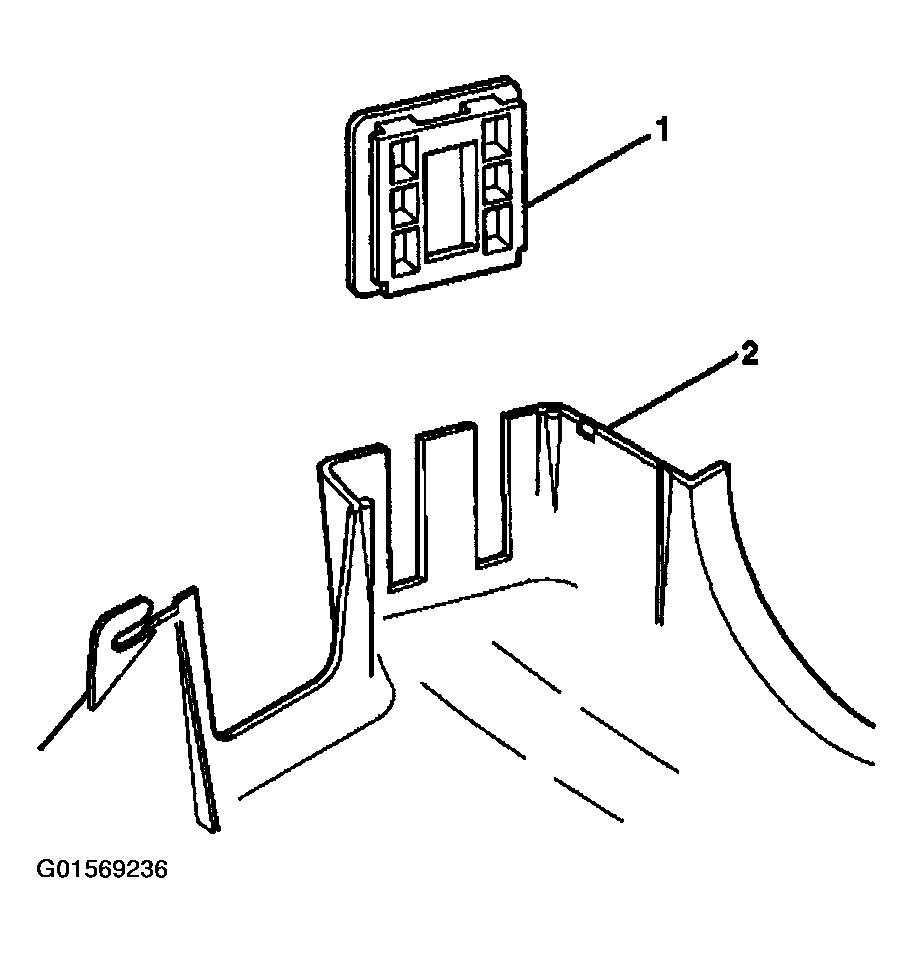

    Fig 1: Installing Trim Cover Protector To Lower Trim Cover
    G01569236Courtesy of GENERAL MOTORS CORP.
  2. Install the shift lever. Refer to SHIFT LEVER REPLACEMENT  .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the upper trim cover (2) and secure by using the TORX® head screw (1).

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

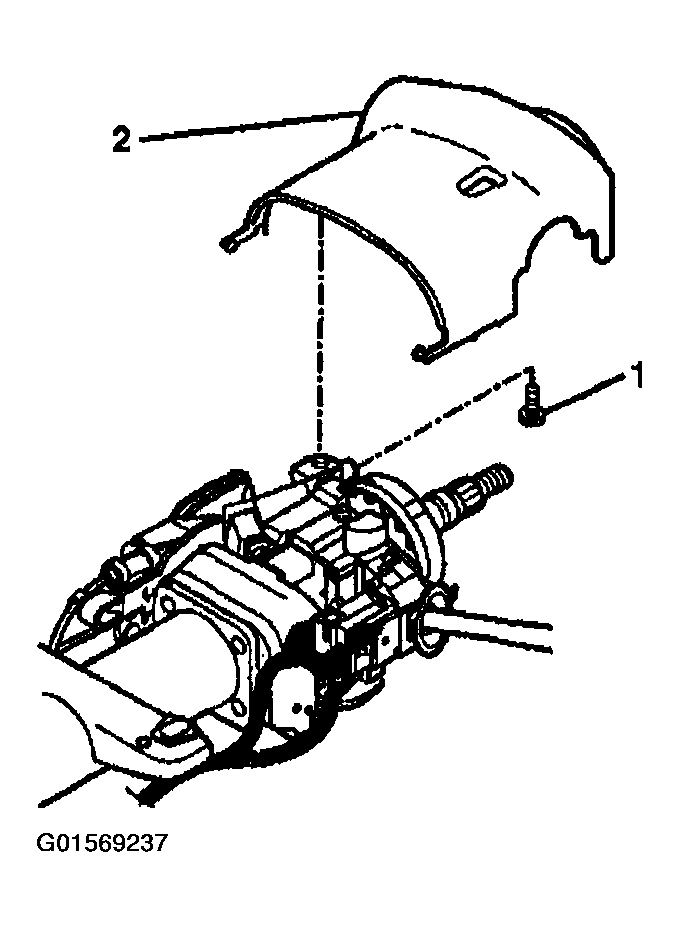

    Fig 2: Installing Upper Trim Cover & Retaining Screws
    G01569237Courtesy of GENERAL MOTORS CORP.
  4. Install the lower trim cover (1) and secure by using 2 pan head tapping screws (2).

    Tighten

    Tighten the screws to 3.5 N.m (31 lb in).

  5. Install the tilt lever assembly. Refer to TILT LEVER REPLACEMENT  .
  6. Install the steering wheel onto the column. Refer to STEERING WHEEL REPLACEMENT  .
  7. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.

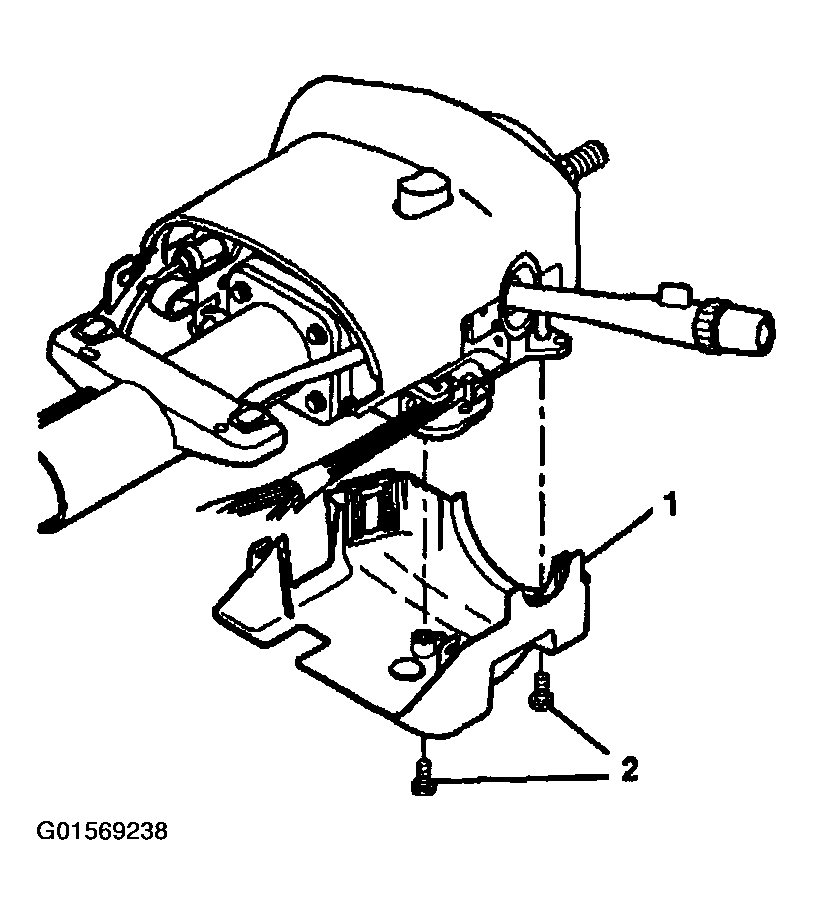

    Fig 3: Installing Lower Trim Cover & Retaining Screws
    G01569238Courtesy of GENERAL MOTORS CORP.
