Cruise Control Connector End Views

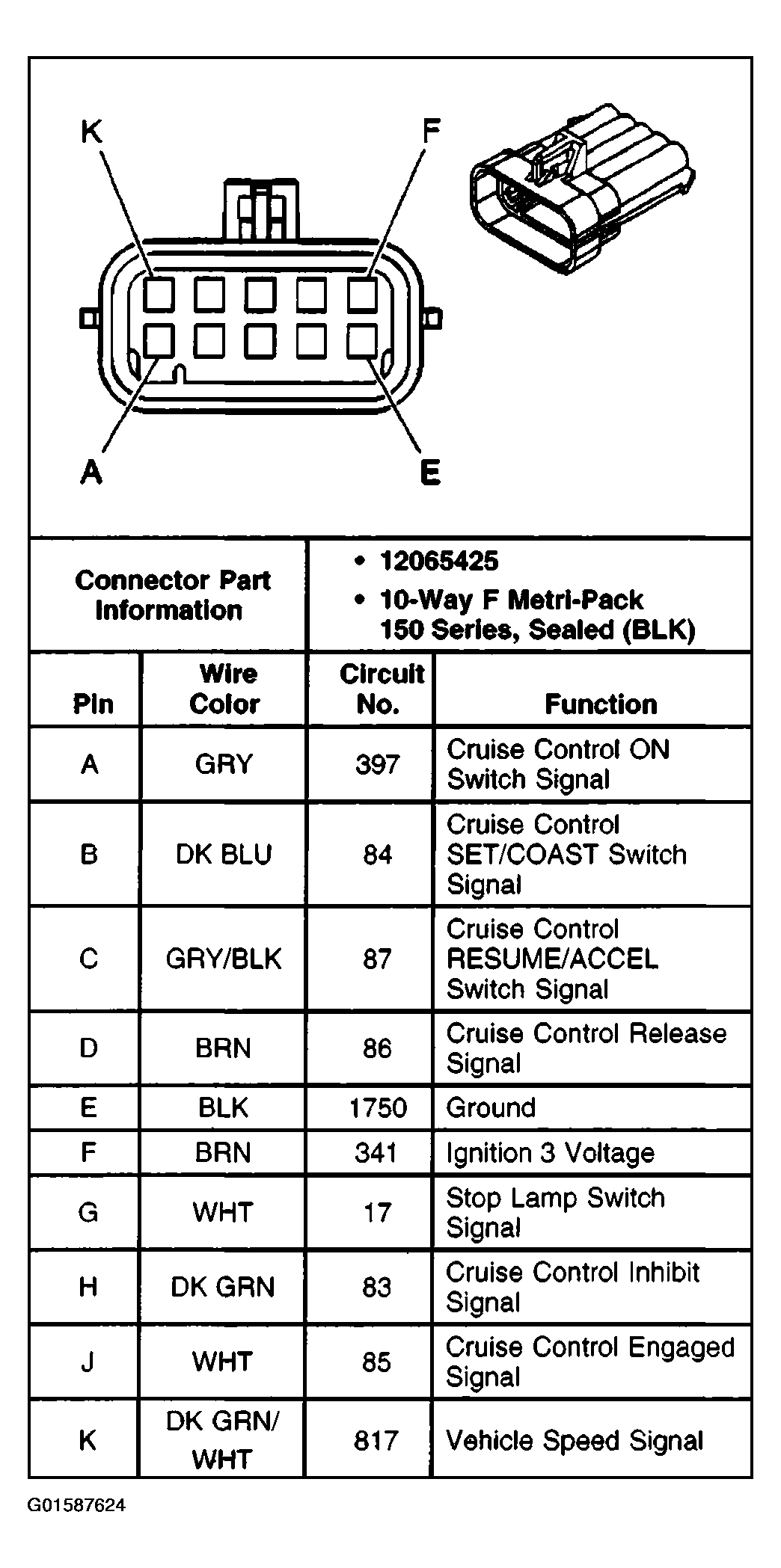

Fig 1: Cruise Control Module (CCM) Connector End View

Courtesy of GENERAL MOTORS CORP.

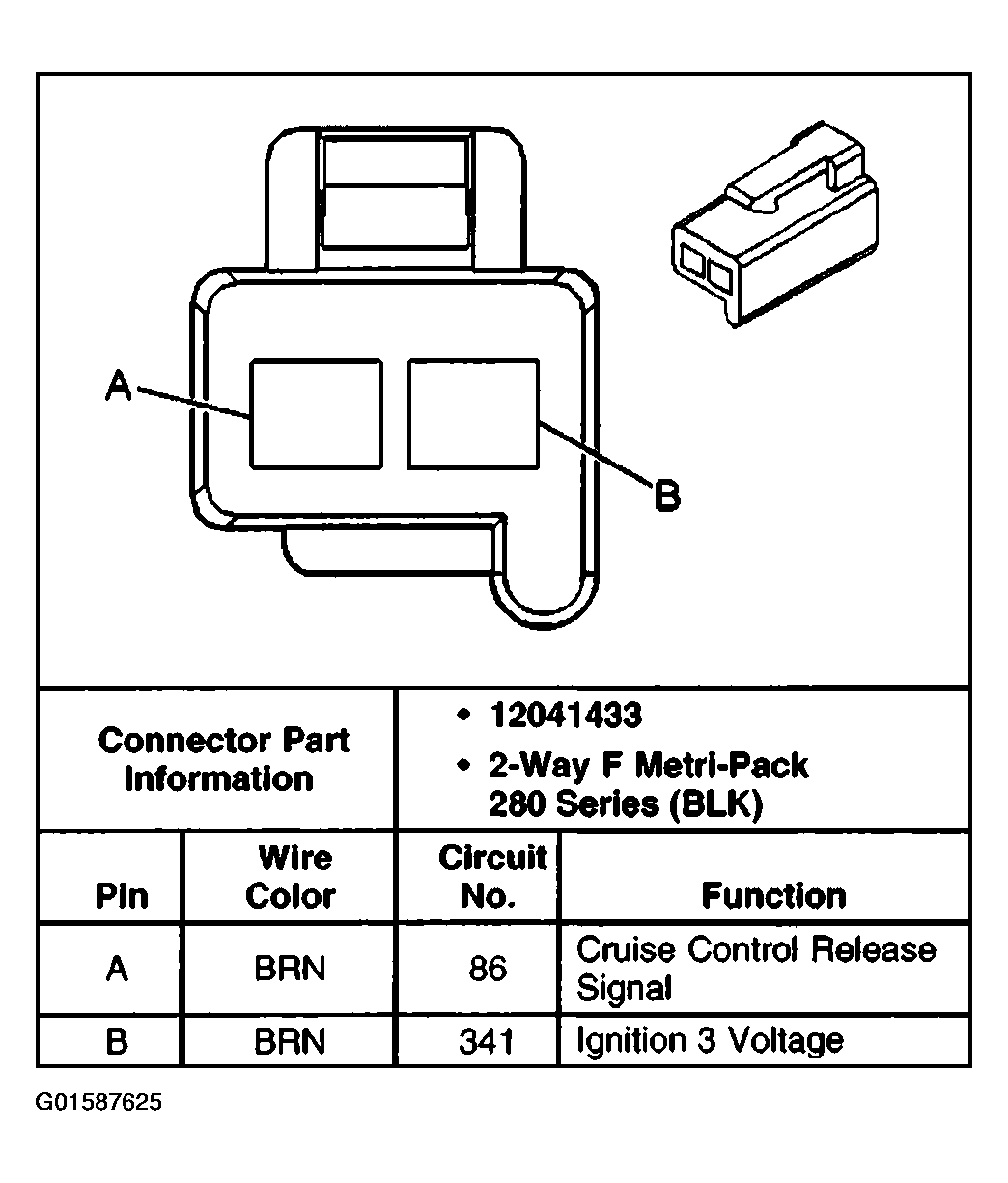

Fig 2: Cruise Control Release Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
