Installation Procedure

  1. Install the cruise control cable to the engine.
  2. Install the cruise control cable to the throttle lever and the accelerator control cable bracket.

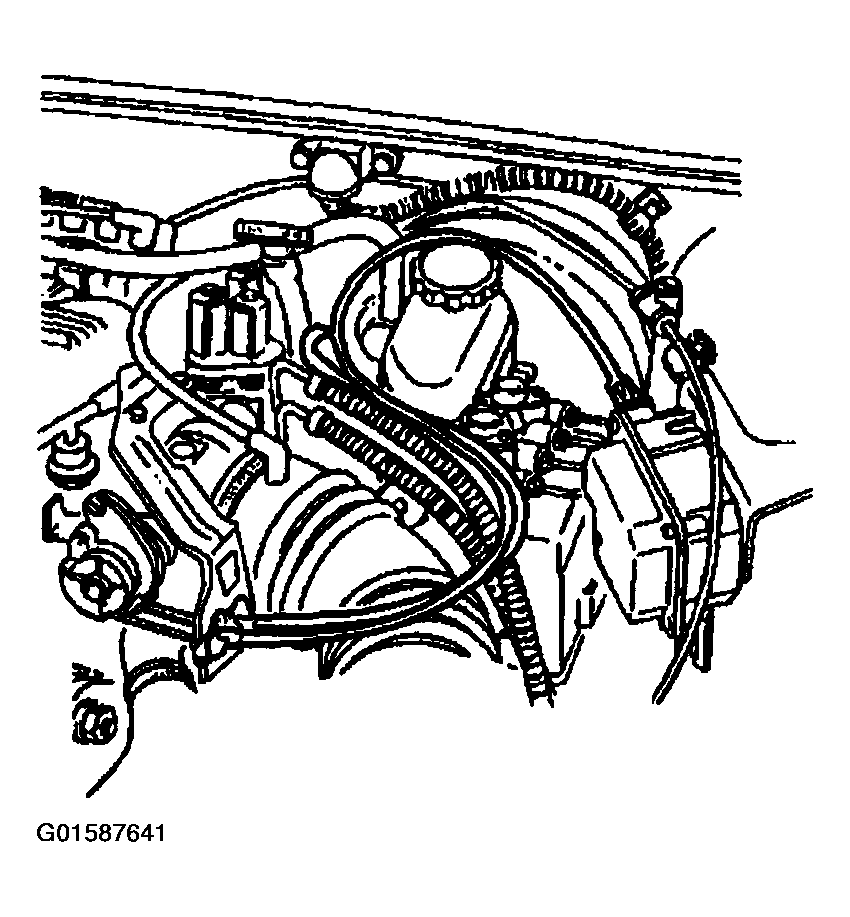

    3. Fig 1: Installing Cruise Control Cable To Engine (3.1 L)
    G01587641Courtesy of GENERAL MOTORS CORP.
  3. Install the cruise control cable to the cruise control retainers.

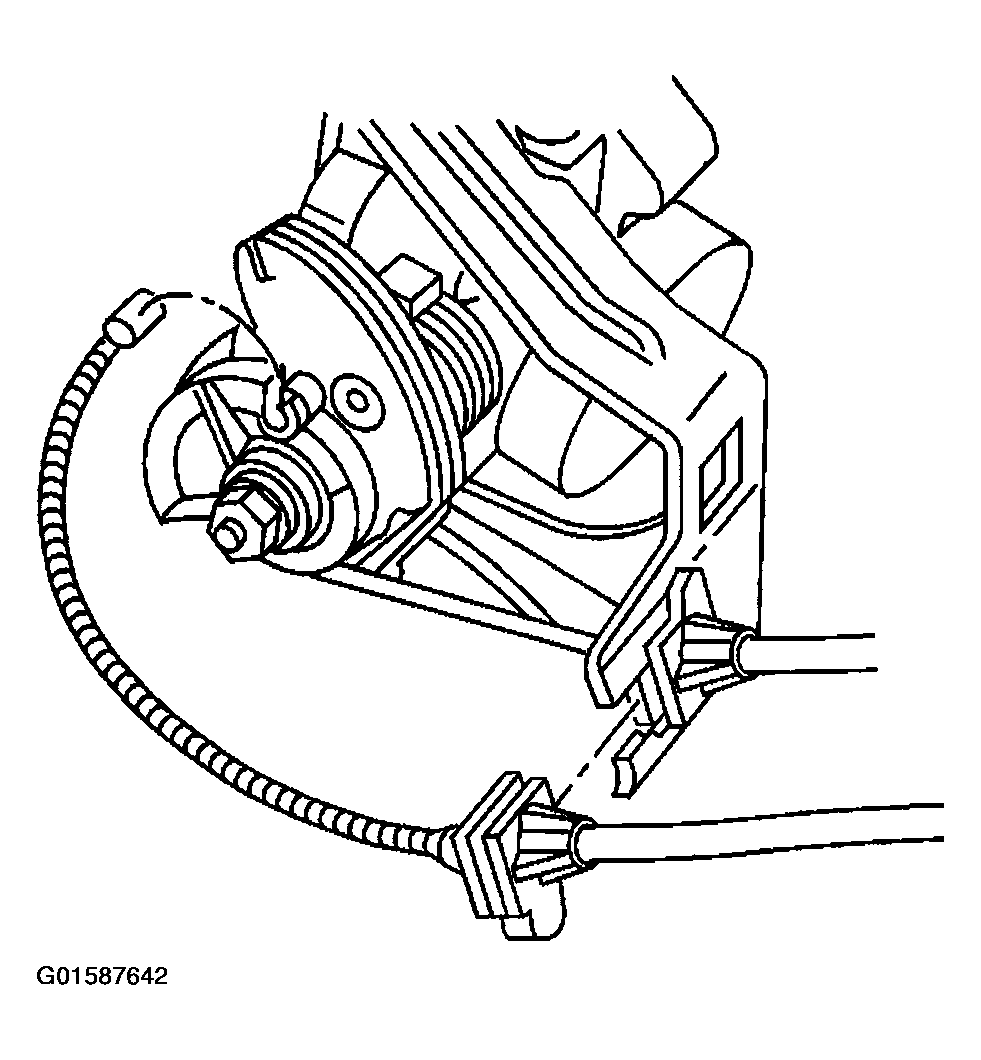

    4. Fig 2: Installing Cruise Control Cable To Cruise Control Retainers (3.1 L)
    G01587642Courtesy of GENERAL MOTORS CORP.
  4. Install the cruise control cable to the cruise control module strap.

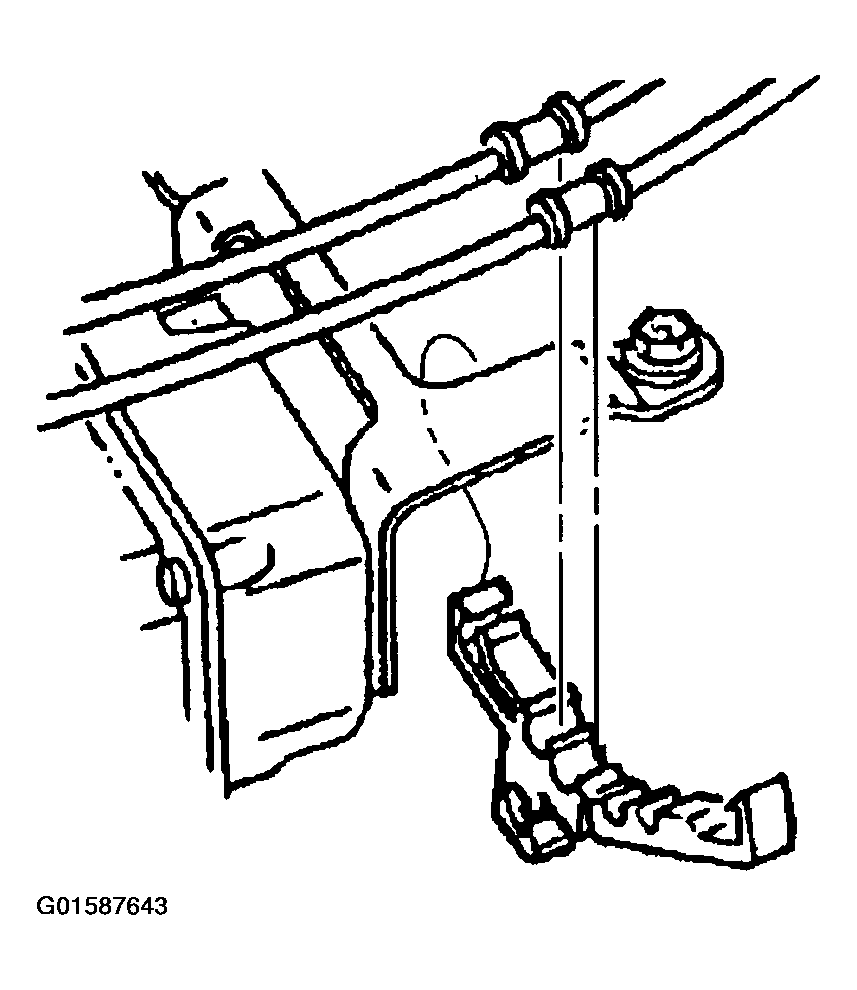

    Fig 3: Installing Cruise Control Cable To Cruise Control Module Strap (3.1 L)
    G01587643Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the cruise control module strap is not twisted during installation of the cruise control cable.
  5. Rotate the cruise control cable clockwise.

    Install the cruise control cable to the cruise control module.

    6. Fig 4: Installing Cruise Control Cable To Cruise Control Module (3.1 L)
    G01587644Courtesy of GENERAL MOTORS CORP.
