Installation Procedure

  1. Install the cruise release switch to the cruise release switch retainer on the brake pedal bracket.
  2. Connect the cruise release switch electrical connector.

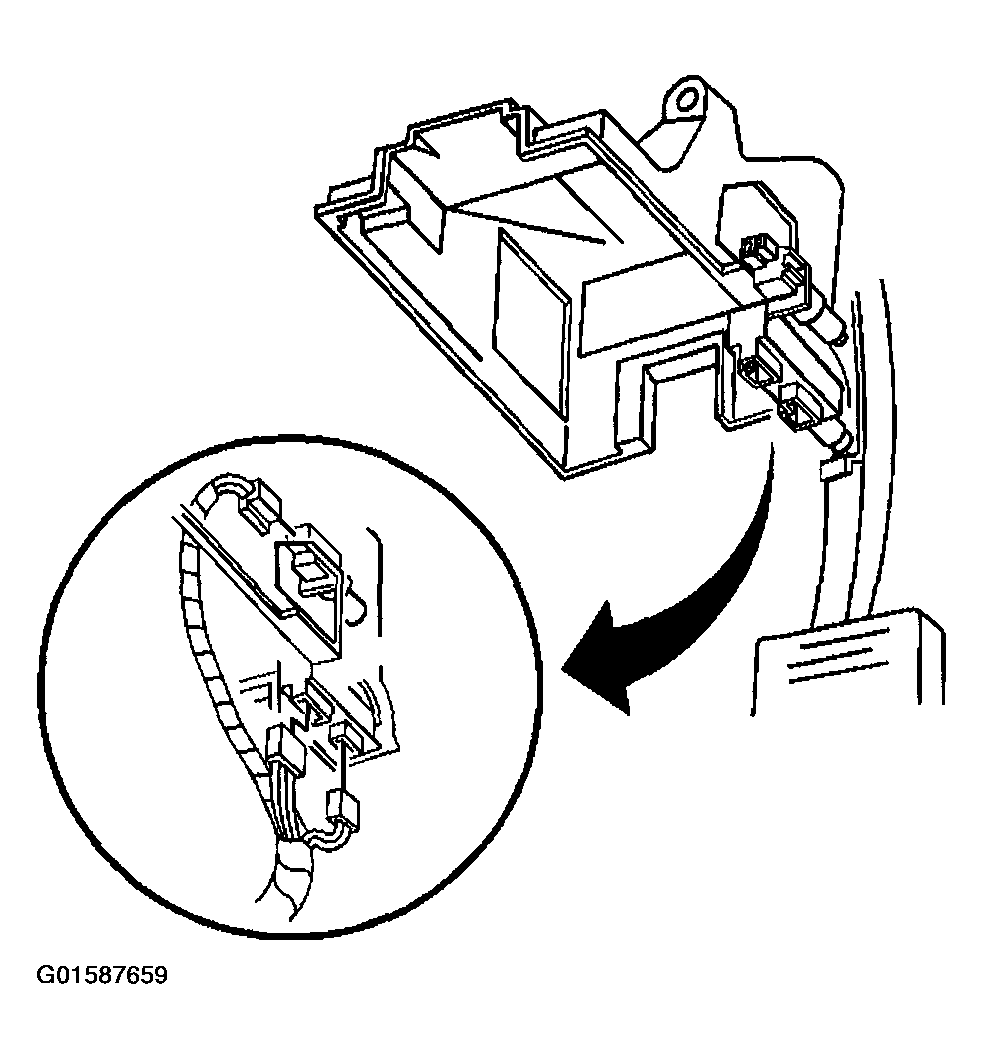

    3. Fig 1: Connecting Cruise Release Switch Electrical Connector
    G01587659Courtesy of GENERAL MOTORS CORP.
  3. Adjust the cruise release switch. Refer to CRUISE RELEASE SWITCH ADJUSTMENT  .
  4. Install the left side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
