Power Seat Systems Component Views

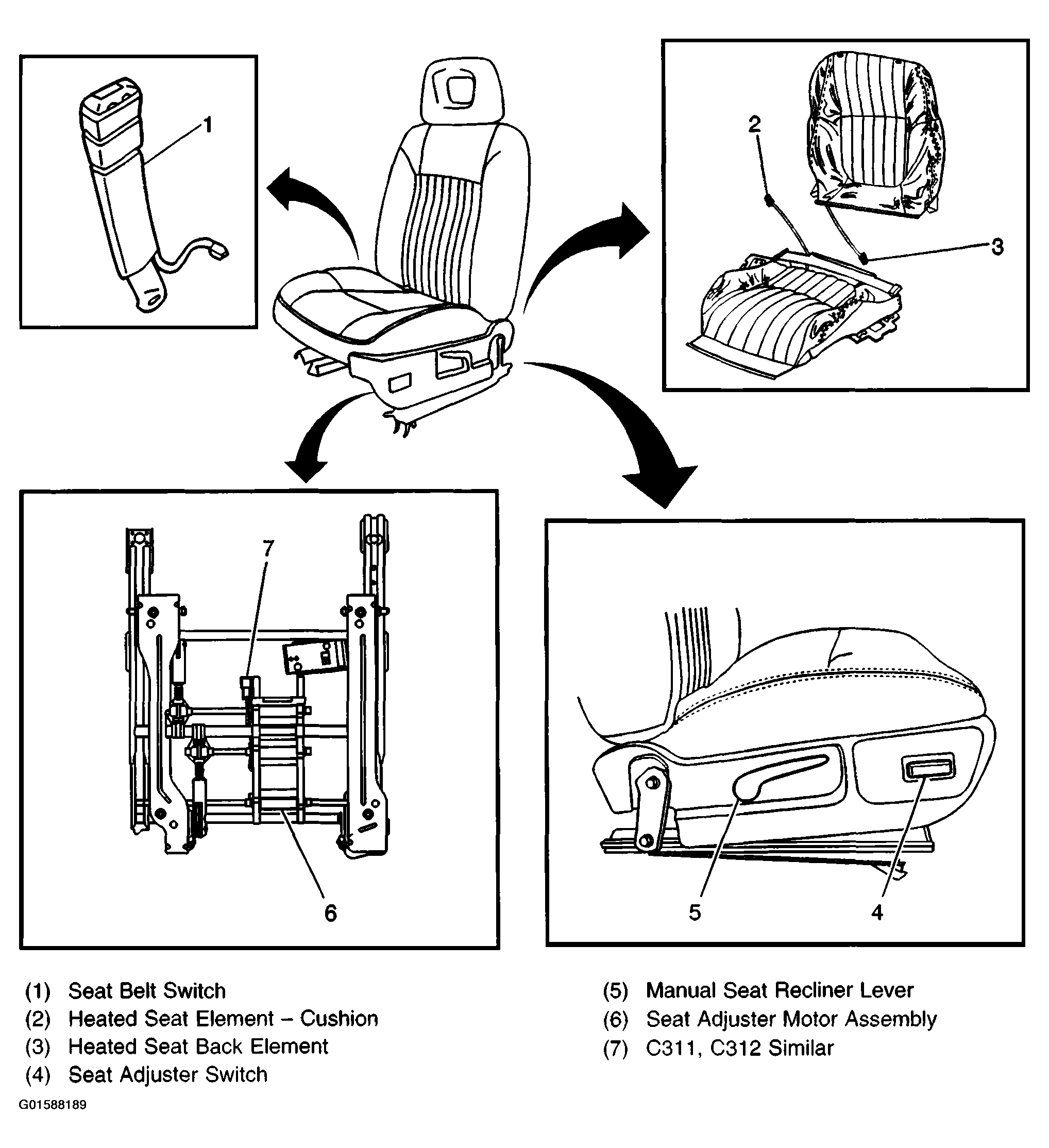

Fig 1: Power Seat Subsystem Component View

Courtesy of GENERAL MOTORS CORP.

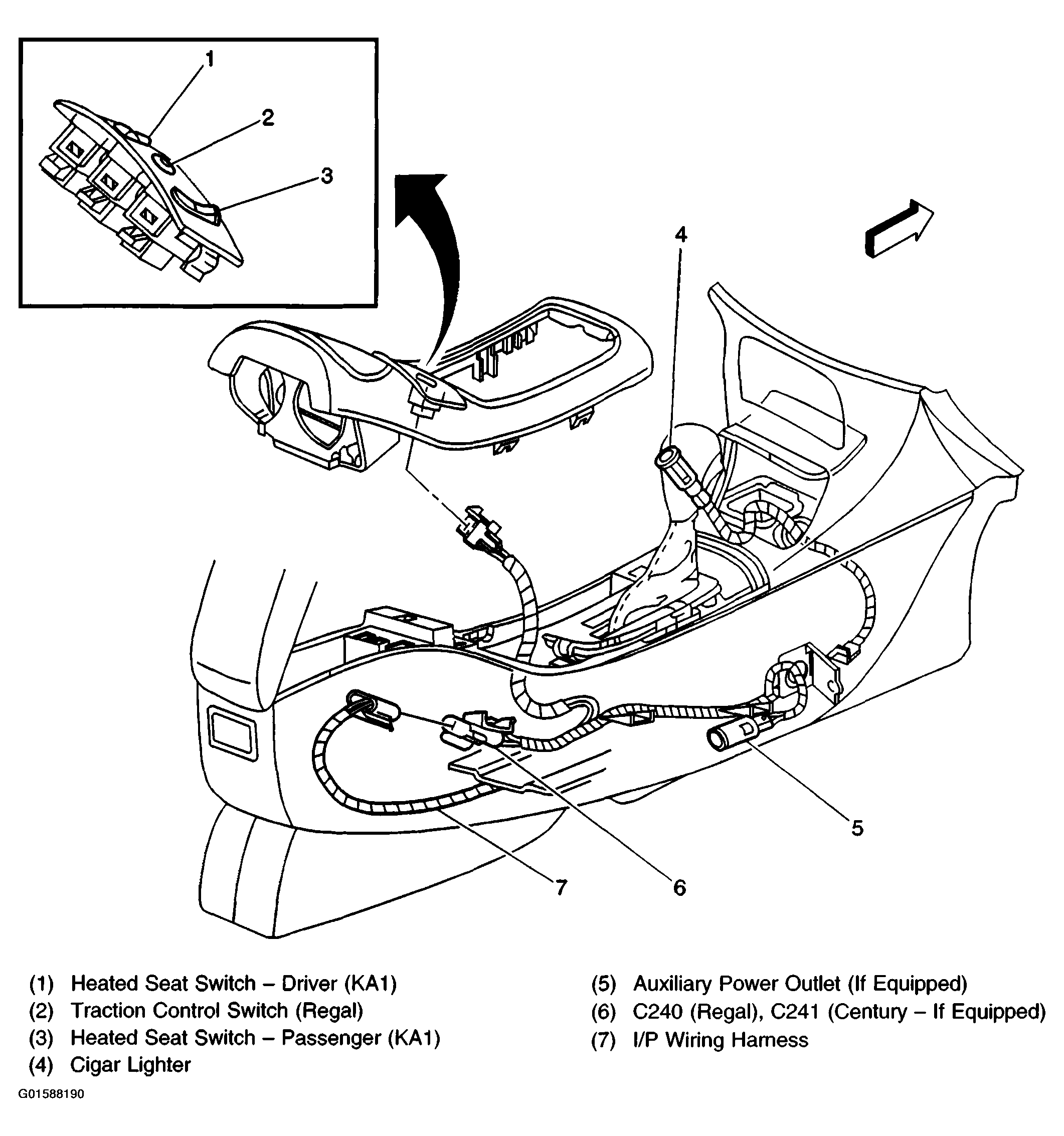

Fig 2: Center Console Component View (D06, D55 - If Equipped)

Courtesy of GENERAL MOTORS CORP.
