Removal Procedure

  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF  in Interior Trim.
  2. Slide the sound barrier out from under the upper quarter panel trim.
  3. Pull the sound barrier forward to access the tether bolts.
  4. Remove the child seat tether bracket to rear shelf bolts.
  5. Remove the child seat tether brackets from the rear shelf.

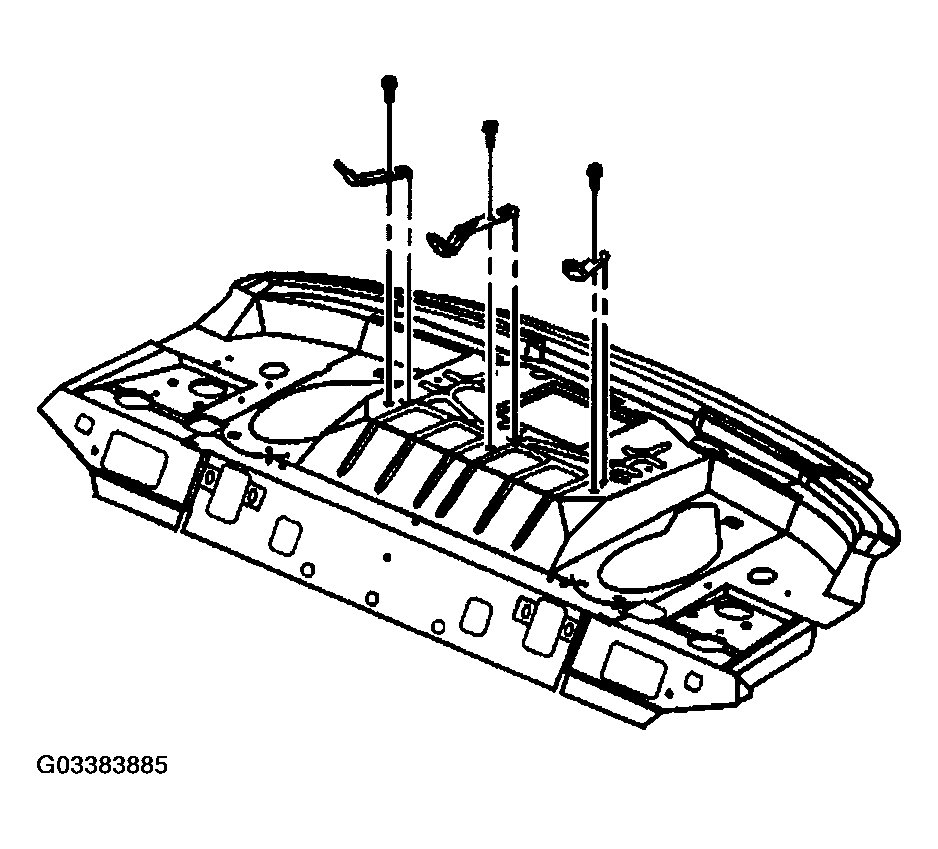

    Fig 1: Removing Child Seat Tether Bracket To Rear Shelf Bolts
    G03383885Courtesy of GENERAL MOTORS CORP.
