Body Control System Connector End View - Instrument Panel Integration Module C1
Body Control System Connector End View - Instrument Panel Integration Module C1

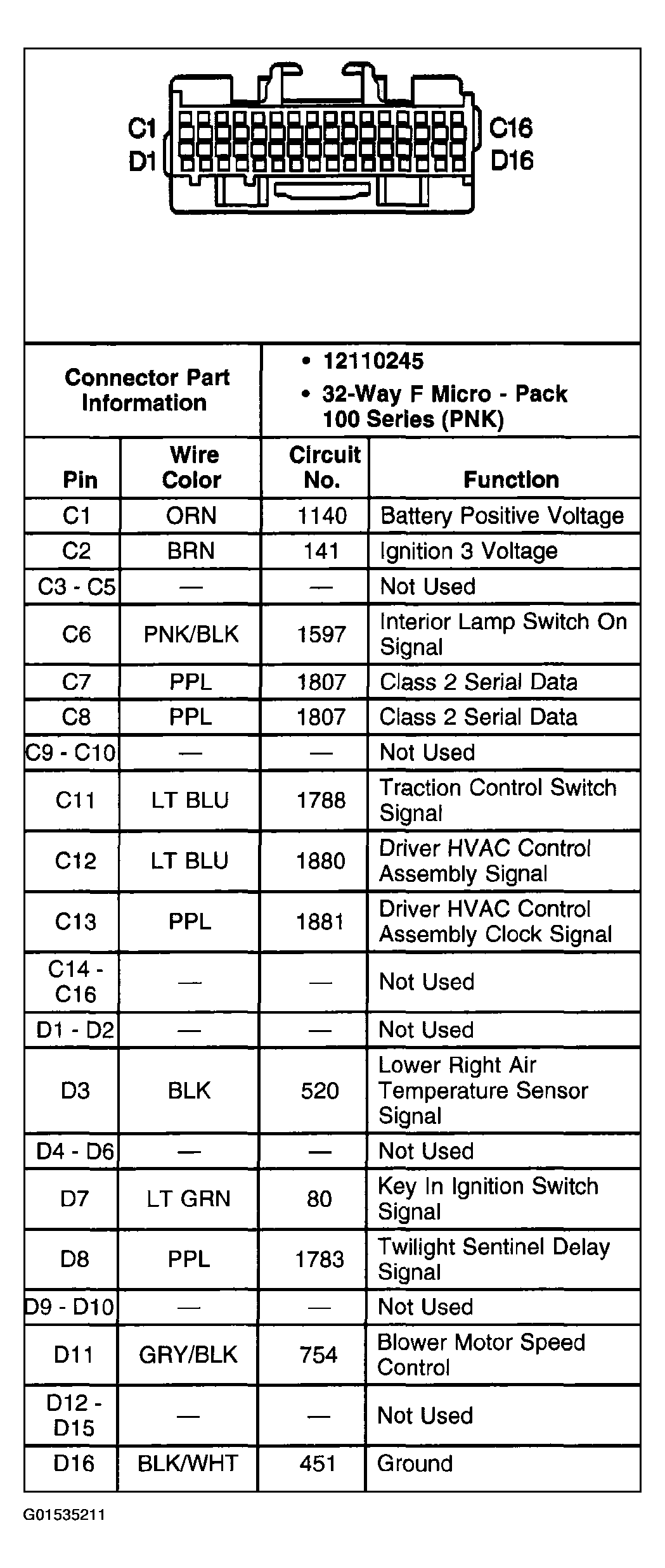

Fig 1: Body Control System - Instrument Panel Integration Module C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
