Vehicle Communication Interface Module C2 Connector End View

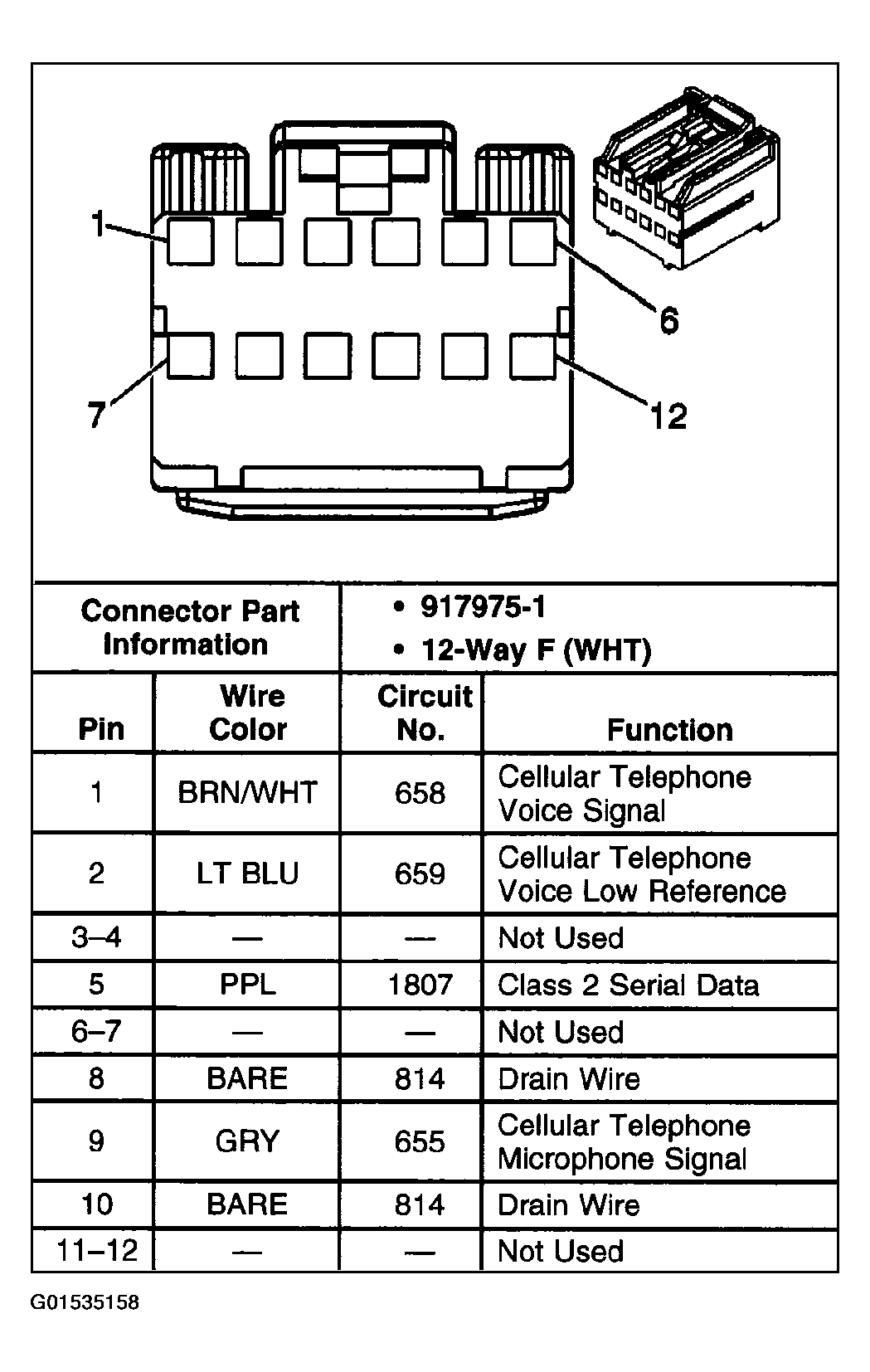

Fig 1: Vehicle Communication Interface Module C2
G01535158Courtesy of GENERAL MOTORS CORP.
