Body Control System Connector End Views

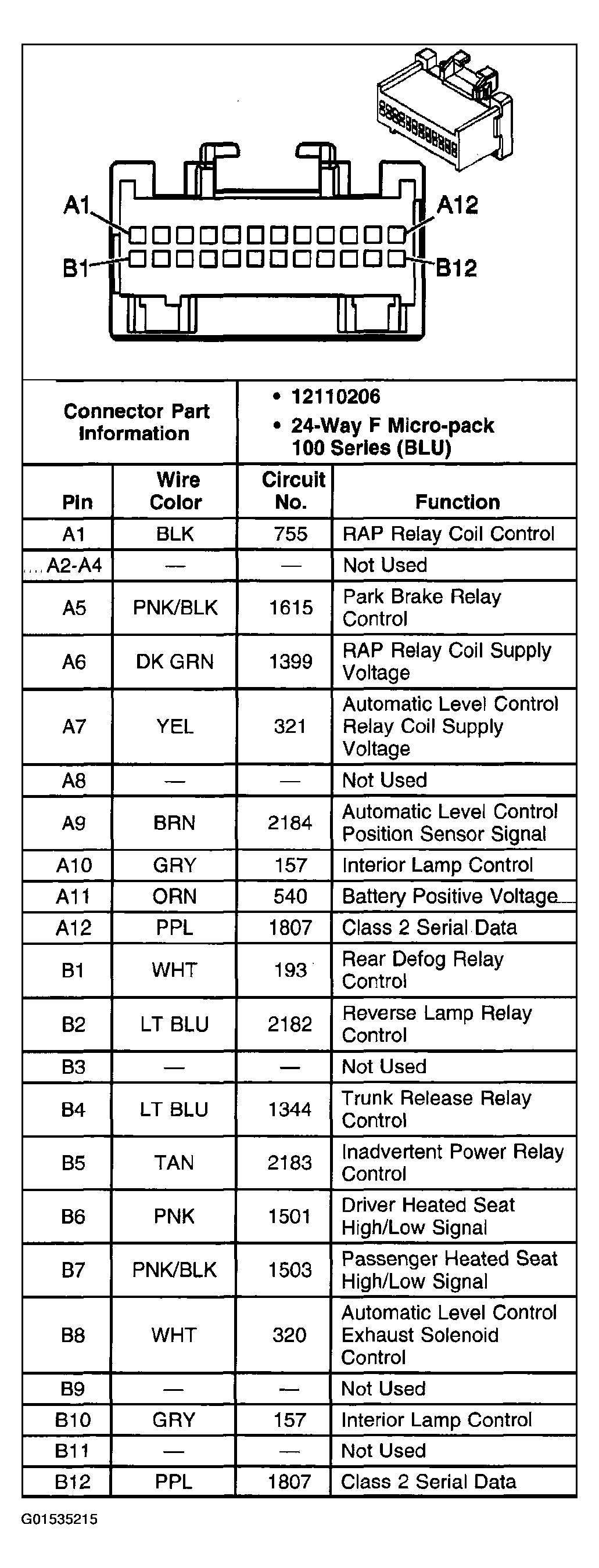

Fig 1: Identifying Body Control System Connector End Views - Dash Integration Module C1

Courtesy of GENERAL MOTORS CORP.

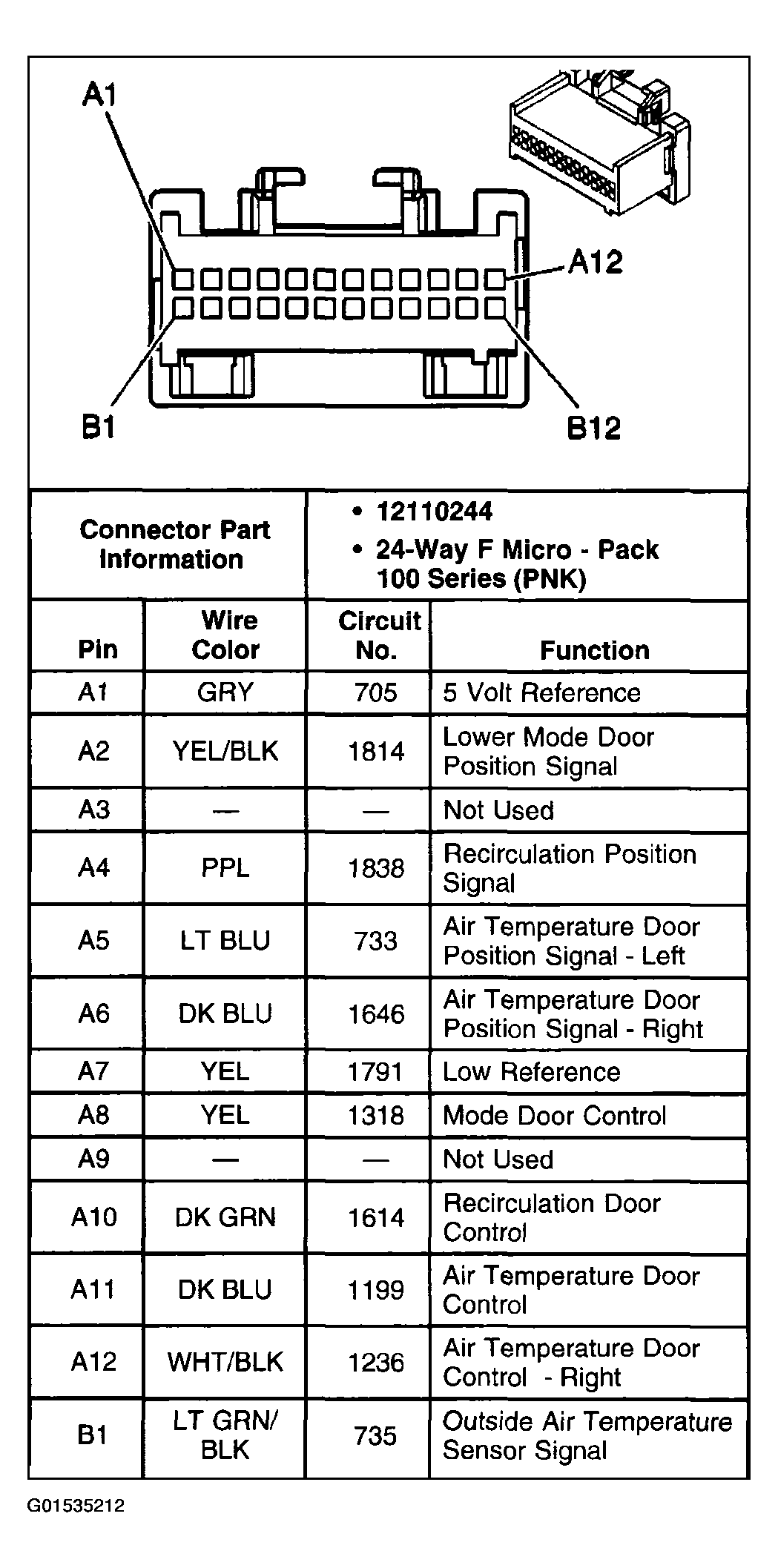

Fig 2: Identifying Body Control System Connector End Views - Dash Integration Module C2

Courtesy of GENERAL MOTORS CORP.

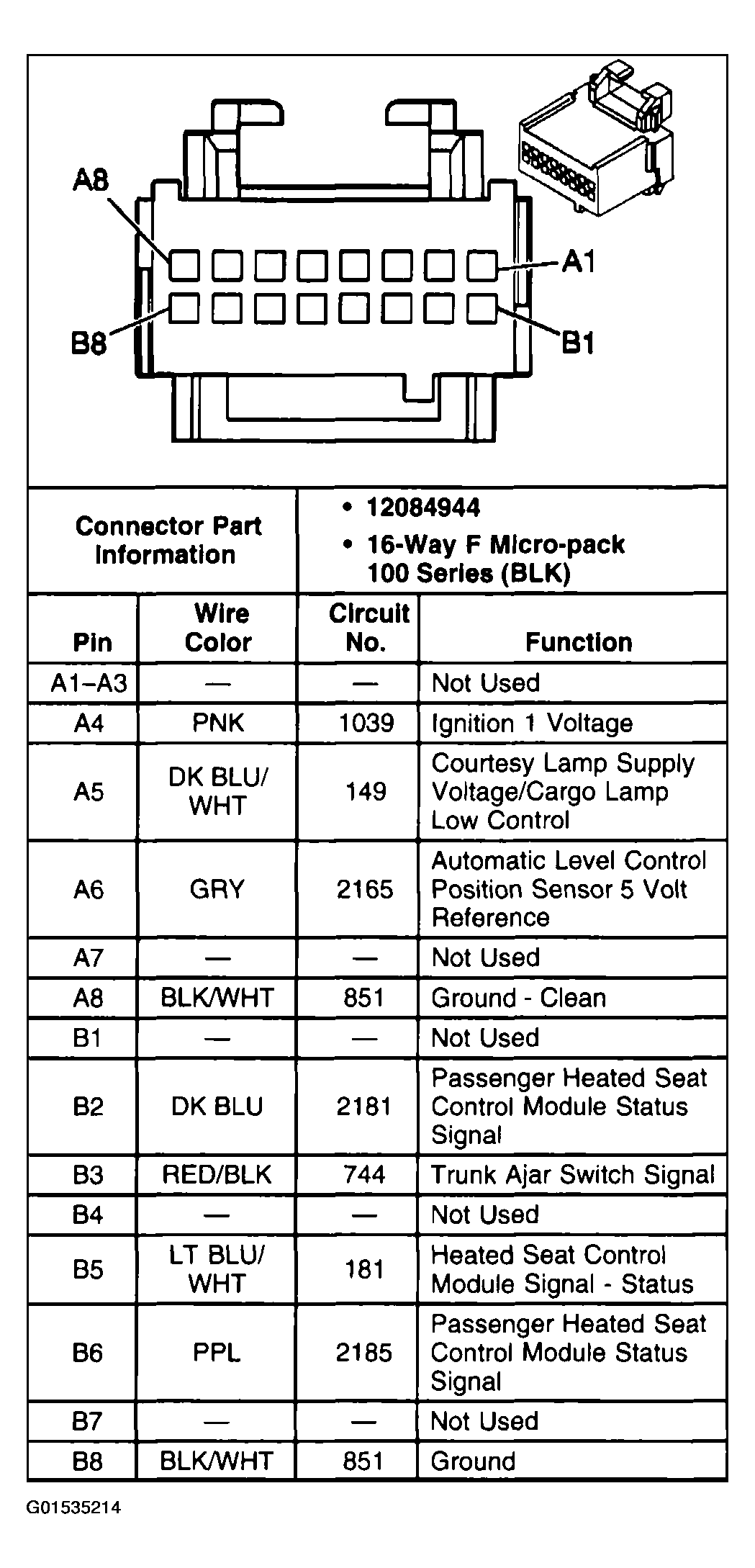

Fig 3: Identifying Body Control System Connector End Views - Dash Integration Module C3

Courtesy of GENERAL MOTORS CORP.

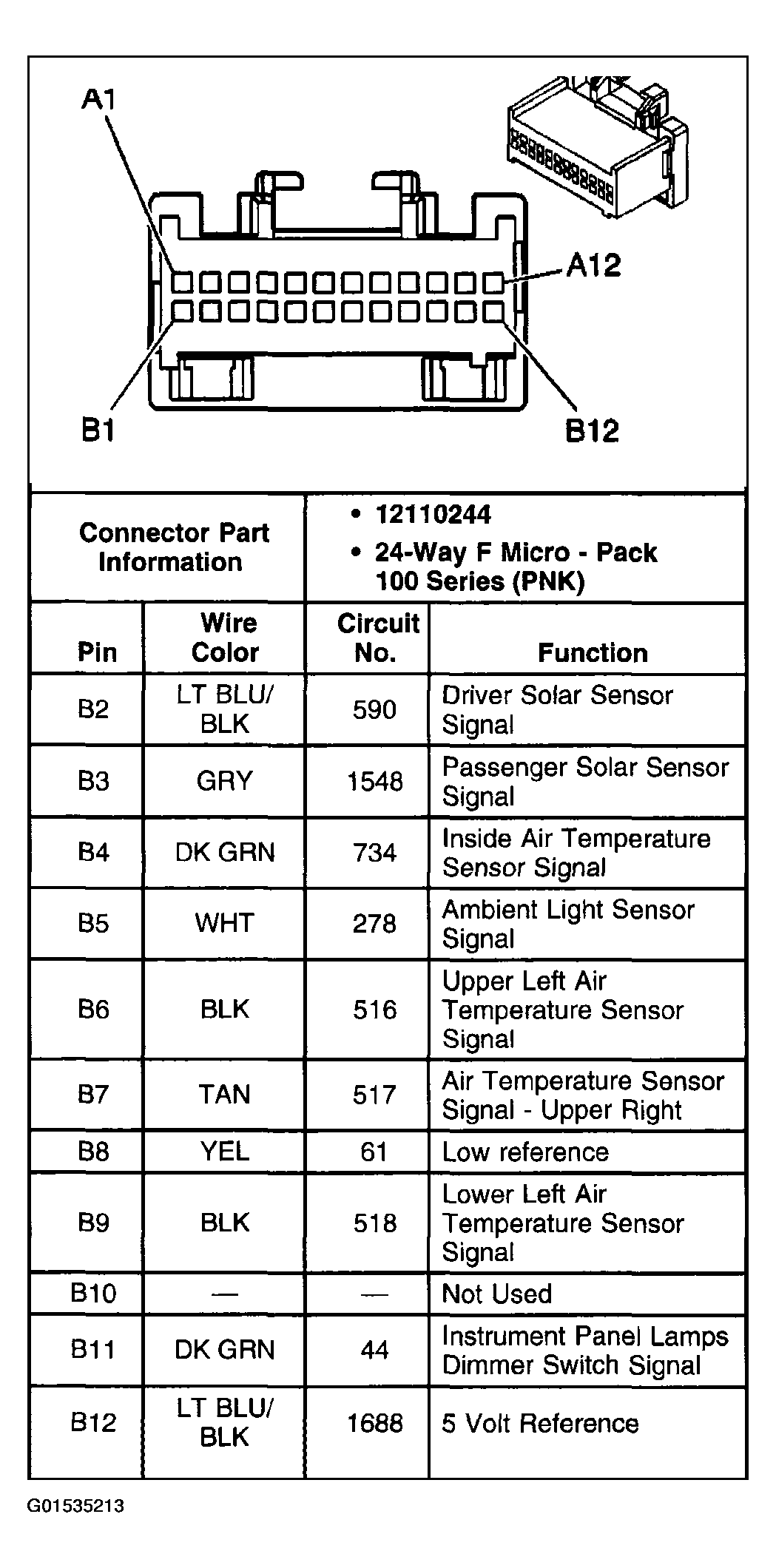

Fig 4: Identifying Body Control System Connector End Views - Instrument Panel Integration Module C1

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Body Control System Connector End Views - Instrument Panel Integration Module C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Body Control System Connector End Views - Instrument Panel Integration Module C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Body Control System Connector End Views - Rear Integration Module (RIM) C1

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Body Control System Connector End Views - Rear Integration Module (RIM) C2

Courtesy of GENERAL MOTORS CORP.
