FixVault
Home
›
Buick
›
2003
›
LeSabre Custom, 4T65E/M15
›
Repair and Diagnosis
›
Accessories & Equipment
›
Communication Devices
›
Body Control System
›
Diagnostic Information and Procedures
›
Control Module References
Control Module References

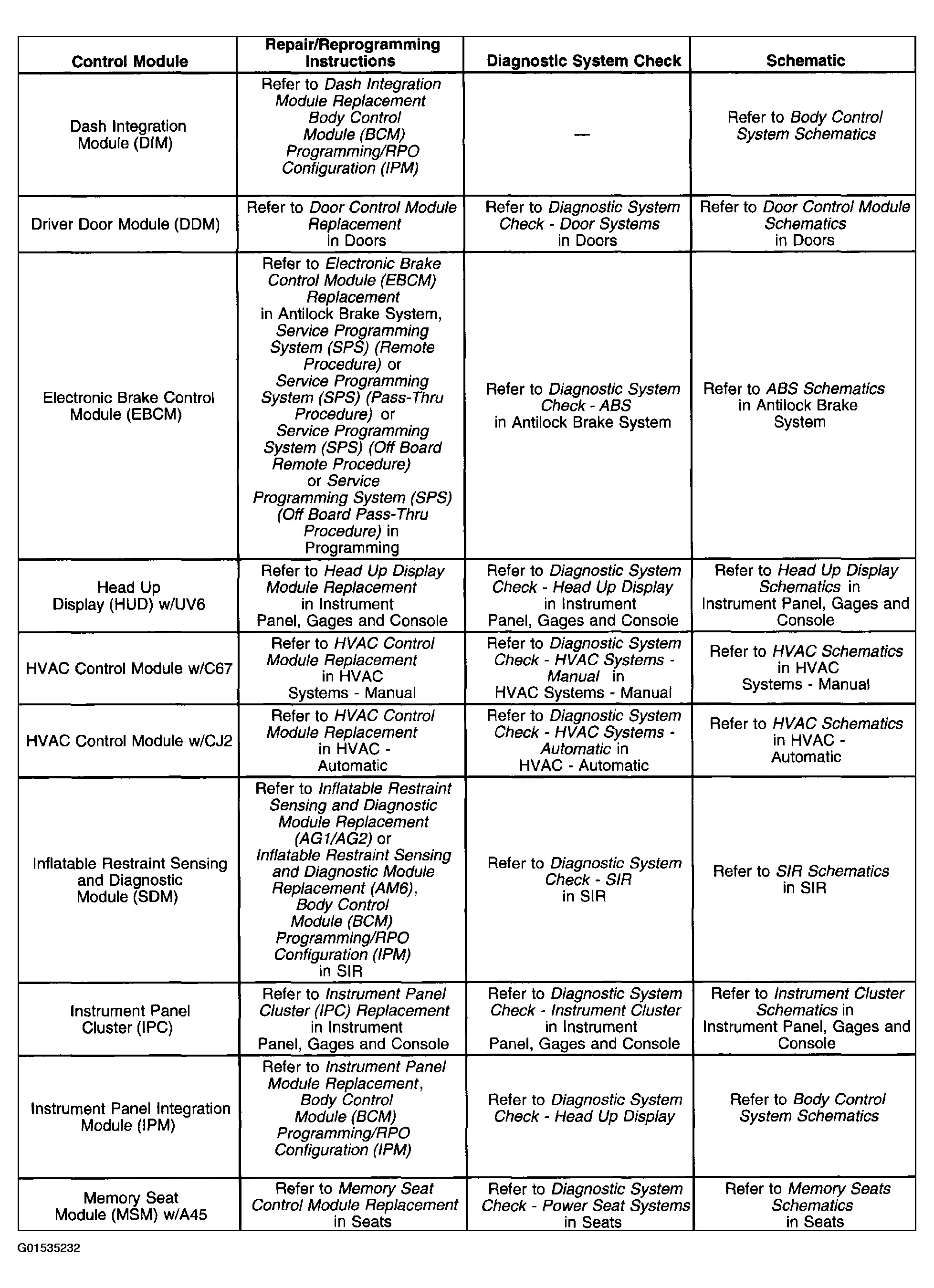

Fig 1: Diagnostic System Check - Control Module References (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

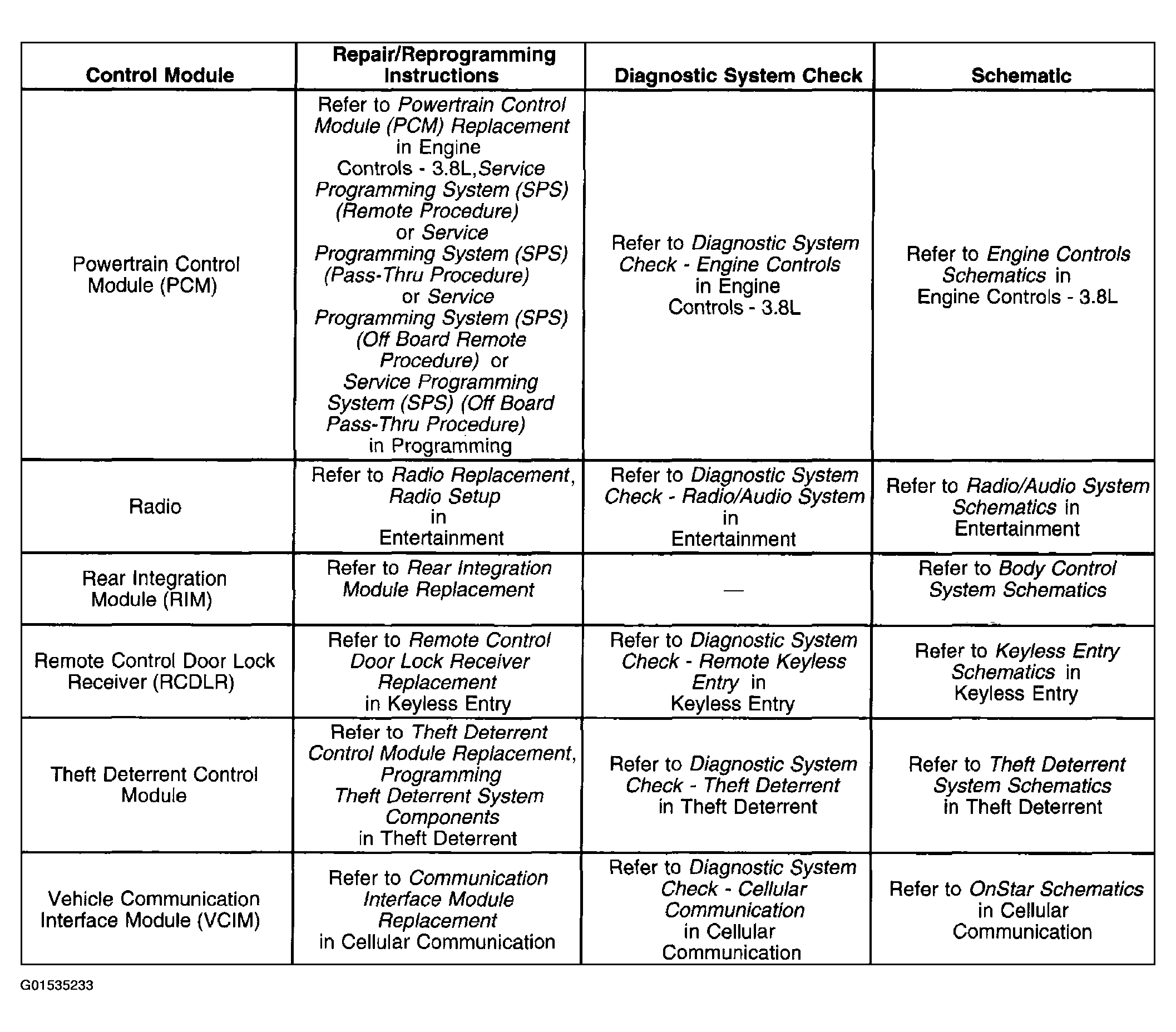

Fig 2: Diagnostic System Check - Control Module References (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
