Power Door Systems Component Views

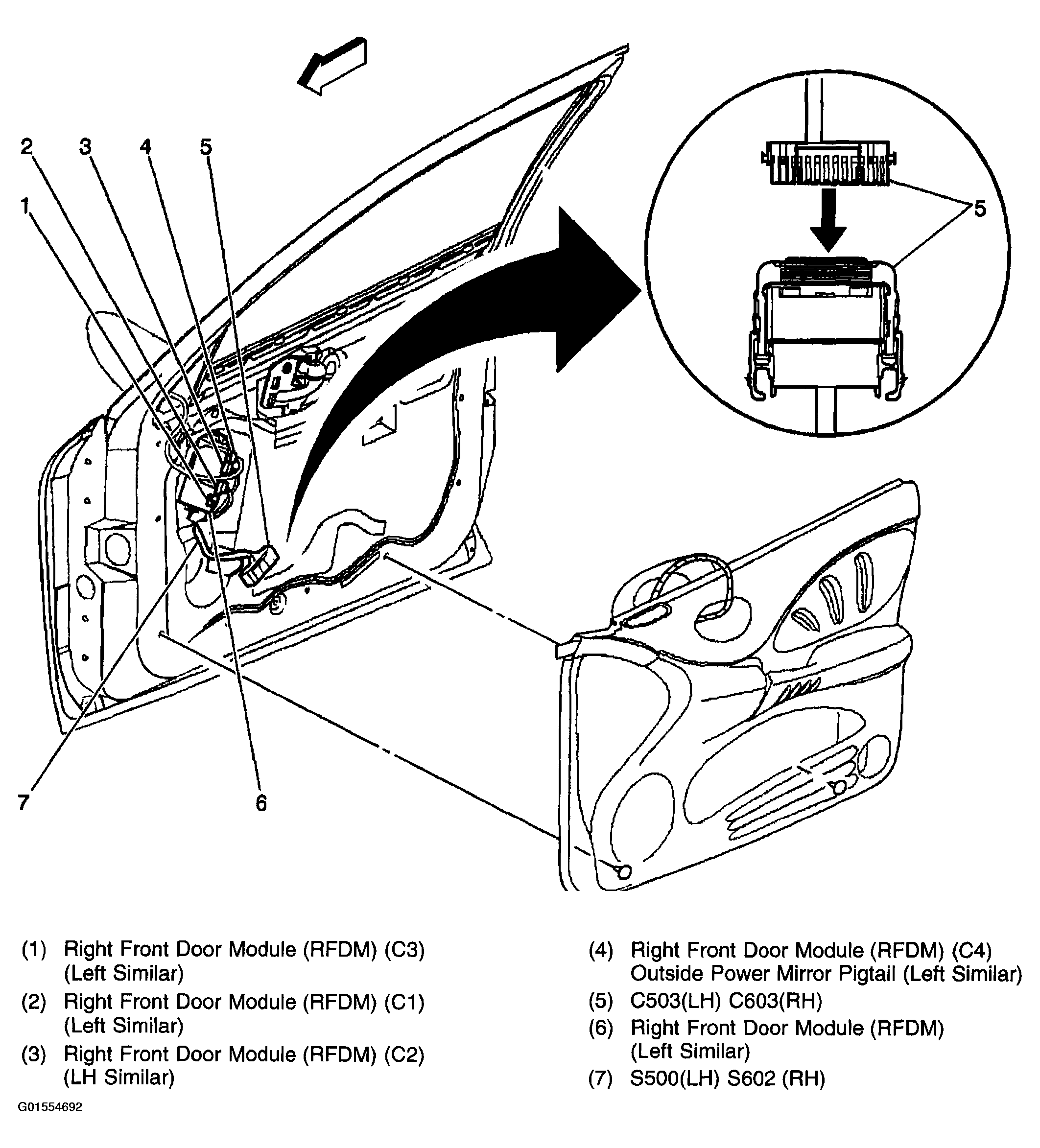

Fig 1: Power Door Systems Component View (Right Front Door Module)

Courtesy of GENERAL MOTORS CORP.

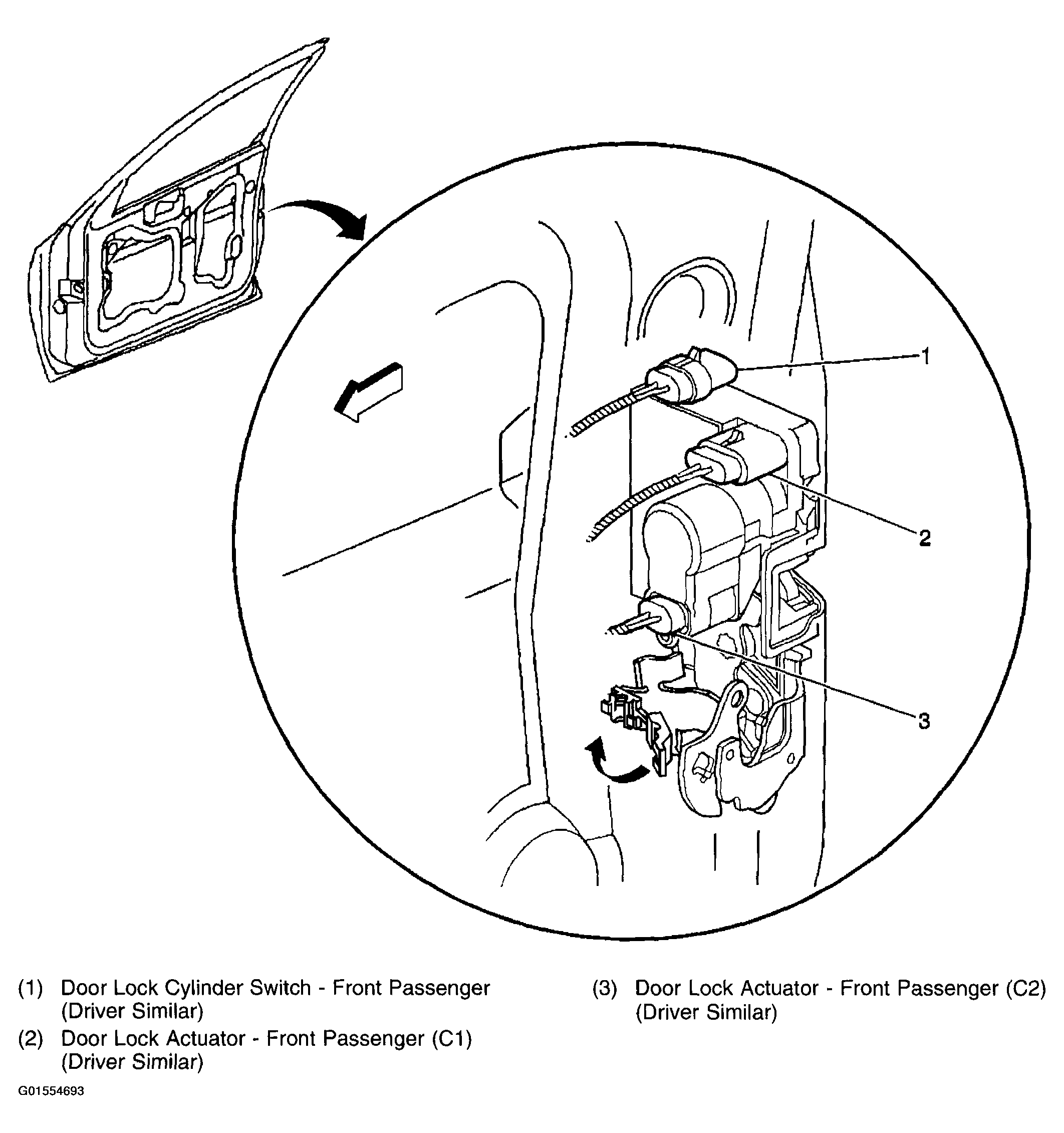

Fig 2: Power Door Systems Component View (Right Front Door Latch Assembly)

Courtesy of GENERAL MOTORS CORP.

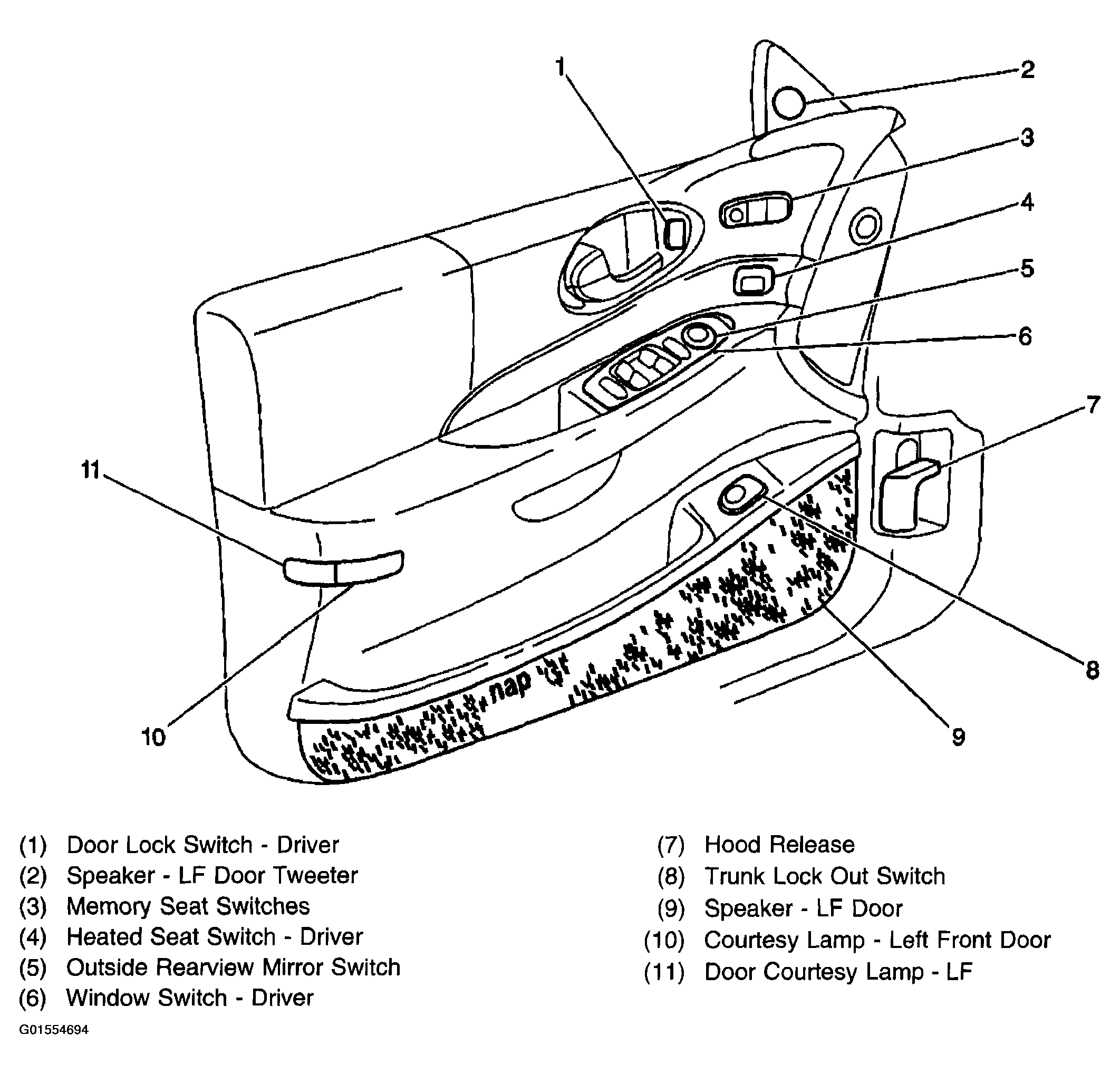

Fig 3: Power Door Systems Component View (Left Front Door Trim Panel)

Courtesy of GENERAL MOTORS CORP.

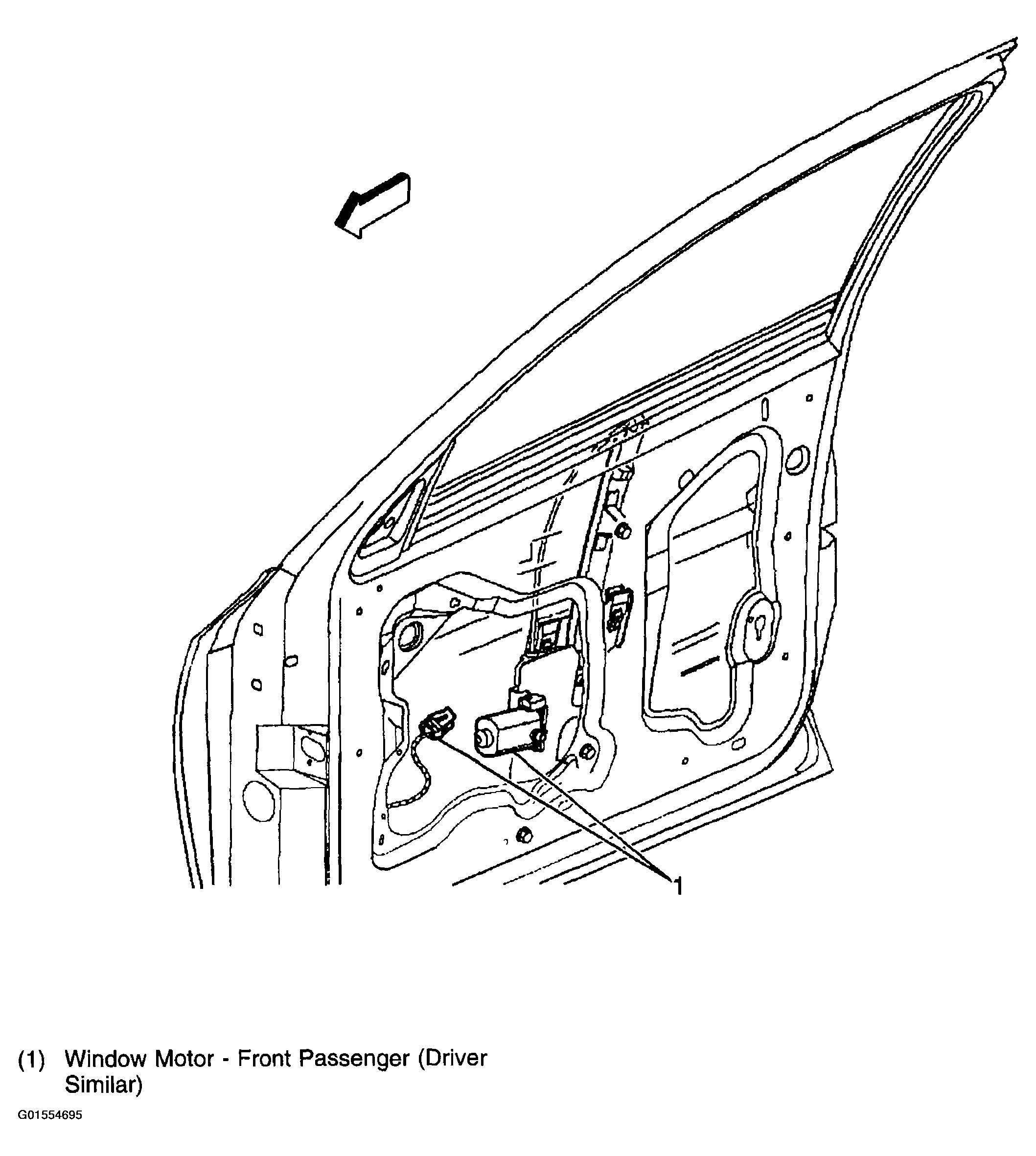

Fig 4: Power Door Systems Component View (Right Front Door Window Motor)

Courtesy of GENERAL MOTORS CORP.

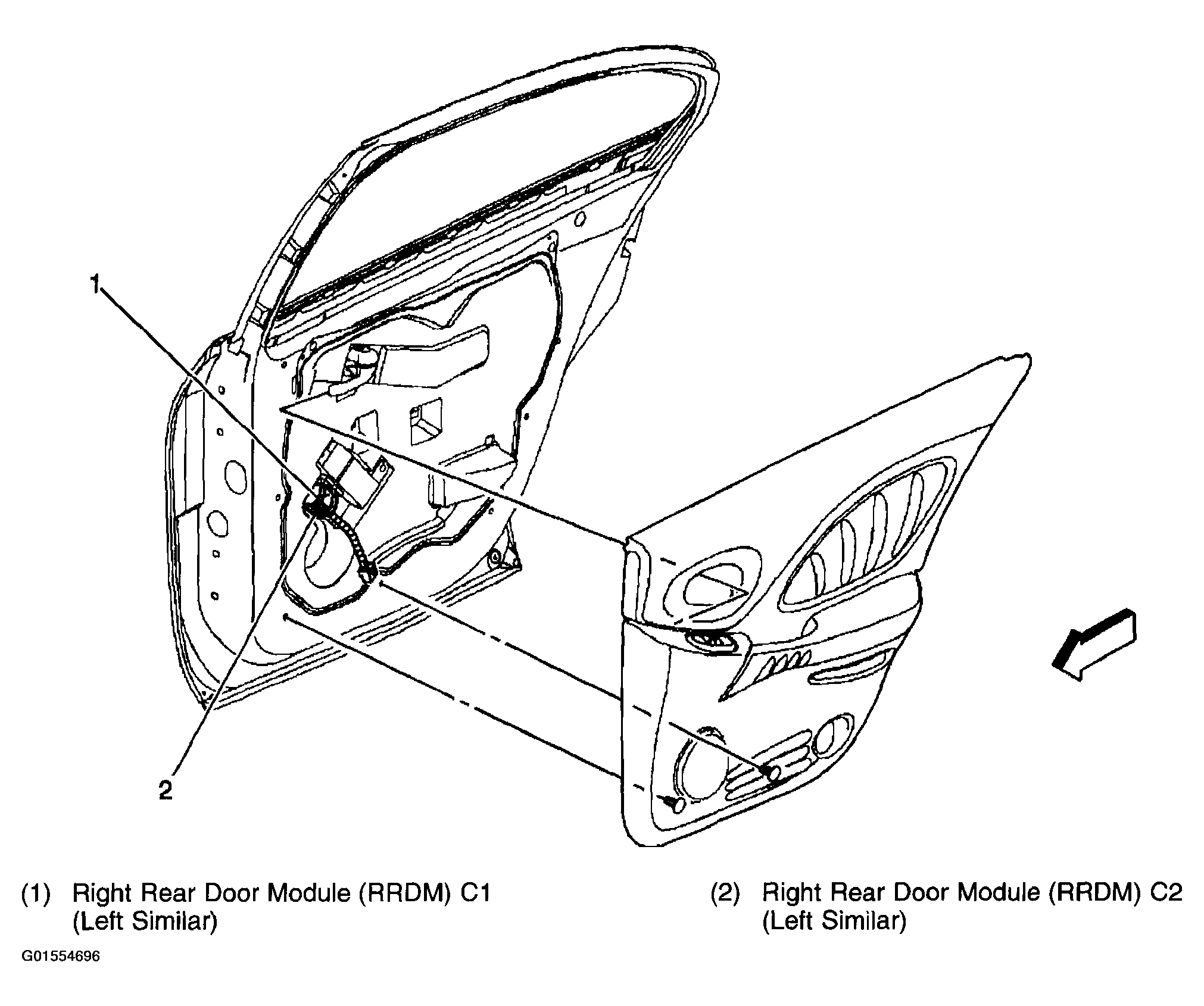

Fig 5: Power Door Systems Component View (Right Rear Door Module RRDM)

Courtesy of GENERAL MOTORS CORP.

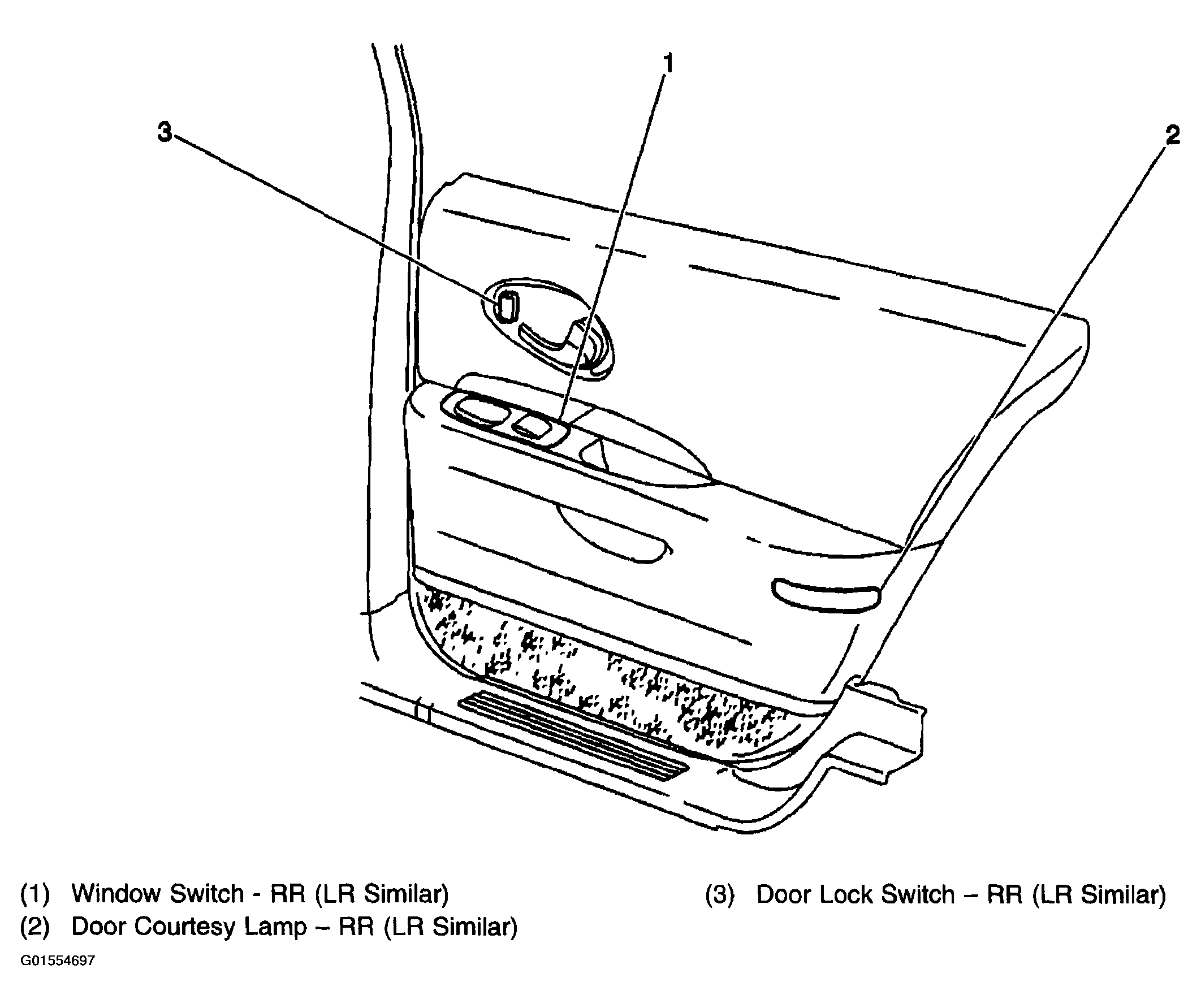

Fig 6: Power Door Systems Component View (Right Rear Door Trim Panel)

Courtesy of GENERAL MOTORS CORP.

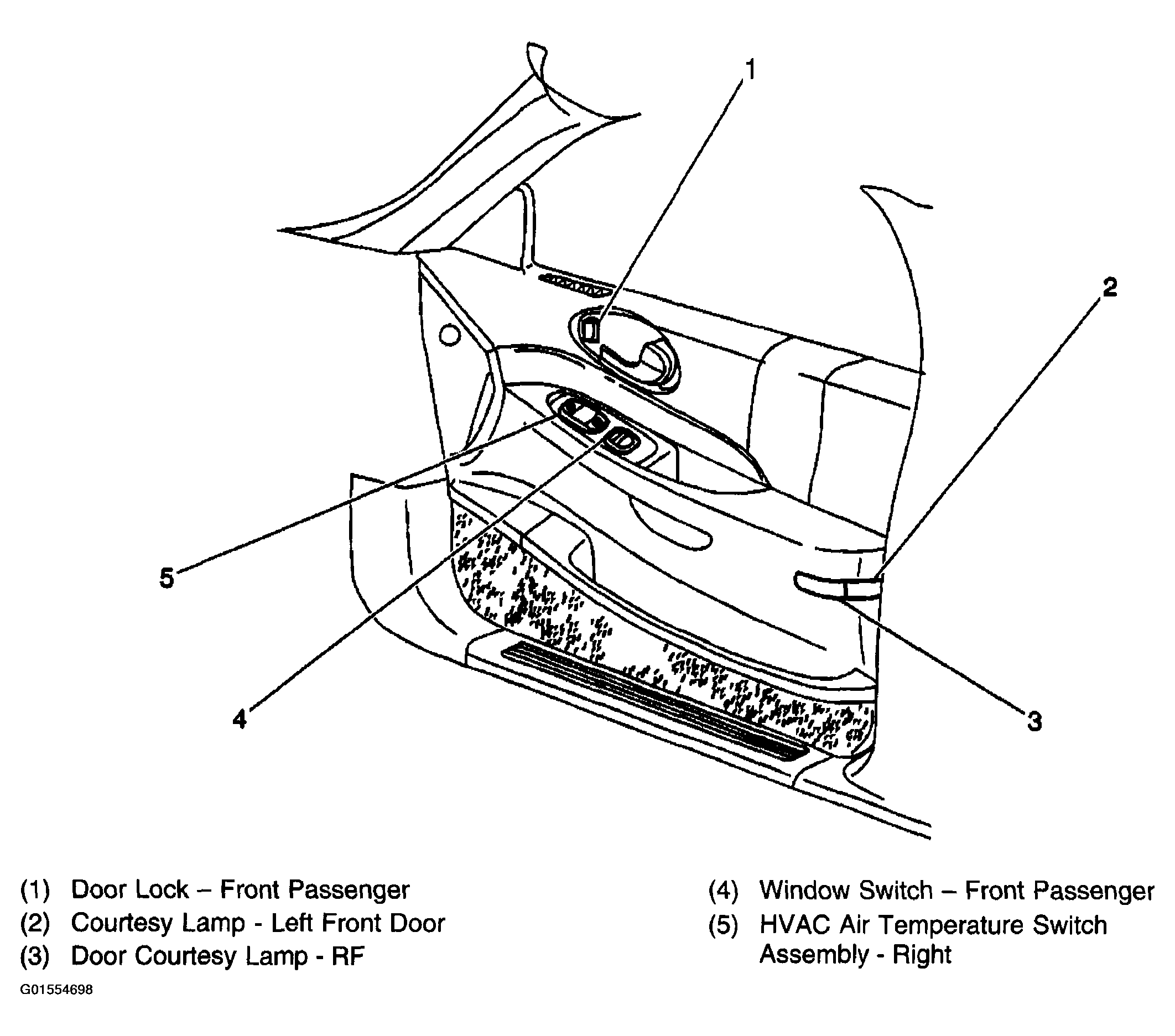

Fig 7: Power Door Systems Component View (Right Front Door Trim Panel)

Courtesy of GENERAL MOTORS CORP.
