Body Control System Component Views

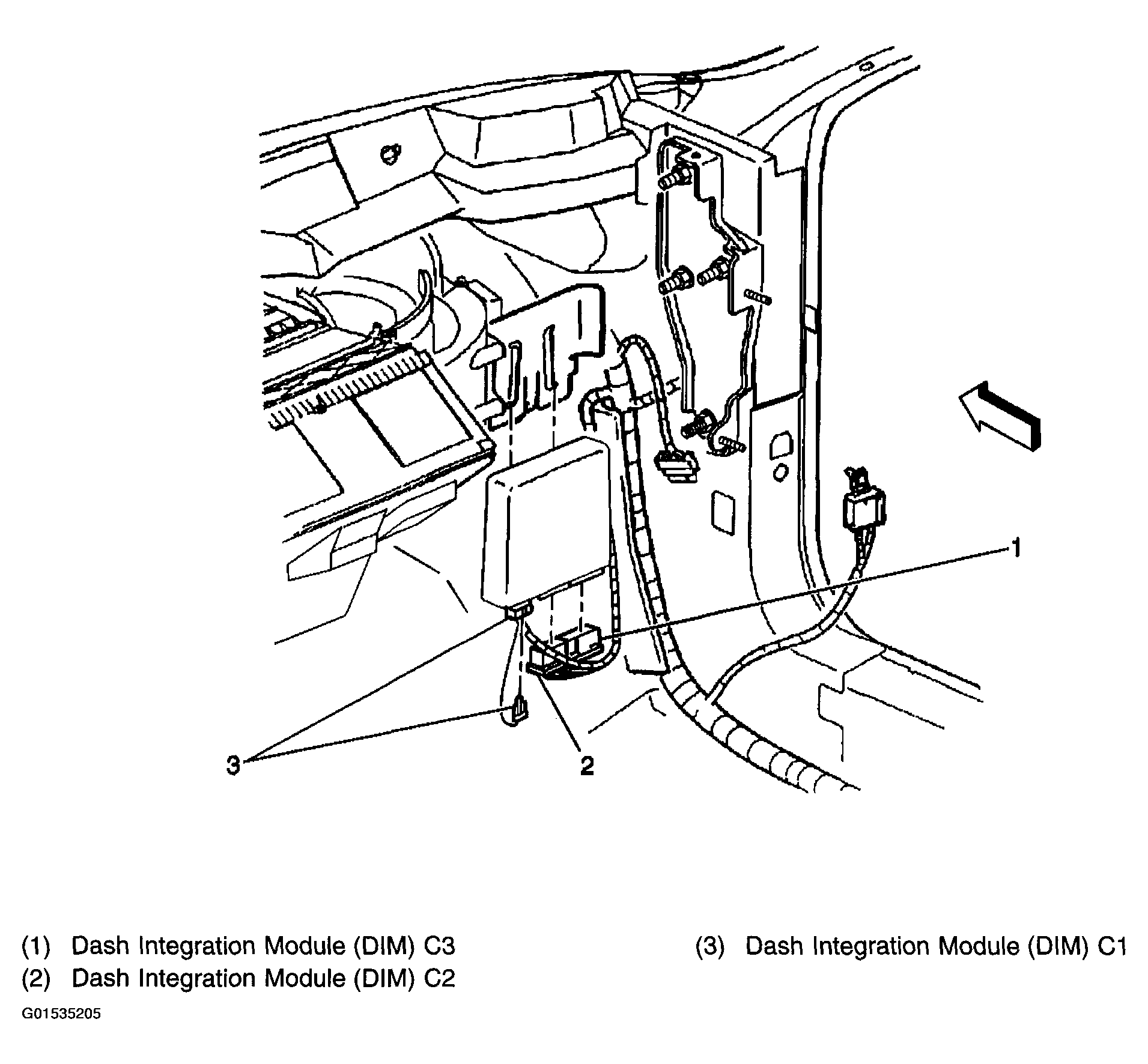

Fig 1: Removing Dash Integration Module (C1,C2,C3)

Courtesy of GENERAL MOTORS CORP.

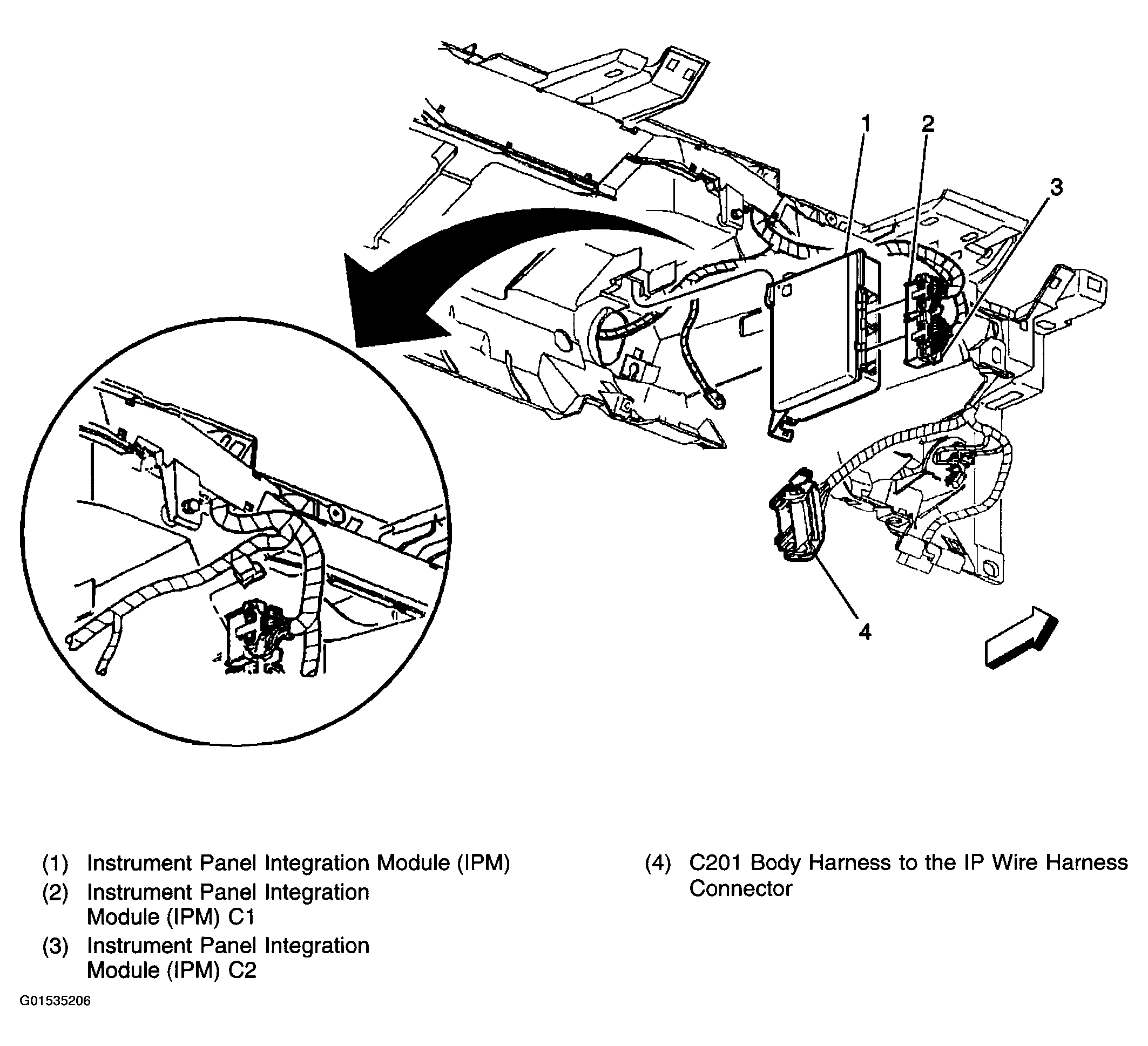

Fig 2: Removing Instrument Panel Integration Module

Courtesy of GENERAL MOTORS CORP.

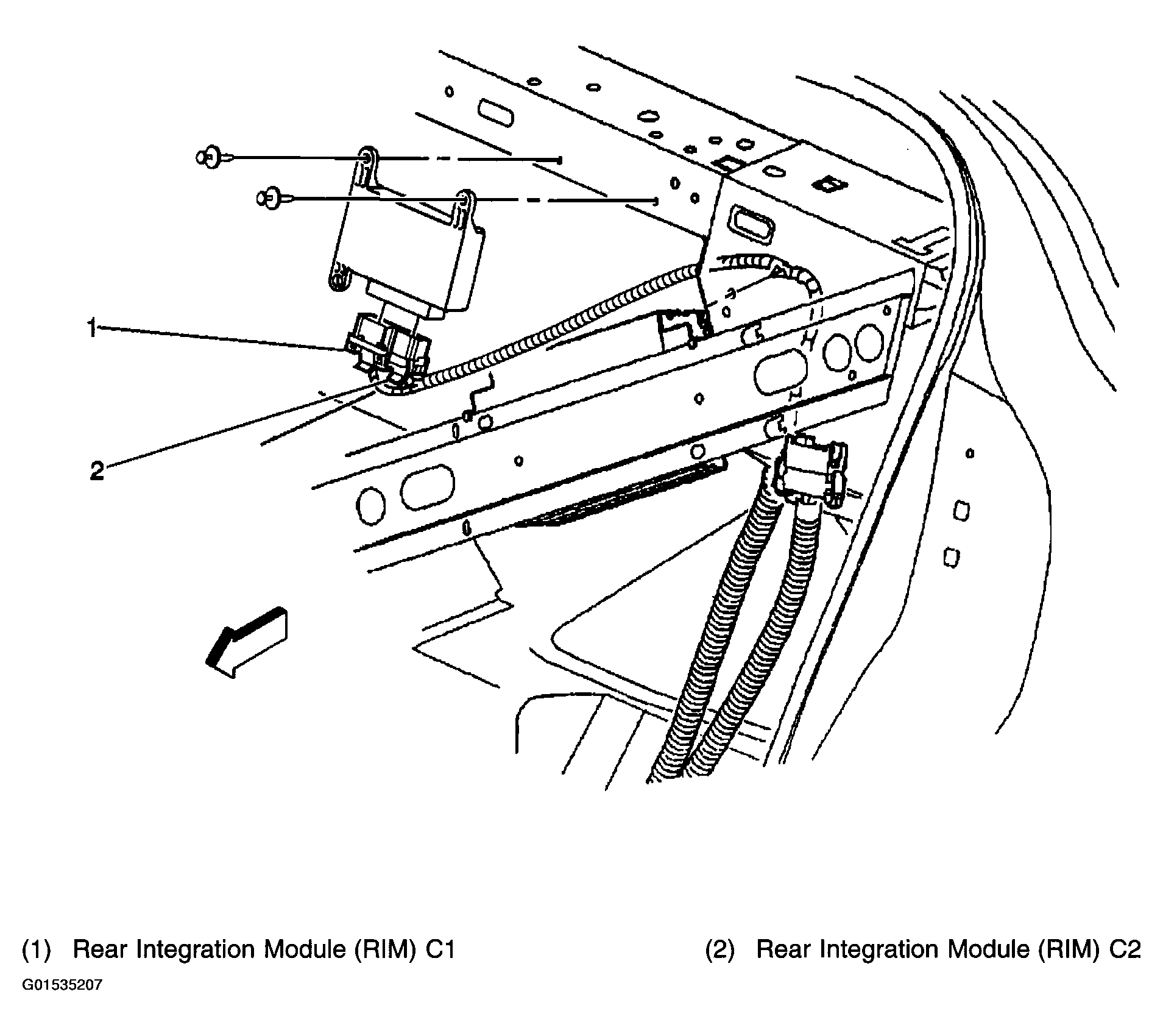

Fig 3: Removing Rear Integration Module (C1,C2)

Courtesy of GENERAL MOTORS CORP.
