Installation Procedure

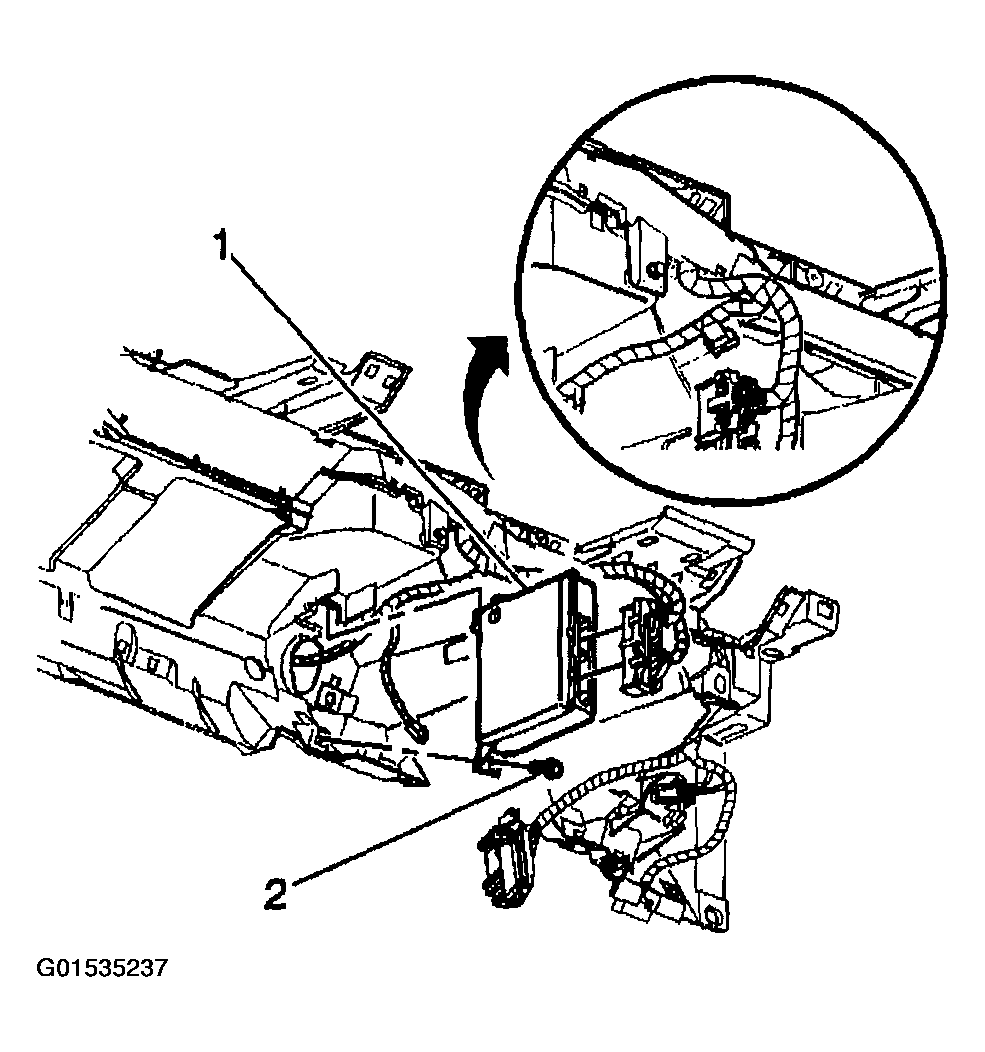

- Install the instrument panel module (IPM) (1) to the vehicle.
- Connect the electrical connectors to the IPM (1).
- Install the IPM (1) to the IP retainer by inserting the top tab of the module into the slot on the IP retainer and rotating down.
- Install the fastener.
Tighten
Tighten fastener to 2 N.m (18 lb in)
- Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
