Removal Procedure

  1. Disable the SIR system. Refer to ZONE 7 .
  2. Remove the fasteners securing the seat cushion to the adjuster track. Refer to SEAT CUSHION REPLACEMENT - FRONT  .
  3. Lift the front of the seat cushion up in order to gain access to the memory seat module.
    NOTE: Note the correct routing of the electrical wiring. Failure to reinstall the wiring properly could result in damage to the wiring.
  4. Disconnect the electrical connectors from the memory seat module.

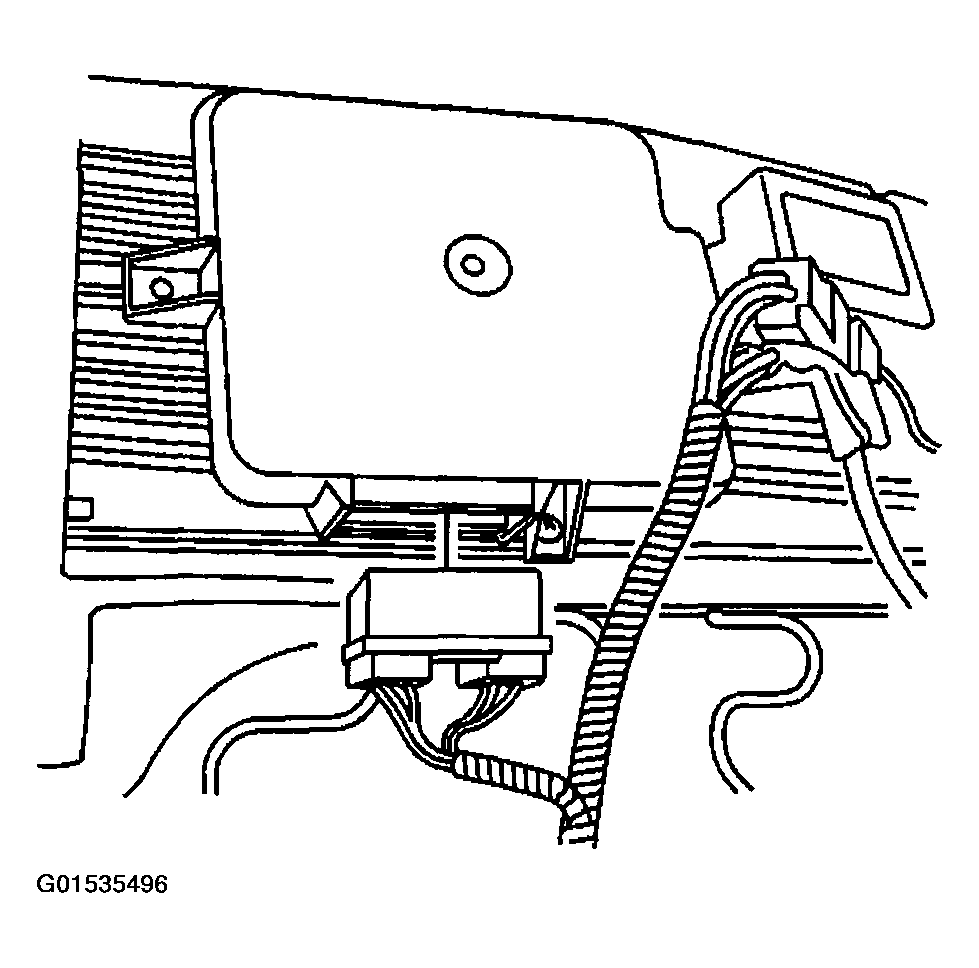

    Fig 1: Removing Electrical Connectors From Memory Seat Module
    G01535496Courtesy of GENERAL MOTORS CORP.
  5. Remove the fasteners securing the memory seat module to the seat cushion frame.
  6. Remove the memory seat module from the bottom of the seat cushion.
