Body Control System Connector End View - Dash Integration Module C2

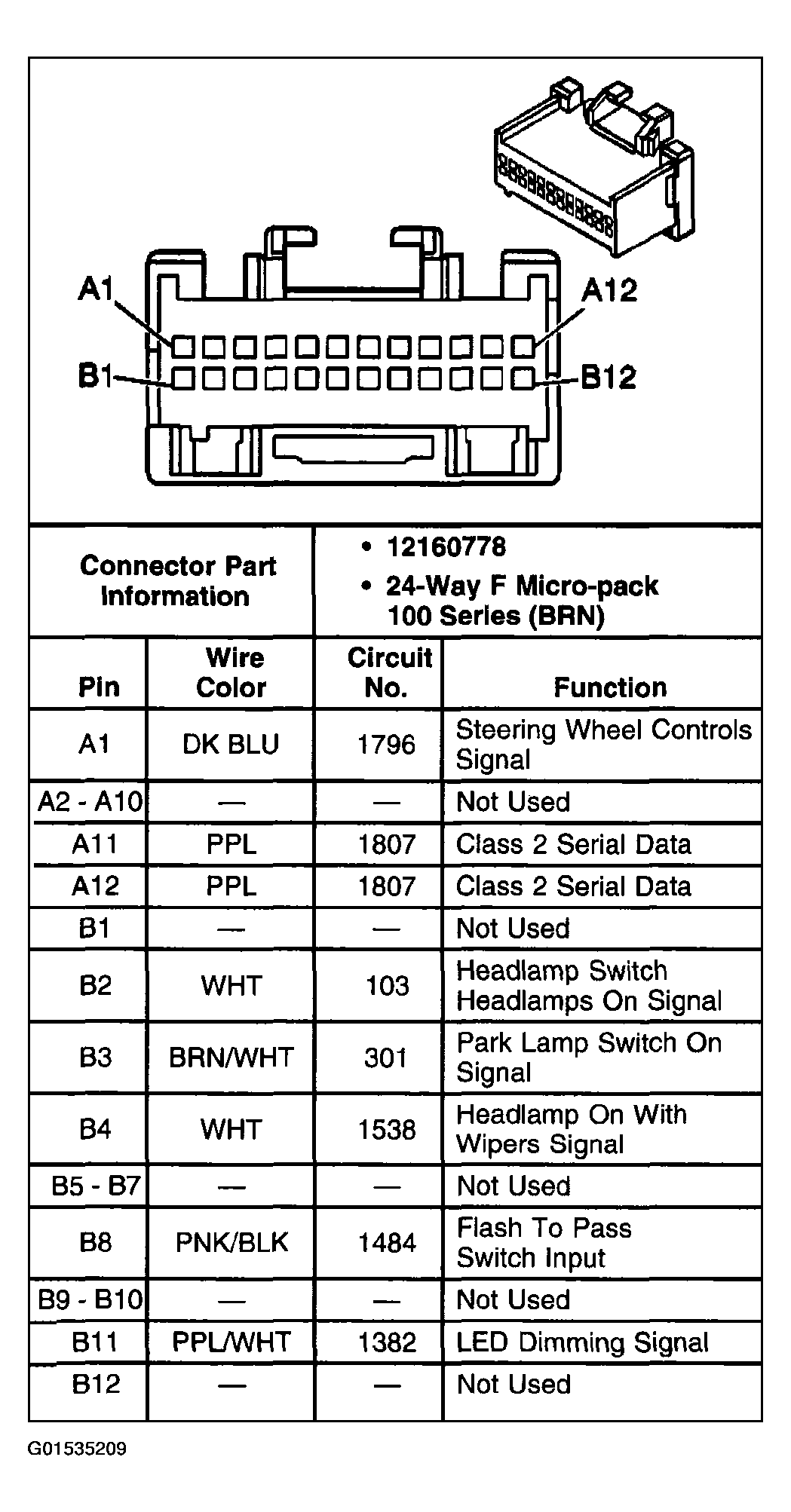

Fig 1: Body Control System - Dash Integration Module C2
G01535209Courtesy of GENERAL MOTORS CORP.
