Body Control System Connector End View - Dash Integration Module C3

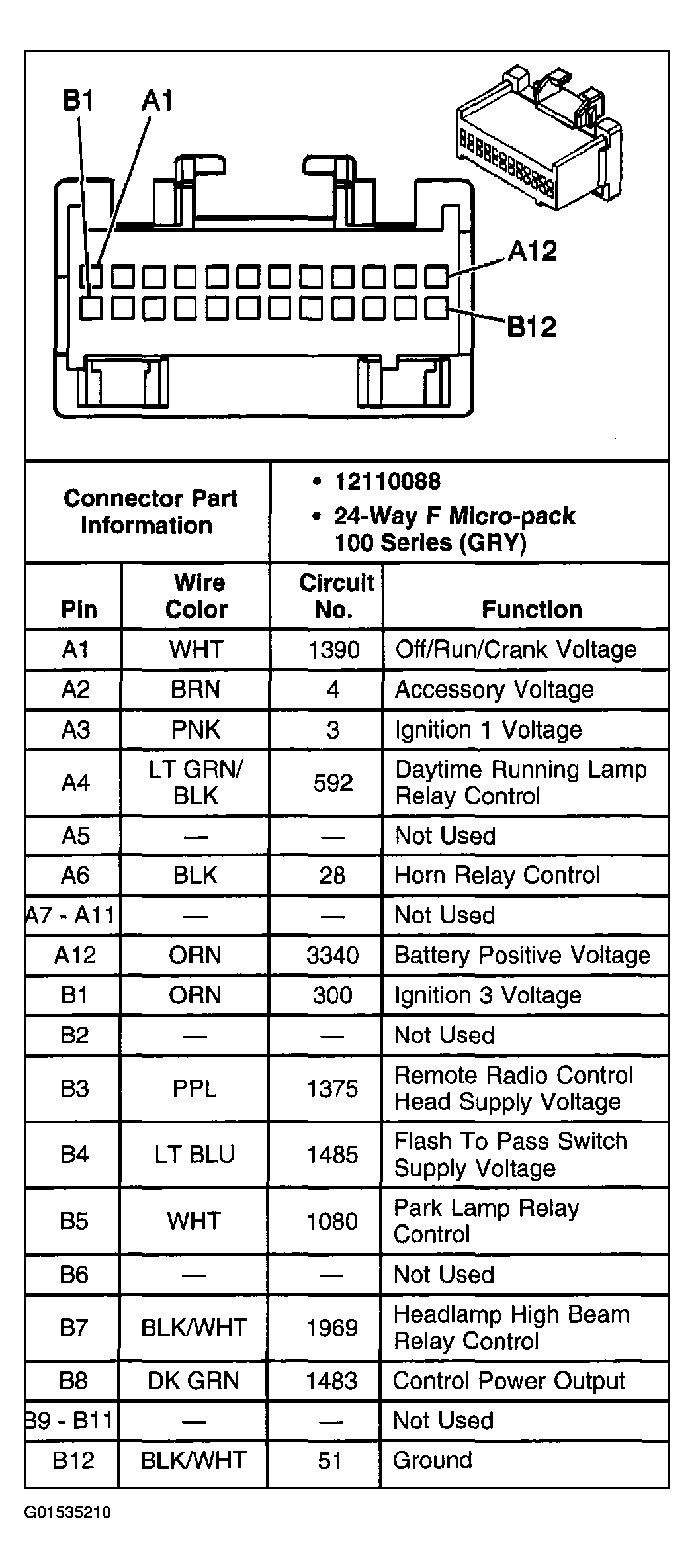

Fig 1: Body Control System - Dash Integration Module C3
G01535210Courtesy of GENERAL MOTORS CORP.
