Removal Procedure

  1. Disconnect the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT  .
  2. Disconnect the electrical connector (2).

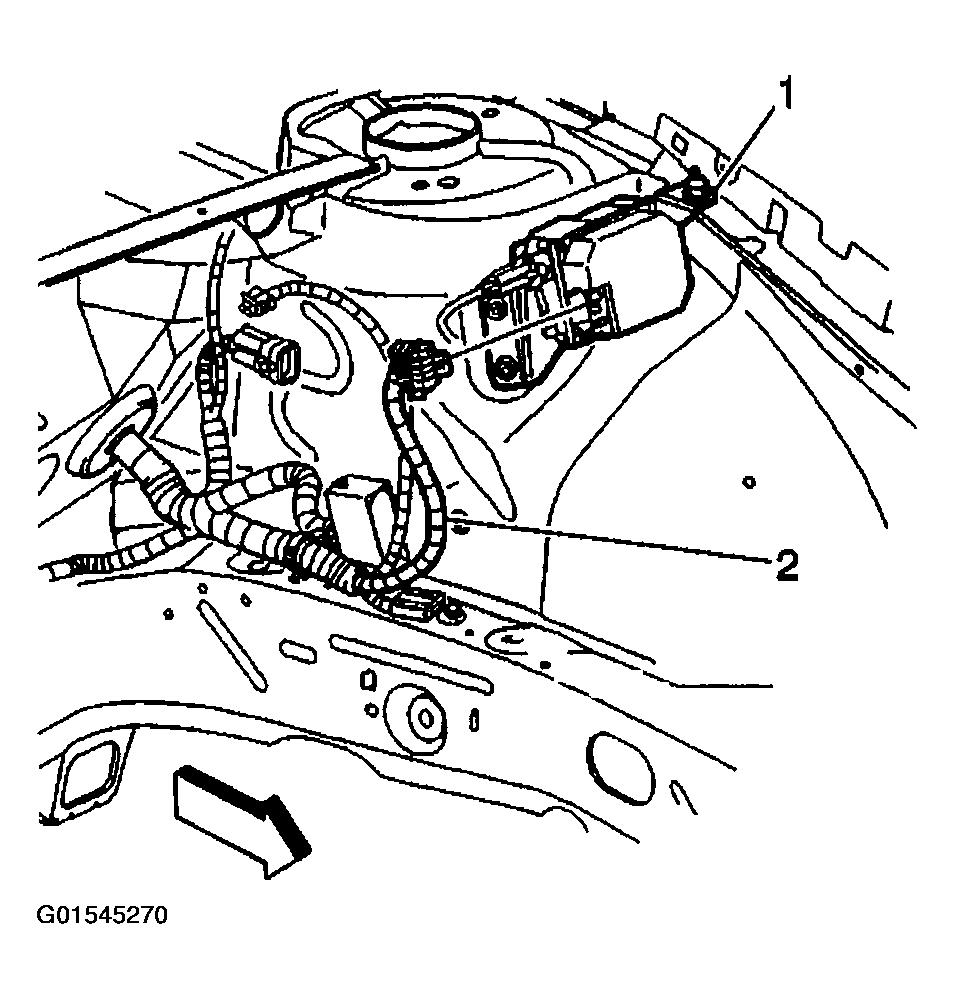

    Fig 1: Disconnecting Electrical Connector
    G01545270Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control module bracket retaining fasteners (1, 3).
  4. Remove the cruise control module and bracket assembly (2) from the vehicle.
  5. Remove the module to bracket fasteners.
  6. Remove the cruise control module from the bracket.

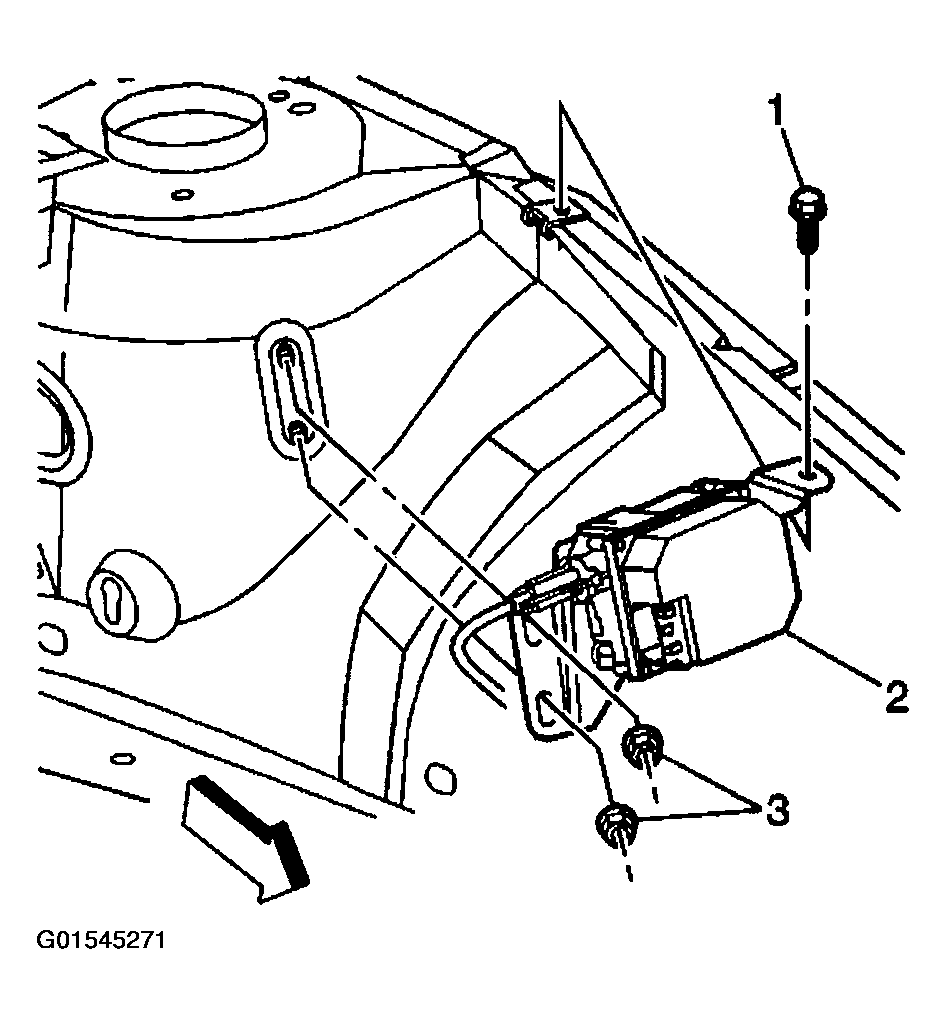

    Fig 2: Removing Cruise Control Module & Bracket Assembly
    G01545271Courtesy of GENERAL MOTORS CORP.
