Keyless Entry Schematics (Keyless Entry Schematics)

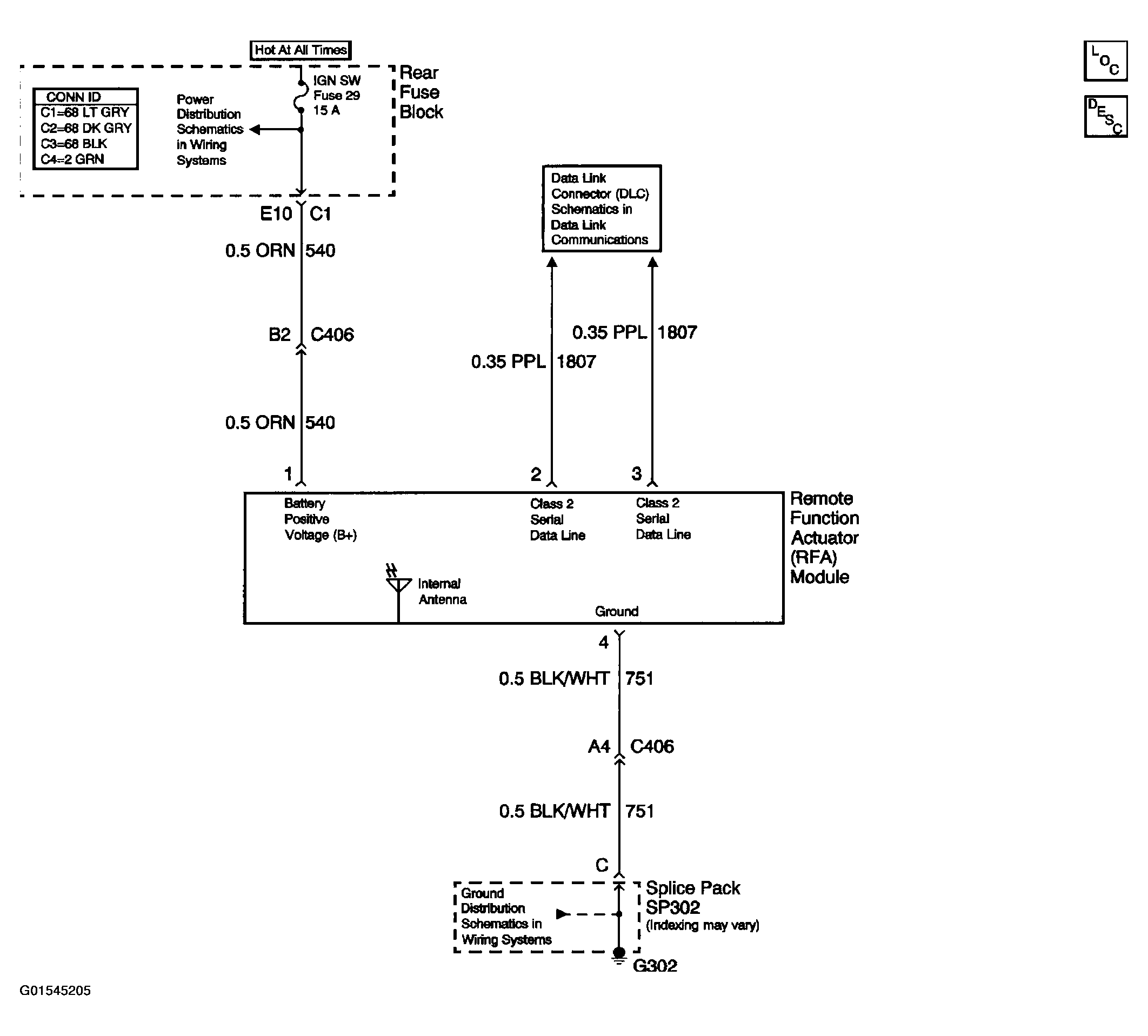

Fig 1: Keyless Entry Schematics (Keyless Entry Schematics)
G01545205Courtesy of GENERAL MOTORS CORP.
