Power Seat Systems Component Views

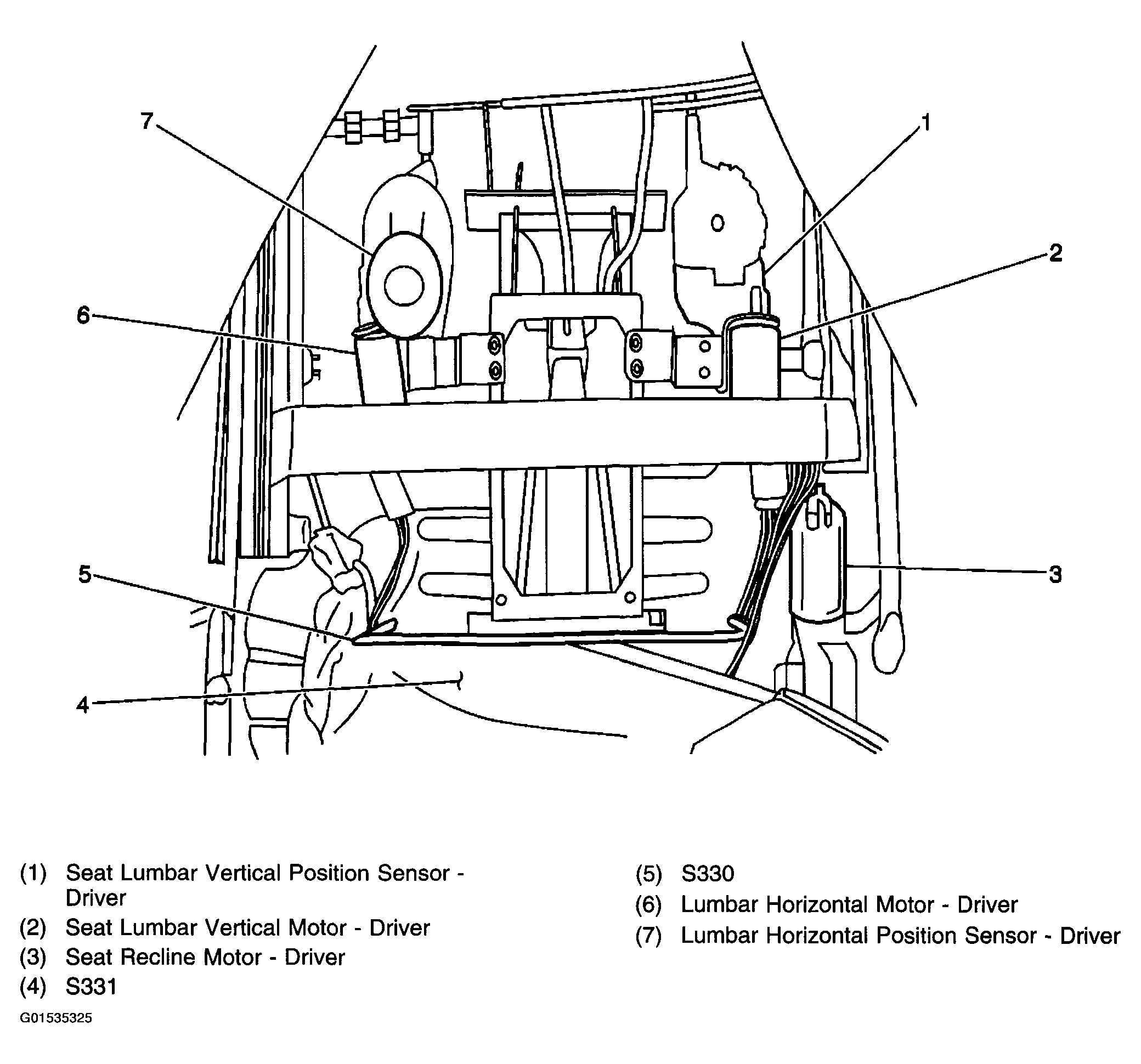

Fig 1: Power Seat Systems Component View - Left Front Seat Back

Courtesy of GENERAL MOTORS CORP.

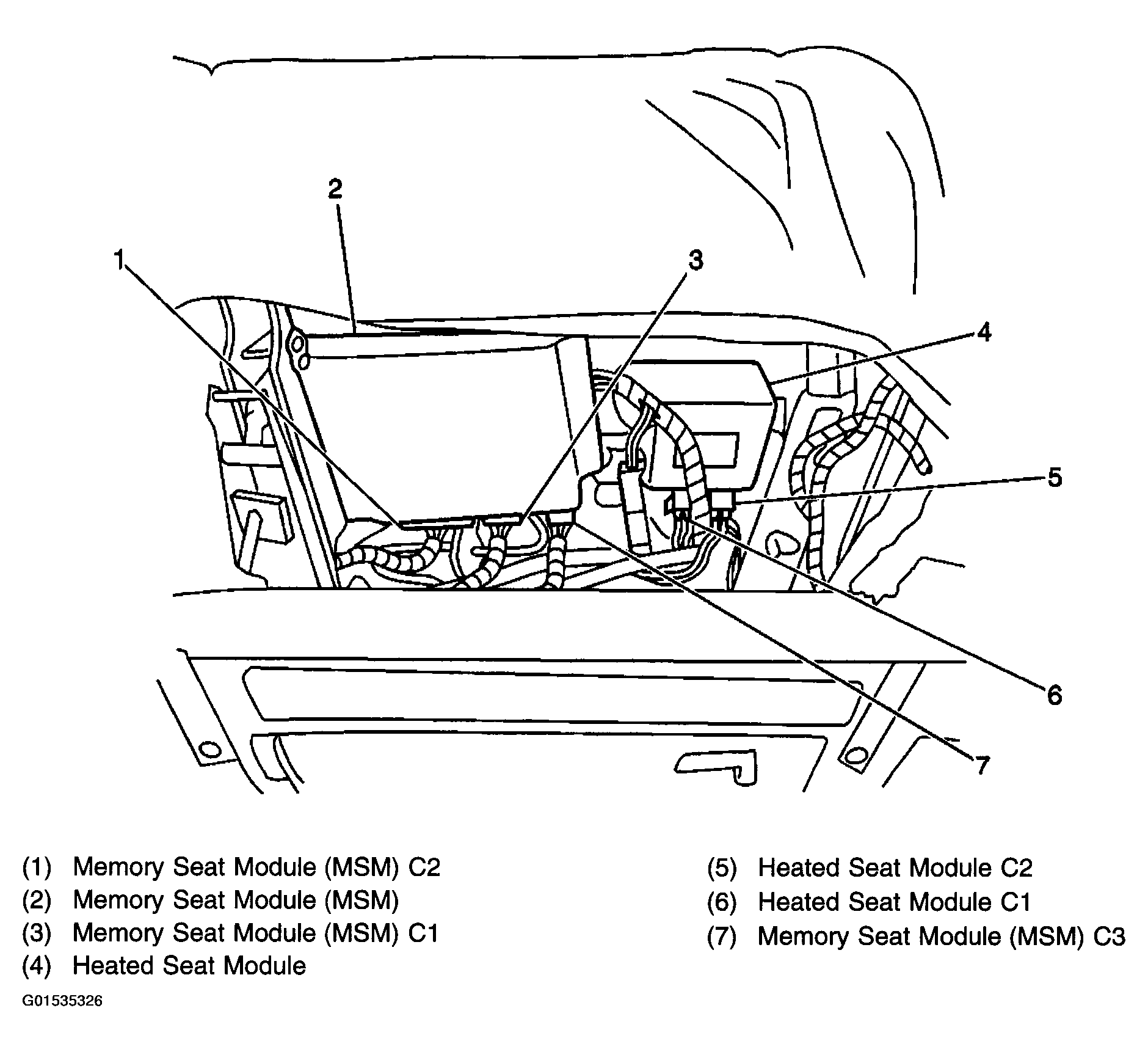

Fig 2: Power Seat Systems Component View - MSM & Heated Seat Module

Courtesy of GENERAL MOTORS CORP.

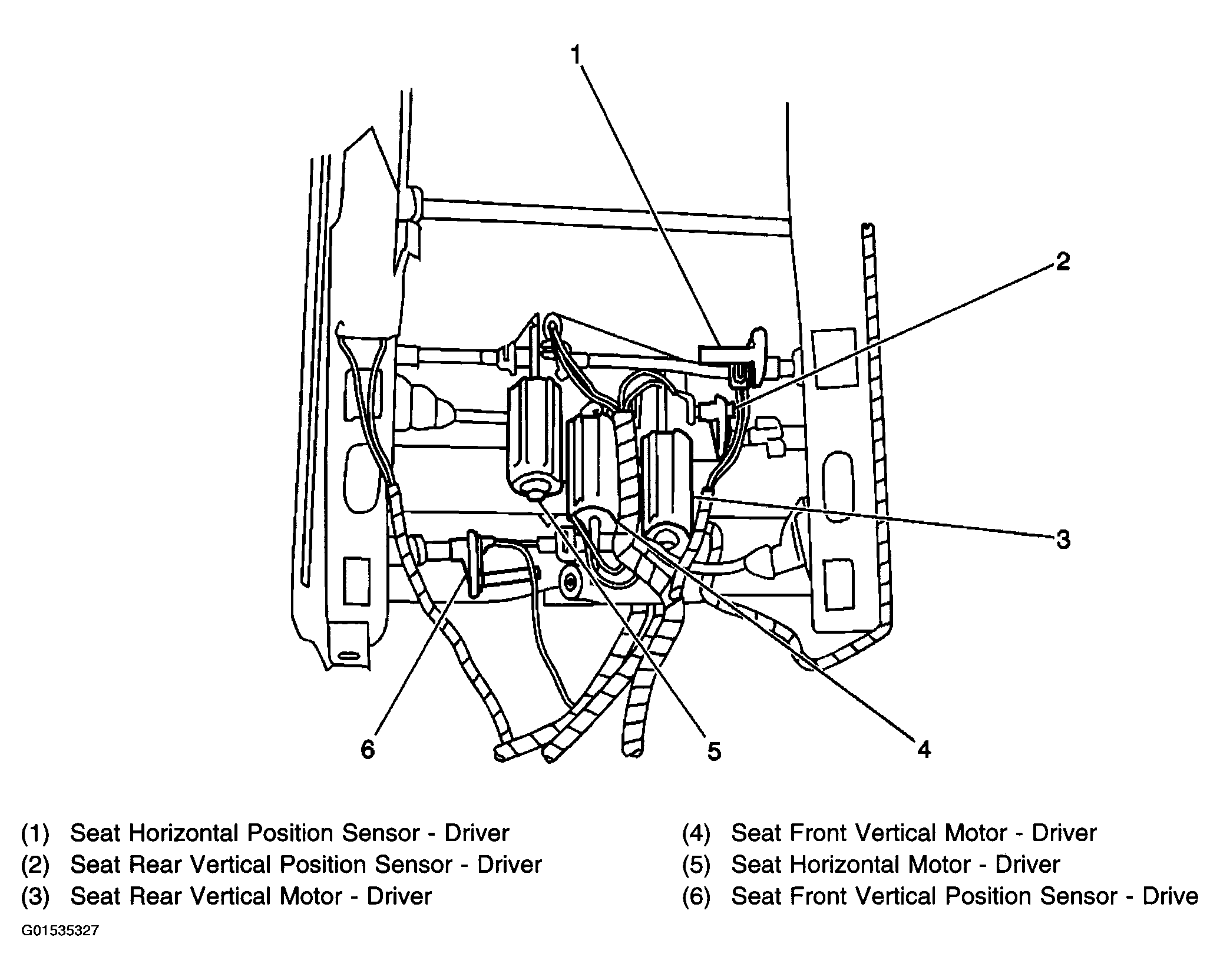

Fig 3: Power Seat Systems Component View - Left Front Seat Horizontal, Vertical Motors & Sensors

Courtesy of GENERAL MOTORS CORP.

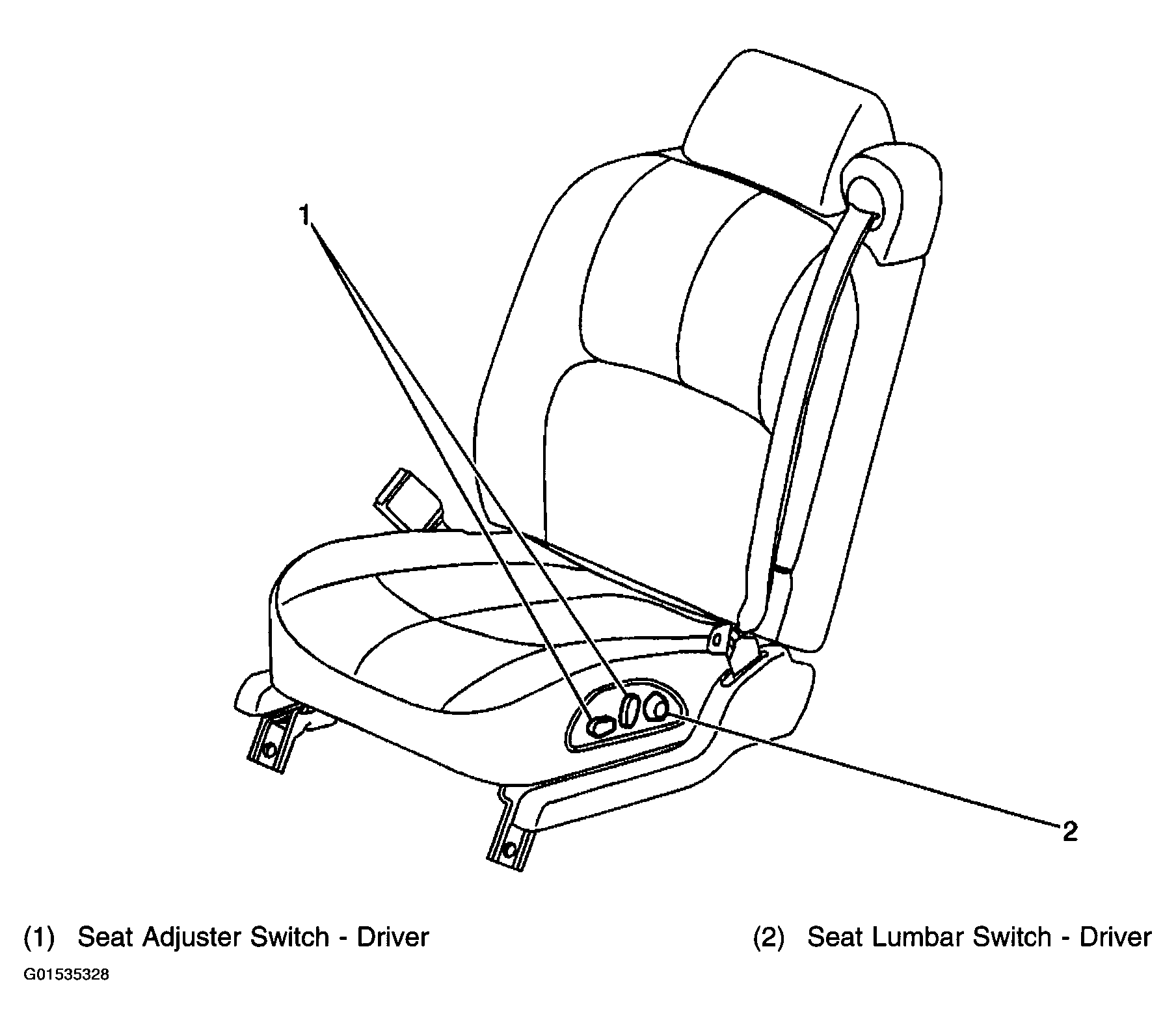

Fig 4: Power Seat Systems Component View - Left Lumbar & Seat Switch

Courtesy of GENERAL MOTORS CORP.

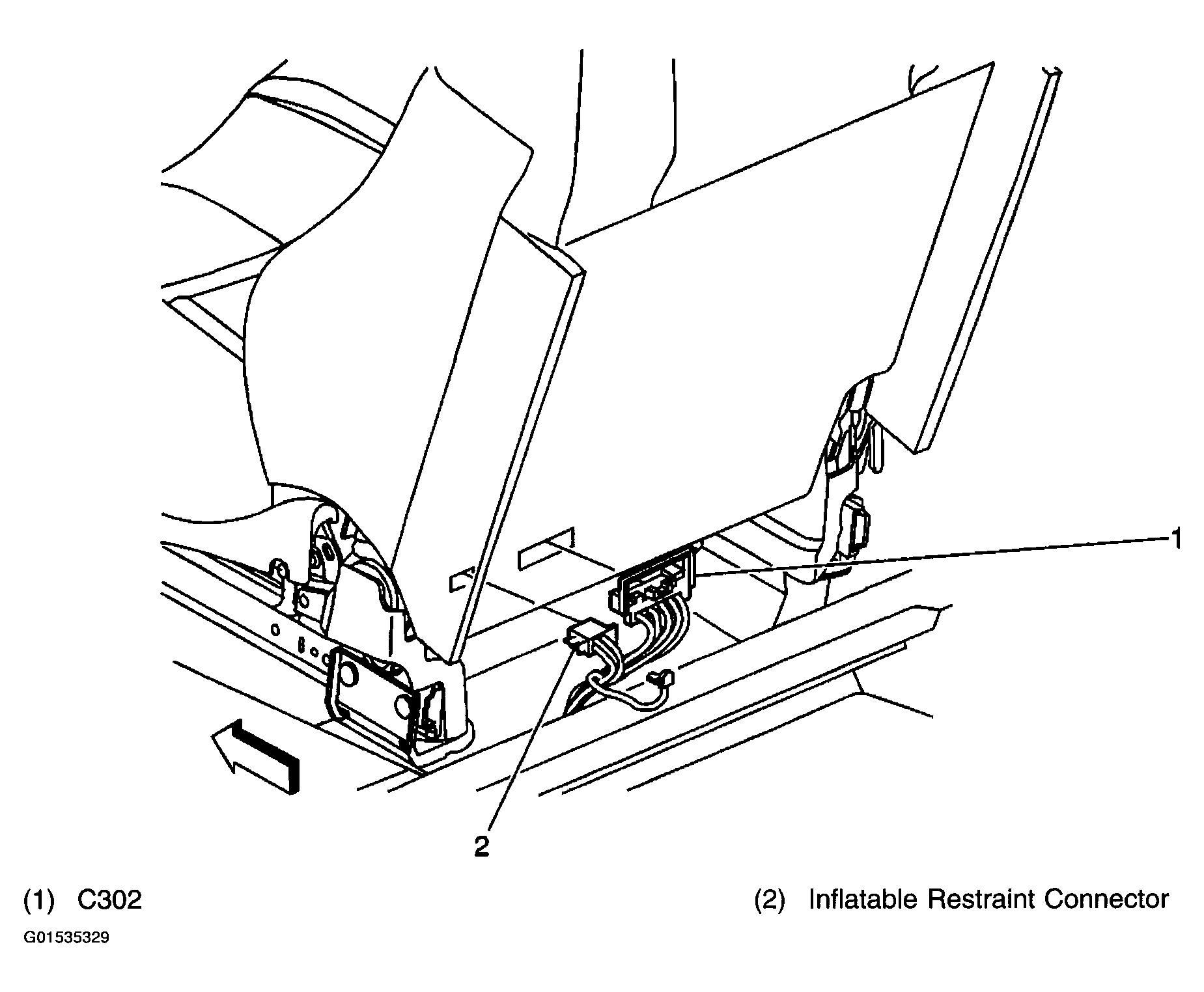

Fig 5: Power Seat Systems Component View - LH Seat Connectors

Courtesy of GENERAL MOTORS CORP.
