Power Seat Systems Connector End Views

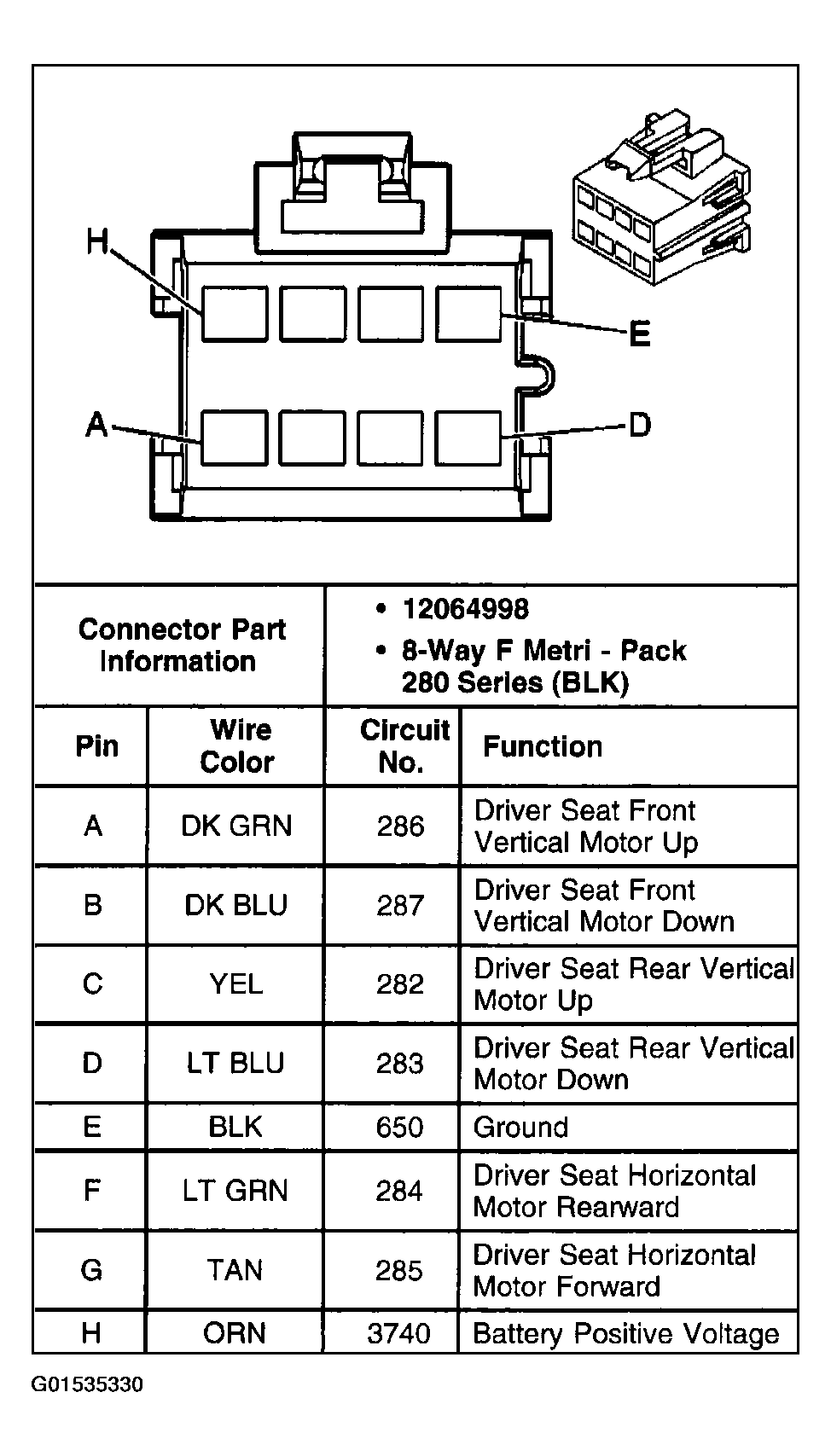

Fig 1: Power Seat Systems Connector End View - Seat Adjuster Switch - Driver (AG1)

G01535330

Courtesy of GENERAL MOTORS CORP.

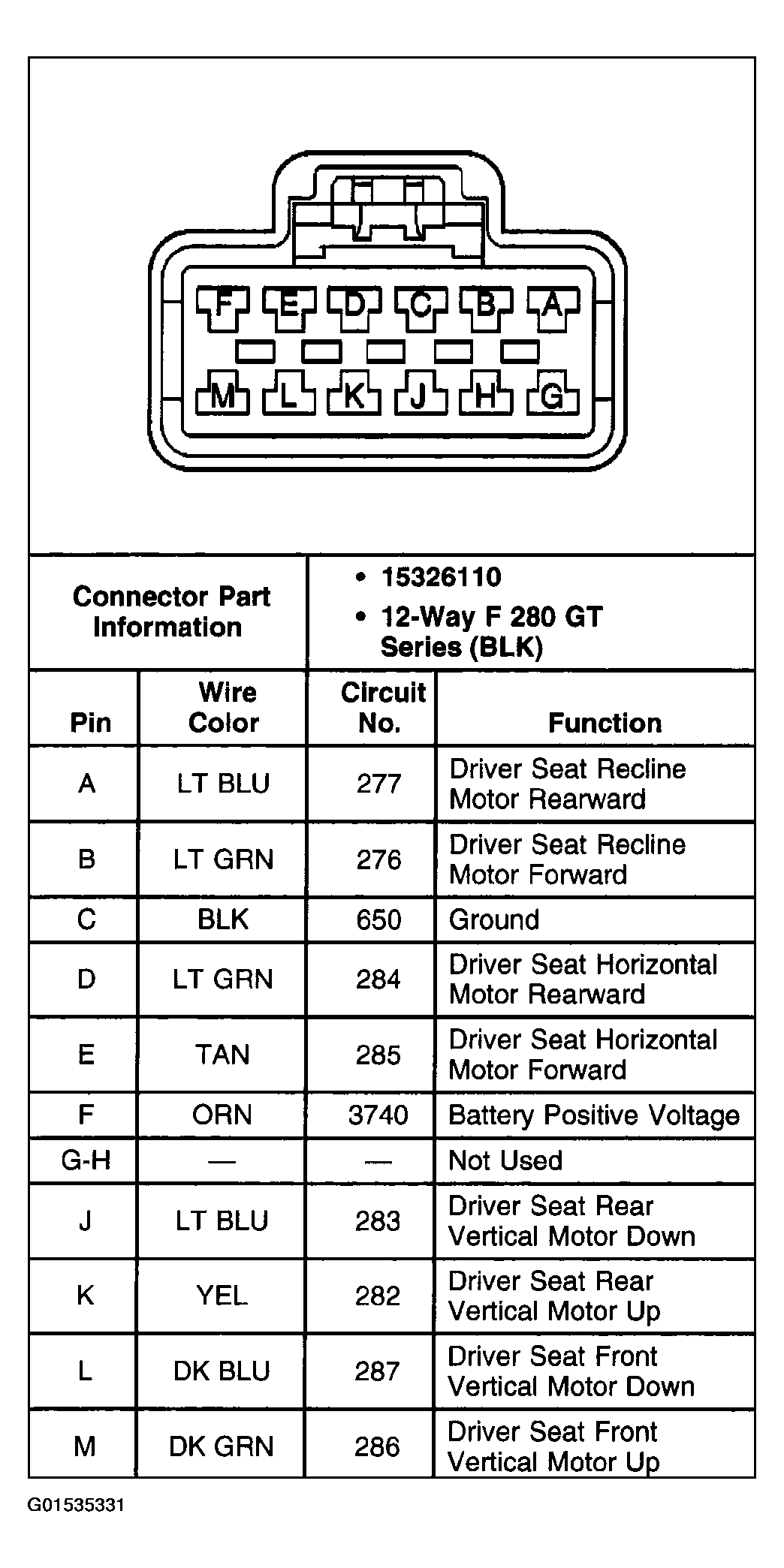

Fig 2: Power Seat Systems Connector End View - Seat Adjuster Switch - Driver (AG1 & A80)

G01535331

Courtesy of GENERAL MOTORS CORP.

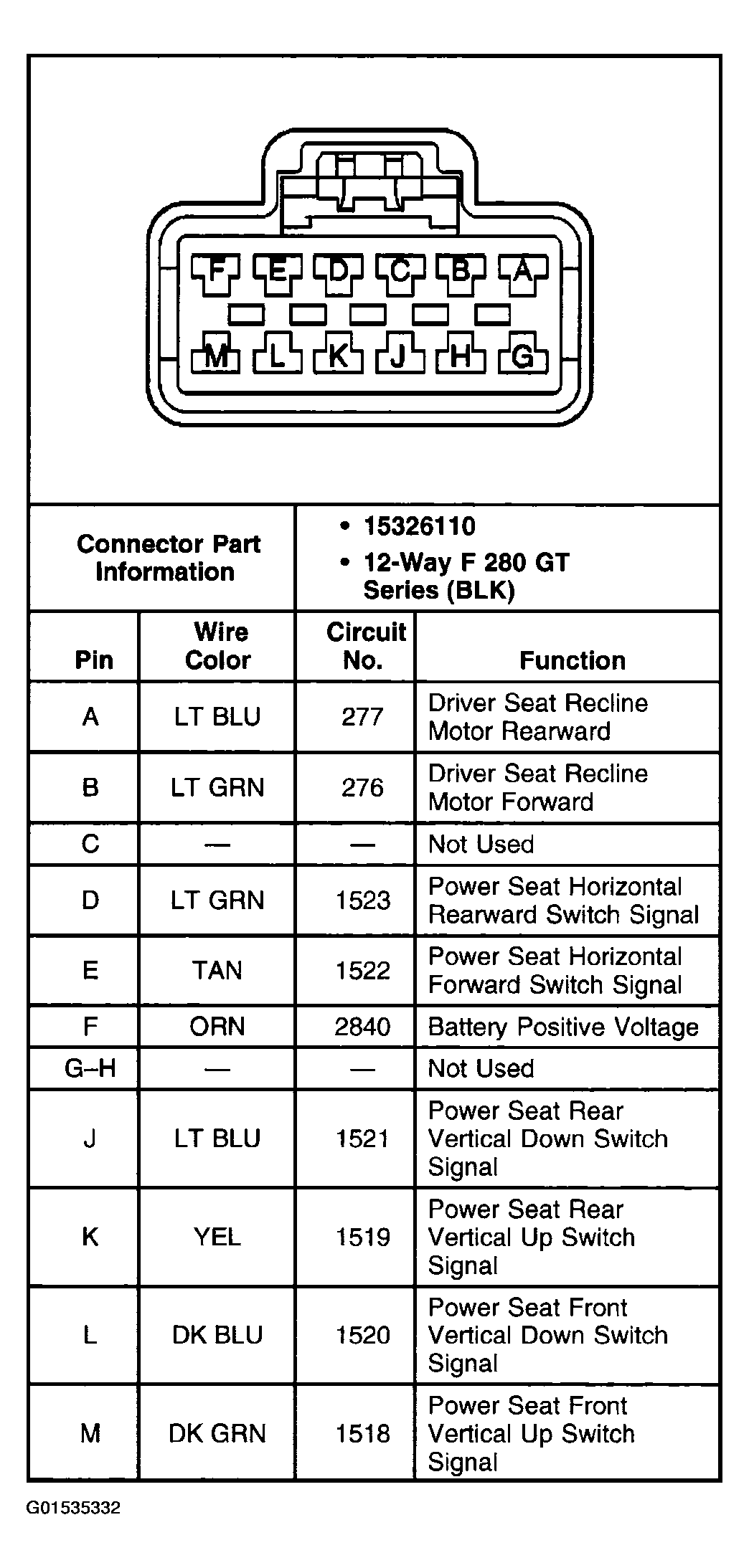

Fig 3: Power Seat Systems Connector End View - Seat Adjuster Switch - Driver (AG1, A80 & A45)

G01535332

Courtesy of GENERAL MOTORS CORP.

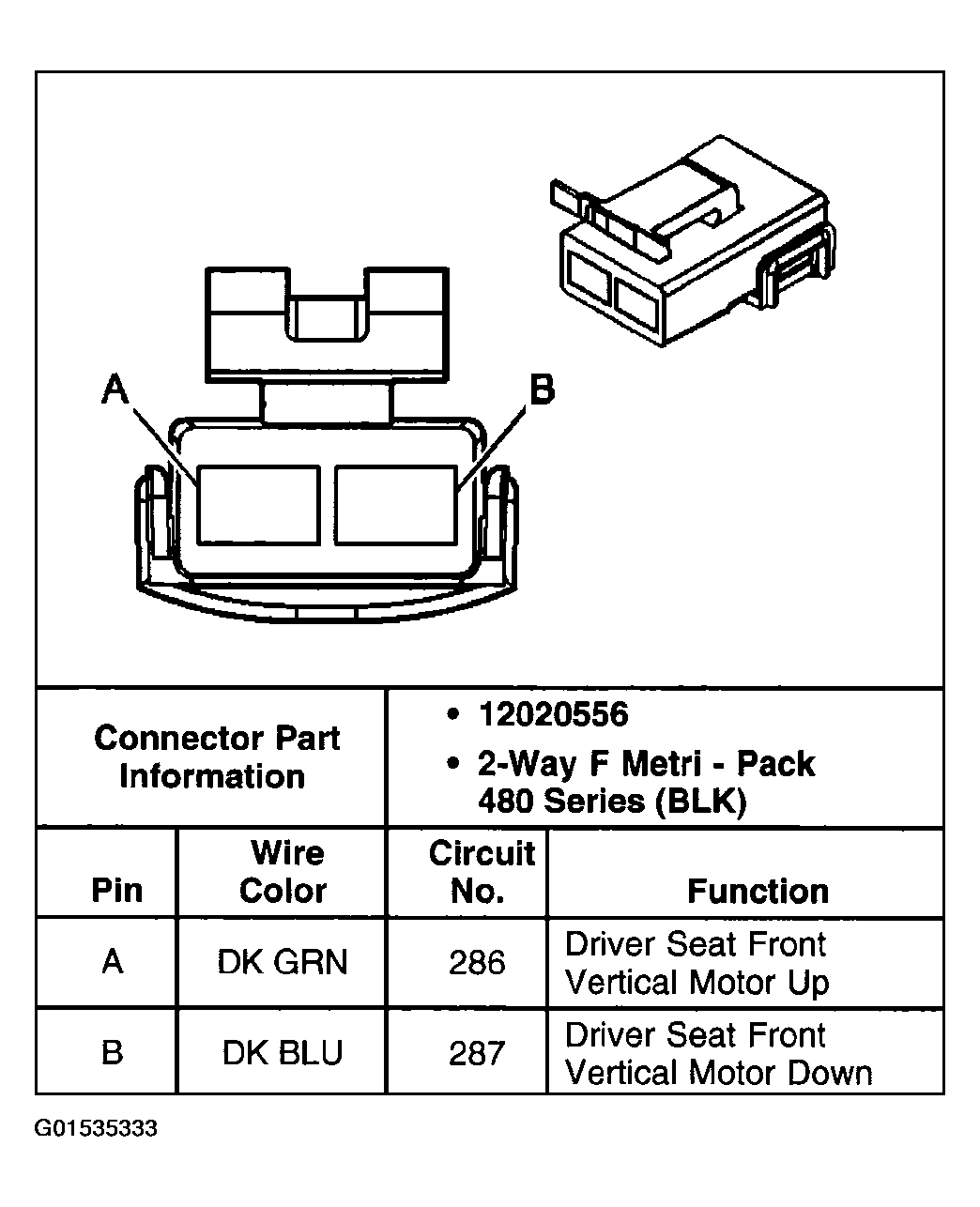

Fig 4: Power Seat Systems Connector End View - Seat Front Vertical Motor - Driver

G01535333

Courtesy of GENERAL MOTORS CORP.

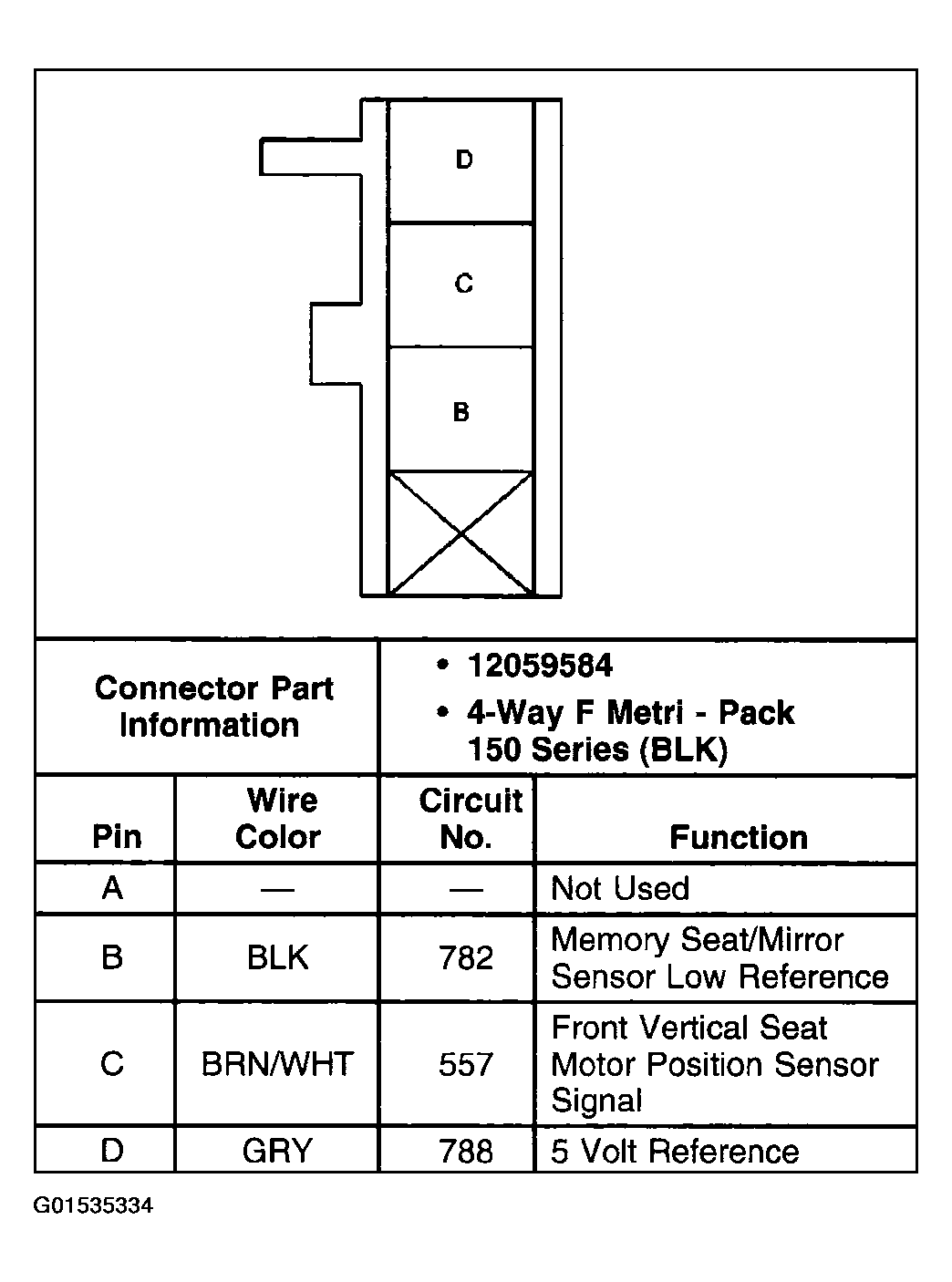

Fig 5: Power Seat Systems Connector End View - Seat Front Vertical Position Sensor - Driver (w/A45)

G01535334

Courtesy of GENERAL MOTORS CORP.

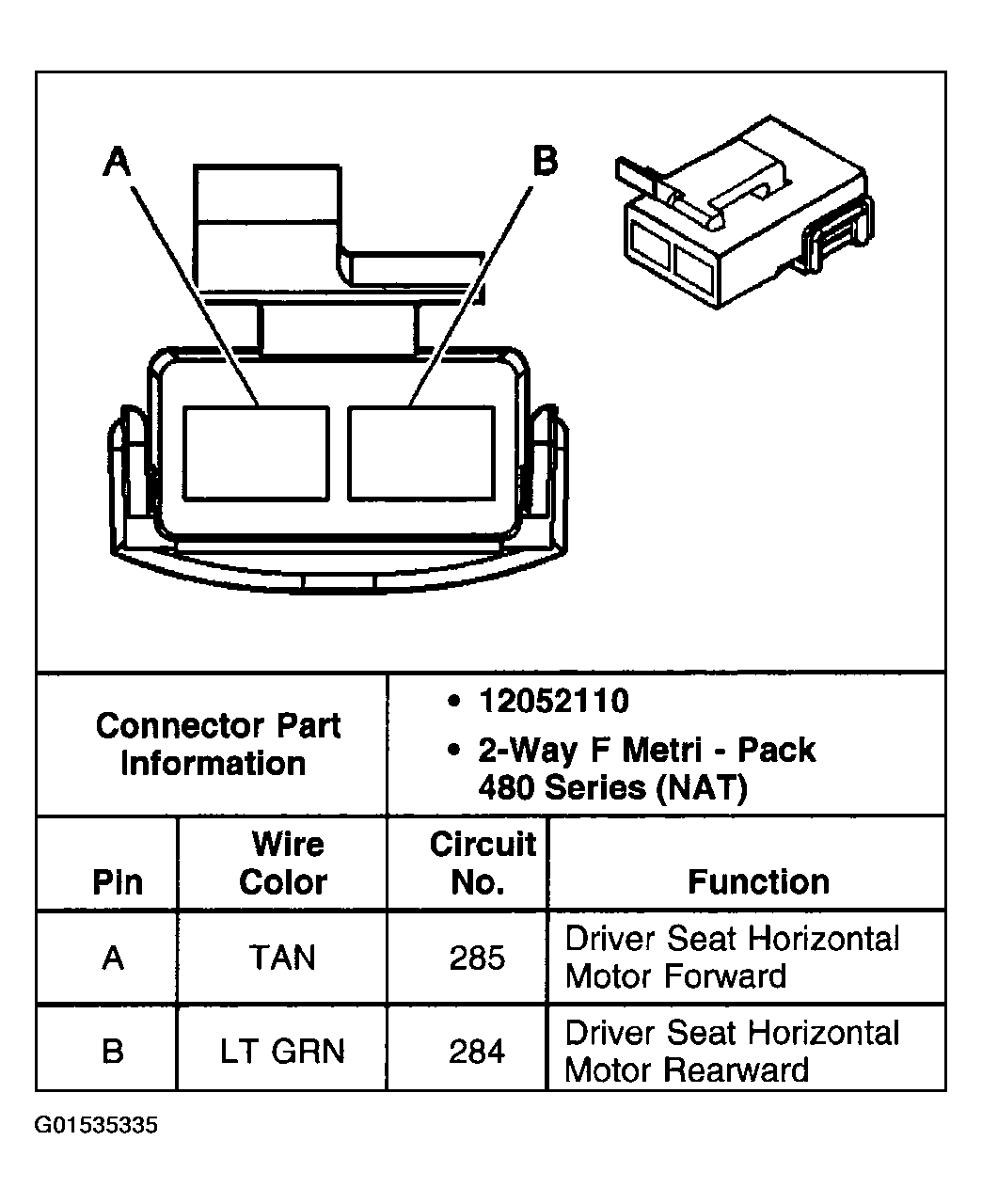

Fig 6: Power Seat Systems Connector End View - Front Seat Horizontal Motor - Driver

G01535335

Courtesy of GENERAL MOTORS CORP.

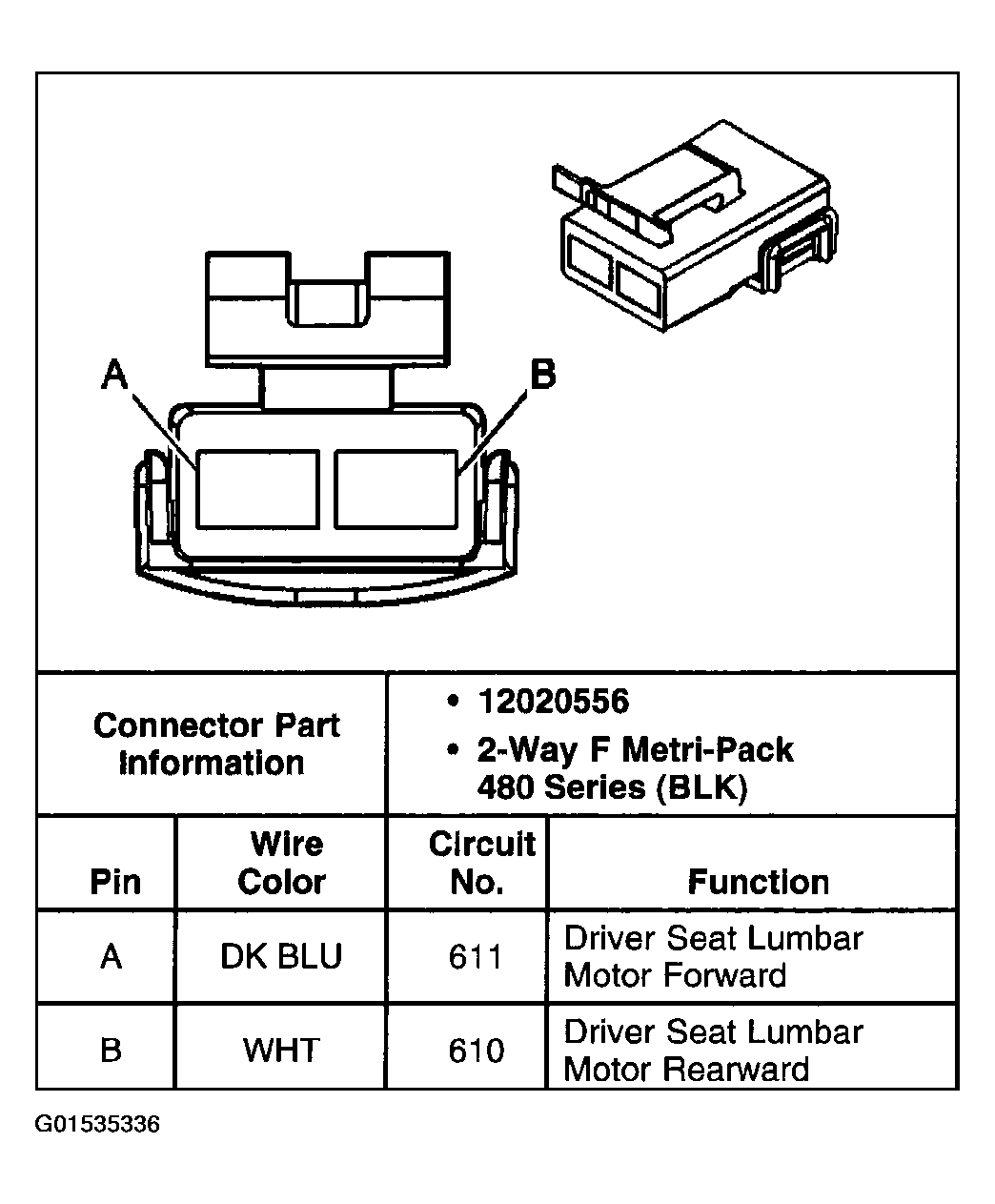

Fig 7: Power Seat Systems Connector End View - Seat Lumbar Horizontal Motor - Driver

G01535336

Courtesy of GENERAL MOTORS CORP.

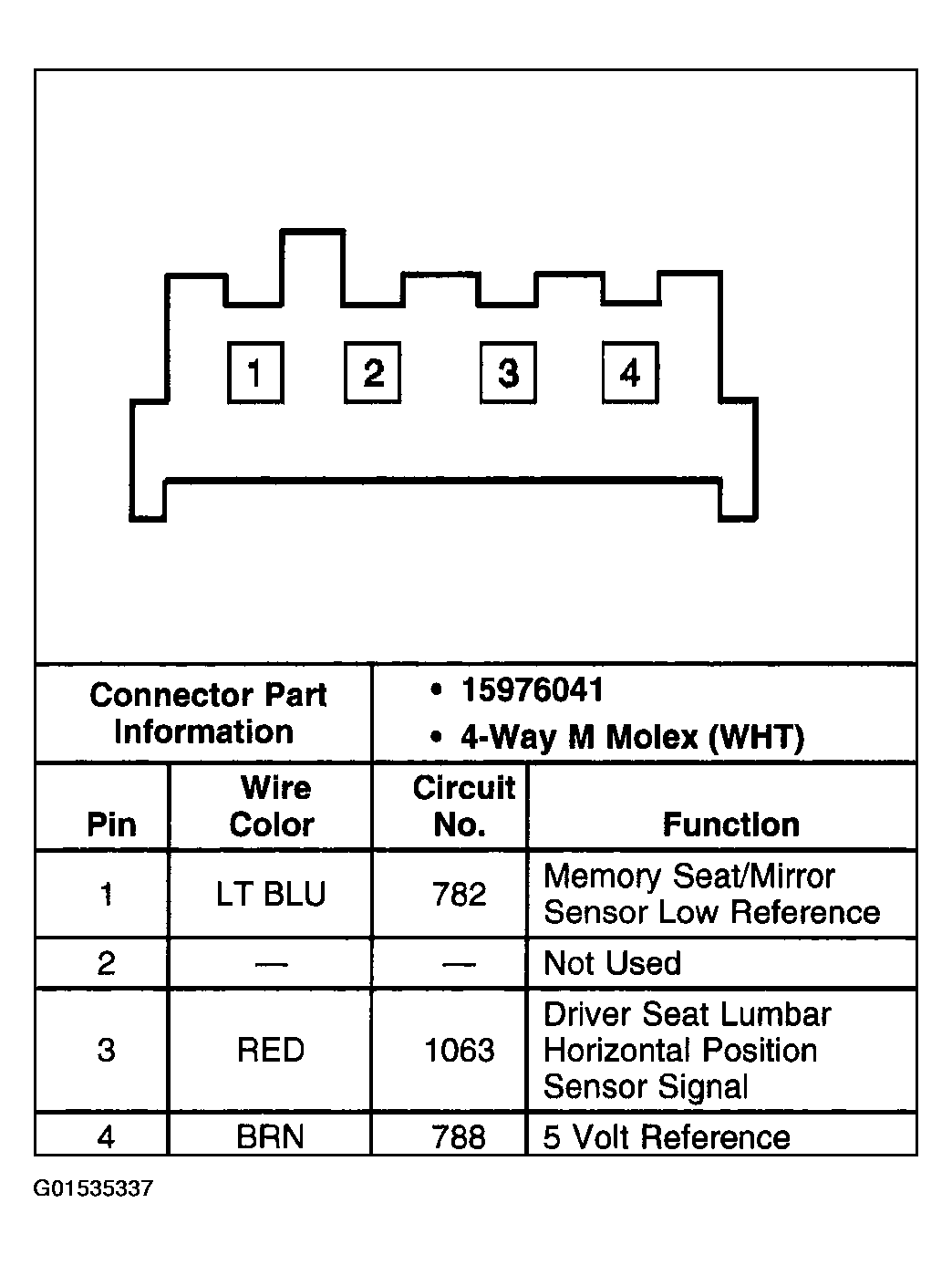

Fig 8: Power Seat Systems Connector End View - Seat Lumbar Horizontal Position Sensor - Driver

G01535337

Courtesy of GENERAL MOTORS CORP.

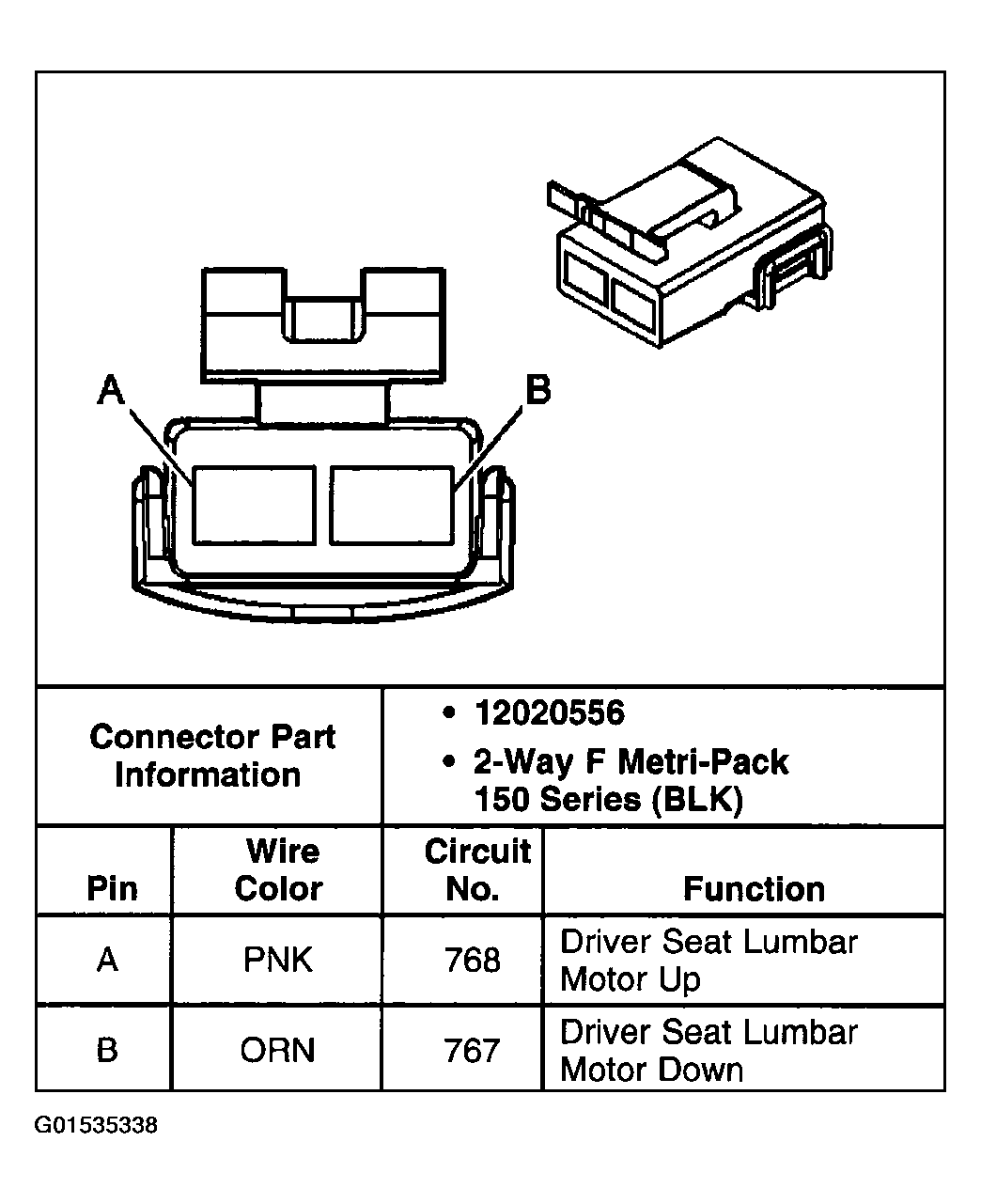

Fig 9: Power Seat Systems Connector End View - Seat Lumbar Vertical Motor - Driver

G01535338

Courtesy of GENERAL MOTORS CORP.

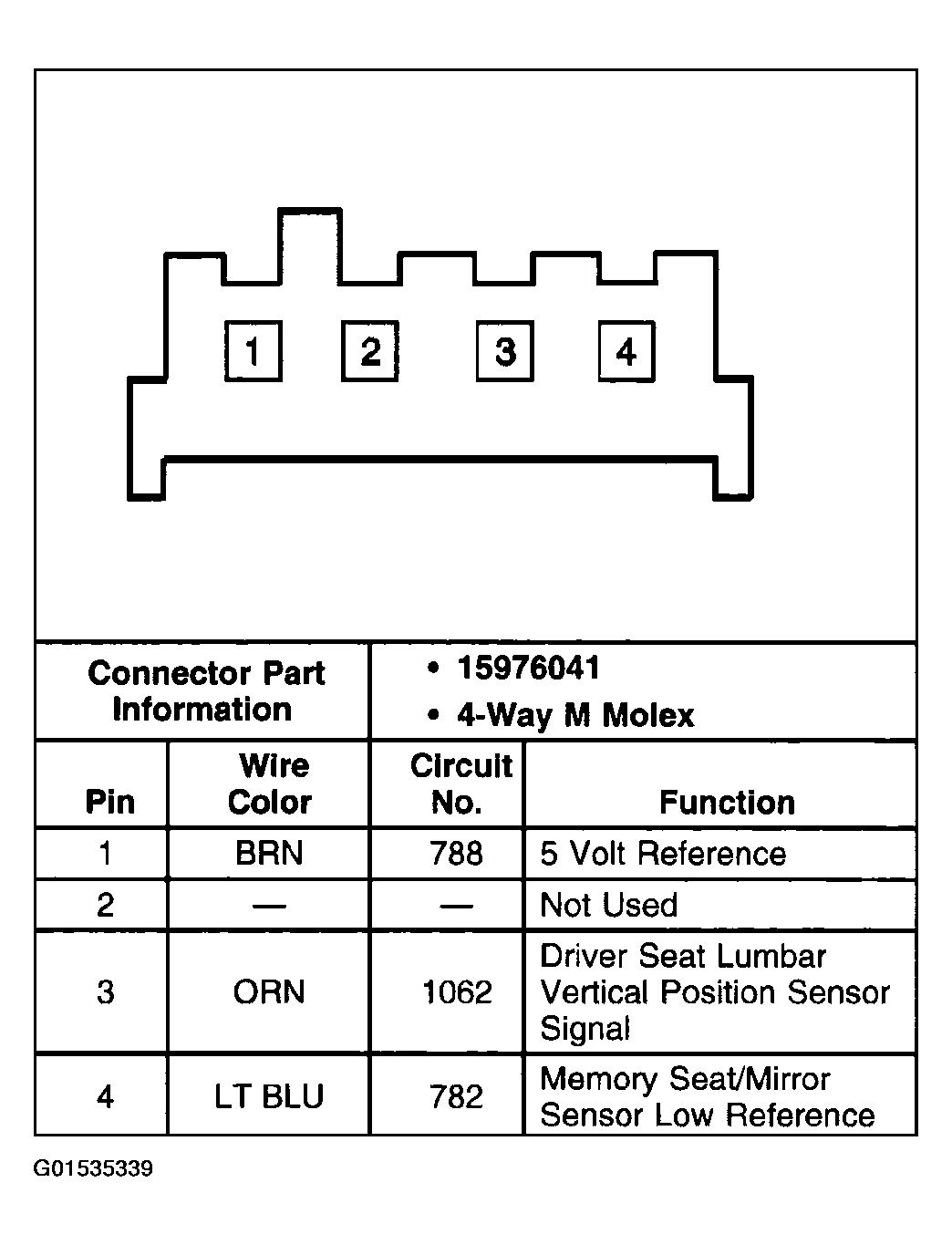

Fig 10: Power Seat Systems Connector End View - Seat Lumbar Vertical Position Sensor - Driver

G01535339

Courtesy of GENERAL MOTORS CORP.

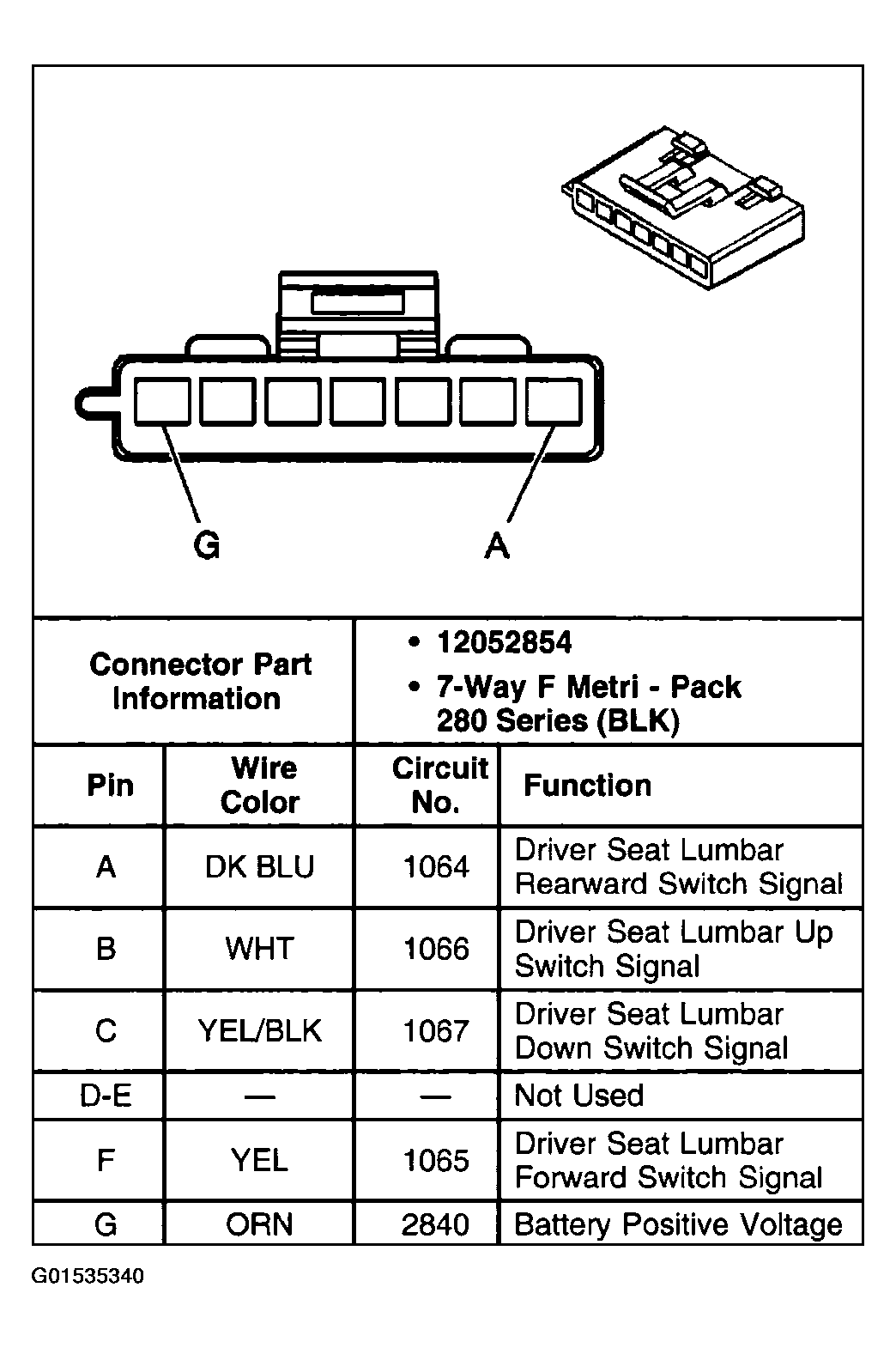

Fig 11: Power Seat Systems Connector End View - Seat Lumbar Switch - Driver (A45 & AL9)

G01535340

Courtesy of GENERAL MOTORS CORP.

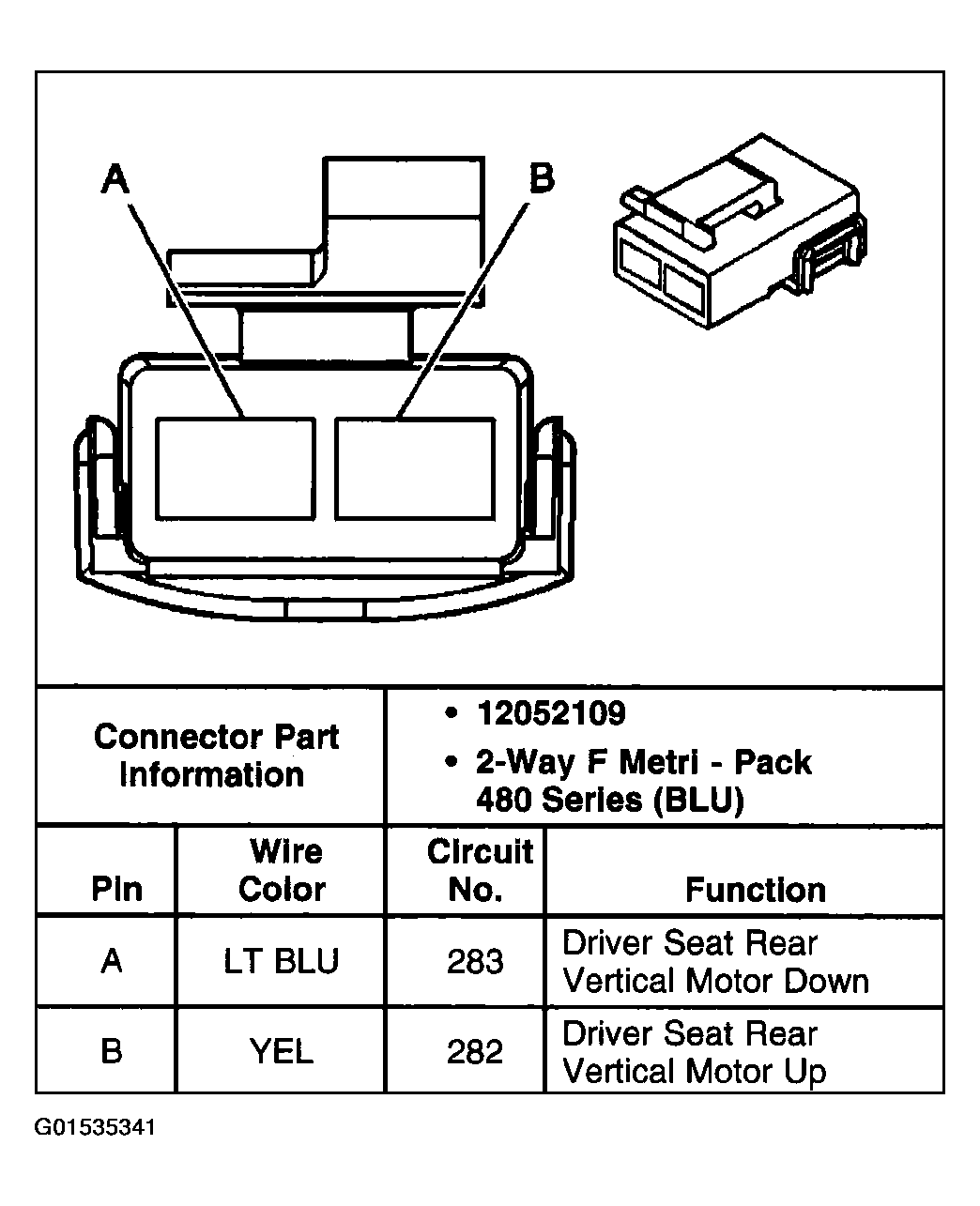

Fig 12: Power Seat Systems Connector End View - Seat Rear Vertical Motor - Driver

G01535341

Courtesy of GENERAL MOTORS CORP.

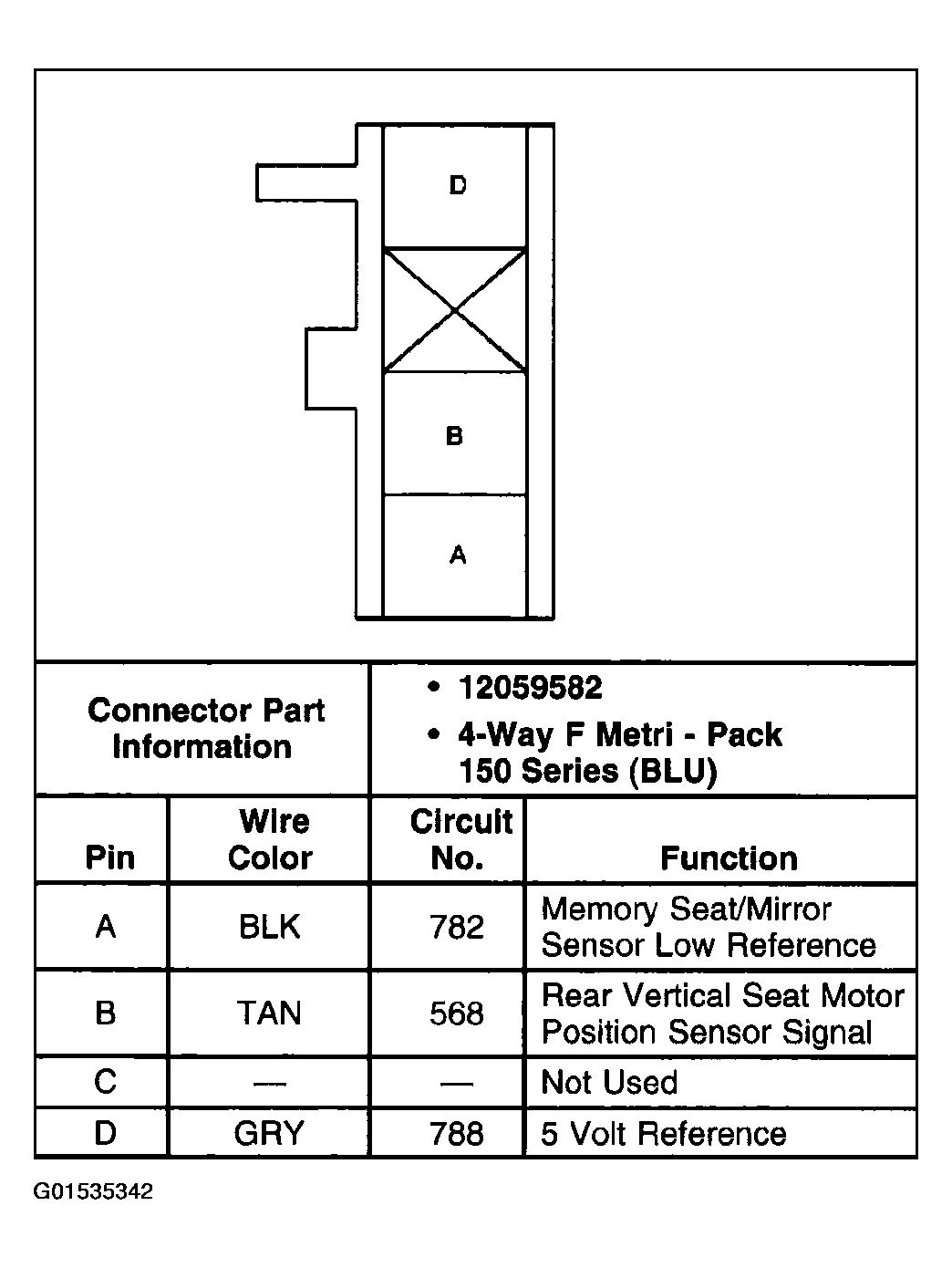

Fig 13: Power Seat Systems Connector End View - Seat Rear Vertical Position Sensor - Driver (w/A45)

G01535342

Courtesy of GENERAL MOTORS CORP.

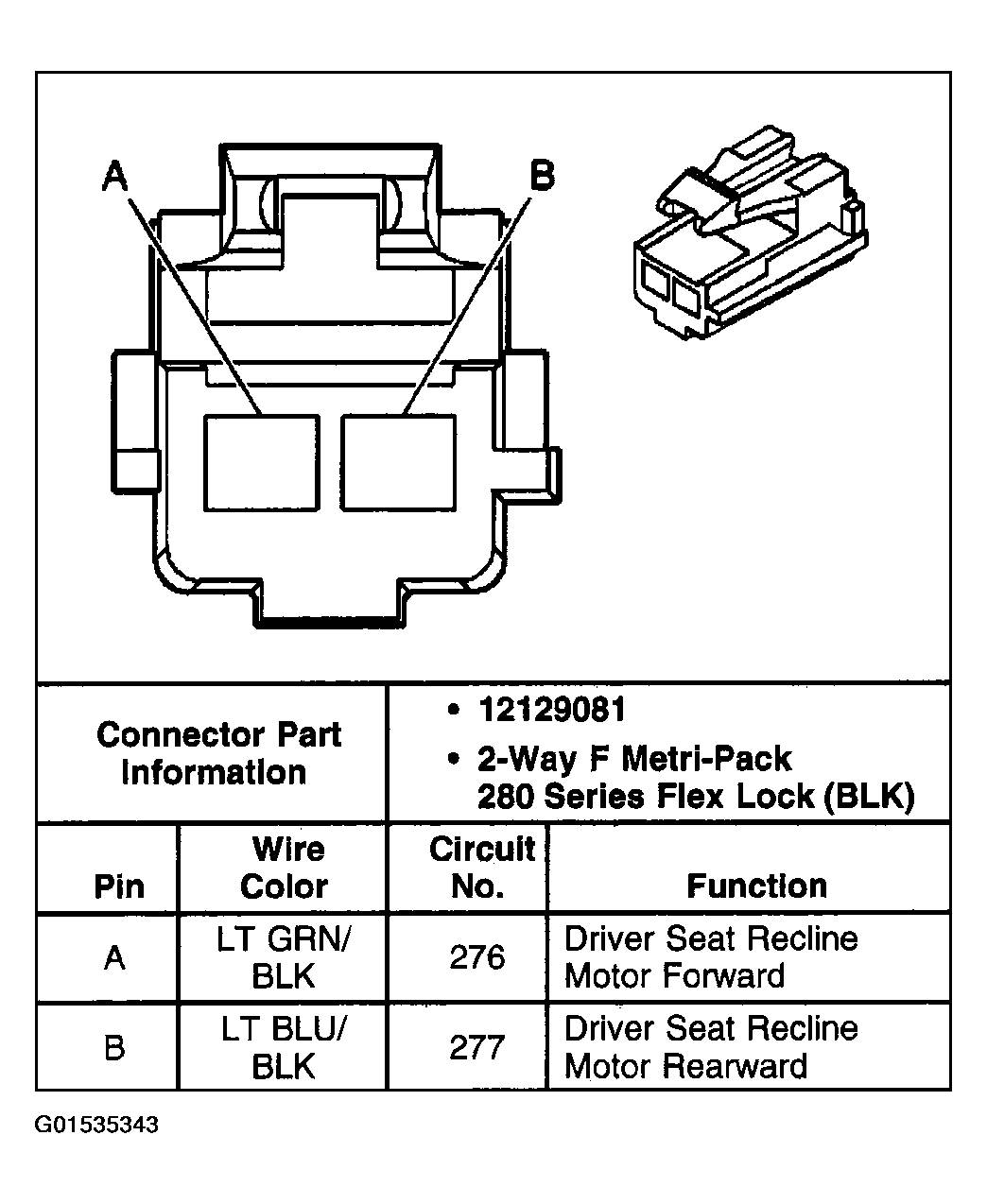

Fig 14: Power Seat Systems Connector End View - Seat Recline Motor - Driver (A45)

G01535343

Courtesy of GENERAL MOTORS CORP.

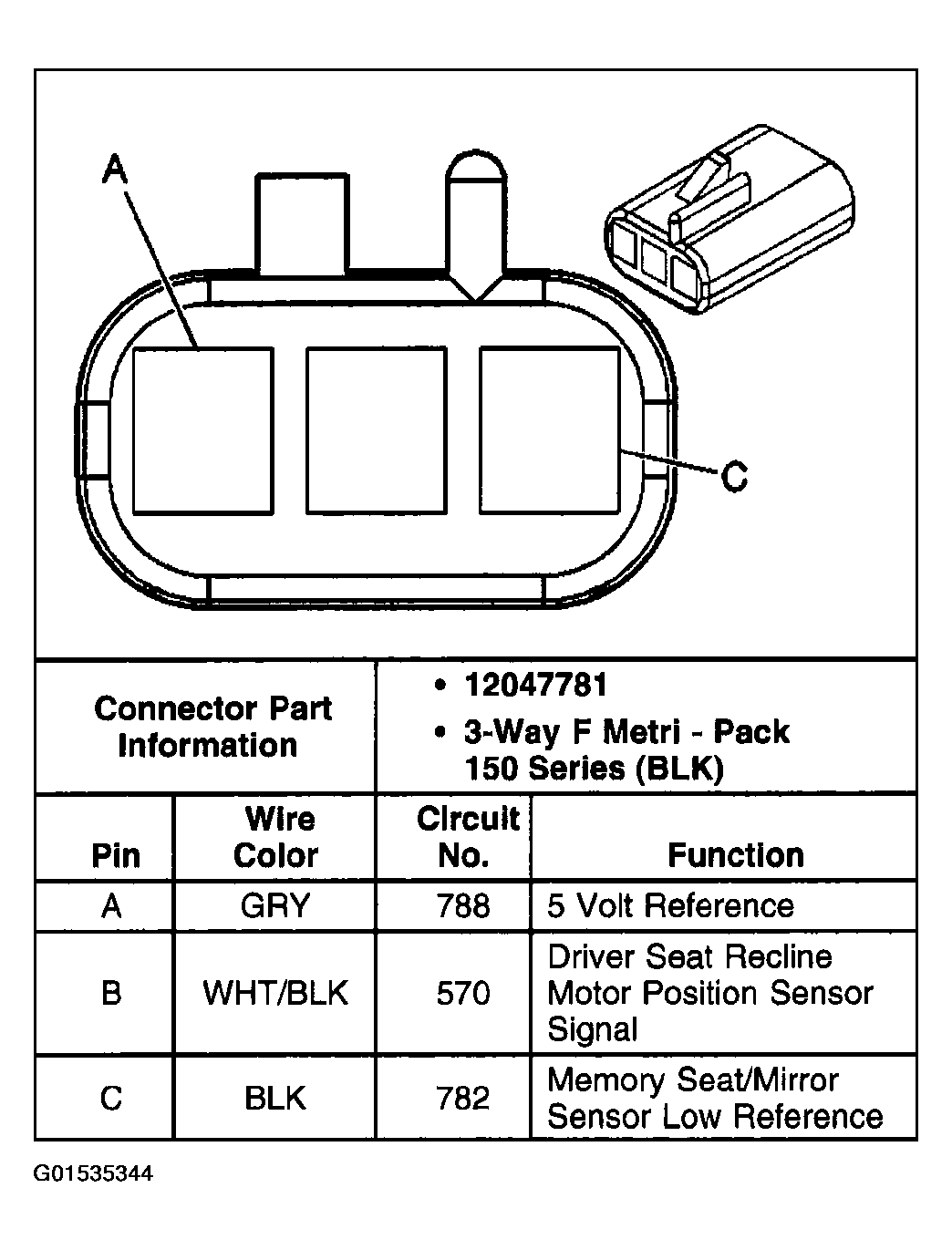

Fig 15: Power Seat Systems Connector End View - Seat Recline Position Sensor - Driver (A45)

G01535344

Courtesy of GENERAL MOTORS CORP.

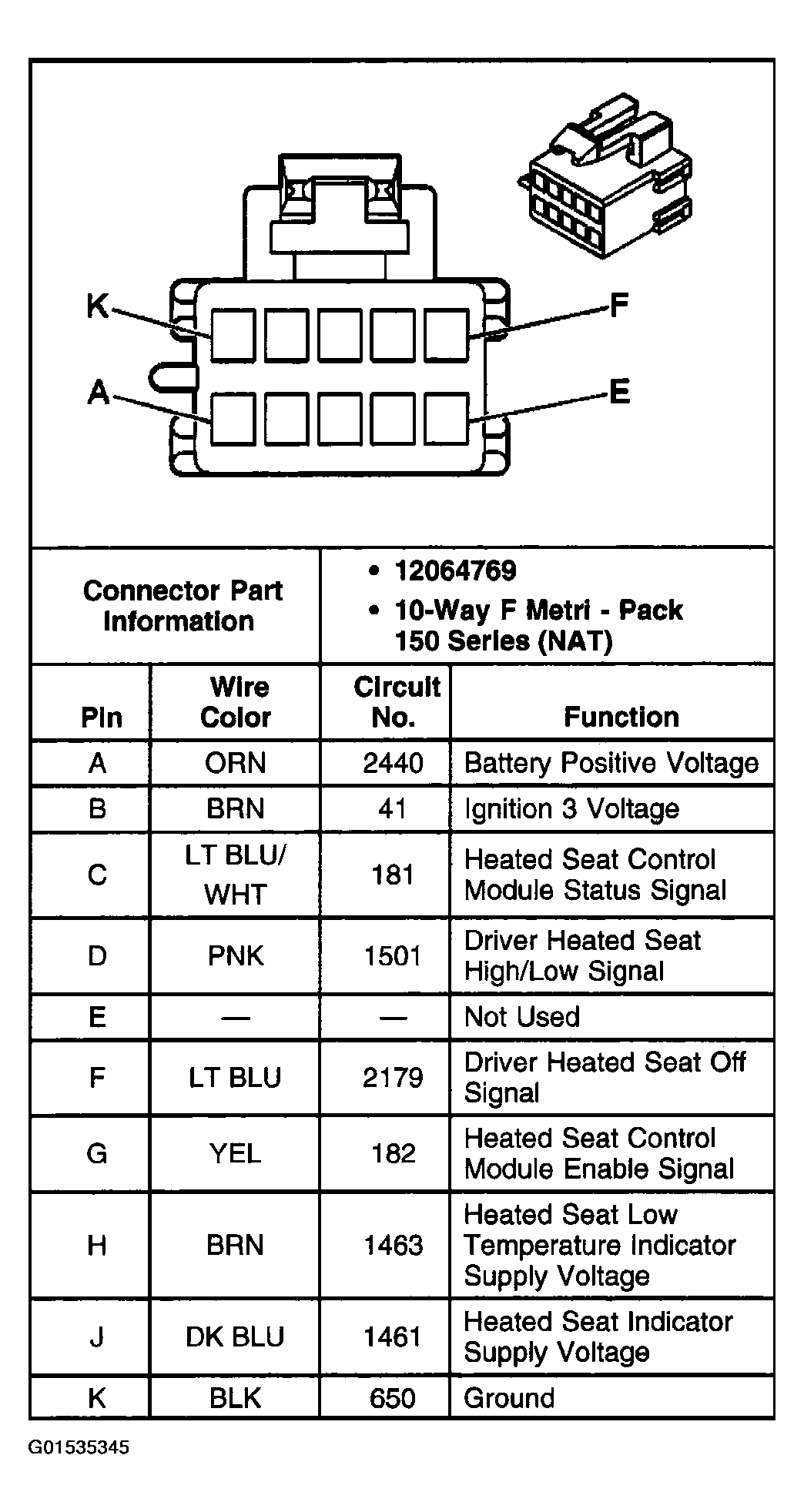

Fig 16: Power Seat Systems Connector End View - Heated Seat Module - Driver C1 (AG1, A80, KA1)

G01535345

Courtesy of GENERAL MOTORS CORP.

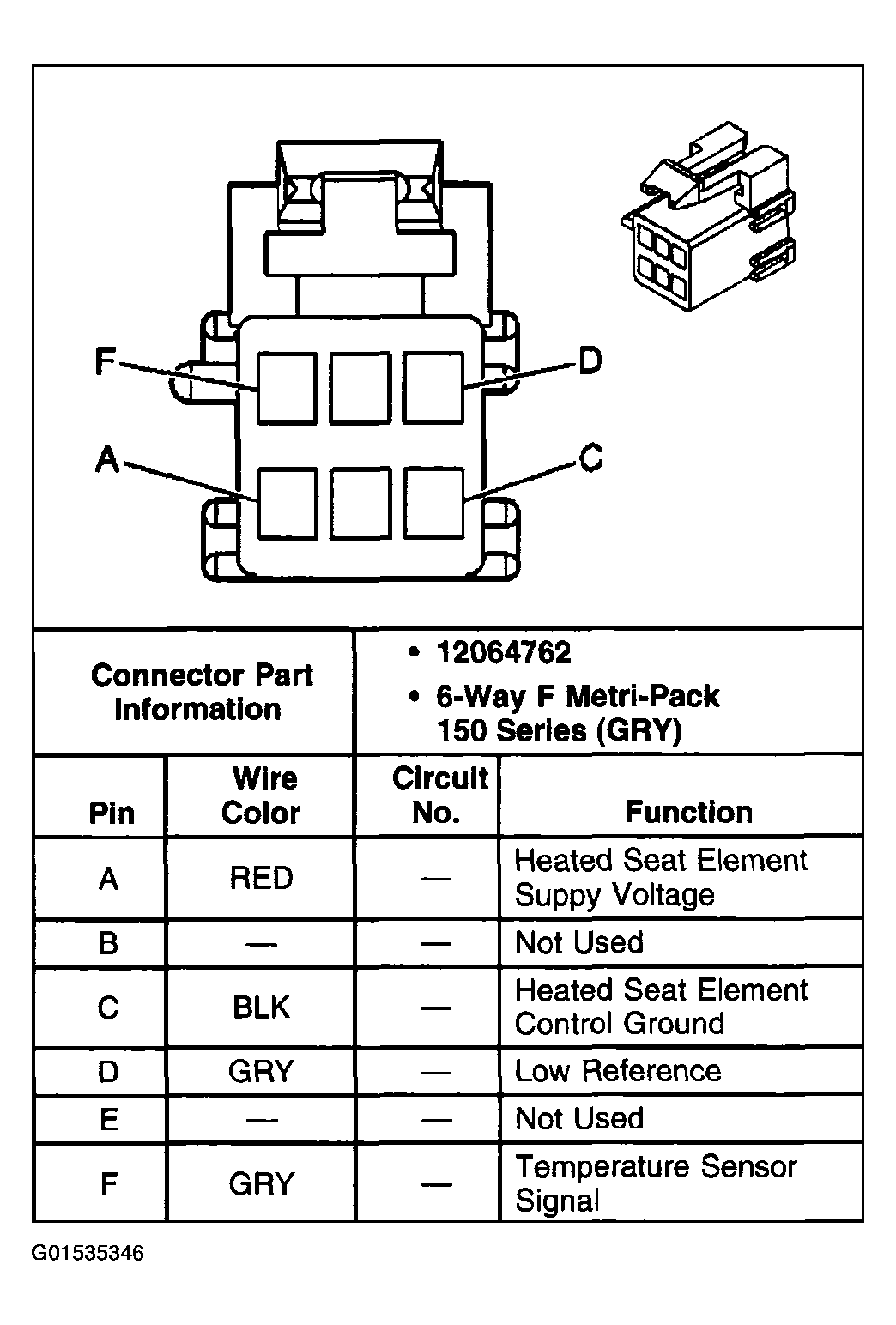

Fig 17: Power Seat Systems Connector End View - Heated Seat Module - Driver C2 (w/AG1, A80, KA1)

G01535346

Courtesy of GENERAL MOTORS CORP.

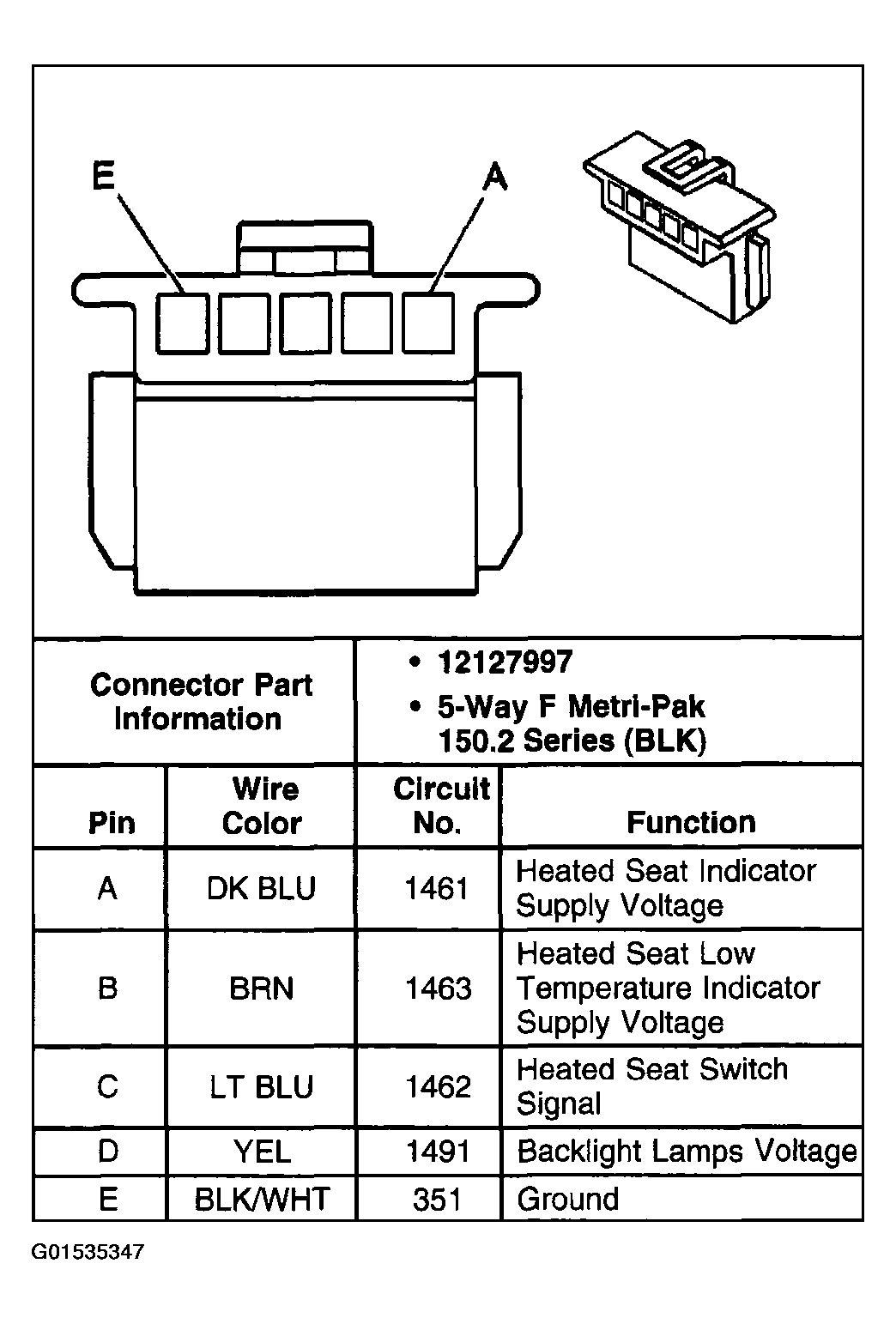

Fig 18: Power Seat Systems Connector End View - Heated Seat Switch - Driver

G01535347

Courtesy of GENERAL MOTORS CORP.

Fig 19: Power Seat Systems Connector End View - Memory/Personalization Function Switch

G01535348

Courtesy of GENERAL MOTORS CORP.

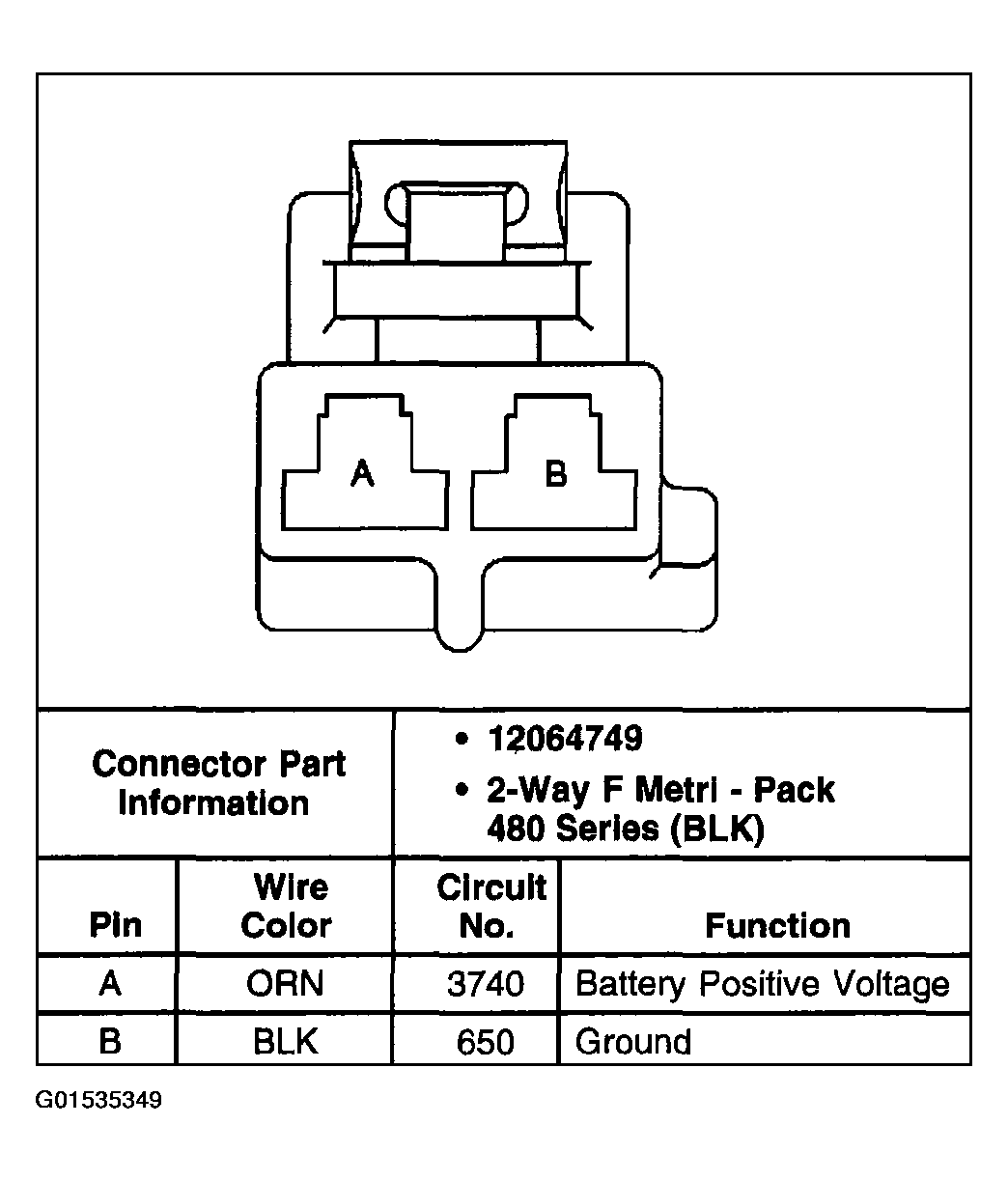

Fig 20: Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C1 (A45)

G01535349

Courtesy of GENERAL MOTORS CORP.

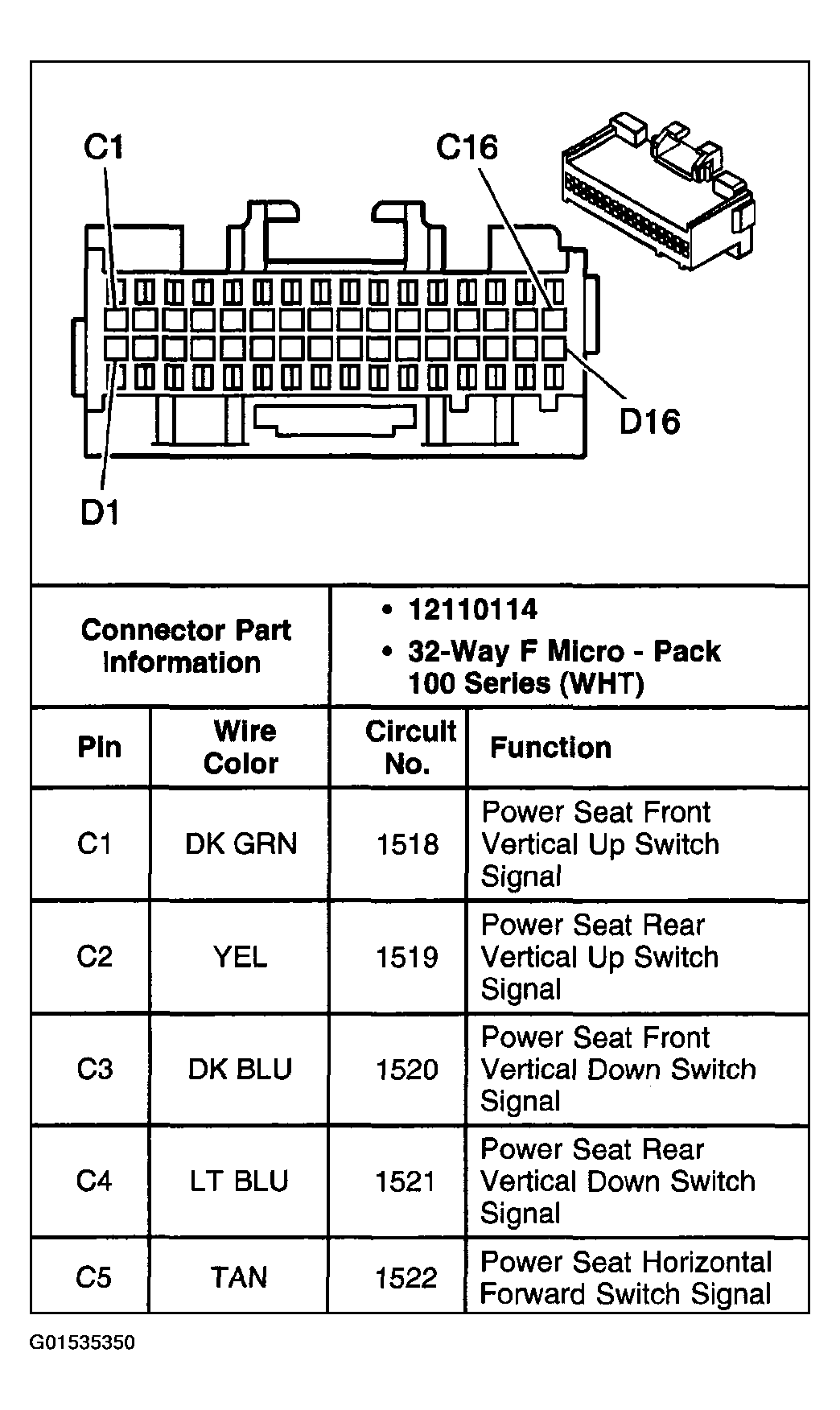

Fig 21: Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C2 (A45) (1 Of 3)

G01535350

Courtesy of GENERAL MOTORS CORP.

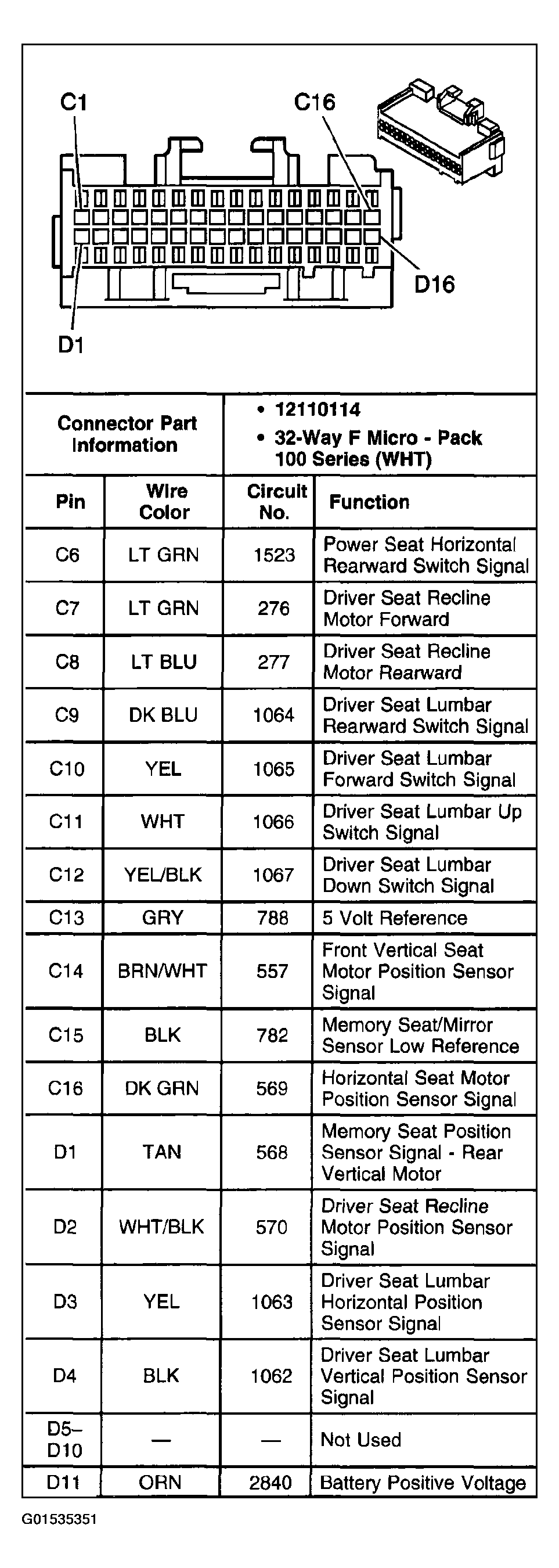

Fig 22: Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C2 (A45) (2 Of 3)

G01535351

Courtesy of GENERAL MOTORS CORP.

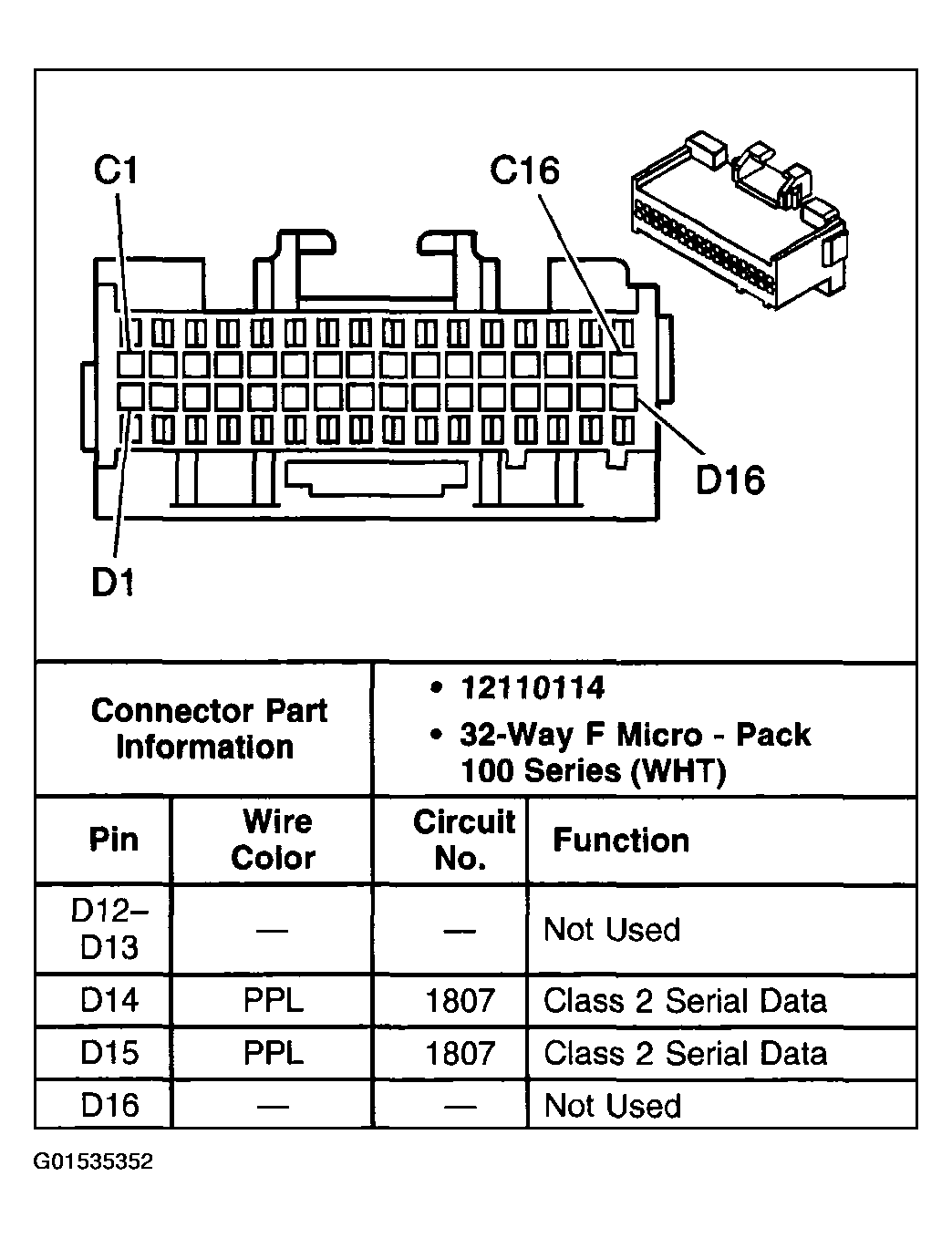

Fig 23: Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C2 (A45) (3 Of 3)

G01535352

Courtesy of GENERAL MOTORS CORP.

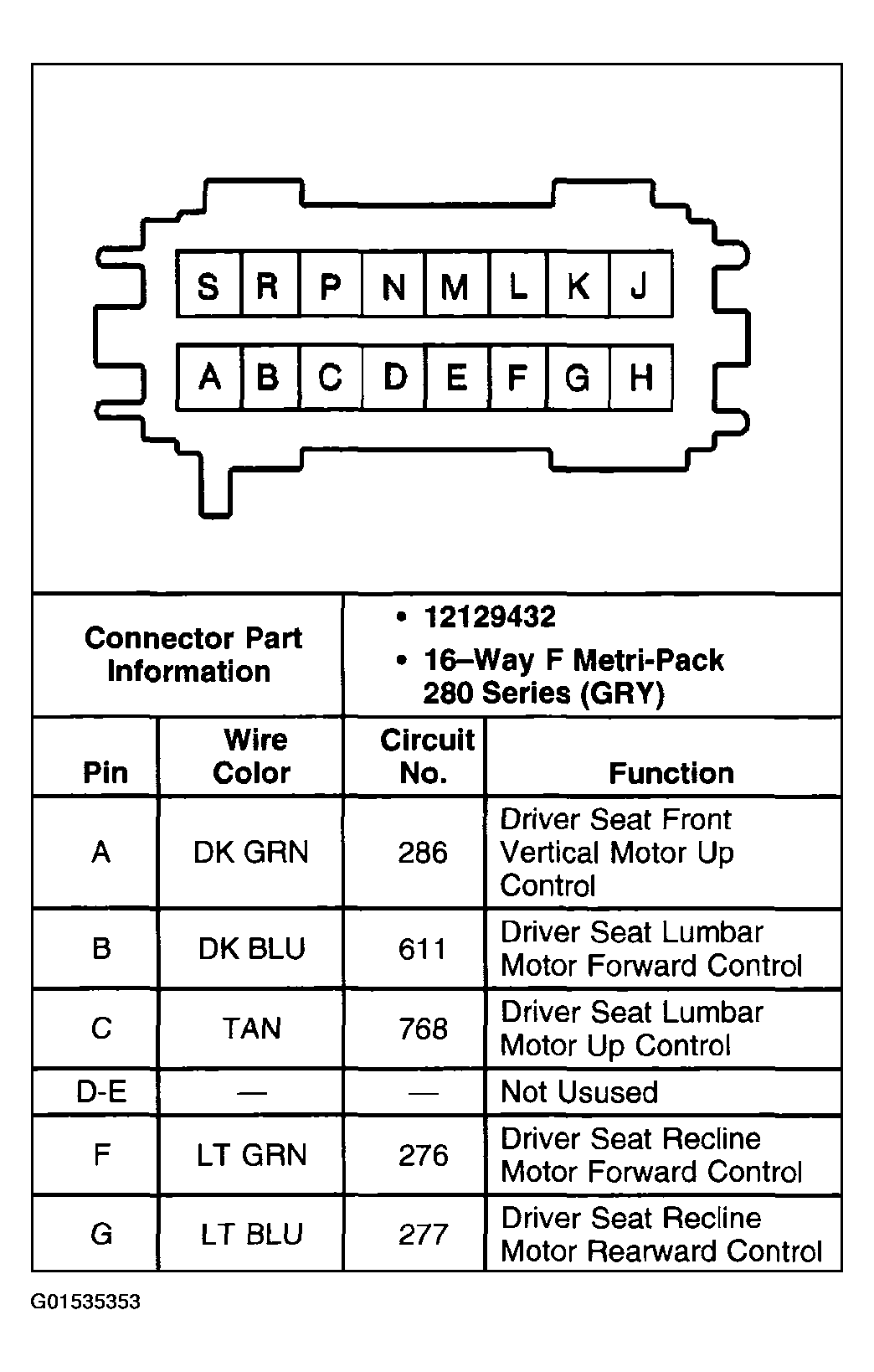

Fig 24: Power Seat Systems Connector End View - Memory Seat Module - C3 (w/A45) (1 Of 2)

G01535353

Courtesy of GENERAL MOTORS CORP.

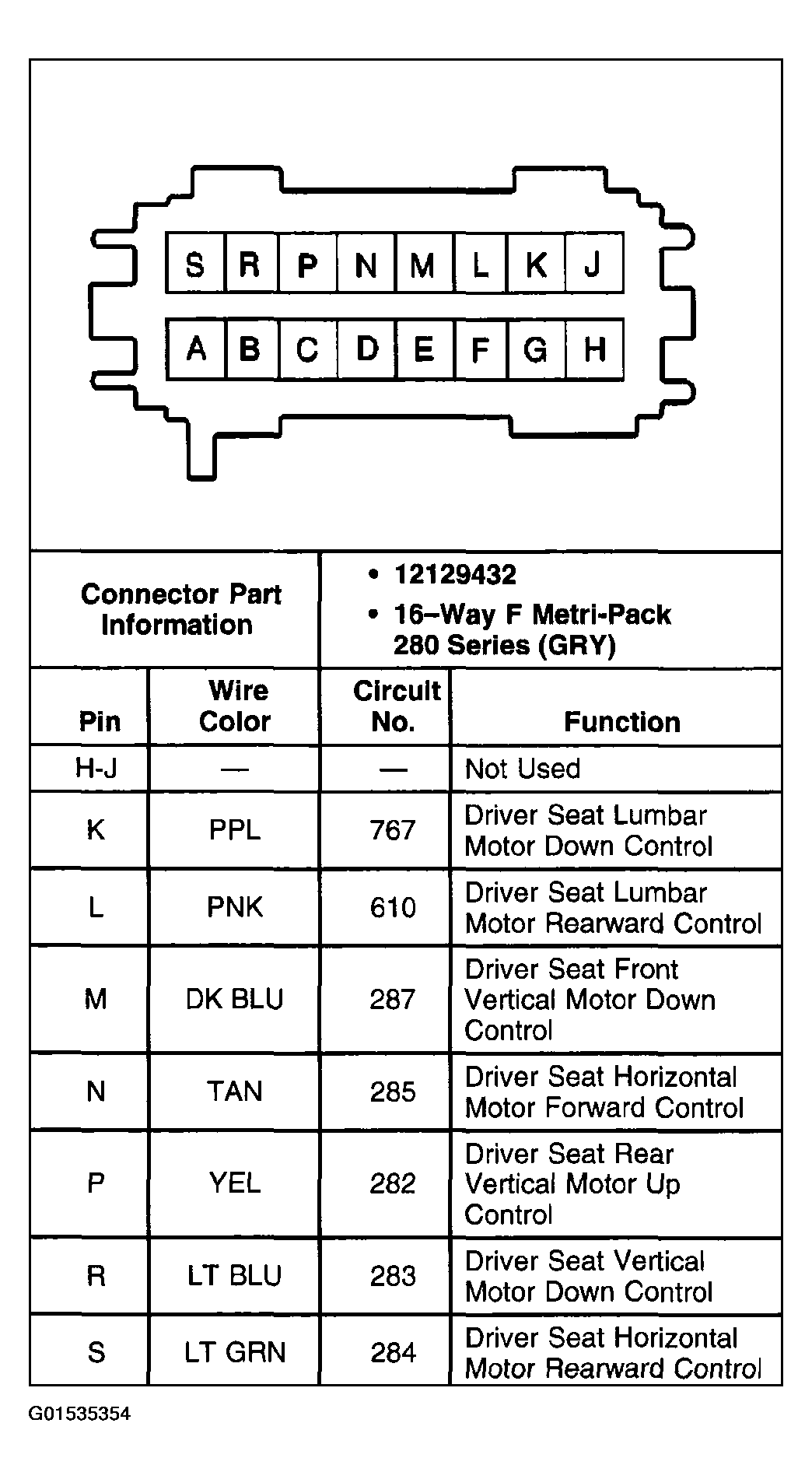

Fig 25: Power Seat Systems Connector End View - Memory Seat Module - C3 (w/A45) (2 Of 2)

G01535354

Courtesy of GENERAL MOTORS CORP.

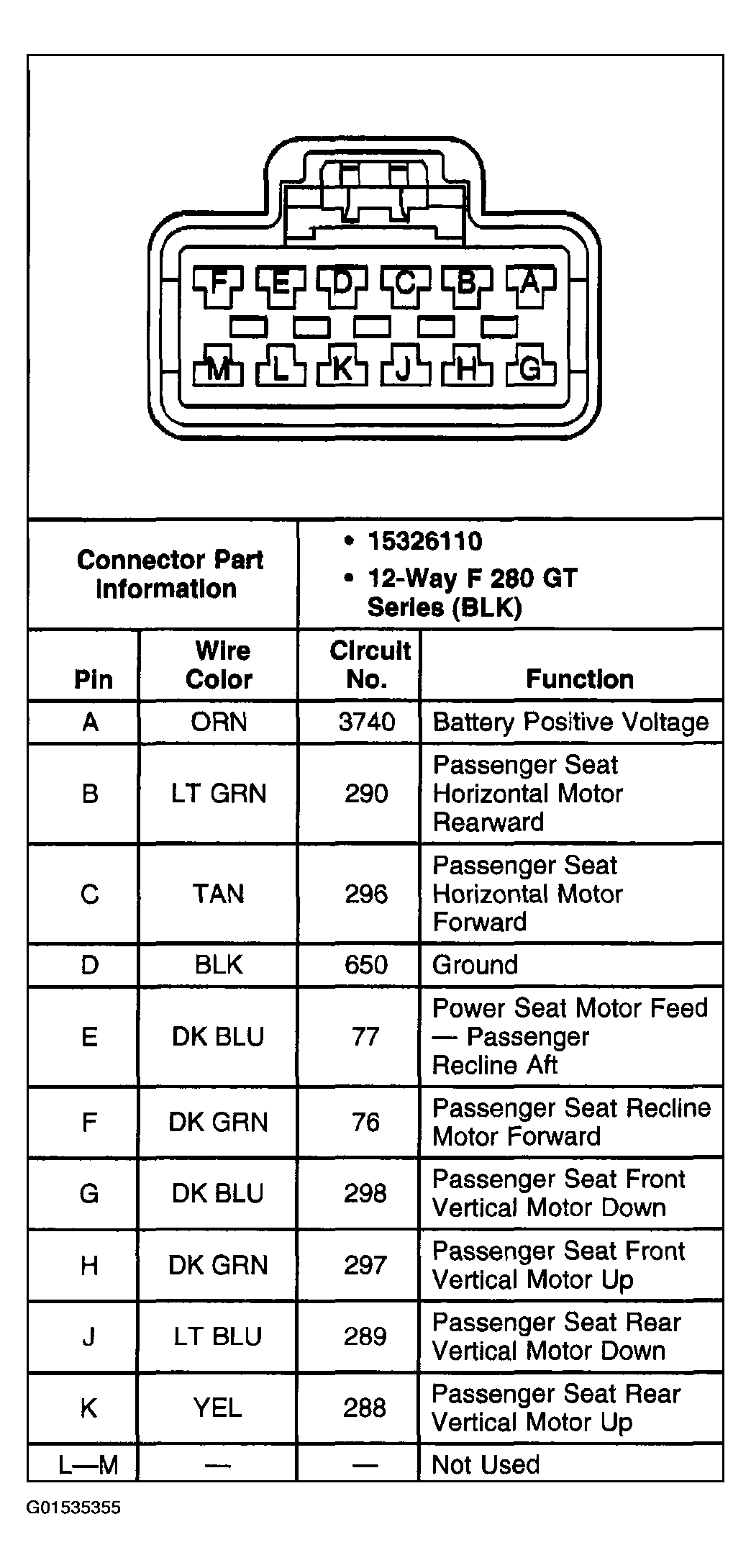

Fig 26: Power Seat Systems Connector End View - Seat Adjuster Switch - Front Passenger (AG2, A81)

G01535355

Courtesy of GENERAL MOTORS CORP.

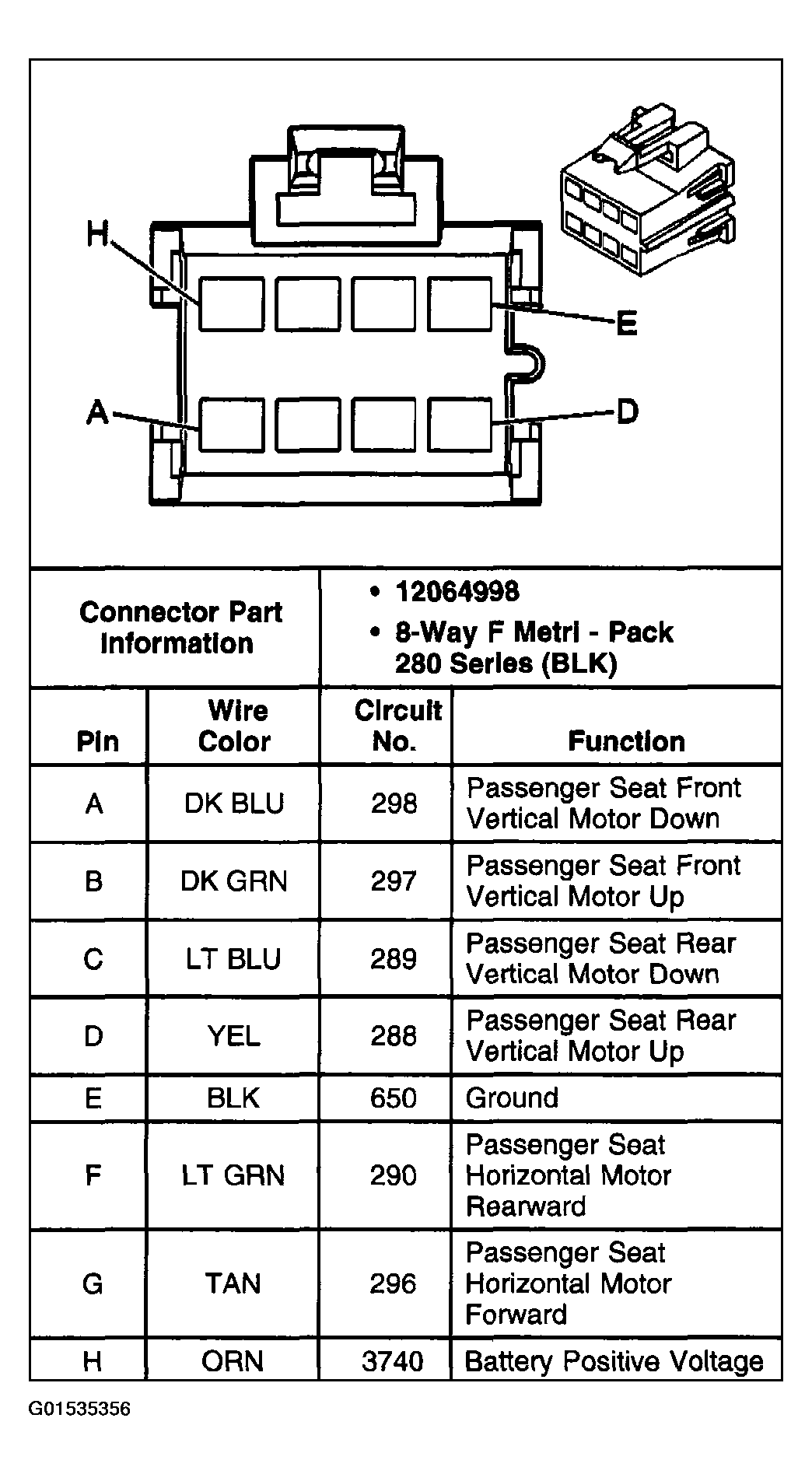

Fig 27: Power Seat Systems Connector End View - Front Passenger (AG2)

G01535356

Courtesy of GENERAL MOTORS CORP.

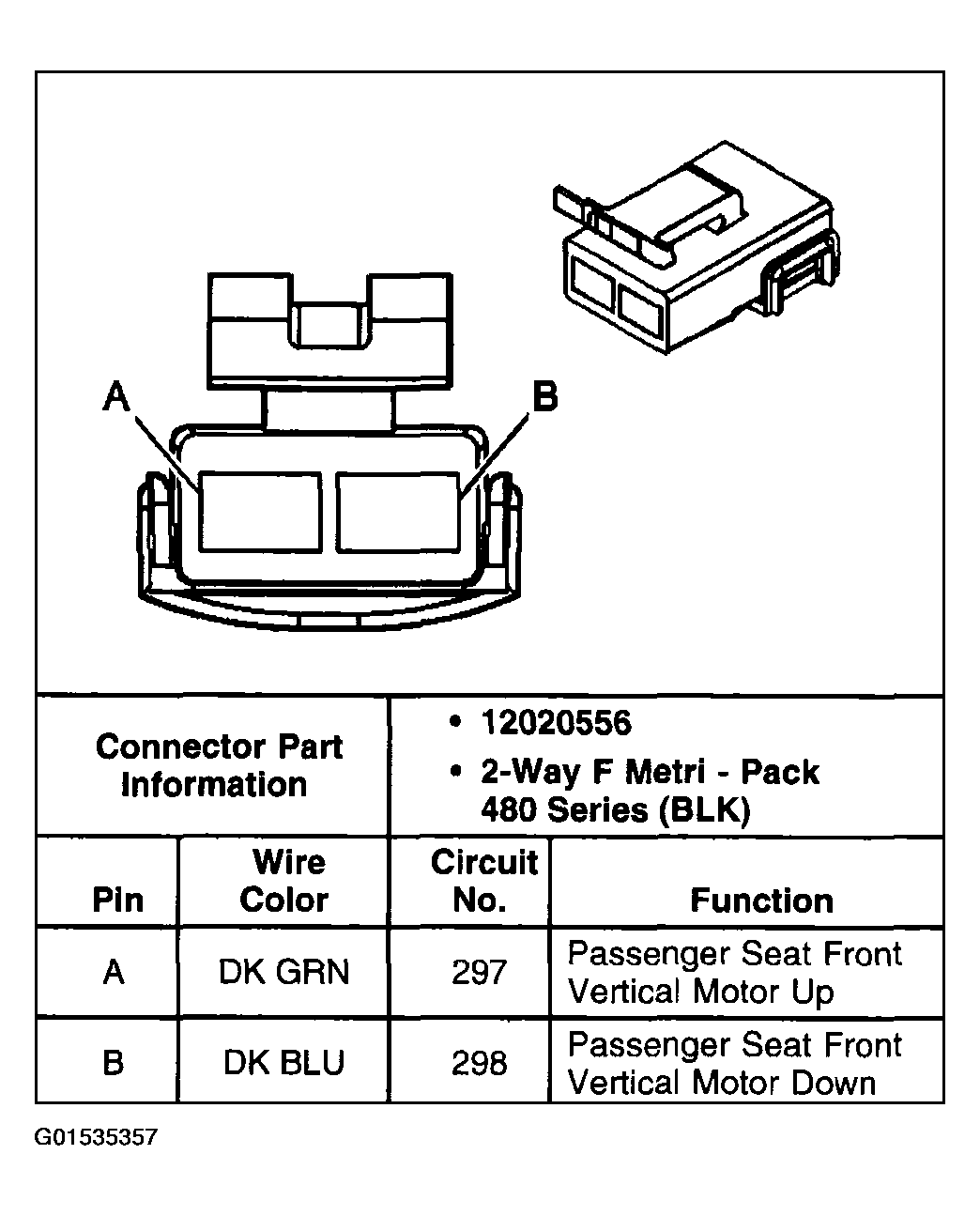

Fig 28: Power Seat Systems Connector End View - Seat Front Vertical Motor - Front Passenger

G01535357

Courtesy of GENERAL MOTORS CORP.

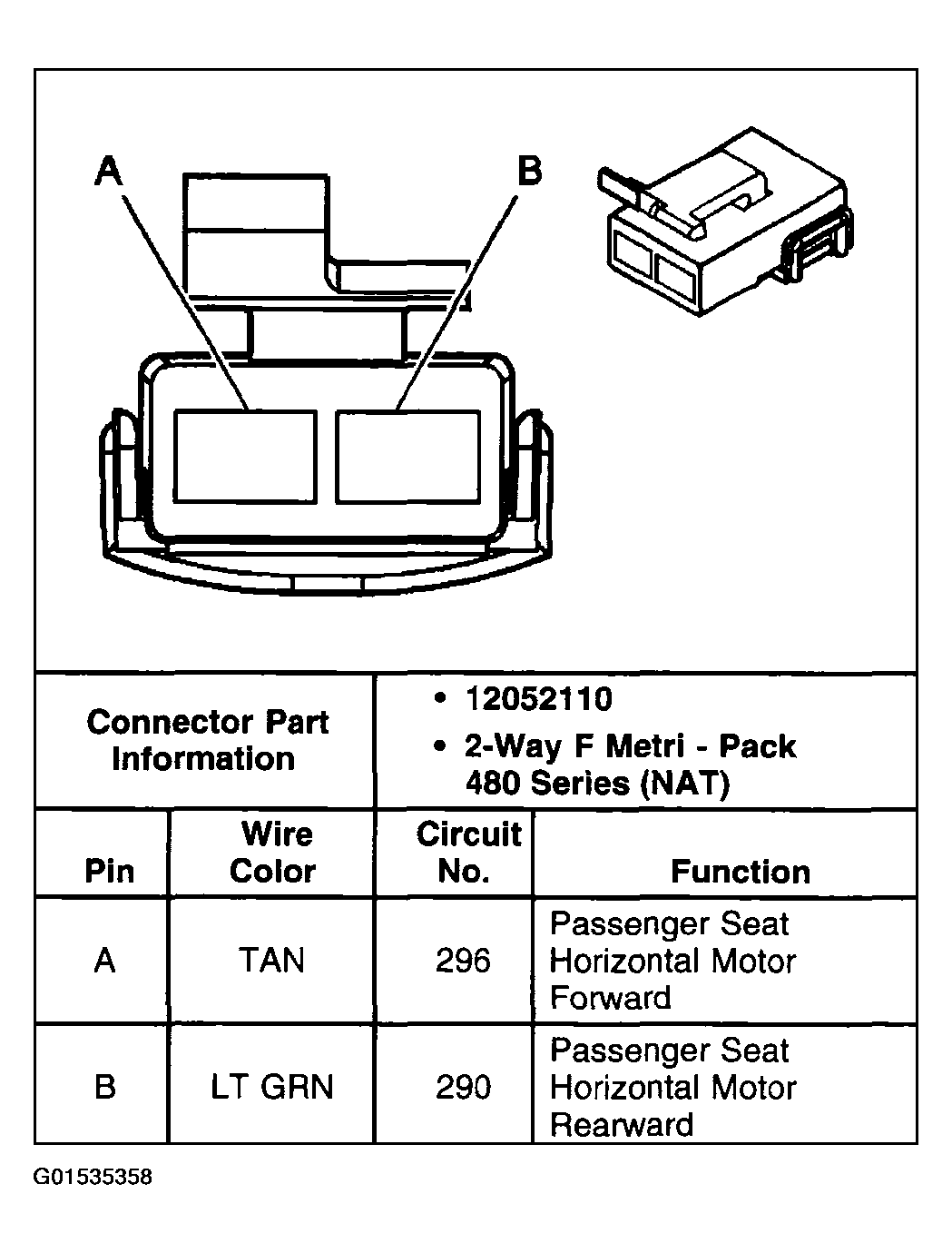

Fig 29: Power Seat Systems Connector End View - Seat Horizontal Motor - Front Passenger

G01535358

Courtesy of GENERAL MOTORS CORP.

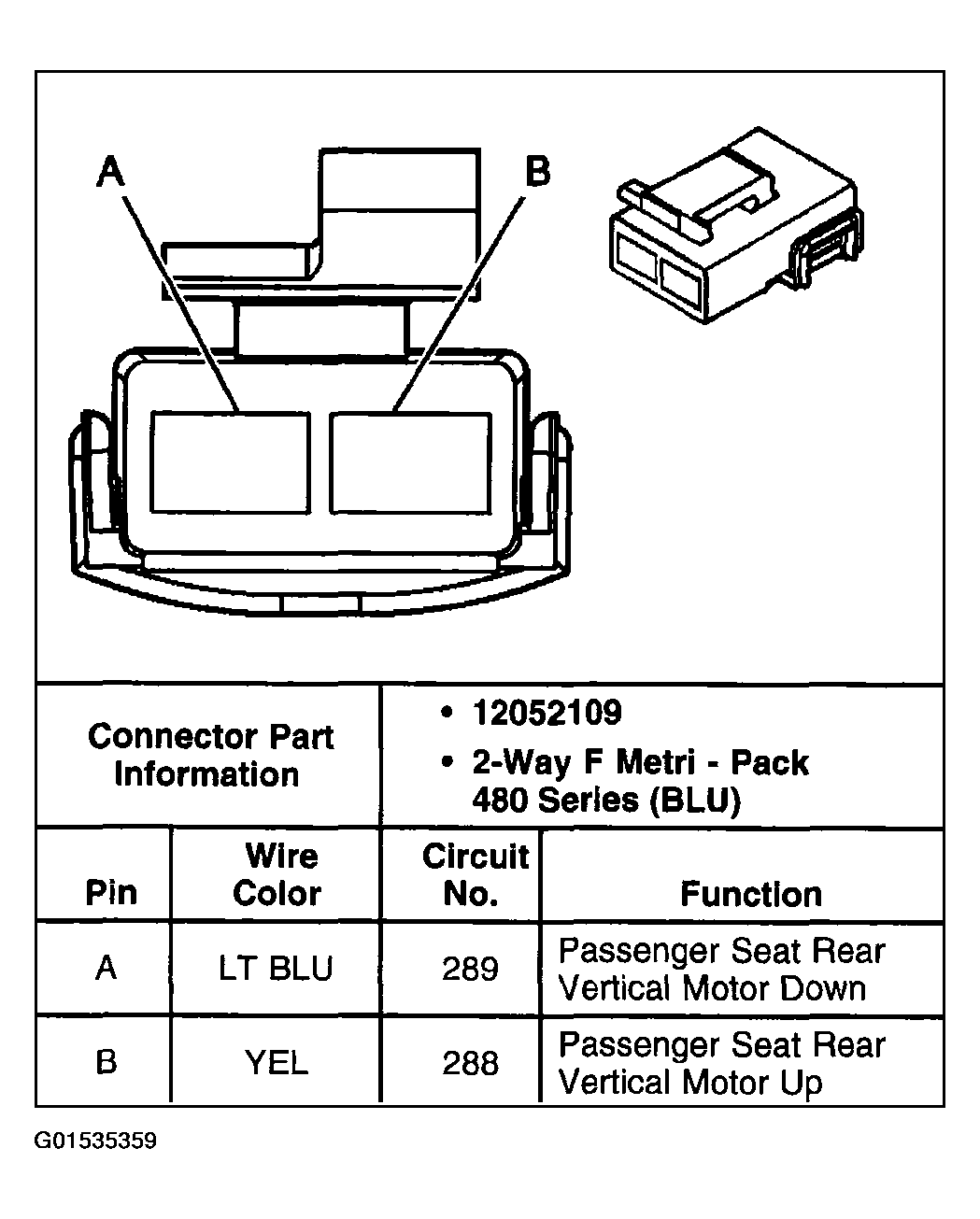

Fig 30: Power Seat Systems Connector End View - Seat Rear Vertical Motor - Front Passenger

G01535359

Courtesy of GENERAL MOTORS CORP.

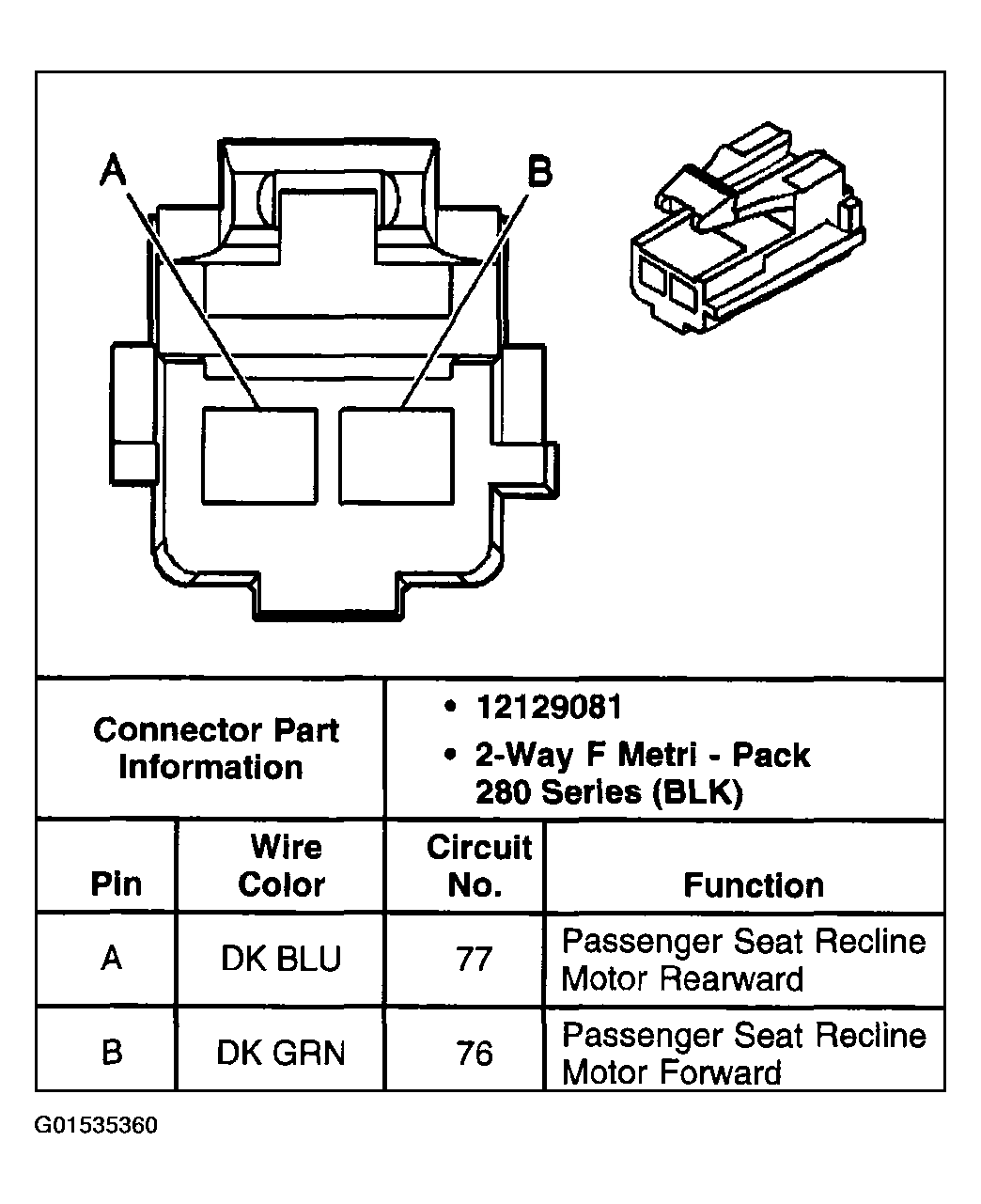

Fig 31: Power Seat Systems Connector End View - Seat Recline Motor - Front Passenger

G01535360

Courtesy of GENERAL MOTORS CORP.

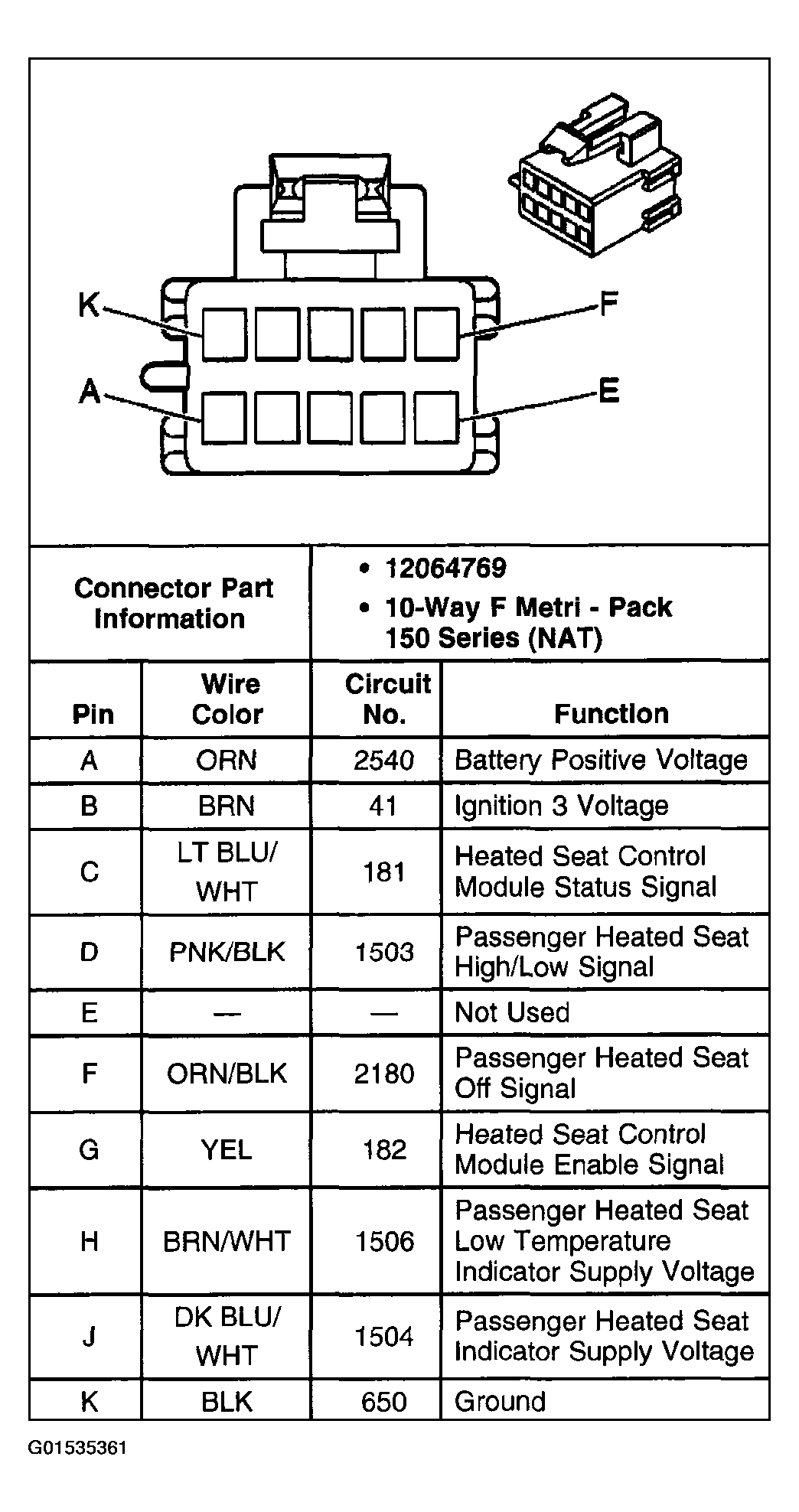

Fig 32: Power Seat Systems Connector End View - Heated Seat Module - Front Passenger C1 (AG2, A81, KA1)

G01535361

Courtesy of GENERAL MOTORS CORP.

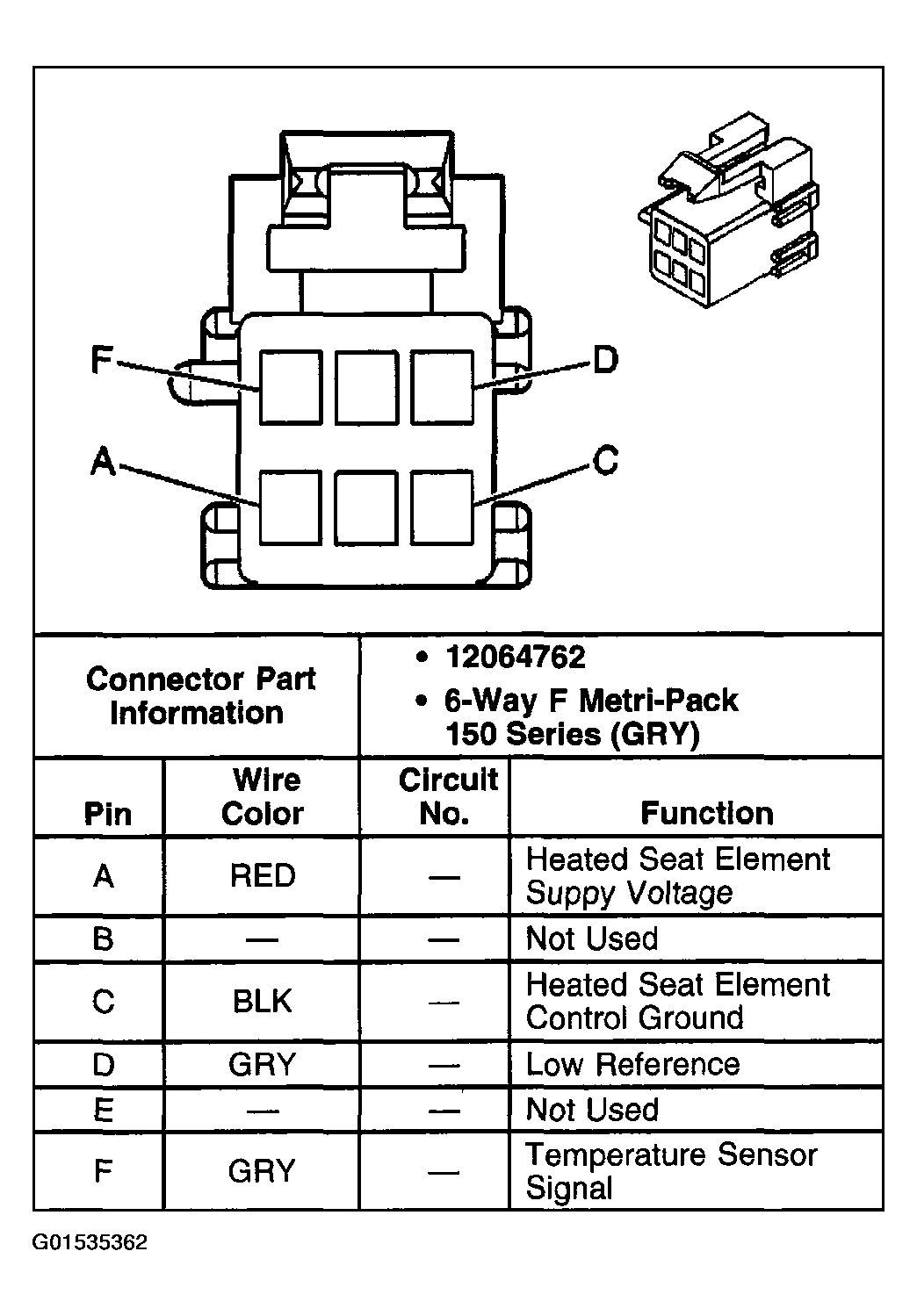

Fig 33: Power Seat Systems Connector End View - Heated Seat Module - Front Passenger C2 (w/AG2, A81, KA1)

G01535362

Courtesy of GENERAL MOTORS CORP.

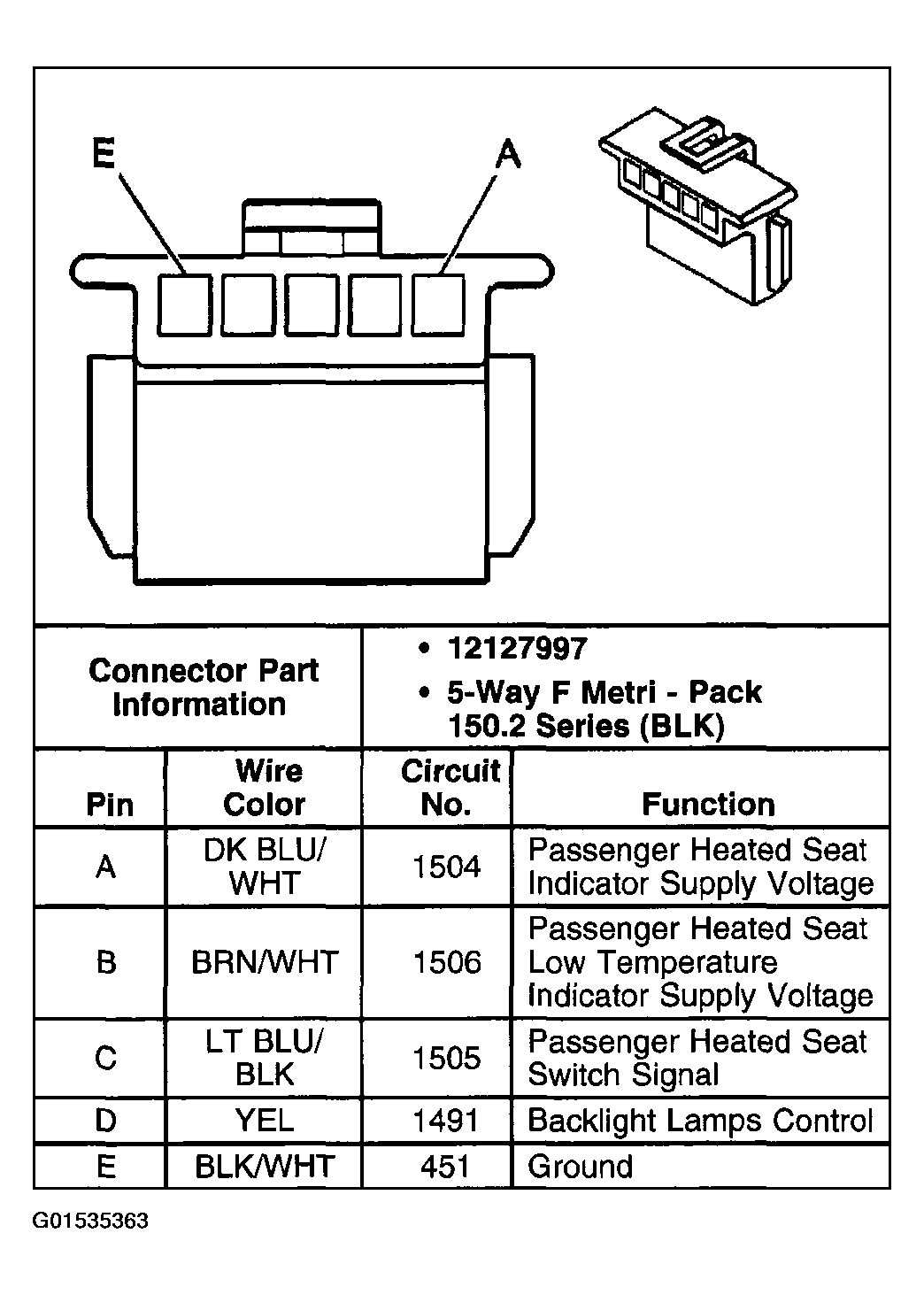

Fig 34: Power Seat Systems Connector End View - Heated Seat Switch - Front Passenger

G01535363

Courtesy of GENERAL MOTORS CORP.

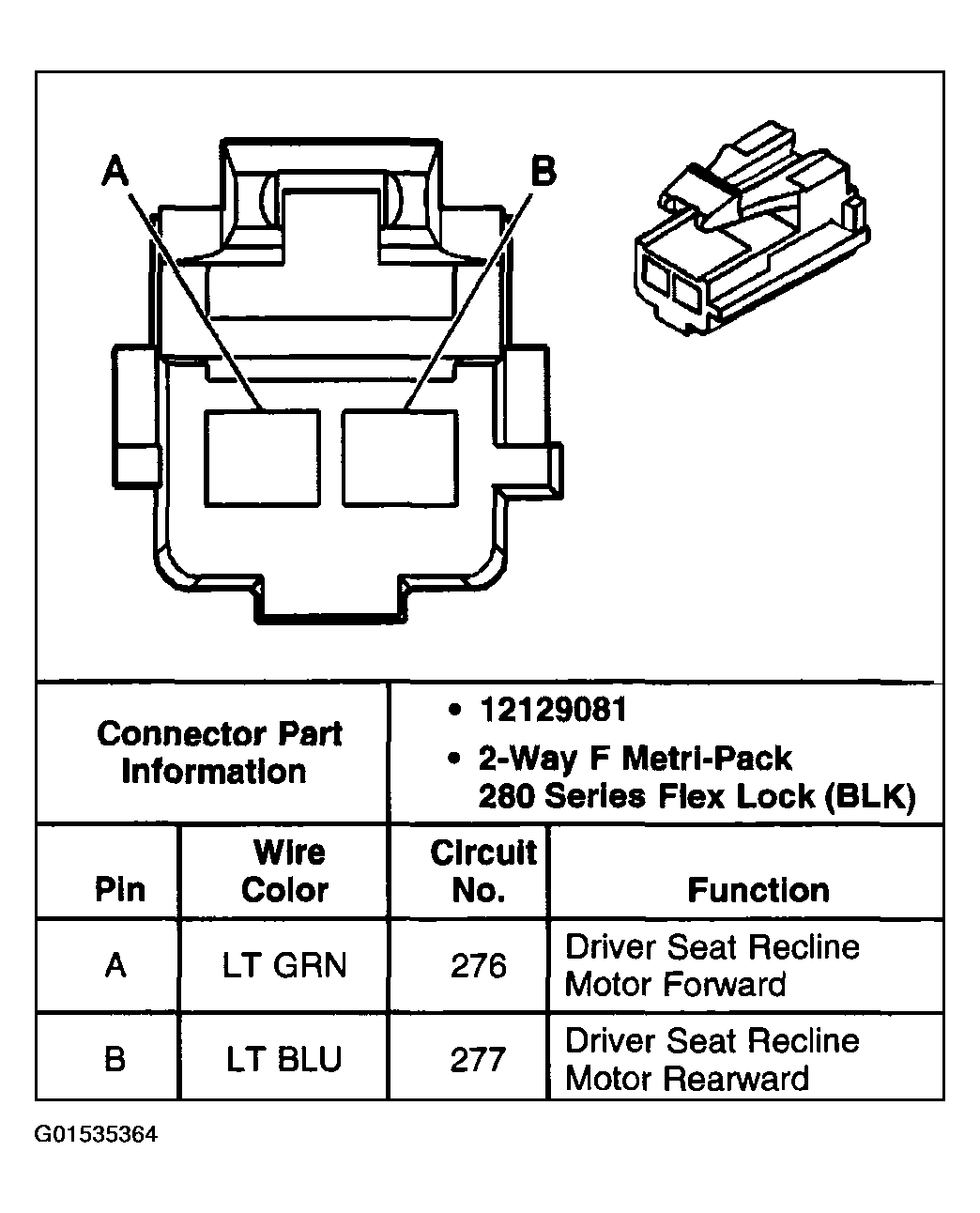

Fig 35: Power Seat Systems Connector End View - Recline Motor - Driver (AG1)

G01535364

Courtesy of GENERAL MOTORS CORP.

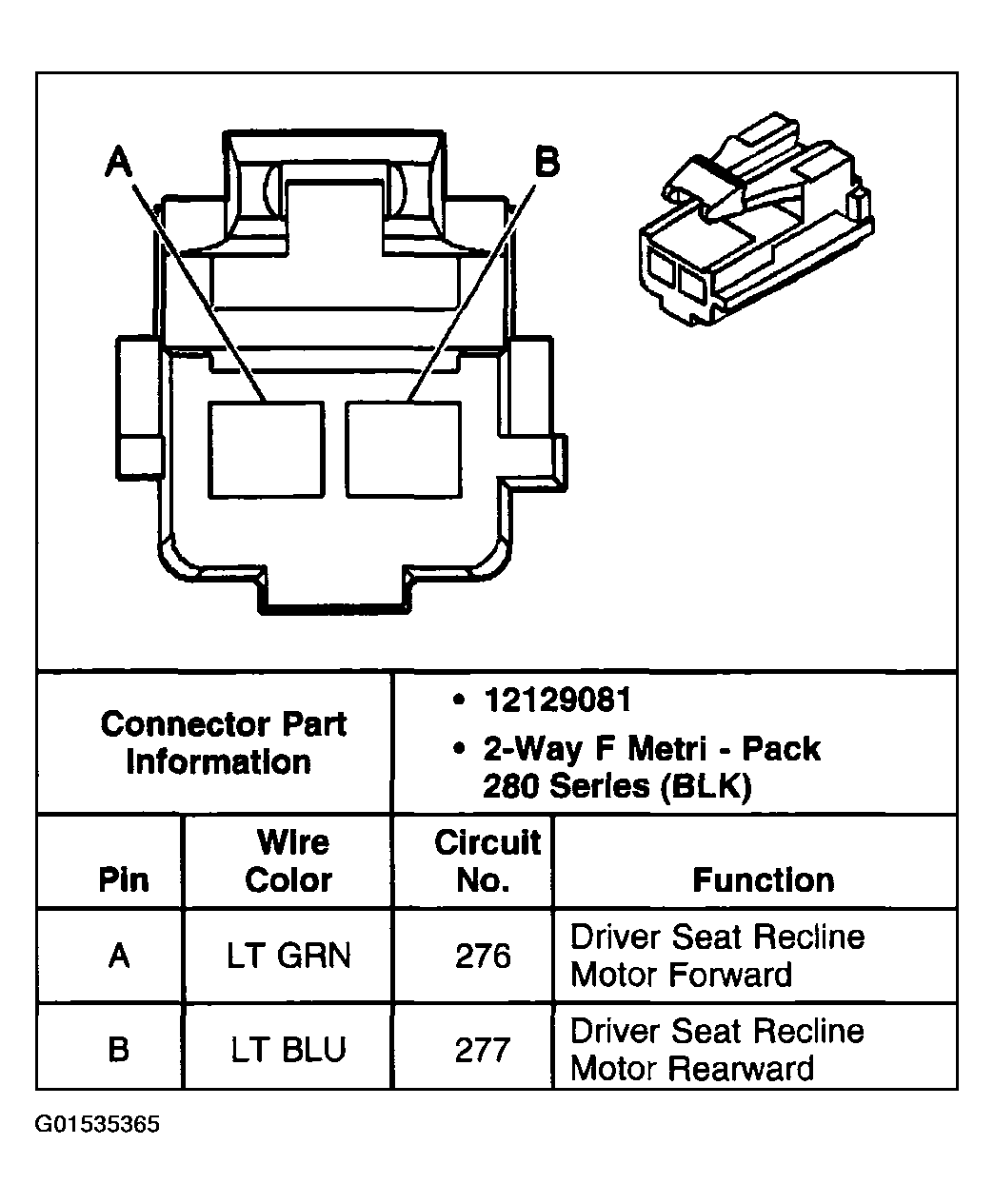

Fig 36: Power Seat Systems Connector End View - Seat Recline Motor - Driver

G01535365

Courtesy of GENERAL MOTORS CORP.

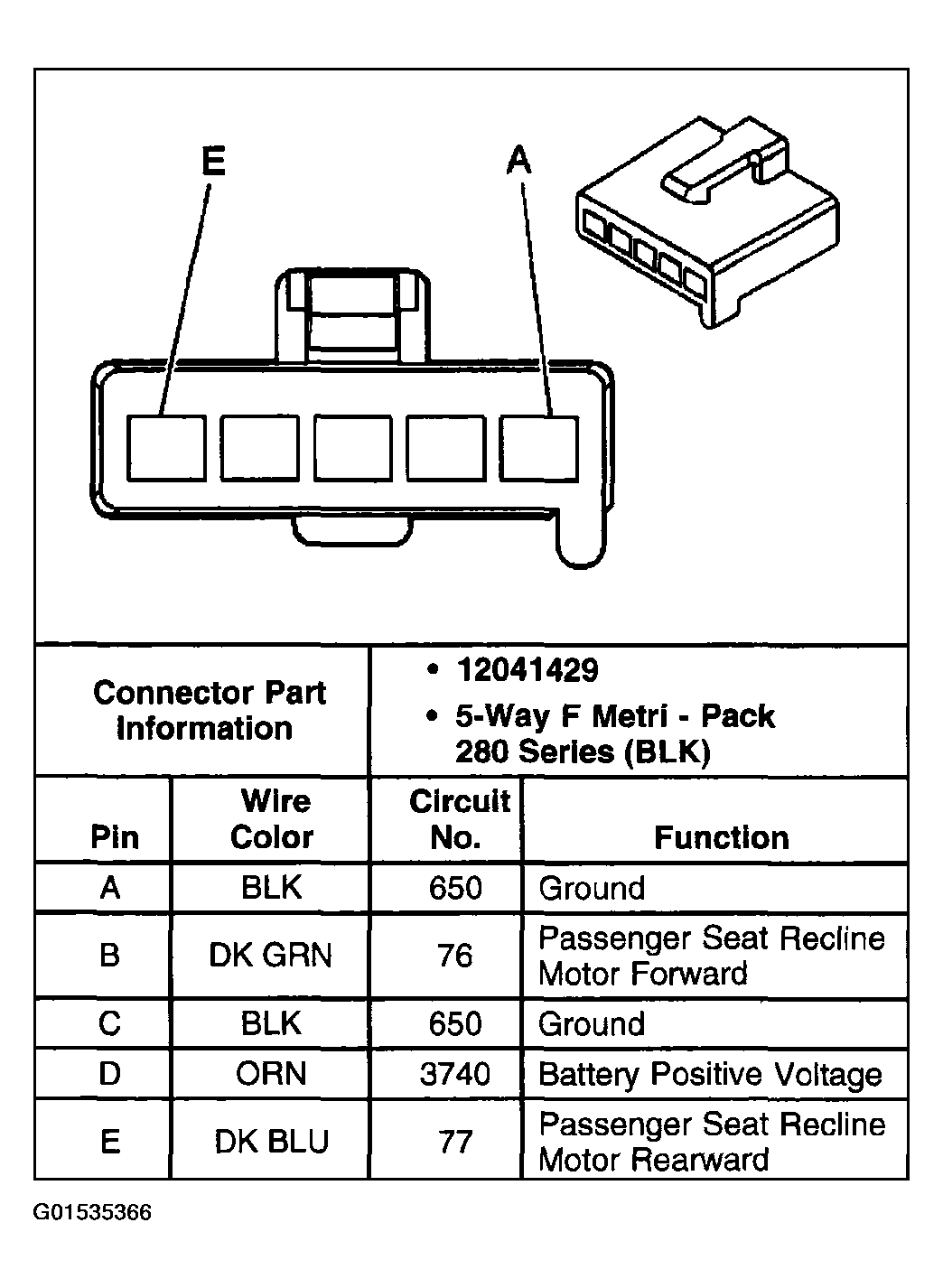

Fig 37: Power Seat Systems Connector End View - Seat Recline Switch - Front Passenger

G01535366

Courtesy of GENERAL MOTORS CORP.

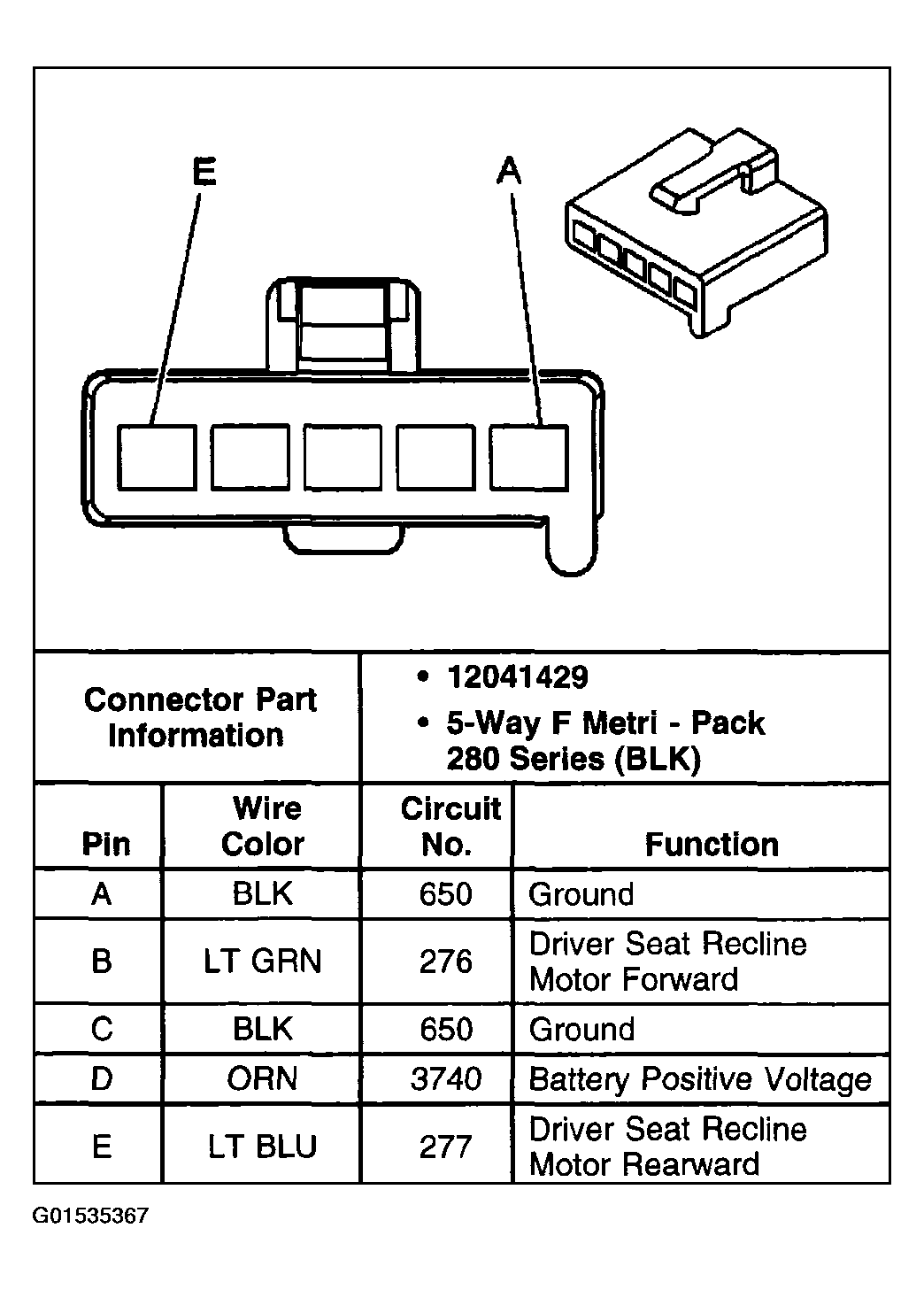

Fig 38: Power Seat Systems Connector End View - Seat Recline Switch - Driver

G01535367

Courtesy of GENERAL MOTORS CORP.
