Scan Tool Data List: Notes

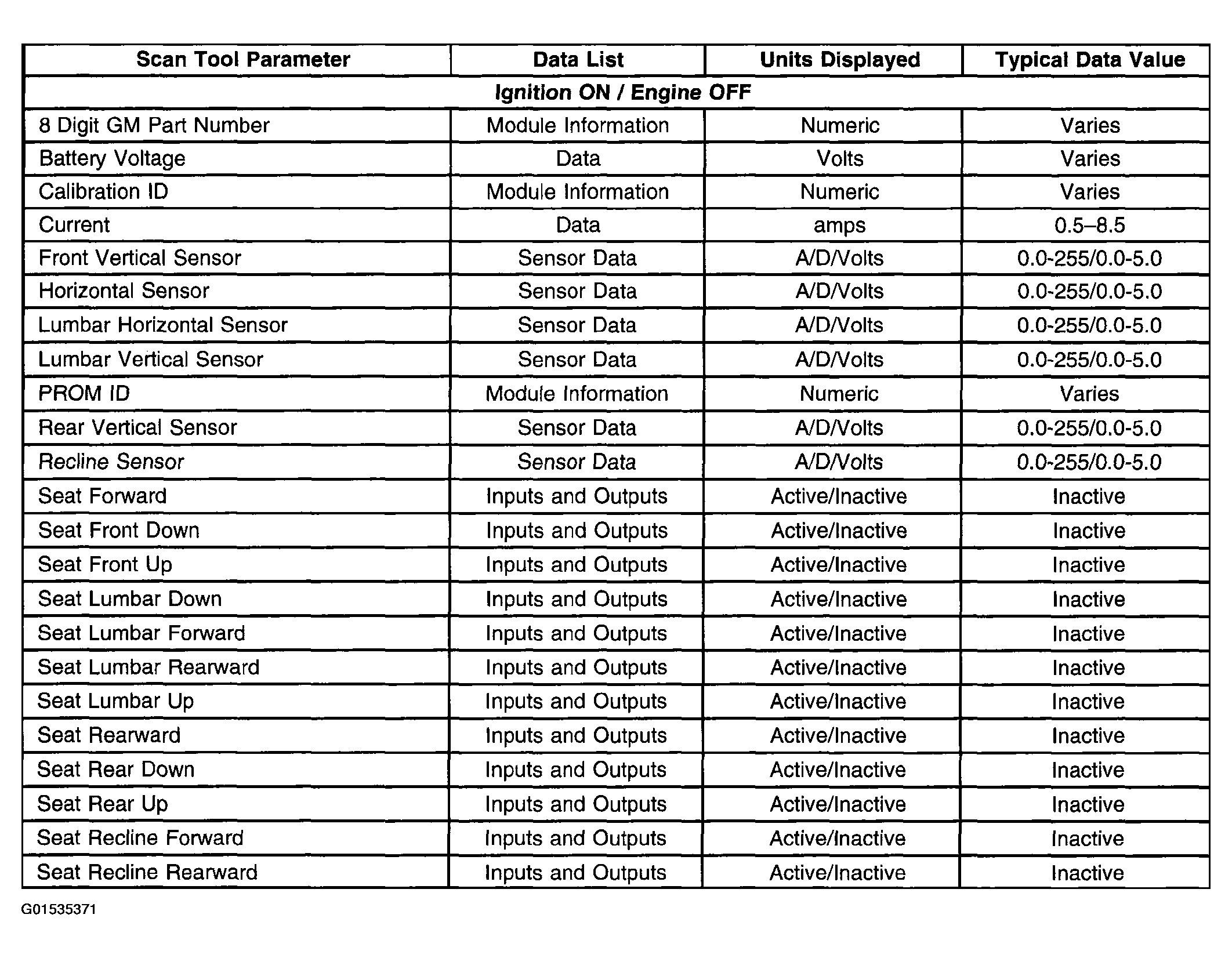

Fig 1: Scan Tool Data List - Memory Seat Module (MSM)

Courtesy of GENERAL MOTORS CORP.

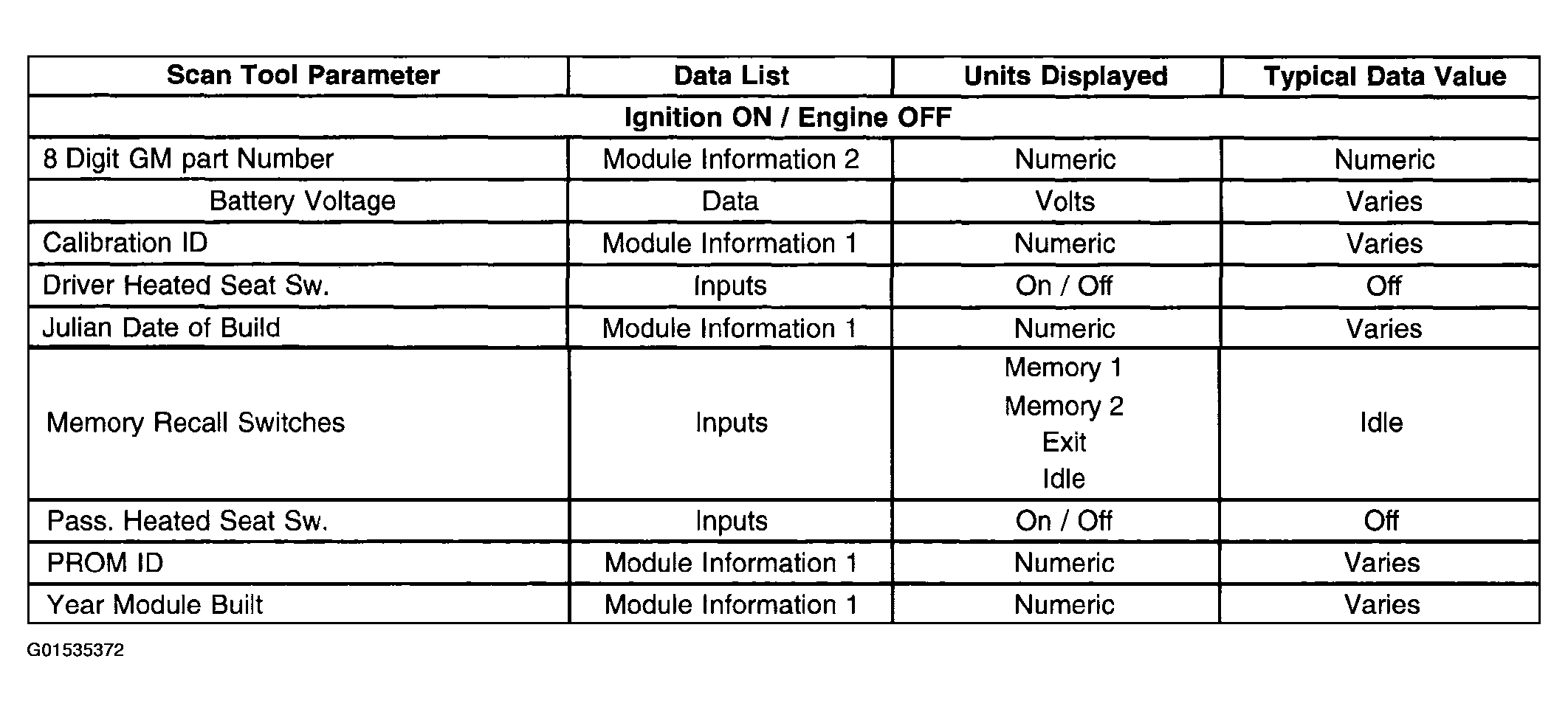

Fig 2: Scan Tool Data List - Driver Door Module (DDM)

Courtesy of GENERAL MOTORS CORP.

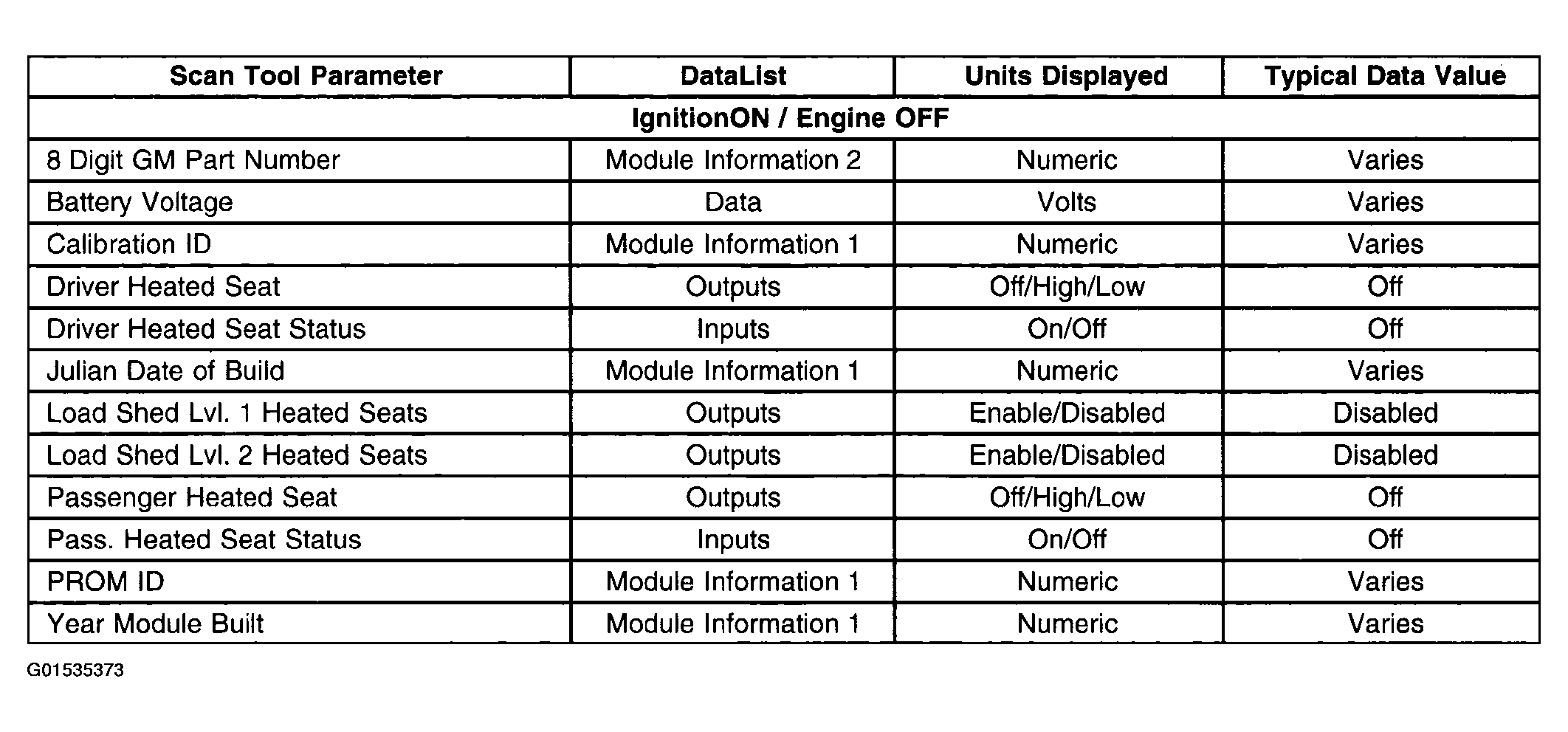

Fig 3: Scan Tool Data List - Rear Integration Module (RIM)

Courtesy of GENERAL MOTORS CORP.
