Removal Procedure

Disable the SIR system. Refer to ZONE 7 or ZONE 9 .
Remove the fasteners securing the seat cushion to the adjuster track. Refer to SEAT CUSHION REPLACEMENT - FRONT .
Lift the front of the seat cushion up in order to gain access to the heated seat module (1).

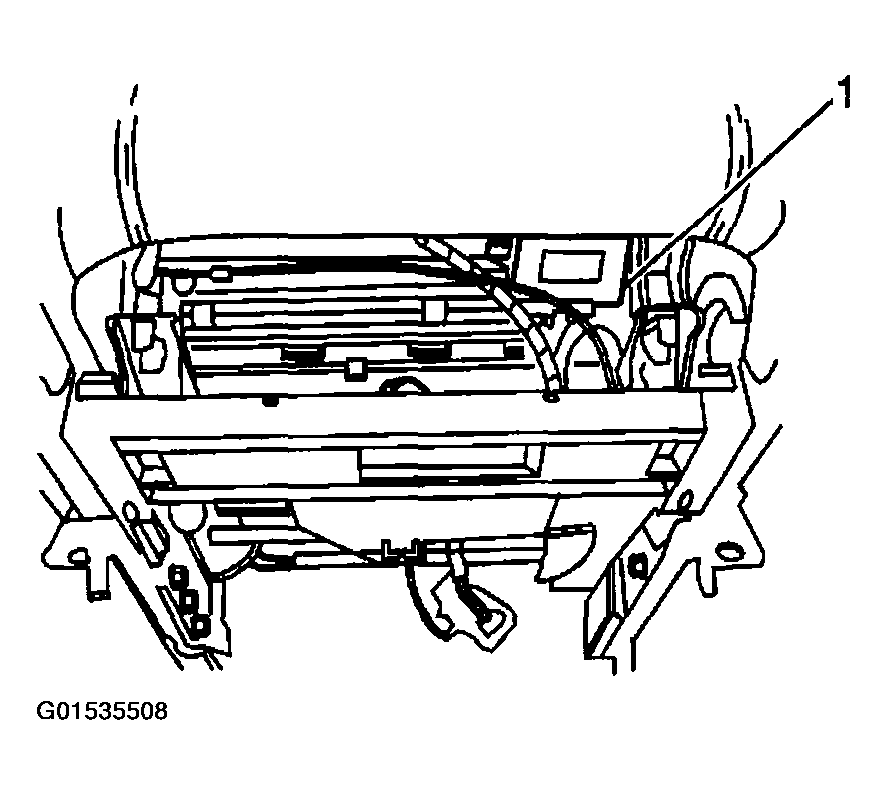

Fig 1: Lifting Front Of Seat Cushion Up To Gain Access To Heated Seat Module
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to ELECTRICAL WIRING ROUTING NOTICE .
Disconnect the electrical connectors (3) from the heated seat module.
Remove the fasteners (1) securing the heated seat module to the bottom of the seat cushion.
Remove the heated seat module (2) from the bottom of the seat cushion.

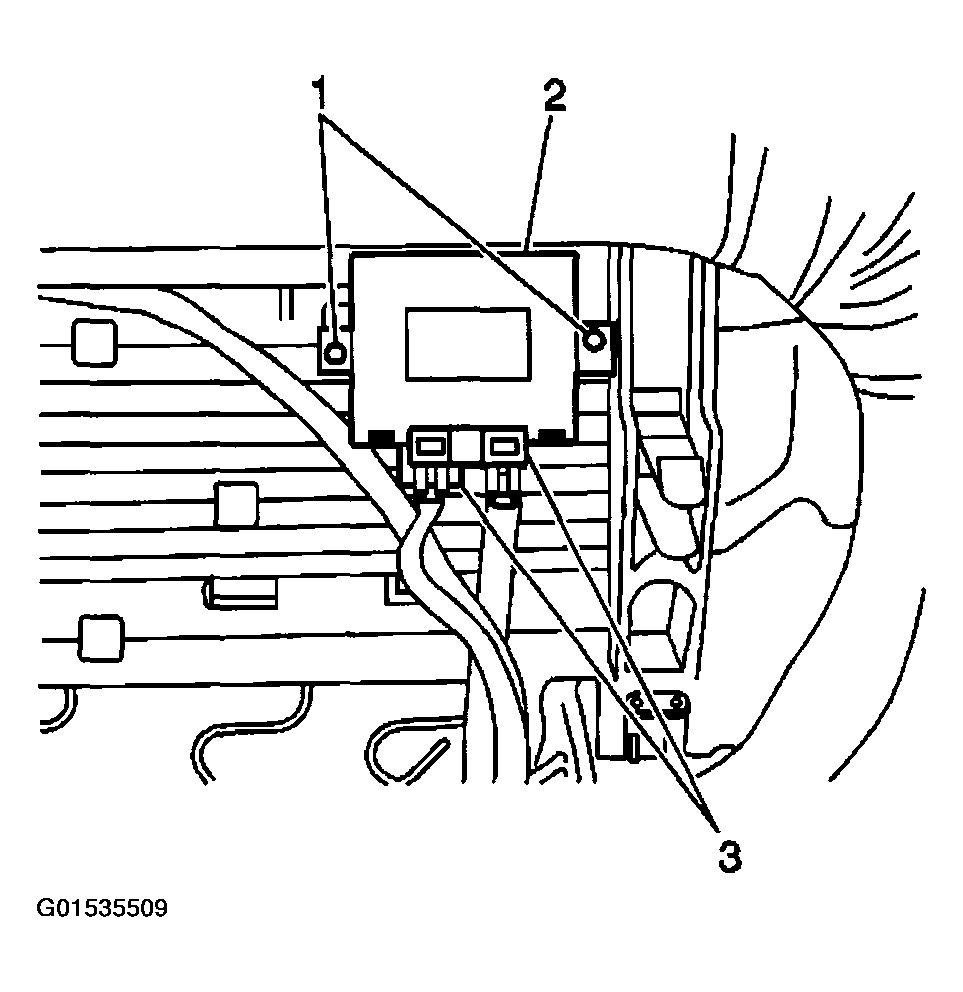

Fig 2: Removing Heated Seat Module, Fasteners & Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
