Installation Procedure

Install the lumbar switch into the power seat switch bracket.
Install the power seat switch assembly. Refer to SEAT SWITCH REPLACEMENT - POWER .

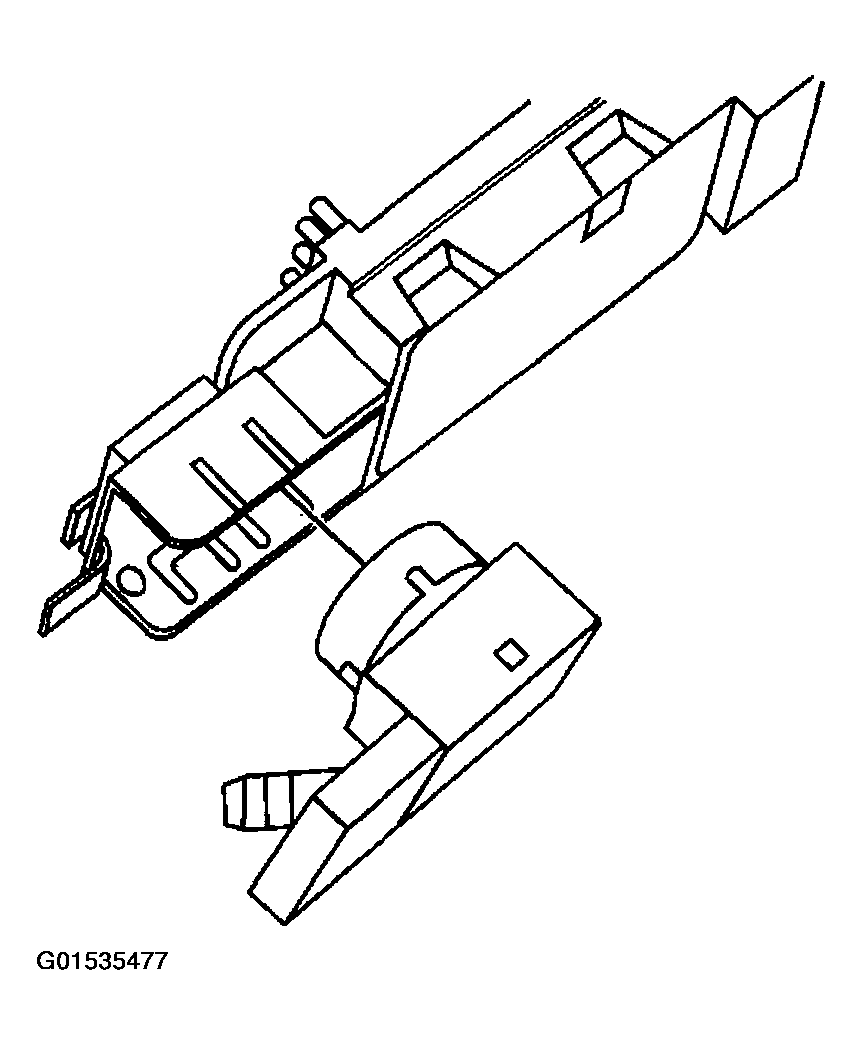

Fig 1: Installing Lumbar Switch Into Power Seat Switch Bracket
Courtesy of GENERAL MOTORS CORP.
