Removal Procedure

  1. Insert a flat bladed tool under the front edge of the switch plate (2).
  2. Gently pry upwards in order to release the front edge of the switch plate (2) from the door trim panel (1).
  3. Slide the switch plate forward in order to release the rear retainer tabs.
  4. Disconnect the electrical connectors.

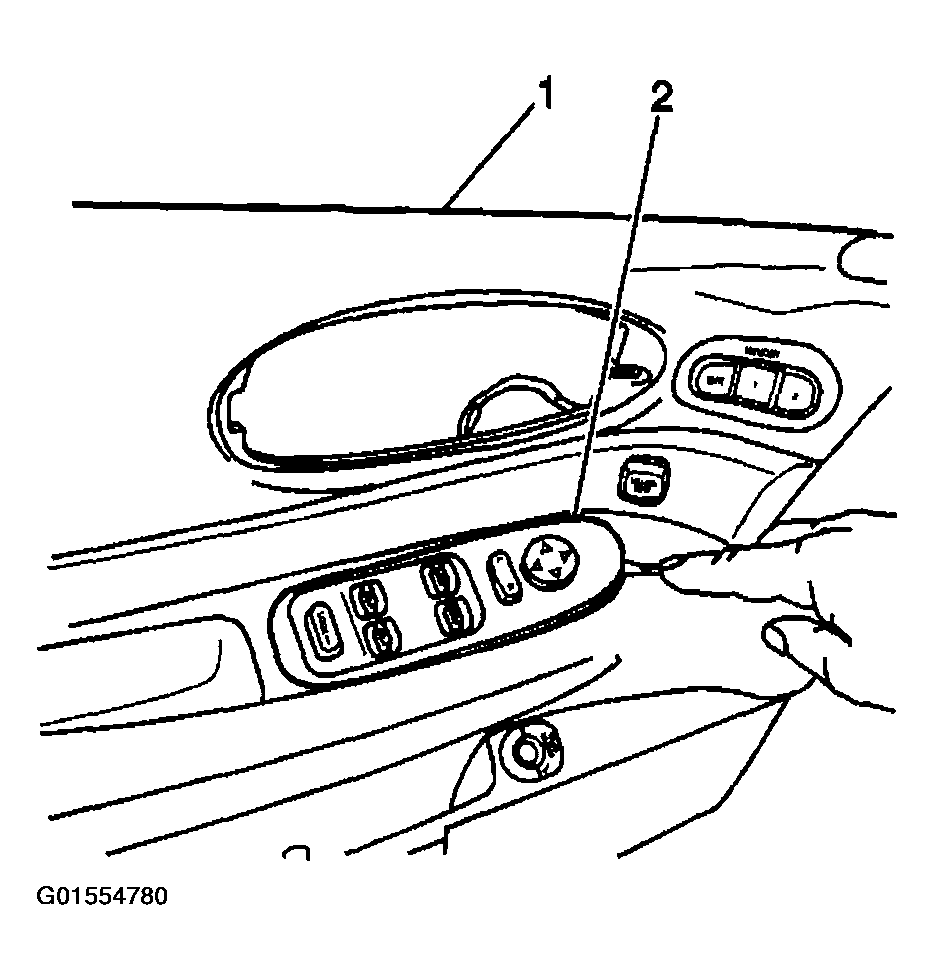

    Fig 1: Removing Front Door Switch Plate From Door Trim Panel
    G01554780Courtesy of GENERAL MOTORS CORP.
  5. Remove the switchpack (2) from the switch plate (1) by releasing the retainer tabs with a small flat bladed tool.

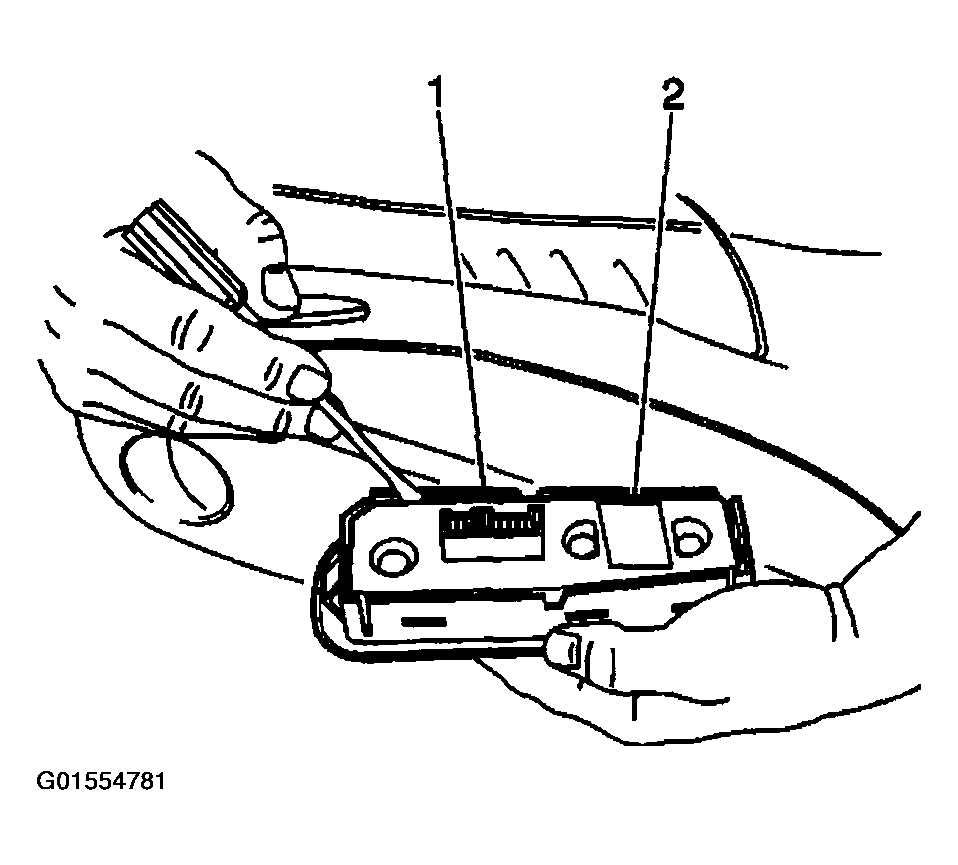

    Fig 2: Removing Switchpack From Switch Plate
    G01554781Courtesy of GENERAL MOTORS CORP.
