Stationary Windows Connector End Views

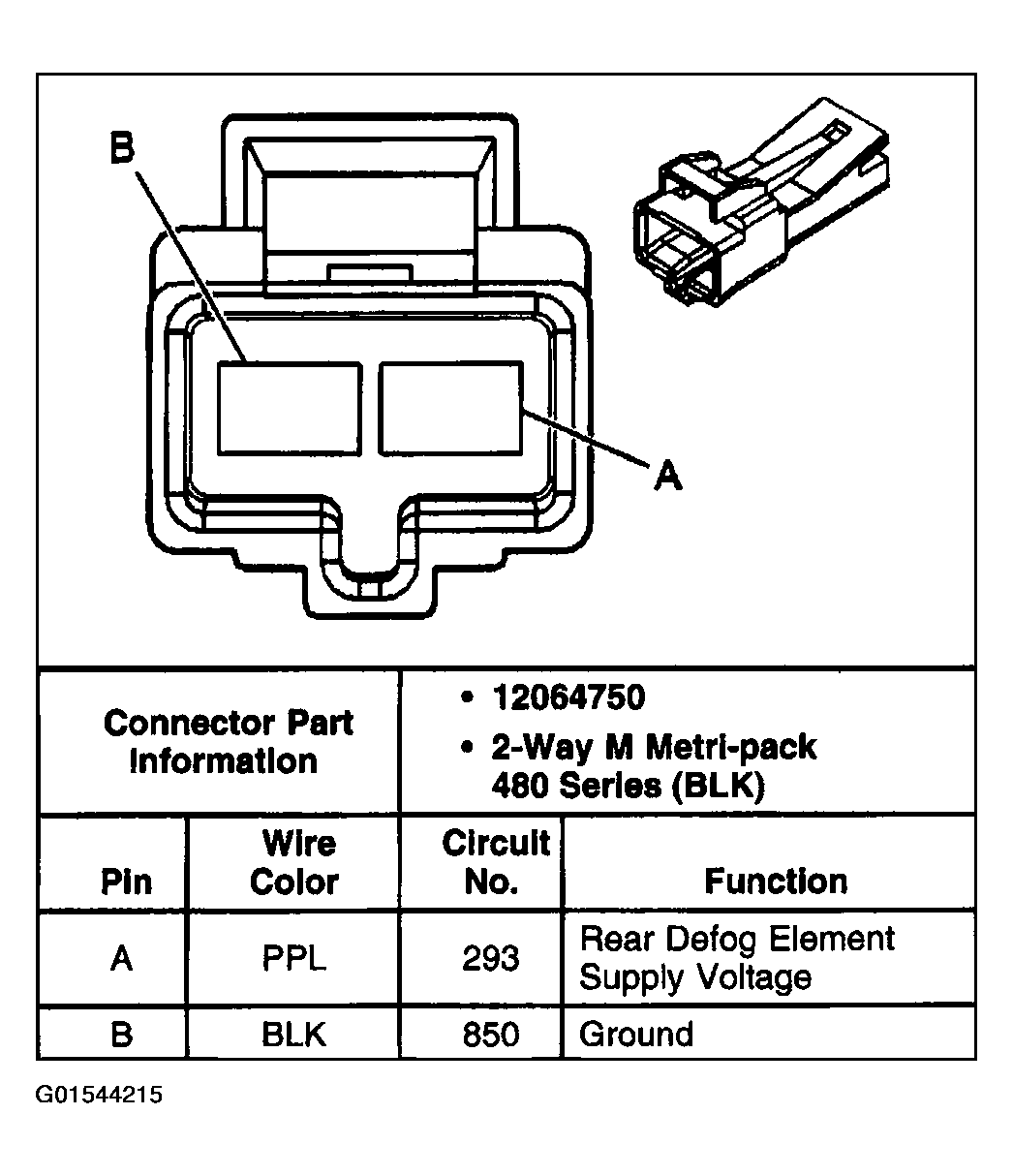

Fig 1: Stationary Windows Connector End Views - Rear Window Defogger Grid
G01544215Courtesy of GENERAL MOTORS CORP.

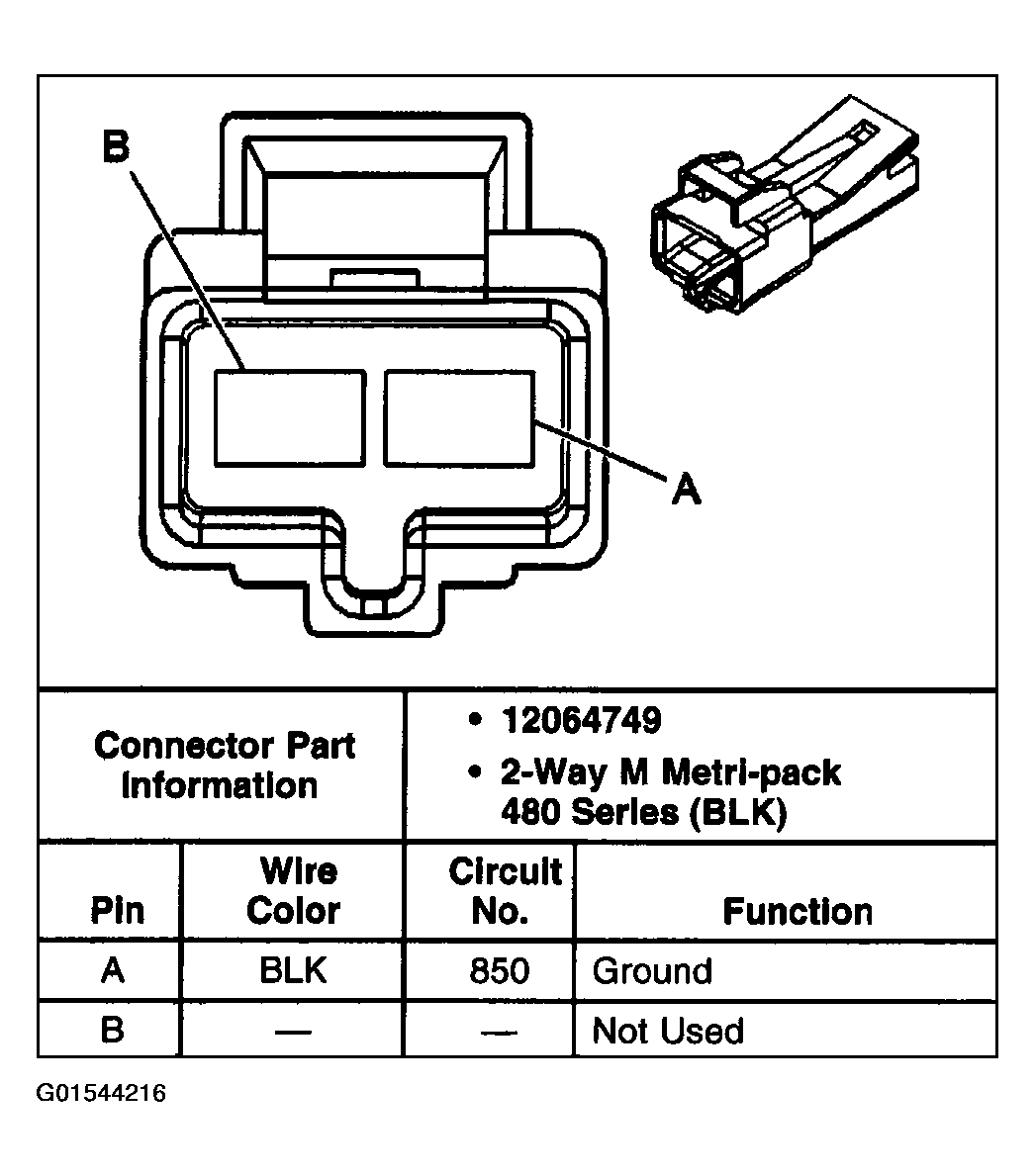

Fig 2: Stationary Windows Connector End Views - Rear Window Defogger Grid
G01544216Courtesy of GENERAL MOTORS CORP.

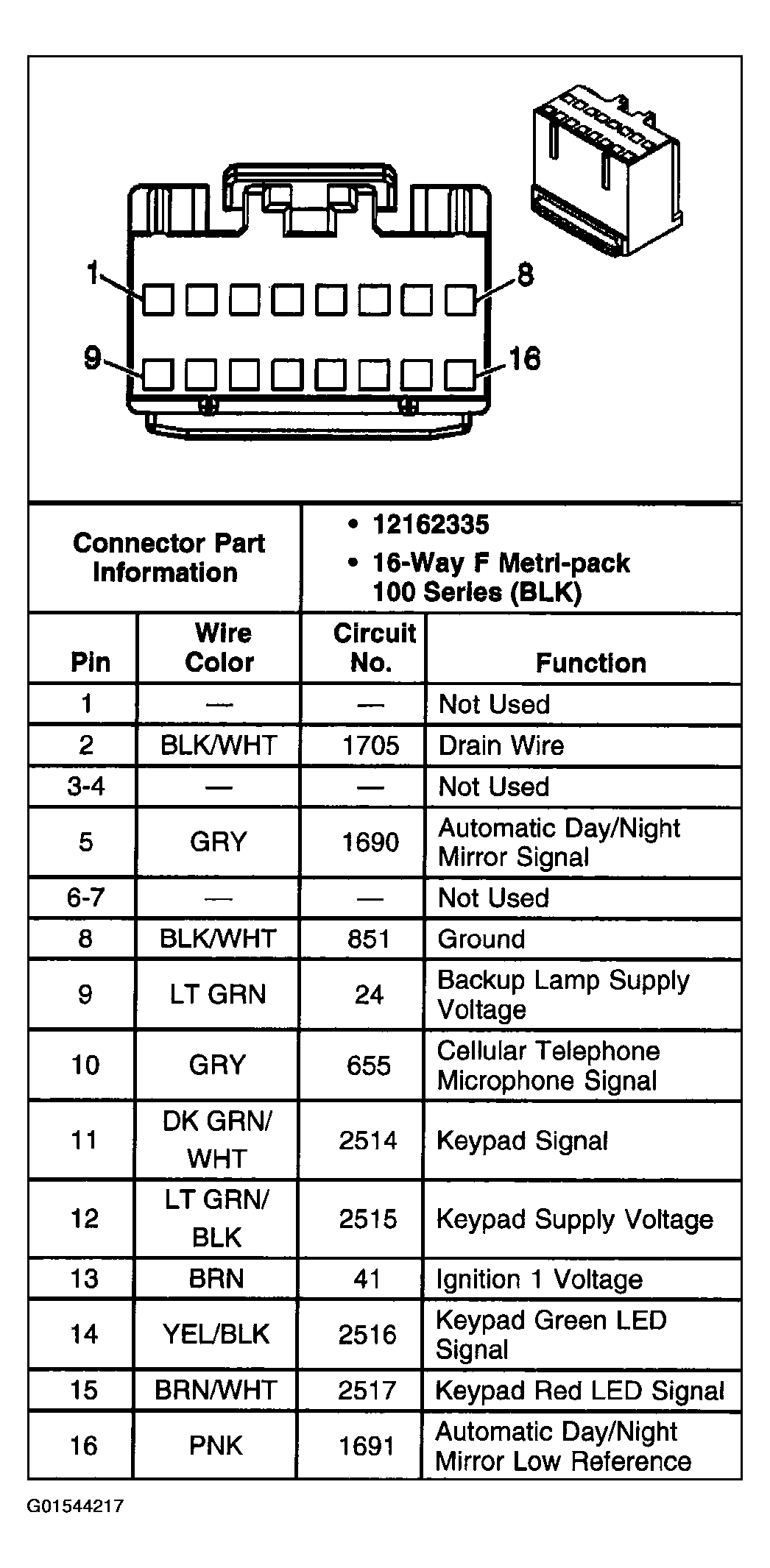

Fig 3: Stationary Windows Connector End Views - Inside Rear View Mirror w/DD7 or DD8
G01544217Courtesy of GENERAL MOTORS CORP.
