Scan Tool Output Controls

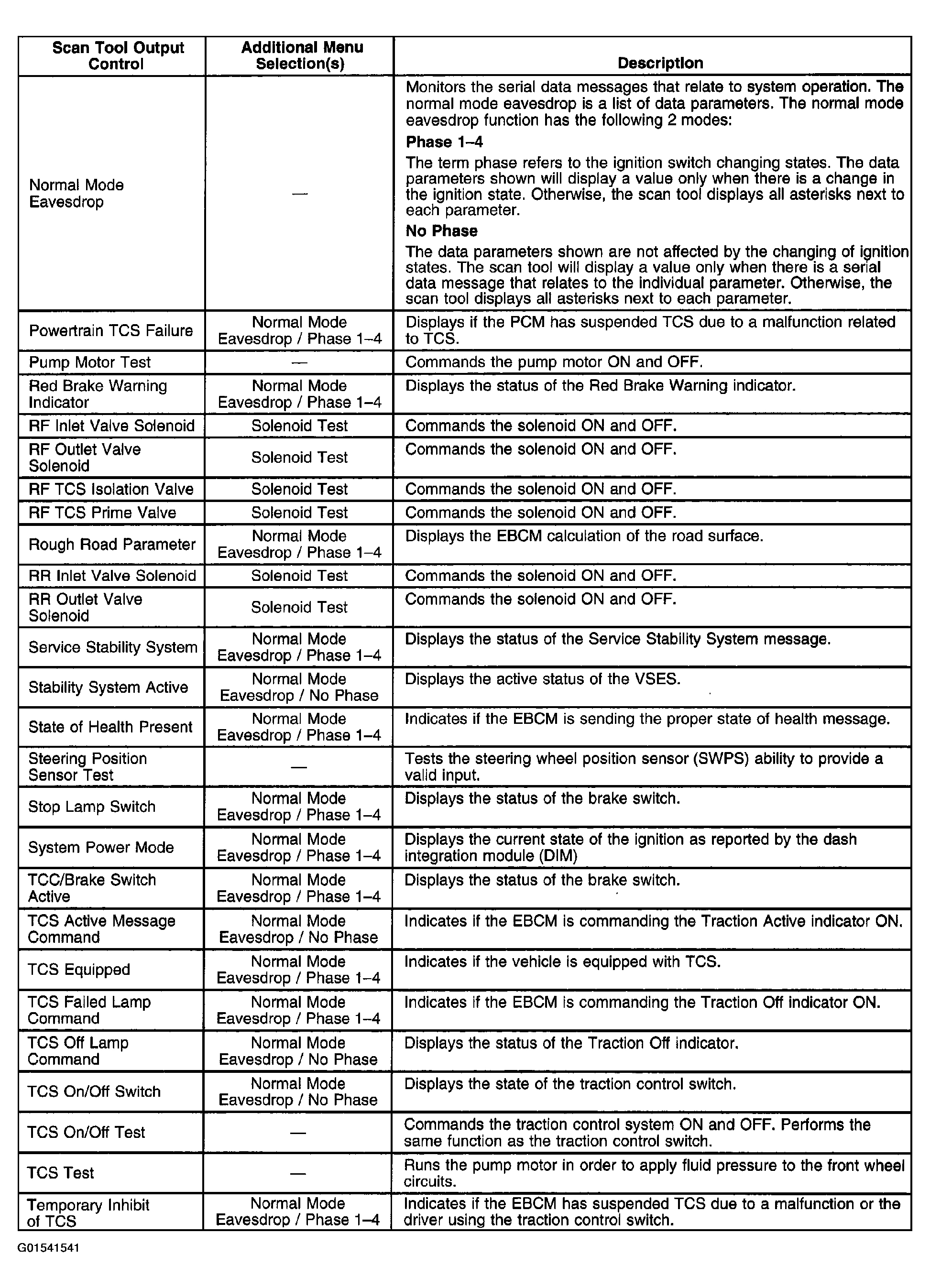

Fig 1: Scan Tool Output Controls - Electronic Brake Control Module (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

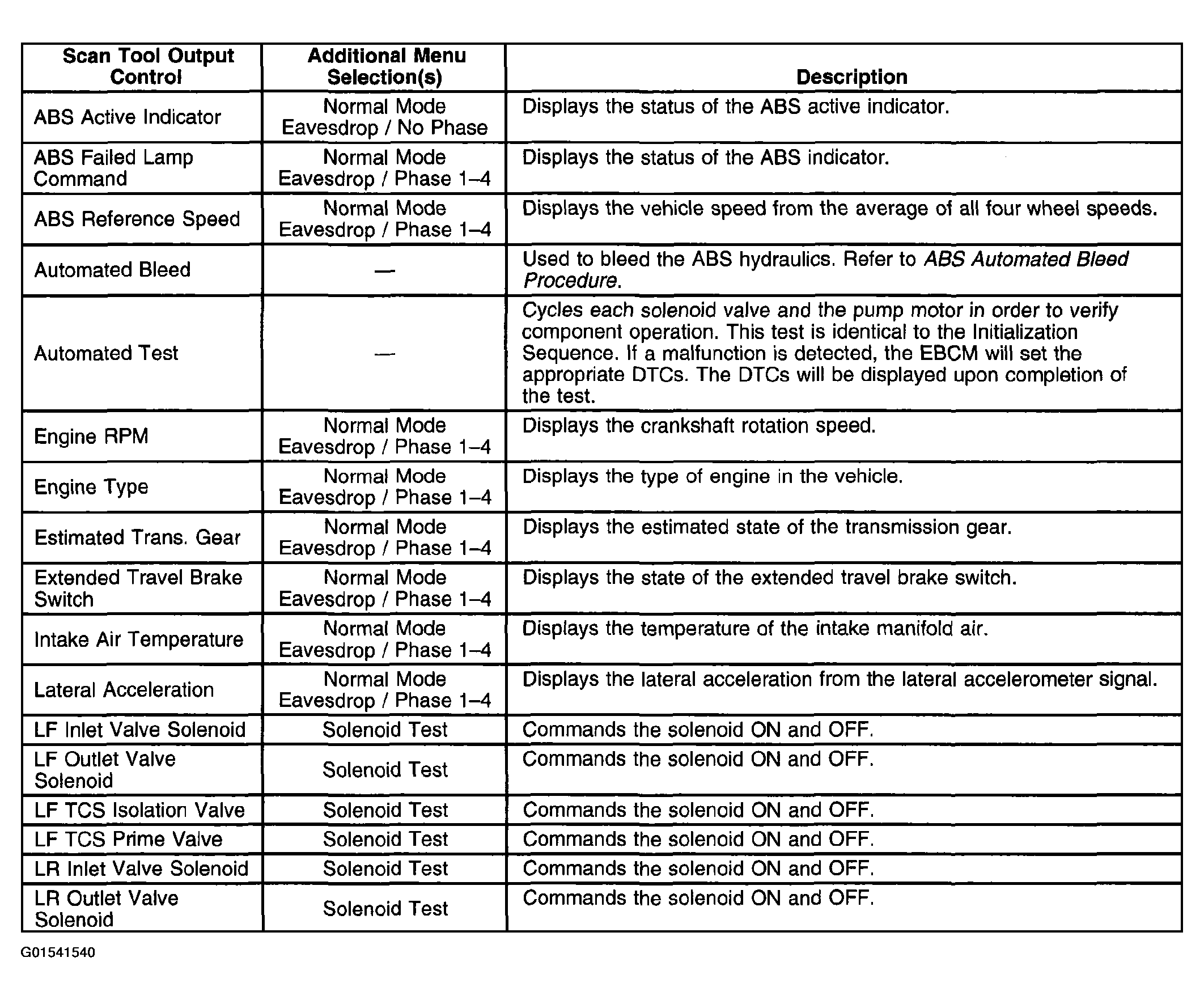

Fig 2: Scan Tool Output Controls - Electronic Brake Control Module (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

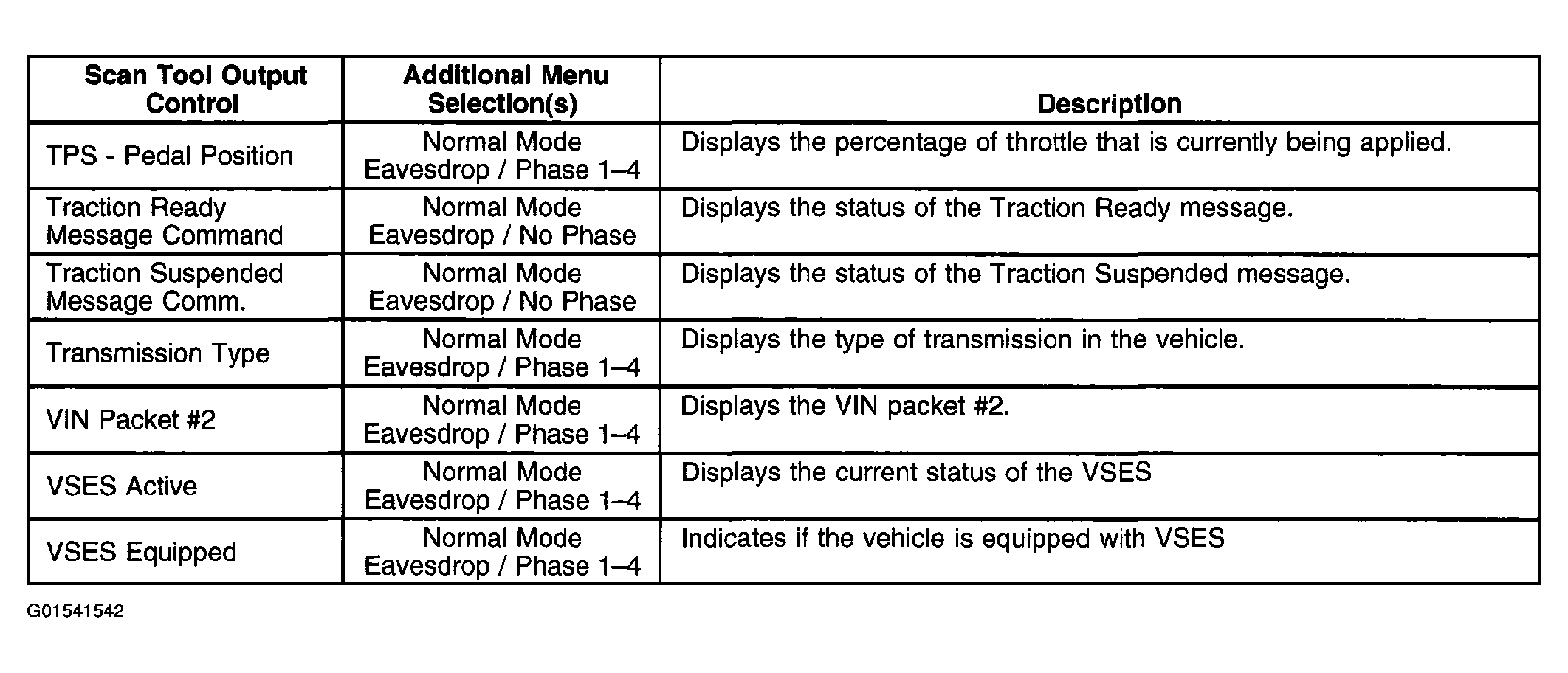

Fig 3: Scan Tool Output Controls - Electronic Brake Control Module (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
