Automatic Level Control (ALC) Sensor Connector End View

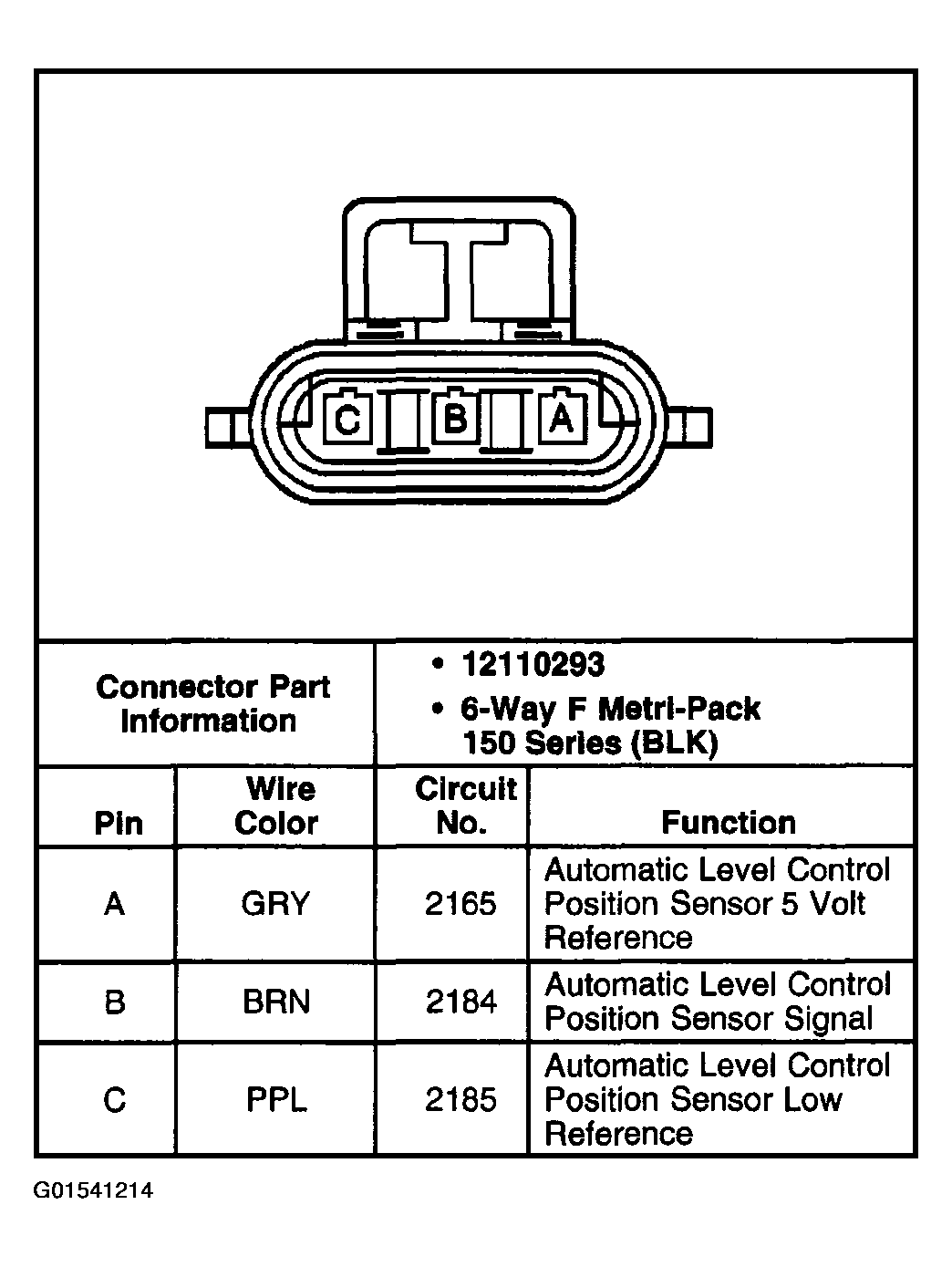

Fig 1: Automatic Level Control (ALC) Sensor
G01541214Courtesy of GENERAL MOTORS CORP.
