Overhead Console Courtesy/Reading Lamp Connector End View

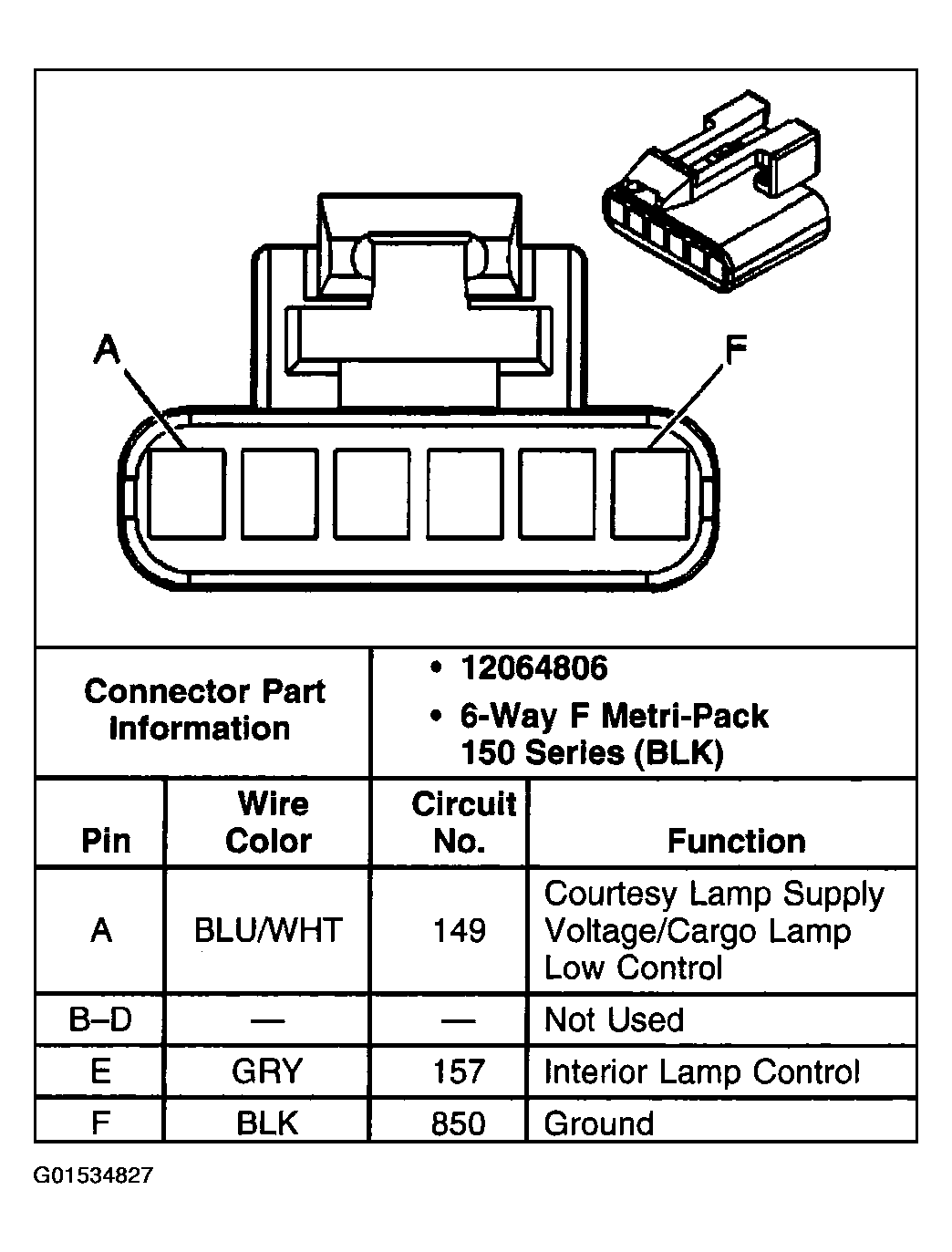

Fig 1: Overhead Console Courtesy/Reading Lamp
G01534827Courtesy of GENERAL MOTORS CORP.
