Power Seat Systems Connector End View - Memory/Personalization Function Switch
Power Seat Systems Connector End View - Memory/Personalization Function Switch

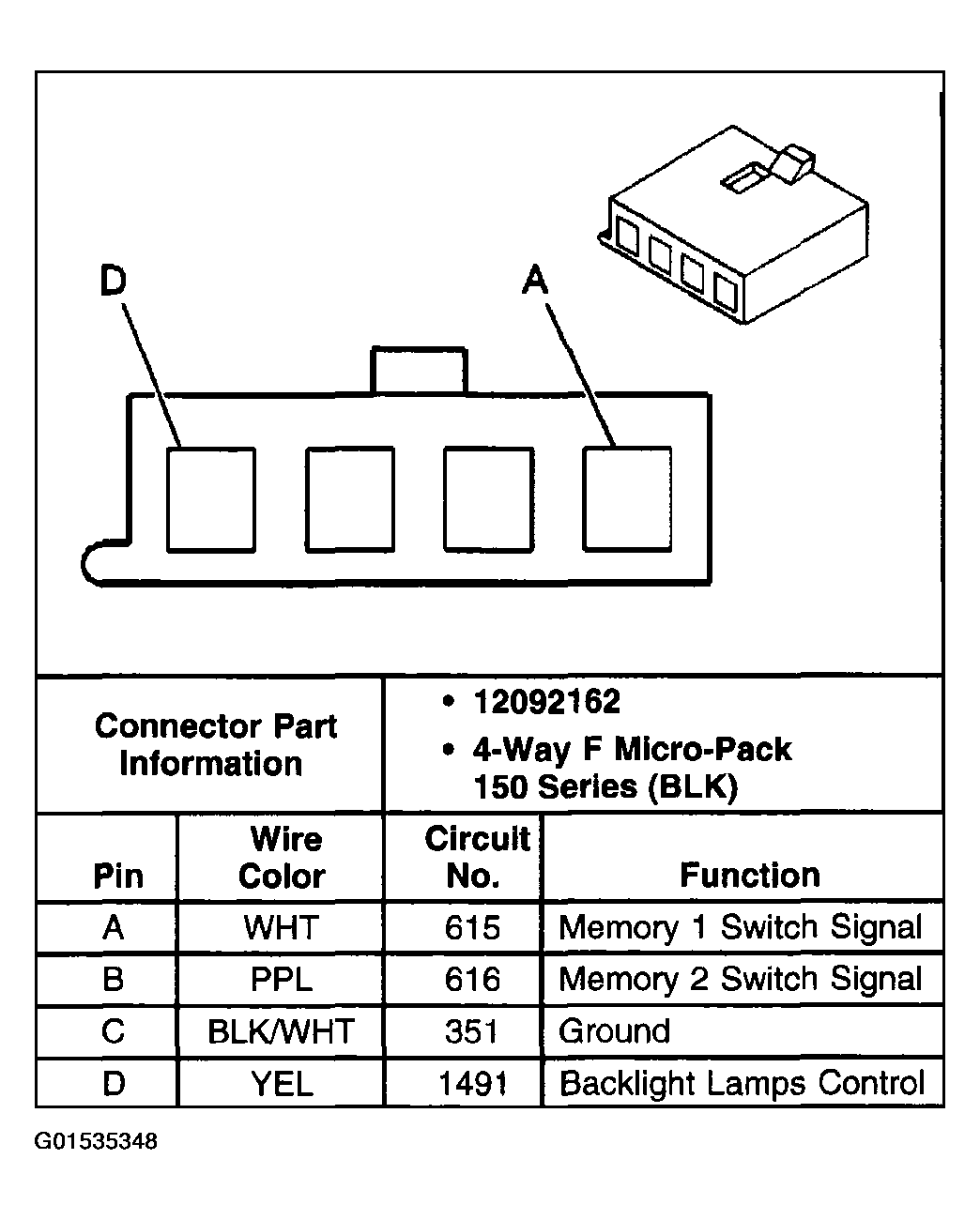

Fig 1: Power Seat Systems - Memory/Personalization Function Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
