Theft Deterrent System Connector End View - Theft Deterrent Control Module
Theft Deterrent System Connector End View - Theft Deterrent Control Module

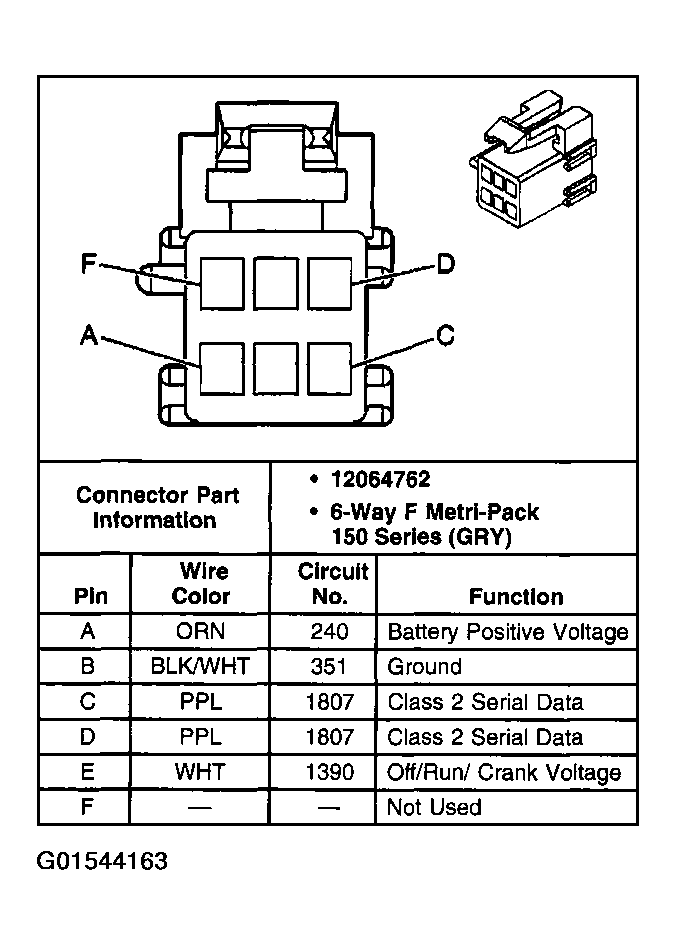

Fig 1: Theft Deterrent System - Theft Deterrent Control Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
