Vehicle Communication Interface Module C1 Connector End View
Vehicle Communication Interface Module C1 Connector End View

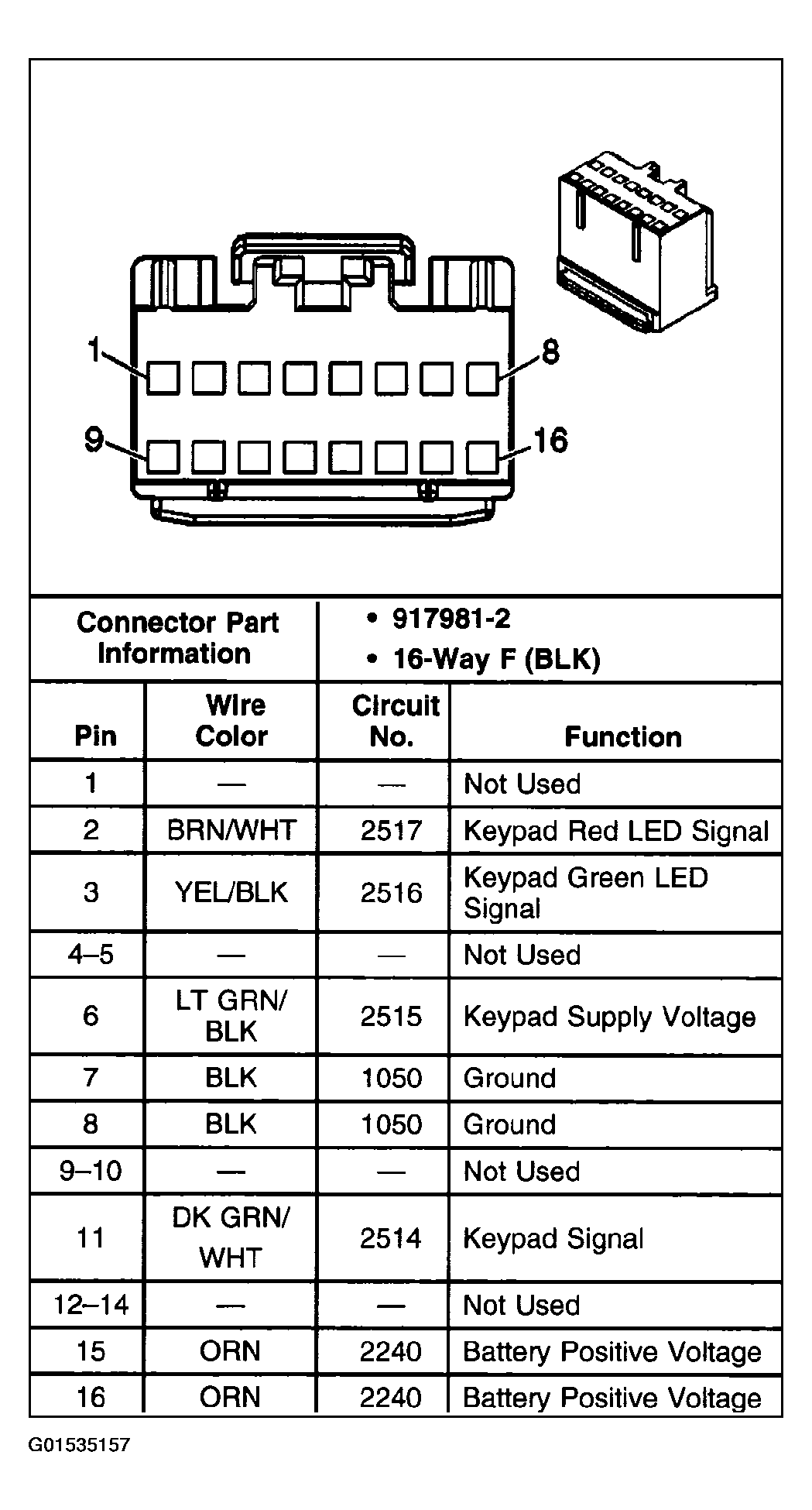

Fig 1: Vehicle Communication Interface Module C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
