Cooling System Component Views

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

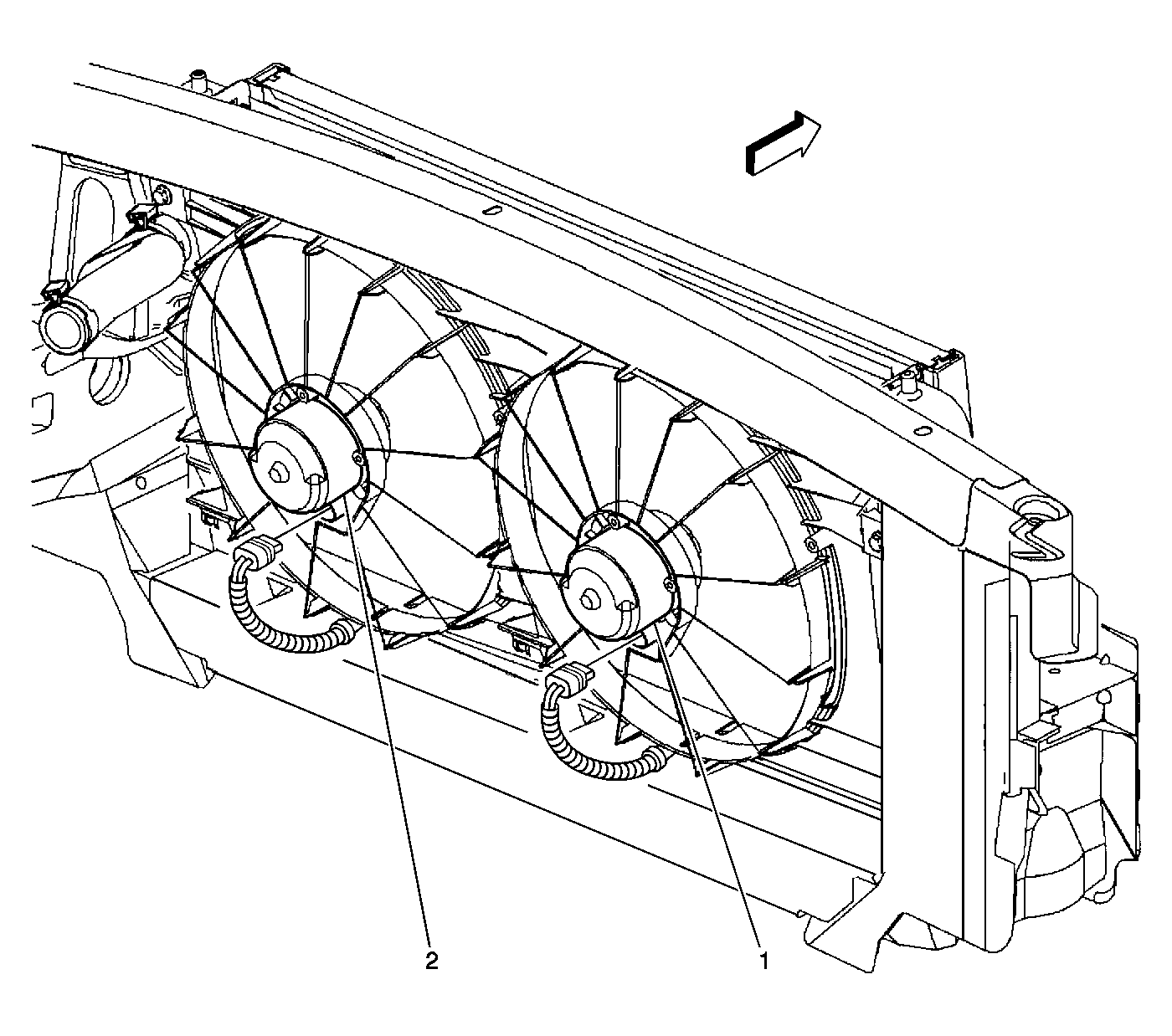

Fig 1: Front Center of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan Motor - Right
2	Cooling Fan Motor - Left
