Installation Procedure

  1. Install the power steering gear heat shield.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power steering gear heat shield retaining bolts.

    Tighten

    Tighten the power steering gear heat shield retaining bolts to 9 N.m (80 lb in).

  3. Install the plastic clip to the power steering gear heat shield.
  4. Install the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT .
  5. Lower the vehicle.

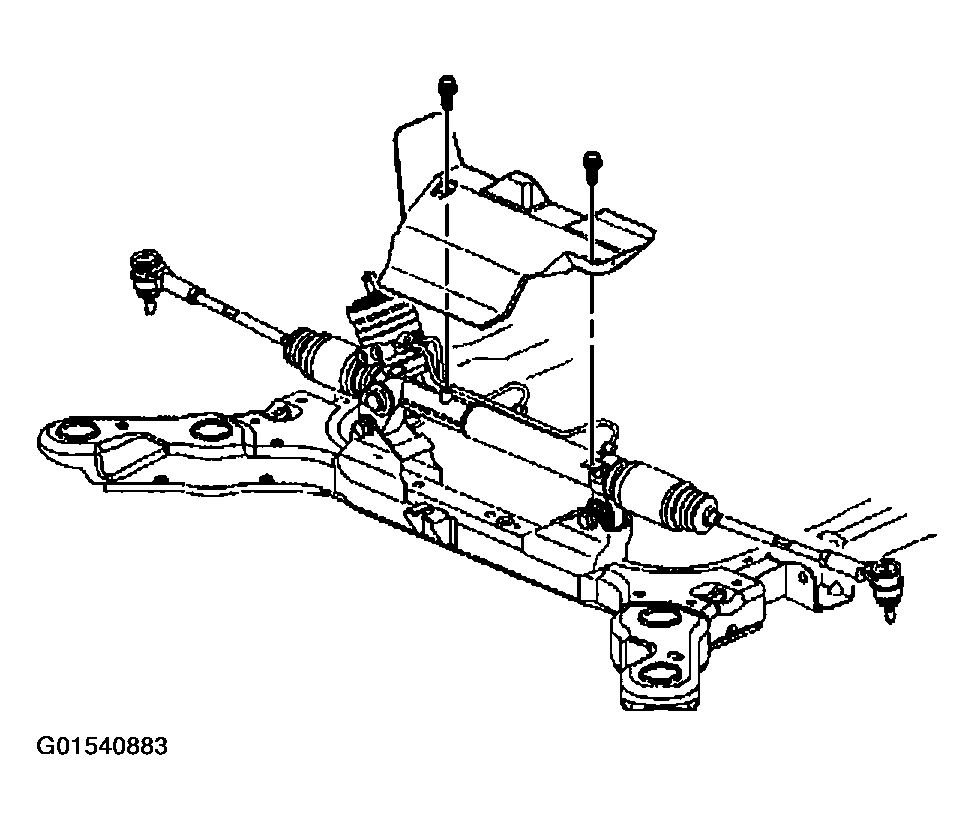

    Fig 1: Installing Power Steering Gear Heat Shield & Retaining Bolts
    G01540883Courtesy of GENERAL MOTORS CORP.
