Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Install a drain pan under the vehicle.
  3. Remove the power steering pressure hose from the flow control valve.

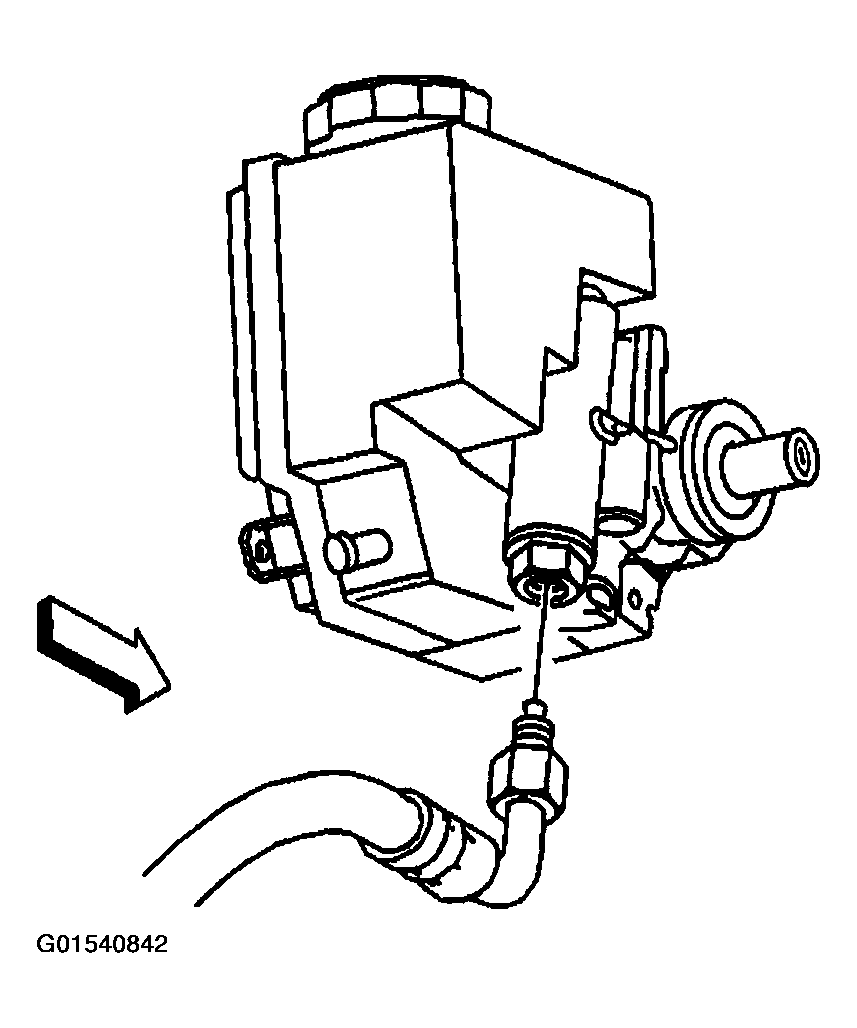

    Fig 1: Removing Power Steering Pressure Hose From Flow Control Valve
    G01540842Courtesy of GENERAL MOTORS CORP.
  4. Remove the flow control valve assembly (3) from the power steering pump.
  5. Remove the power steering flow control spring (2).
    Fig 2: Removing Power Steering Flow Control Valve Assembly, Spring & Components
    G01540843Courtesy of GENERAL MOTORS CORP.
