Installation Procedure

Connect the electrical connectors from the lamp control module (2).
Install the lamp control module bracket (2) to the instrument panel.

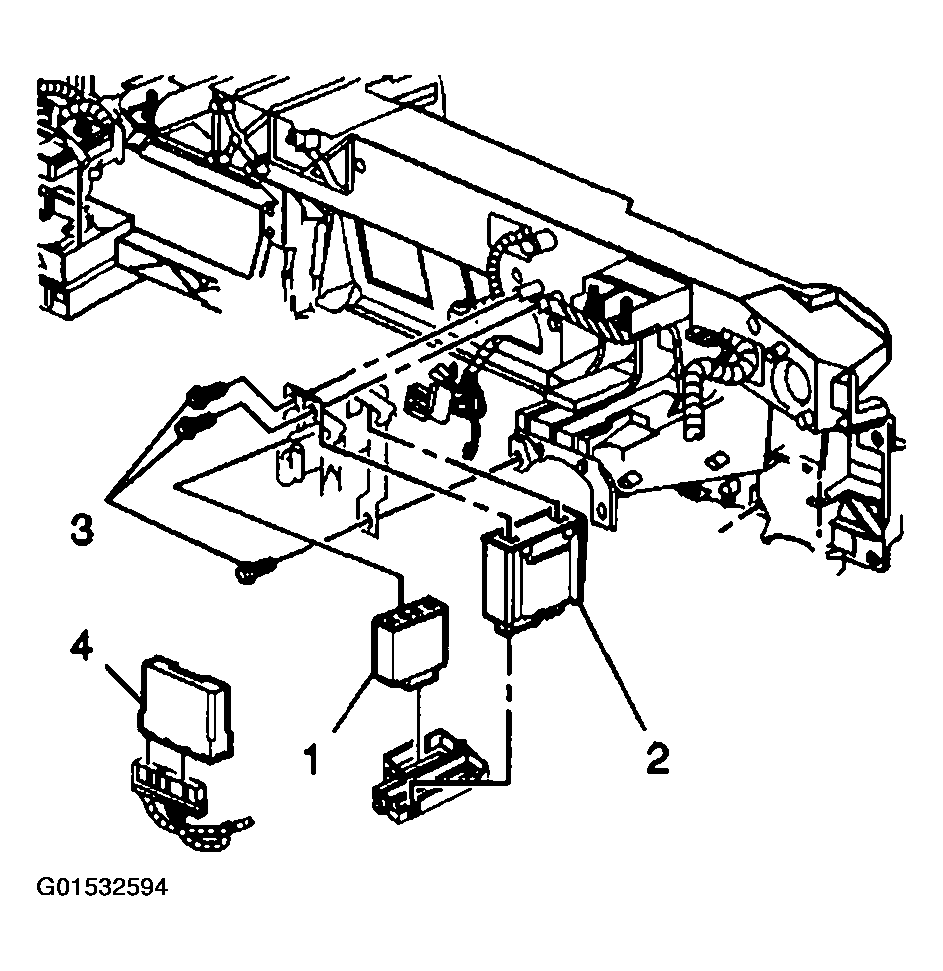

Fig 1: Connecting Electrical Connectors & Fasteners
Courtesy of GENERAL MOTORS CORP.
Reposition the heater A/C duct.
Install the fasteners (2) securing the heater A/C duct.

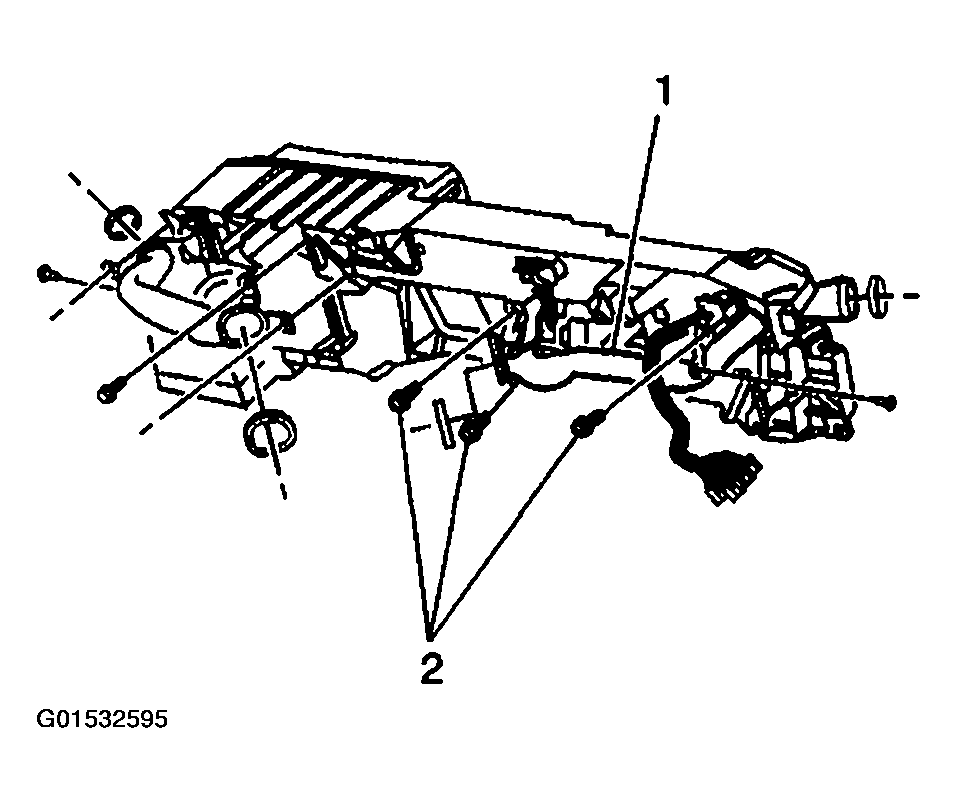

Fig 2: Installing Fasteners Securing Heater A/C Duct
Courtesy of GENERAL MOTORS CORP.
Install the lower IP trim panel. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.
