Keyless Entry System
›
Component Locator
›
Keyless Entry Component Views
Keyless Entry Component Views

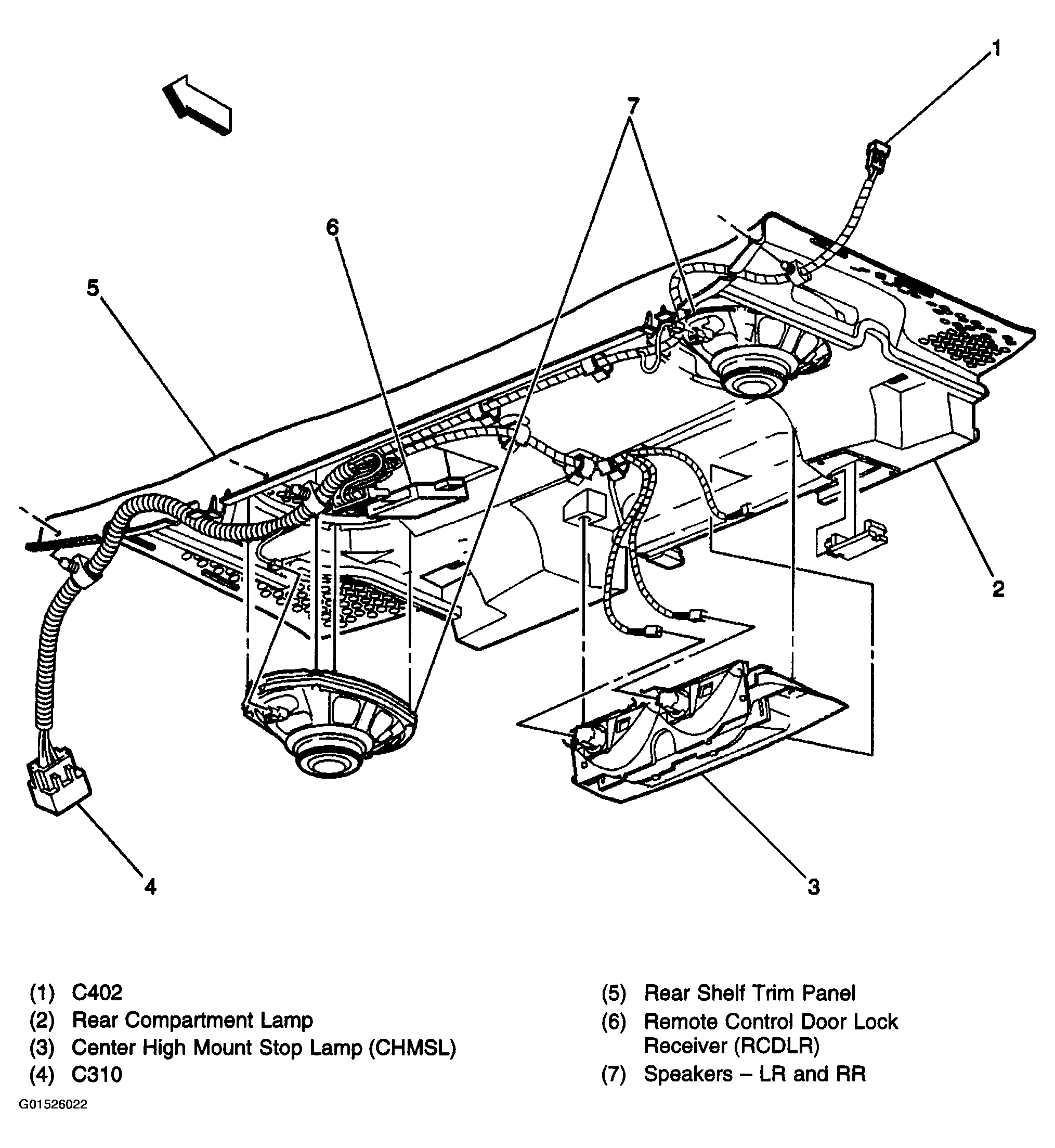

Fig 1: Rear Compartment, Below Rear Shelf Trim Panel
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
