Automatic Level Control Compressor Connector End View

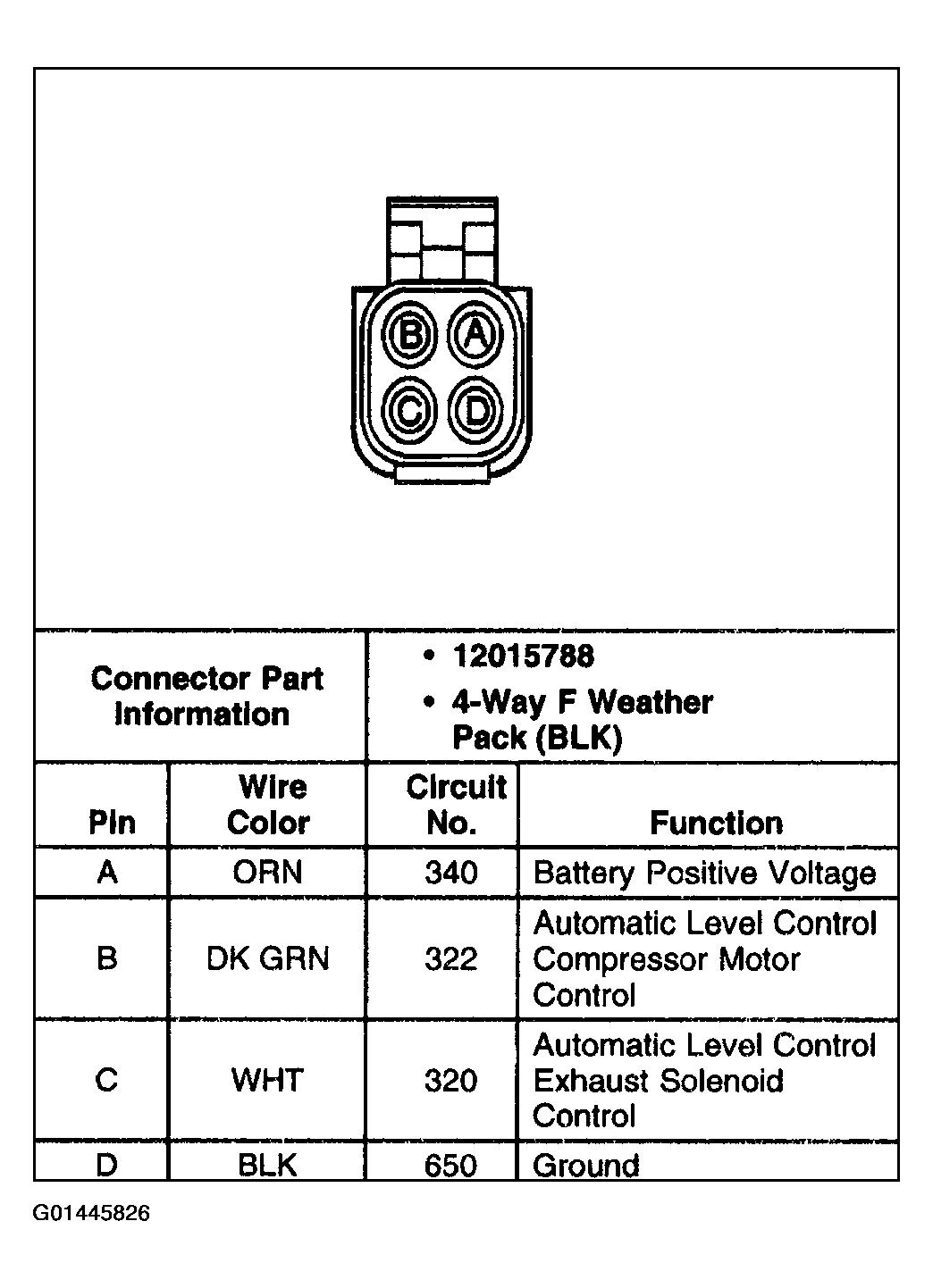

Fig 1: Automatic Level Control Compressor
G01445826Courtesy of GENERAL MOTORS CORP.
