Body Control Module Connector End View C2

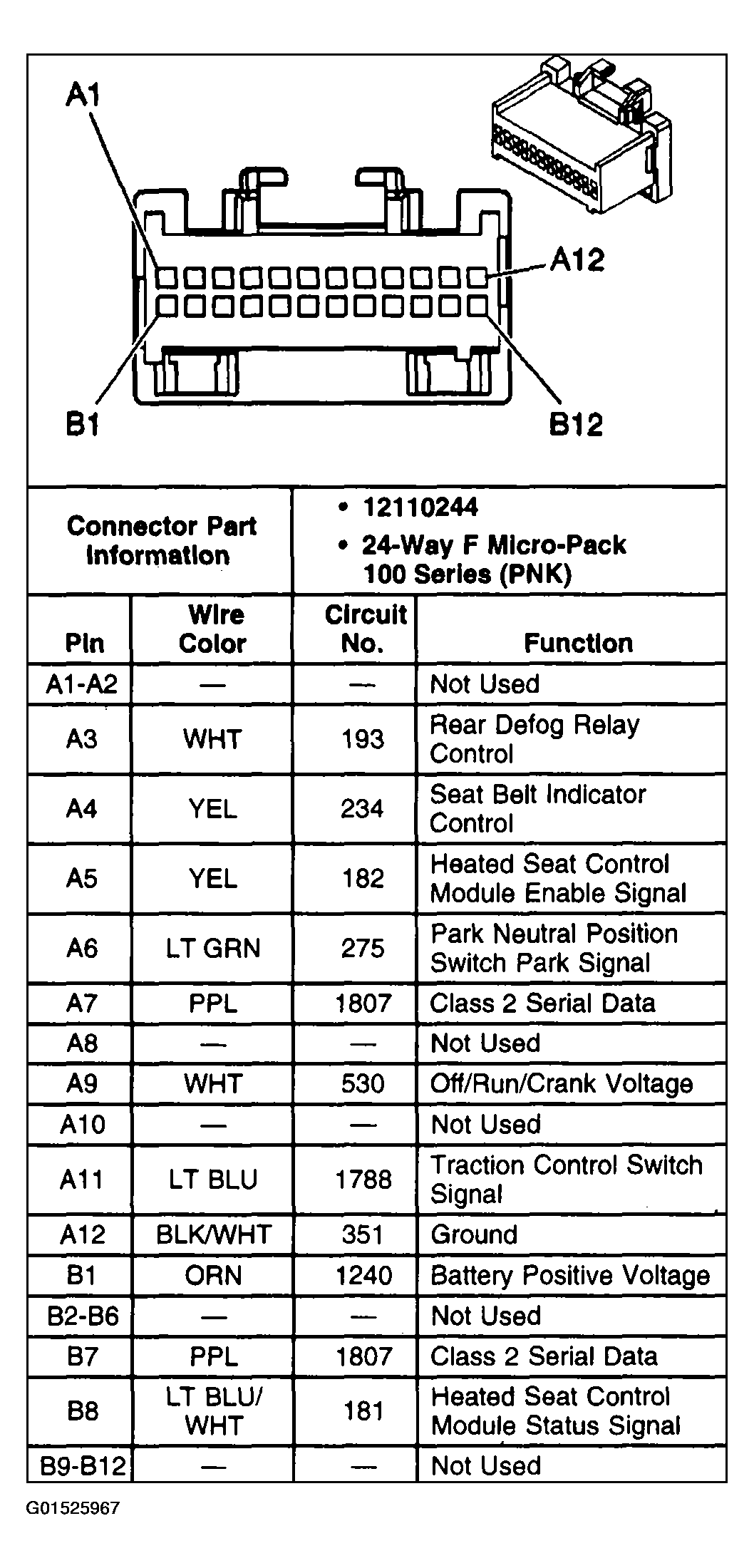

Fig 1: Body Control Module C2
G01525967Courtesy of GENERAL MOTORS CORP.
