Lamp Control Module Connector End View C1

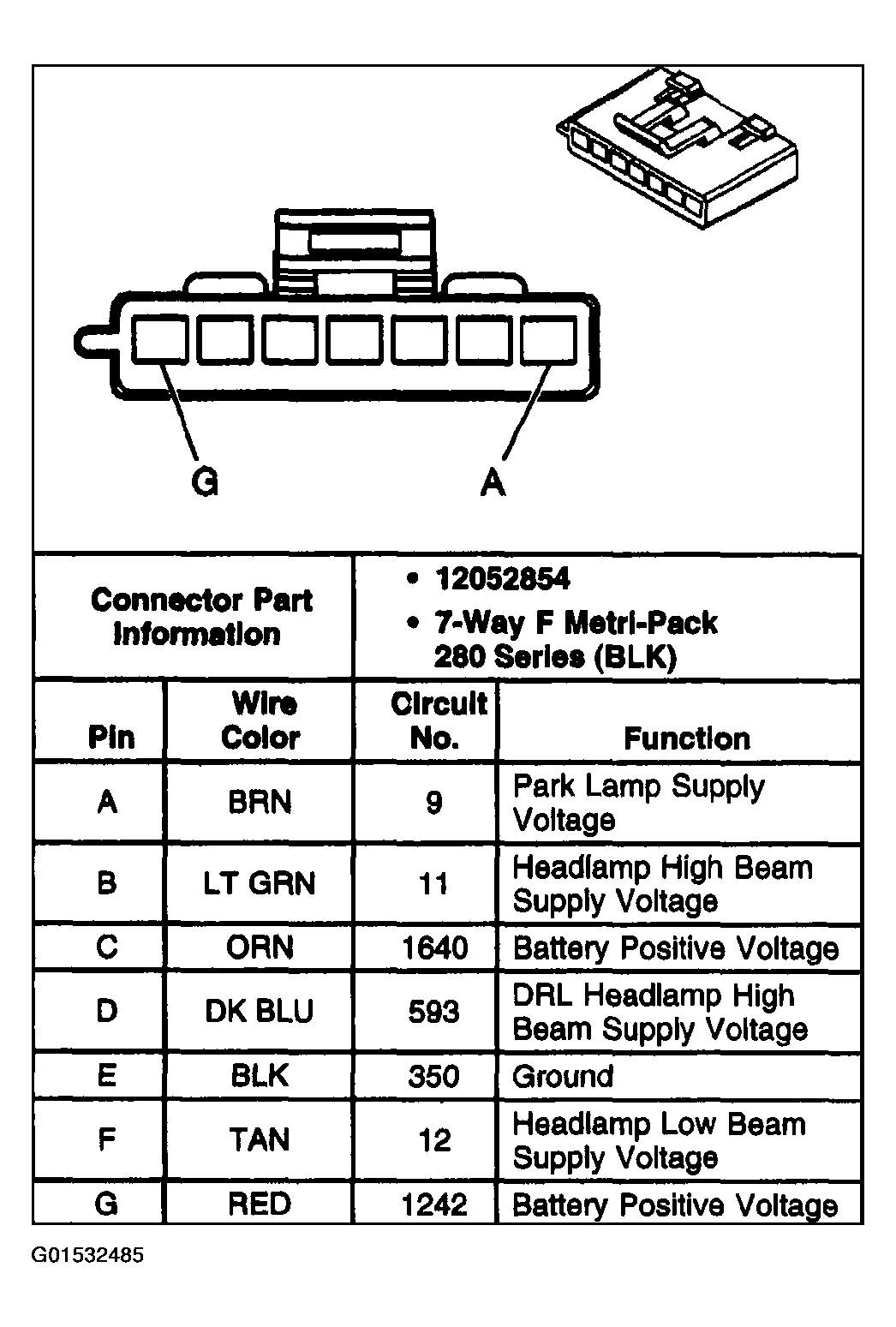

Fig 1: Lamp Control Module C1
G01532485Courtesy of GENERAL MOTORS CORP.
