Lamp Control Module Connector End View C2

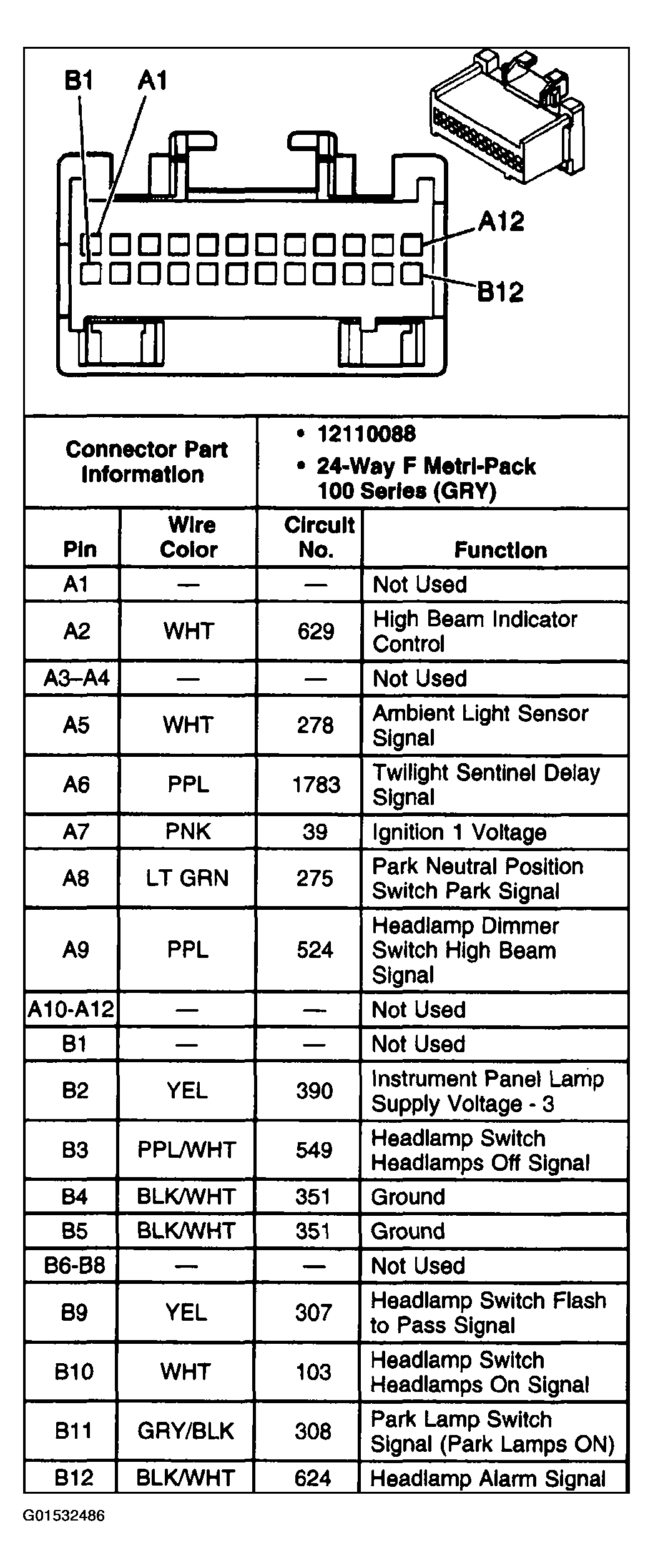

Fig 1: Lamp Control Module C2
G01532486Courtesy of GENERAL MOTORS CORP.
