IP Dimming Module Connector End View
IP Dimming Module Connector End View

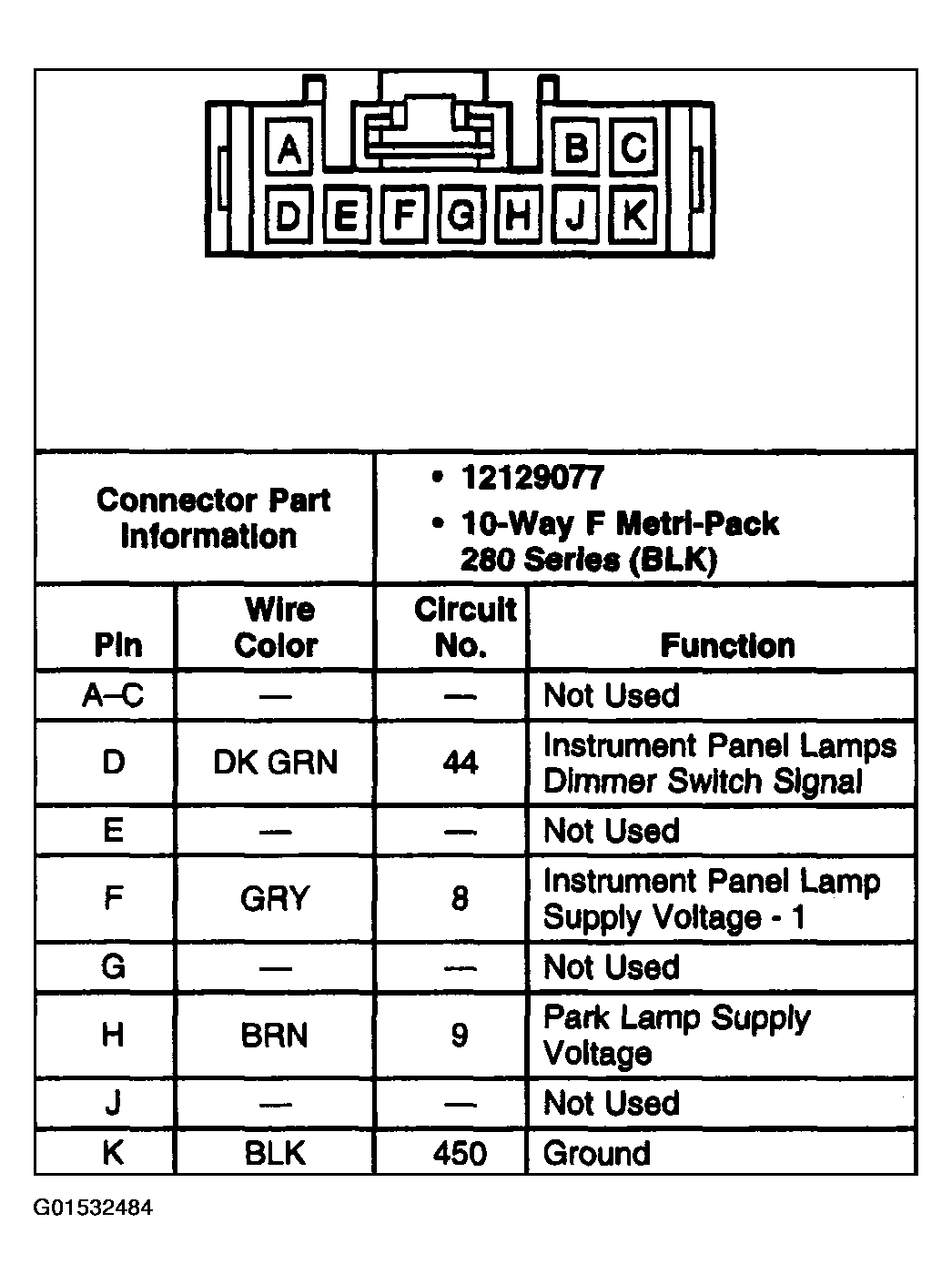

Fig 1: IP Dimming Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
