Removal Procedure

Remove the fuel injector site shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36) or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67) .

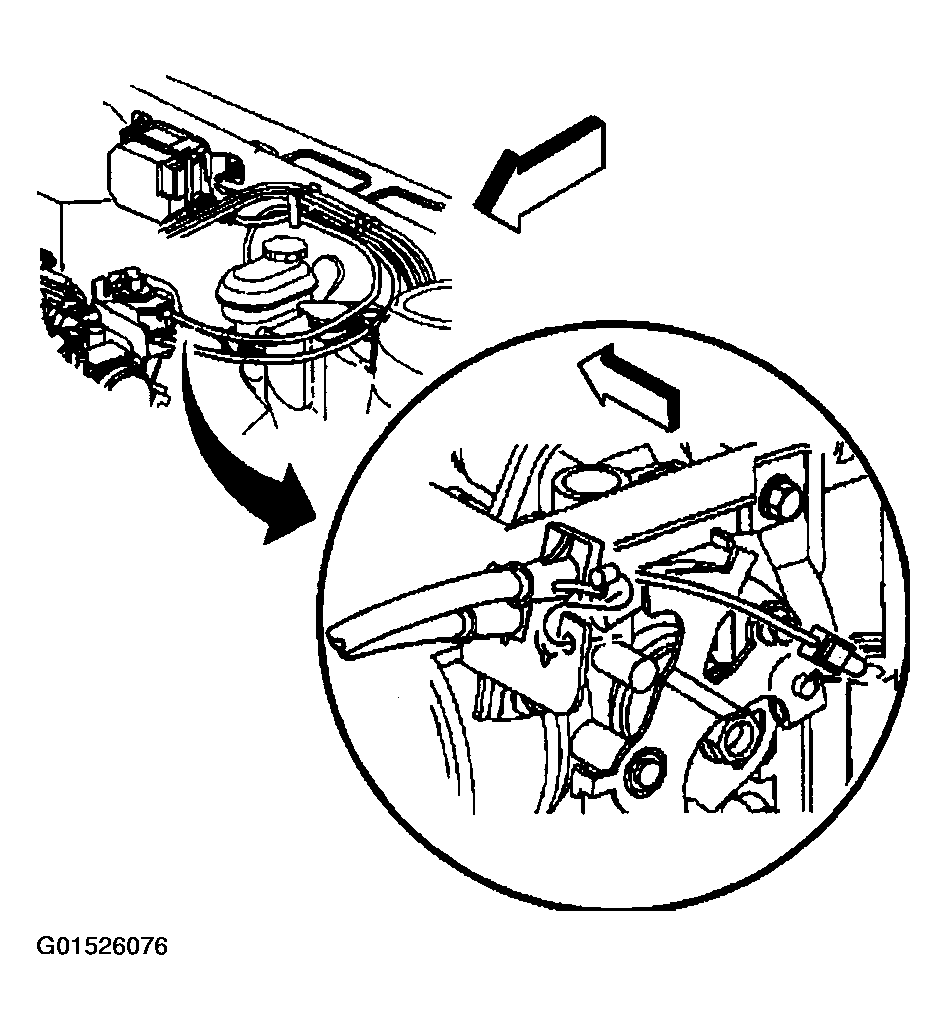

Push the lock release and remove the cruise control cable at the engine bracket and throttle body.

Fig 1: Removing Cruise Control Cable From Engine Bracket & Throttle Body
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable (1) and the connector (2) from the module assembly connector (3).

Fig 2: Disconnecting Cruise Control Cable & Connector From Module Assembly Connector
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the module assembly.

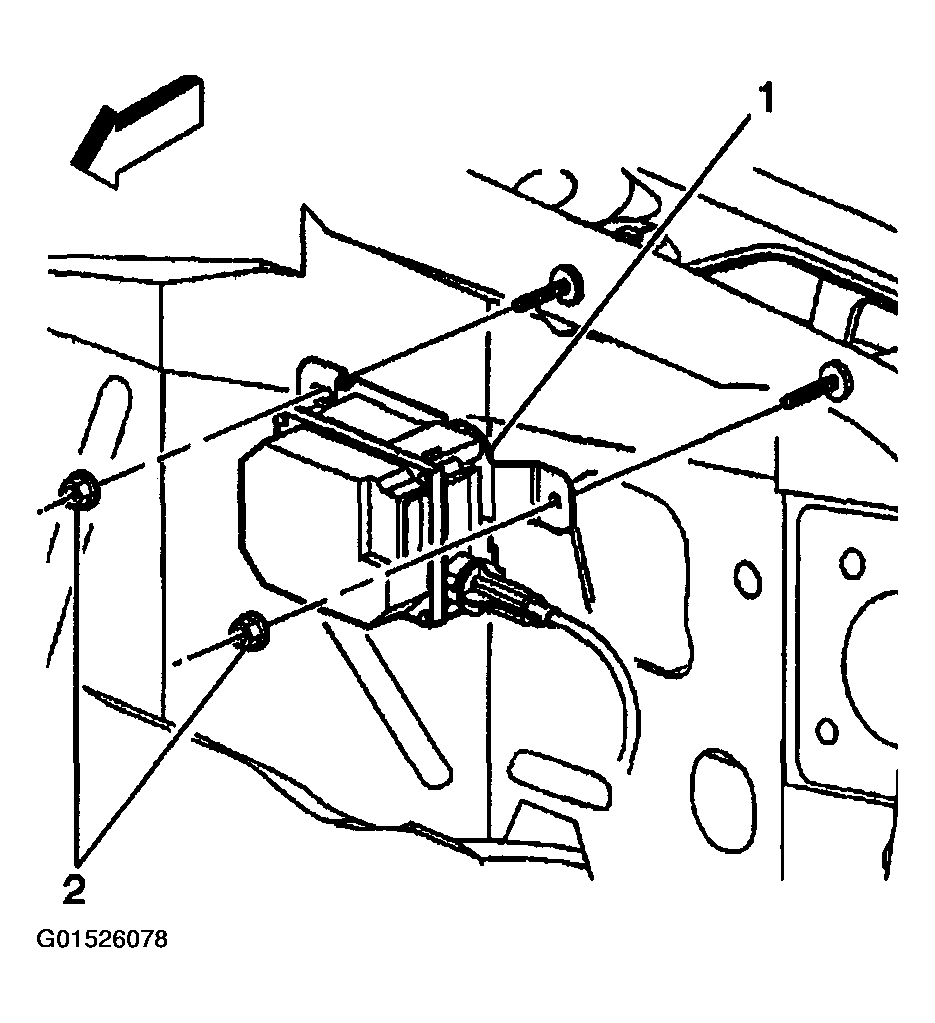

Remove the retaining nuts (2) and the module (1) from the mounting studs.

Fig 3: Removing Retaining Nuts & Module From Mounting Studs
Courtesy of GENERAL MOTORS CORP.

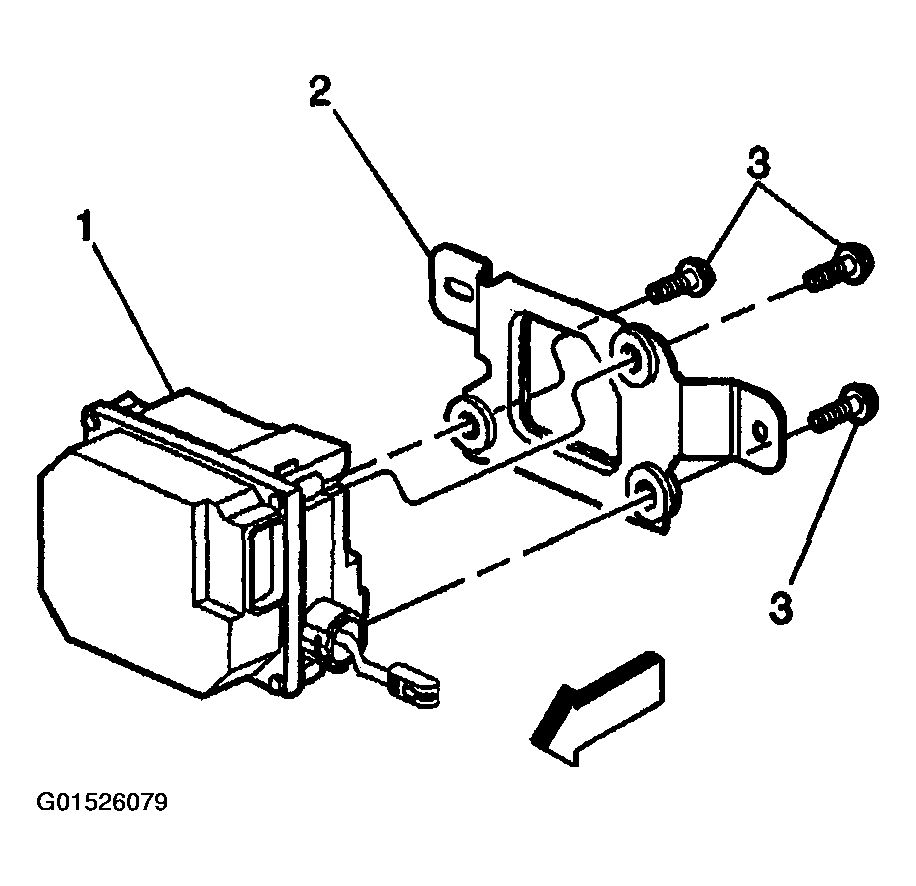

Remove the cruise control module bracket bolts (3) from the module bracket (2) and the module (1).

Fig 4: Removing Cruise Control Module From Module Bracket
Courtesy of GENERAL MOTORS CORP.
