Cellular Communication Connector End Views

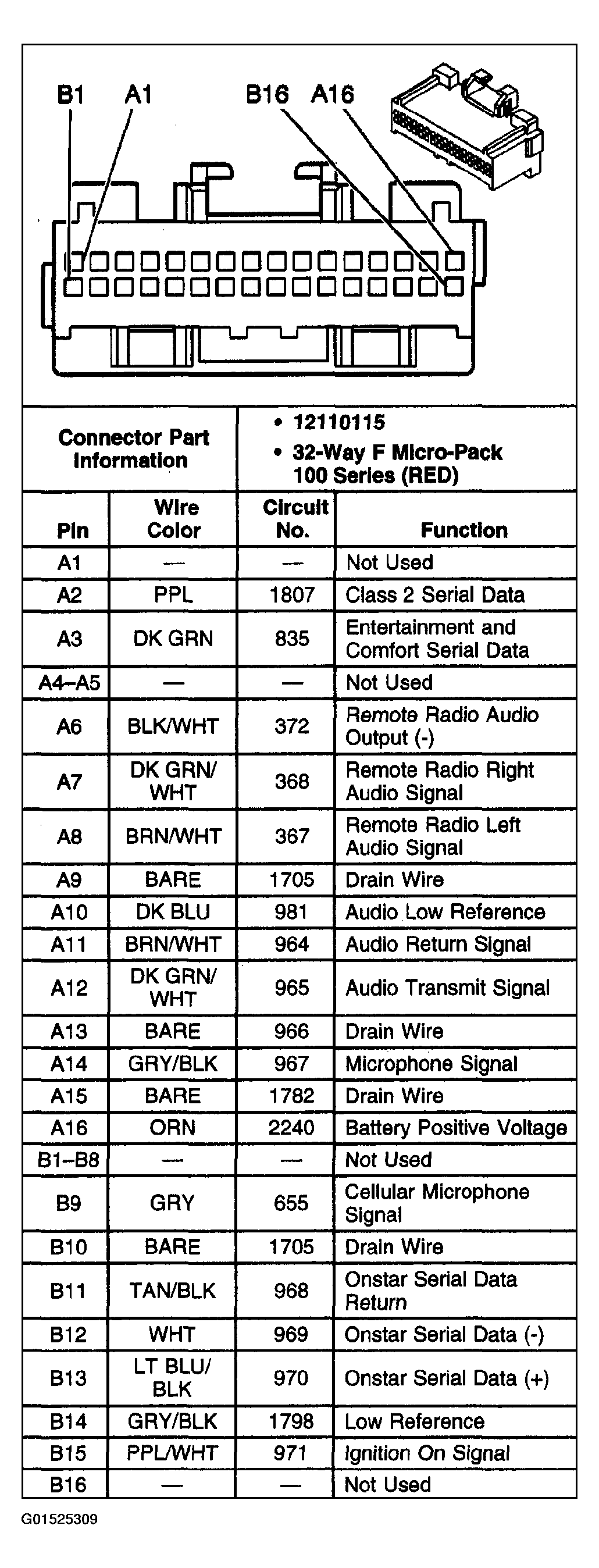

Fig 1: Vehicle Communication Unit

Courtesy of GENERAL MOTORS CORP.

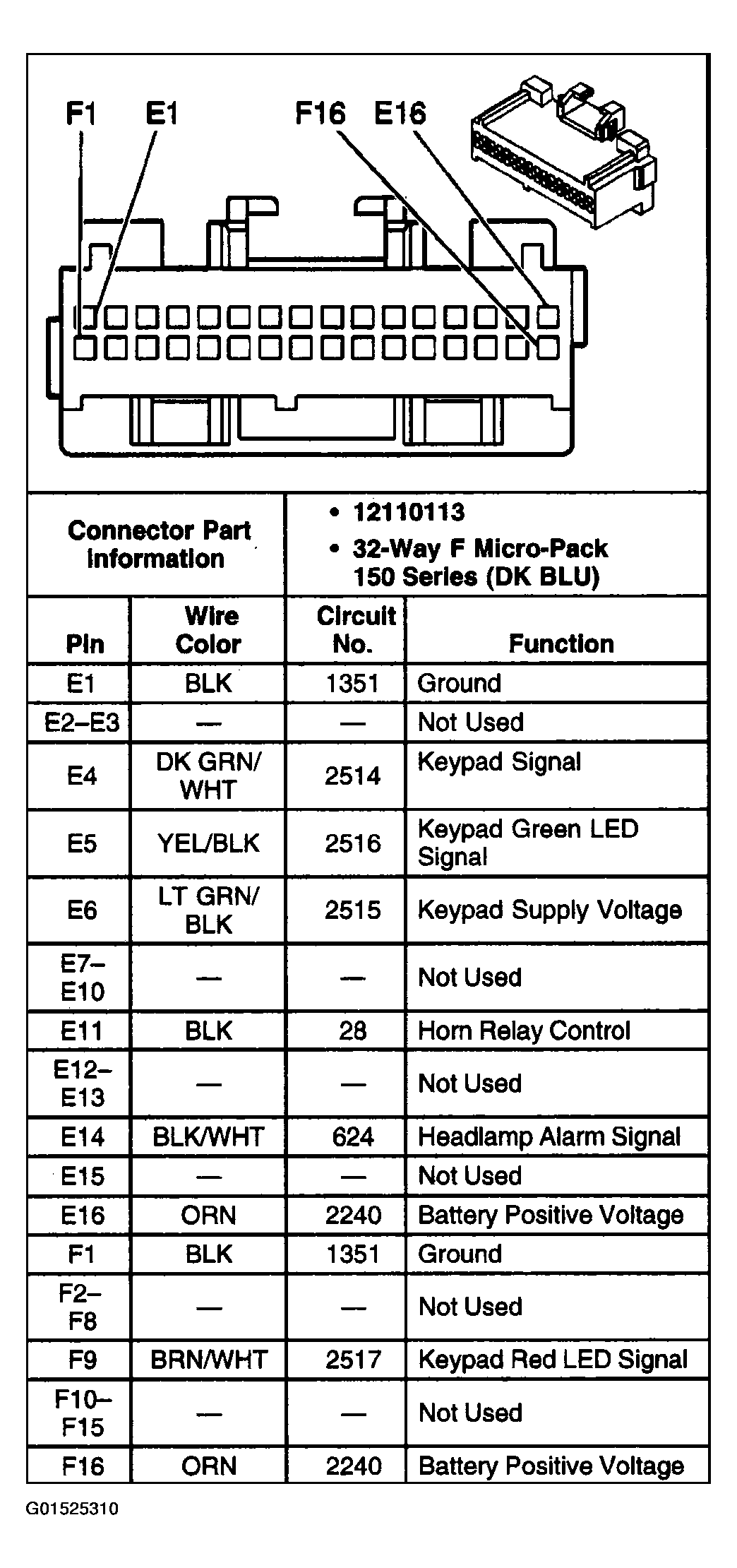

Fig 2: Vehicle Interface Unit C1

Courtesy of GENERAL MOTORS CORP.

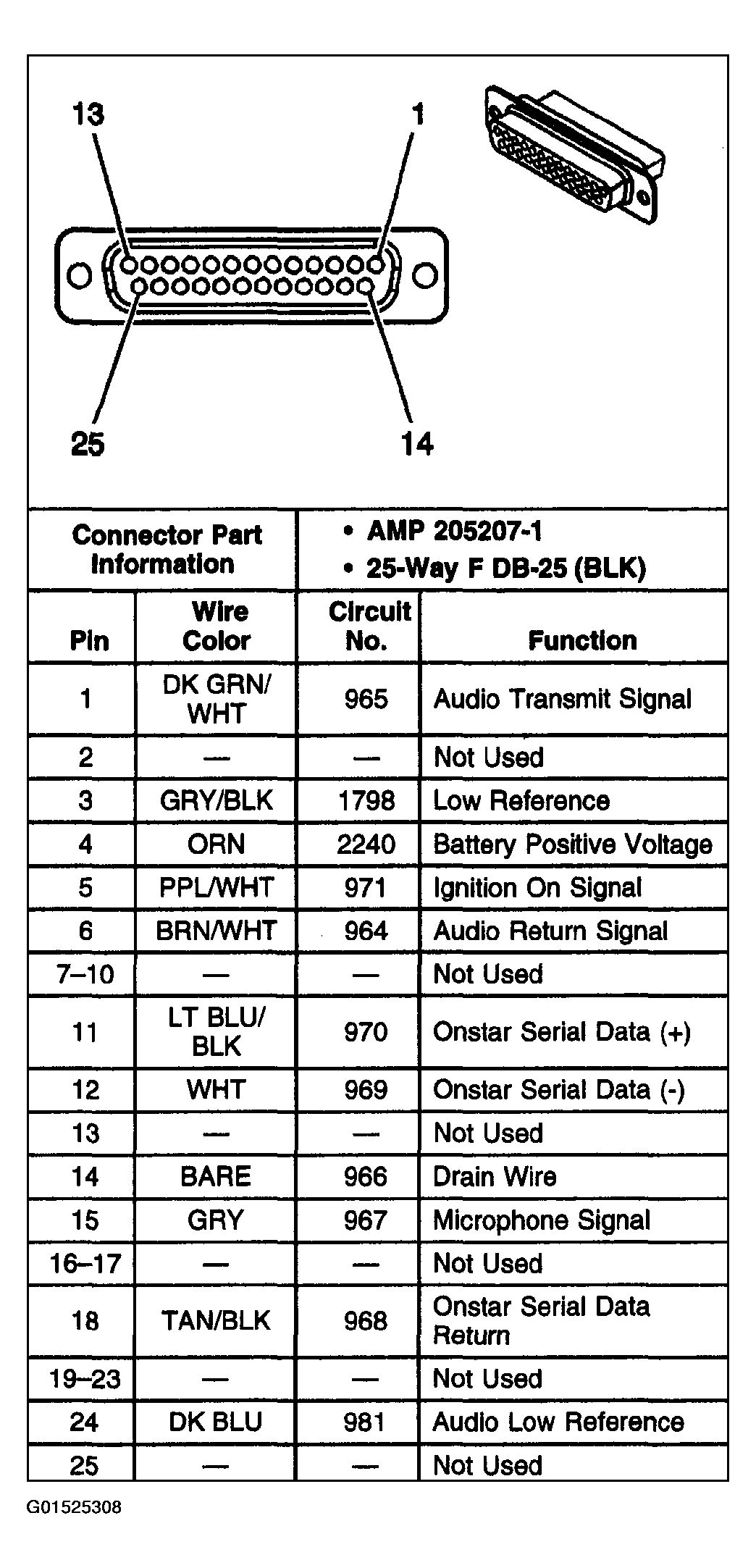

Fig 3: Vehicle Interface Unit C2

Courtesy of GENERAL MOTORS CORP.
