Keyless Entry Schematics

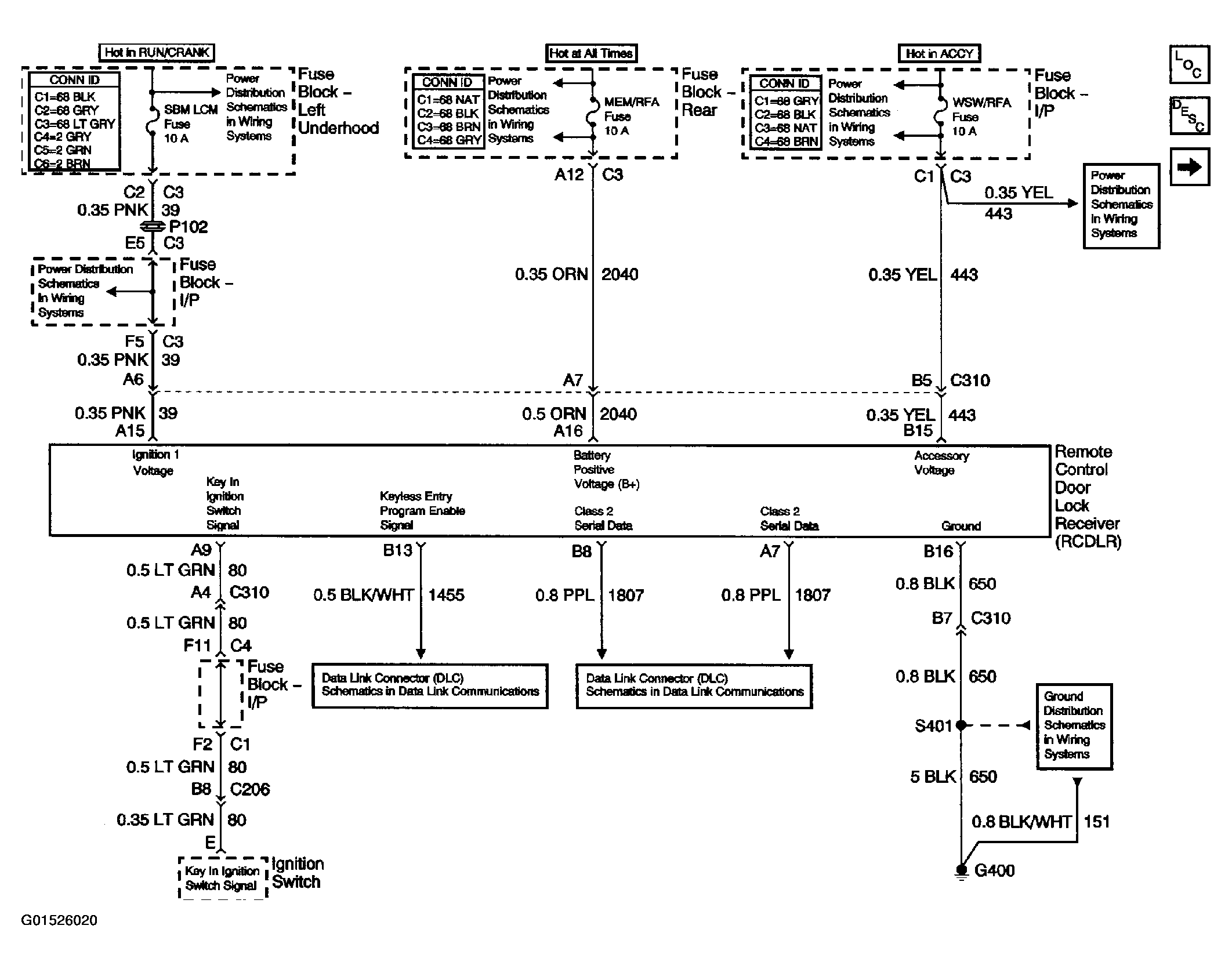

Fig 1: RCDLR Power, Ground And DLC
G01526020Courtesy of GENERAL MOTORS CORP.

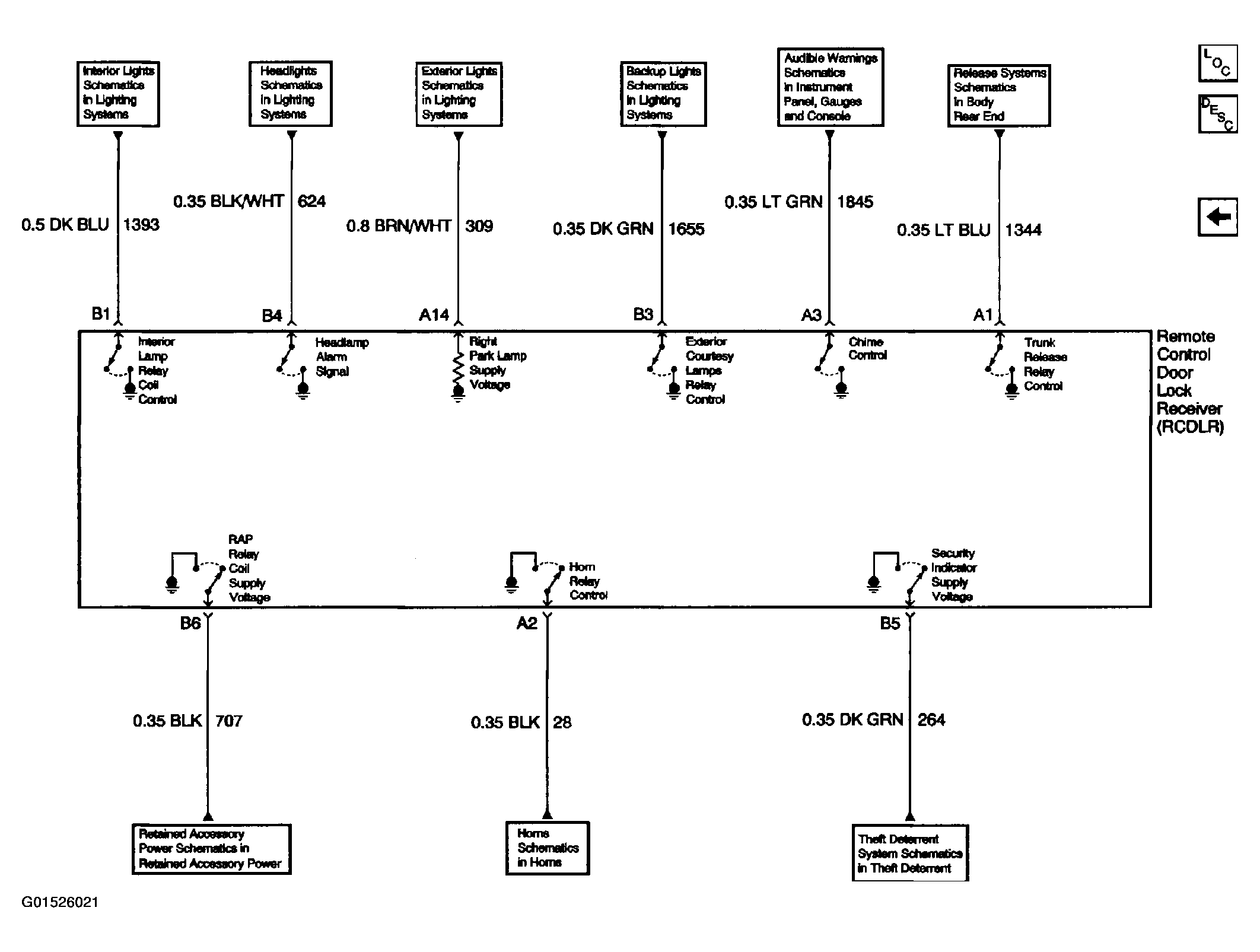

Fig 2: RCDLR Inputs And Outputs
G01526021Courtesy of GENERAL MOTORS CORP.
